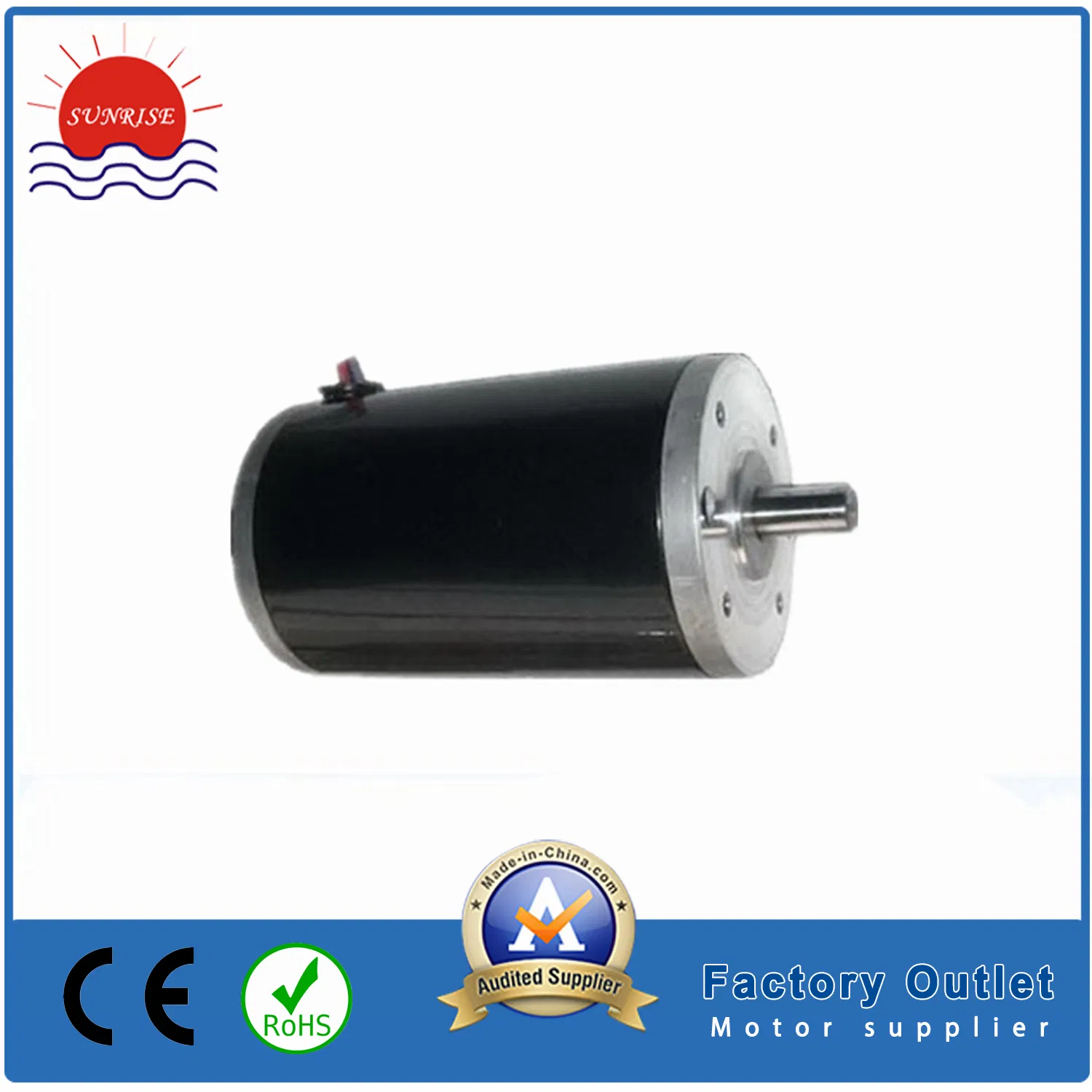

75zyt126- 4845 48V 0.7n. M 4000rpm Brushed Motor PMDC Motor
ModelVoltage(V DC)No LoadRated LoadLength(mm)Current(A)Speed(r/min)Torque(N.m)Current(A)Speed(r/min)75ZYT90-1240120.540000.15634009075ZYT110-244524145000.408.5400011075ZYT120-1224120.724000.4611210012075ZYT126-4845480.445000.78.54000126Special motors can be customized per your requirements.Encoder a......
Send Inquiry
Product Description
| Model | Voltage (V DC) | No Load | Rated Load | Length (mm) | |||
| Current (A) | Speed (r/min) | Torque (N.m) | Current (A) | Speed (r/min) | |||
| 75ZYT90-1240 | 12 | 0.5 | 4000 | 0.15 | 6 | 3400 | 90 |
| 75ZYT110-2445 | 24 | 1 | 4500 | 0.40 | 8.5 | 4000 | 110 |
| 75ZYT120-1224 | 12 | 0.7 | 2400 | 0.46 | 11 | 2100 | 120 |
| 75ZYT126-4845 | 48 | 0.4 | 4500 | 0.7 | 8.5 | 4000 | 126 |
Special motors can be customized per your requirements.
Encoder and gear box can be fixed.
