57mm 36V 47W DC Brushless Motor for Textile Industry
BLDC Servo Motor for Textile IndustryTypical applications:Textile industry, printing industry, advertising lamp box, medical apparatus and instruments.detail datas can be adjusted according to custom request.DC Brushless motor can add planety gearbox,surp gearbox,encoder,holl.We also can supply matc......
Send Inquiry
Product Description
Typical applications:
Textile industry, printing industry, advertising lamp box, medical apparatus and instruments.
detail datas can be adjusted according to custom request.
DC Brushless motor can add planety gearbox,surp gearbox,encoder,holl.
We also can supply matched driver,power and so on.
| Model | Rated Power | Rated Voltage | Current | Number of Poles | Rated Speed | Rated Torque | Peak Torque | Moment Constant | L | Weight |
| W | VDC | A | rpm | N.m | N.m | N.m/A | mm | kg | ||
| 57BLF3A50-240 | 62 | 24 | 3.4 | 8 | 3000 | 0.2 | 0.6 | 0.056 | 61 | 0.55 |
| 57BLF3A70-240 | 125 | 24 | 4.6 | 8 | 3000 | 0.4 | 1.2 | 0.056 | 82 | 0.90 |
| 57BLF3A90-240 | 180 | 24 | 5.2 | 8 | 3000 | 0.6 | 1.8 | 0.056 | 103 | 1.25 |

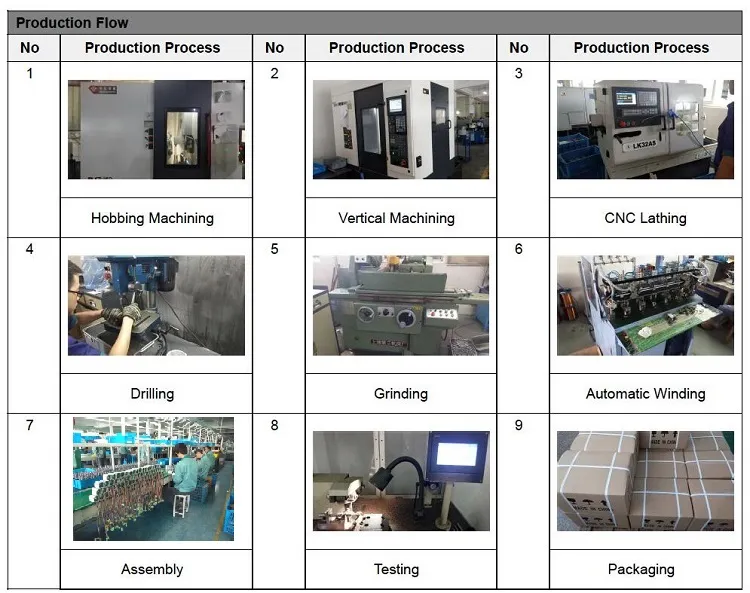

2.Production Flow

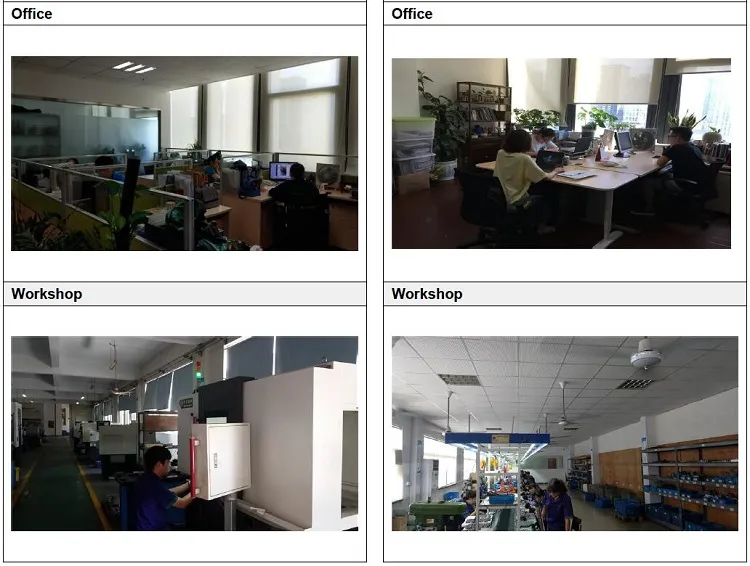

3.Company Information
In recent ten years, derry motor has been dedicated to the manufacture of the motor products and the main products can be classified into the following series, namely DC motor, DC gear motor, AC motor, AC gear motor, Stepper motor, Stepper gear motor, Servo motor and Linear actuator series.
Our motor products are widely applied in the fields of aerospace industry, automotive industry, financial equipment, household appliance, industrial automation and robotics, medical equipment, office equipment, packing machinery and transmission industry, offering customers reliable tailored solutions for driving and controlling.
4.Our Services
1). General Service:
Quick Reply | All enquiry or email be replied in 12 hours, no delay for your business. |
Professional Team | Questions about products will be replied professionally, exactly, best advice to you. |
Short Lead time | Sample or small order sent in 7-15 days, bulk or customized order about 30 days. |
Payment Choice | T/T, Western Union,, L/C, etc, easy for your business. |
Before shipment | Take photos, send to customers for confirmation. Only confirmed, can be shipped out. |
Language Choice | Besides English, you can use your own language by email, then we can translate it. |
2). Customization Service:Motor specification(no-load speed , voltage, torque , diameter, noise, life, testing) and shaft length can be tailor-made according to customer's requirements.
5.Package & Shipping
