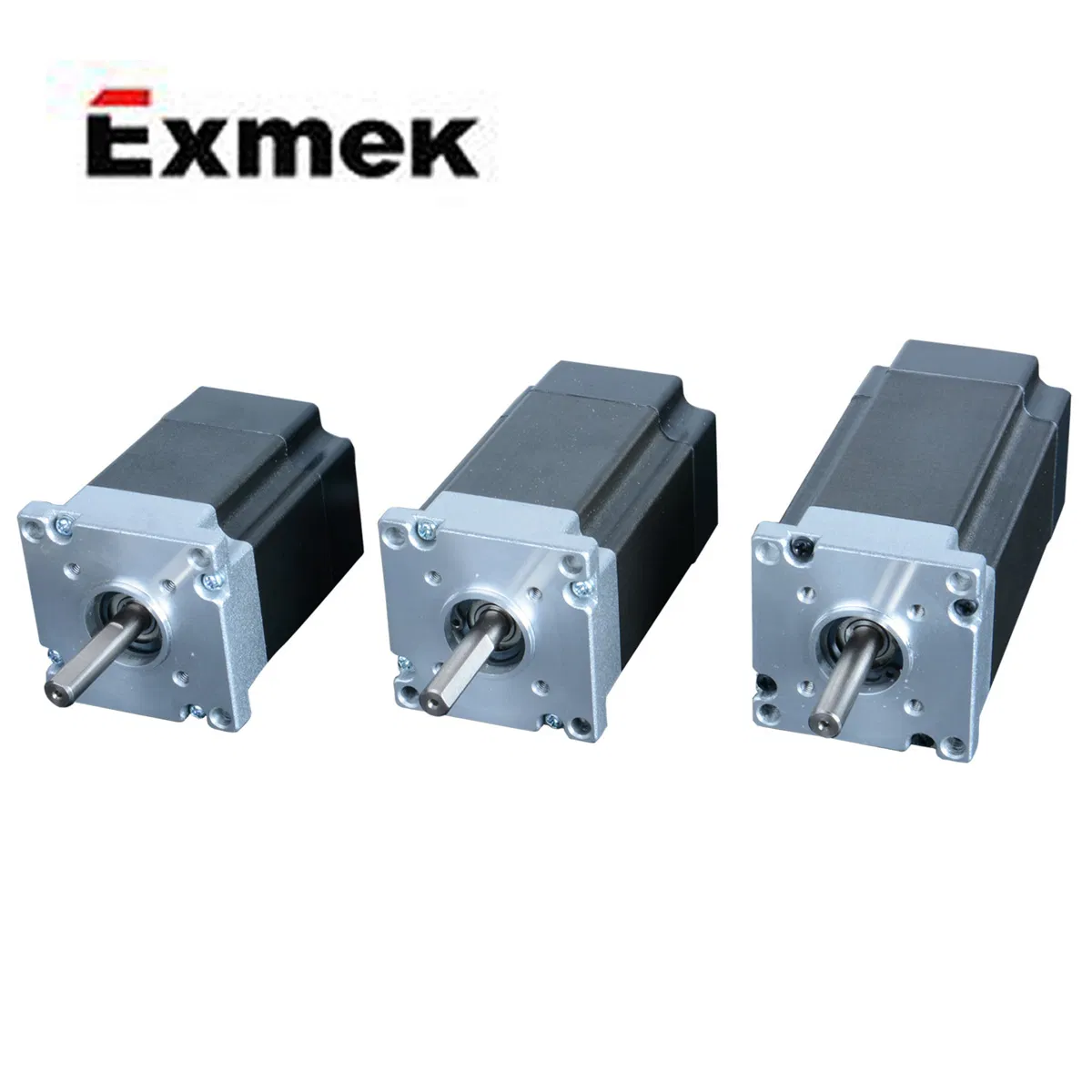

56mm DC Brushless Motor with 36V 47W (MDB56GS100)
General informationNEMA 23 frame size8 poles with three phasesInsulation class B, higher insulation class on requestBonded Neo MagnetHigher Output Torque with economical designSpecificationsSpecification MDB56GS100 Supply Voltage(reference) 36 Vdc Rated continuous torque 0.15 Nm Rated Speed at Cont.......
Send Inquiry
Product Description
General information
Mechanical
Characteristic diagram
- NEMA 23 frame size
- 8 poles with three phases
- Insulation class B, higher insulation class on request
- Bonded Neo Magnet
- Higher Output Torque with economical design
| Specification | MDB56GS100 |
| Supply Voltage(reference) | 36 Vdc |
| Rated continuous torque | 0.15 Nm |
| Rated Speed at Cont. Torque | 3000 rpm |
| Rated continuous stall current | 2 A |
| Rated continuous output power | 47 W |
| Rated peak torque | 0.37 Nm |
| Rated peak current | 4.5 A |
| Torque constant | 0.0833 Nm/A |
| Voltage constant | 8.72 V/krpm |
| Terminal resistance | 2.25 Ω |
| Inductance | 2.75 mH |
| Insulation class | B |
| Rotor inertia | 1.23E-05 Kg.m² |
| Motor weight | 0.5 Kg |
| Motor length | 56 mm |

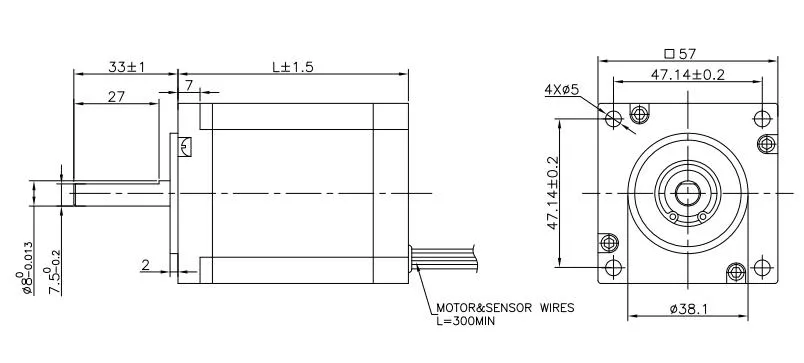

Mechanical

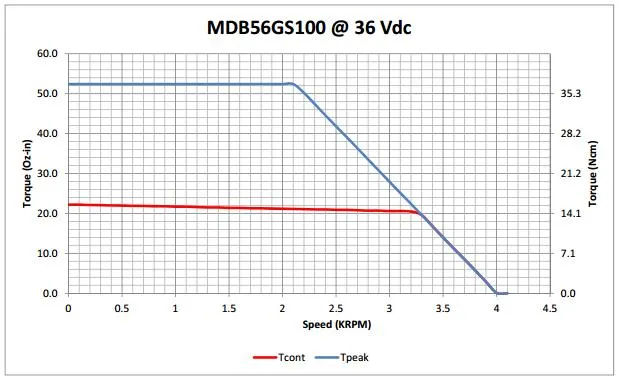

Characteristic diagram
