Product Description
56mm cylindrical DC 24V High torque Low noise Planetary Geared Motor
1)Product Description:
1°size:Diameter 56mm
2°lifespan:1000 hours
3°gear material: plastic or brass
4°IP rate:IP54
2)Motor Specification:
| Basic information | |
| Product name | PG56ZY58243000-995K |
| Motor type | carbon-brush commutator |
| Gear type | Straight gearwheel,planet construction |
| Housing material | Steel |
| Geartrain material | Steel and Powdered Metal,POM optional |
| Bearing at output shaft | Ball bearing |
| Lubricant | Grease for high-low temperature, -62°...+204° |
| Backlash at no-load | <1°,Min0.3° |
| OEM & ODM Service | Available |
| Certificate | CE,ROHS,ISO/TS16949 |
| An exact model of gearbox and motor combination | |
| Product seires | PG56 series |
| An exact Model NO. | PG56ZY58243000-995K |
| Motor Voltage(VDC) | 24 |
| Motor no load speed(rpm) | 3000 |
| Gearbox reduction ratio | 995:1 |
| Gearmotor no load current(A) | <1.200 |
| Gearmotor no load speed(rpm) | 3±10% |
| Gearmotor rated load torque(kgf.cm) | 323 |
| Gearmotor rated current(A) | <6.500 |
| Gearmotor rated load speed(rpm) | 2.6±10% |
| Noise (DB) | <60DB |
| Lifetime | 1000+ hours (varies by application) |
| Rotation | CW/CCW reversible |

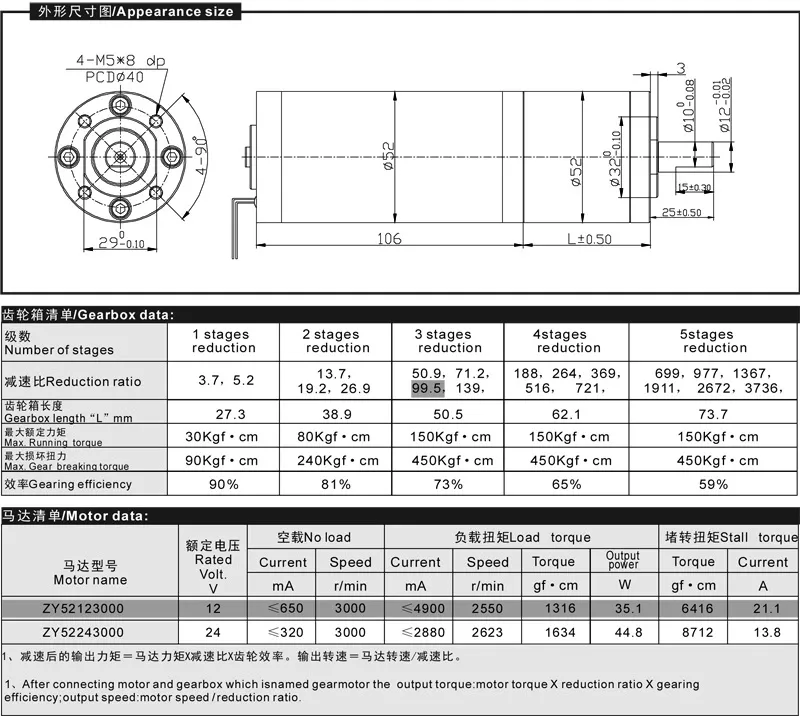

3)Drawing of Motor:

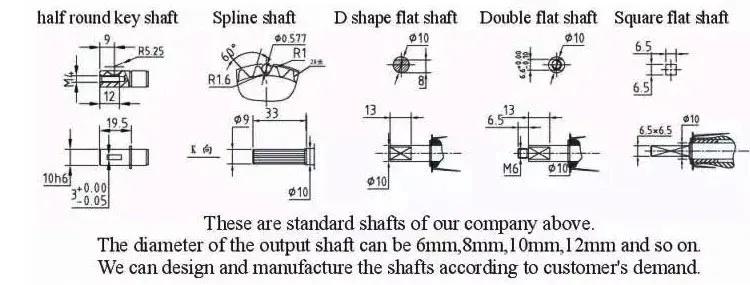

4)Drawing of shaft opinion:
3)Packing details:

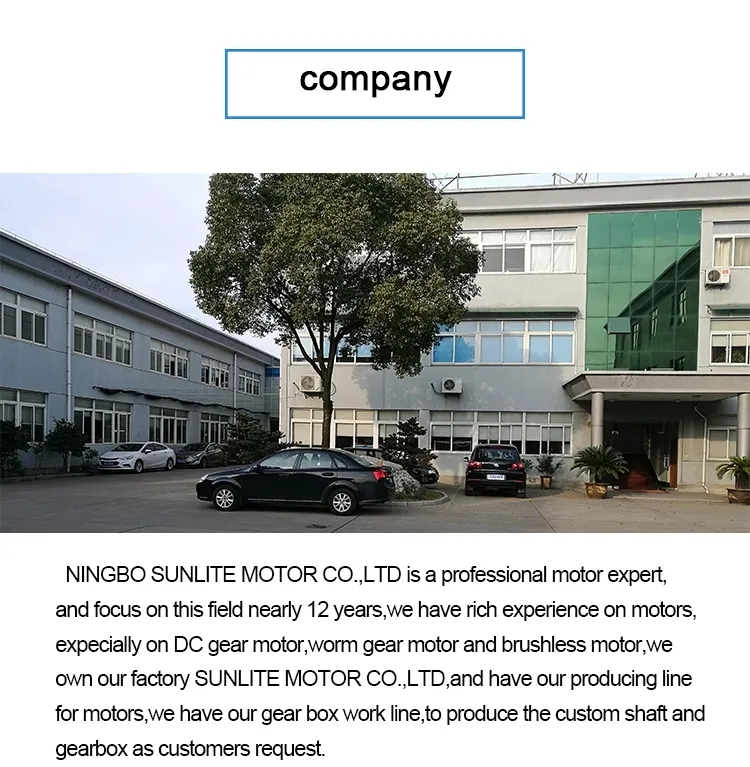

4)Factory show:
5)Transfer way:

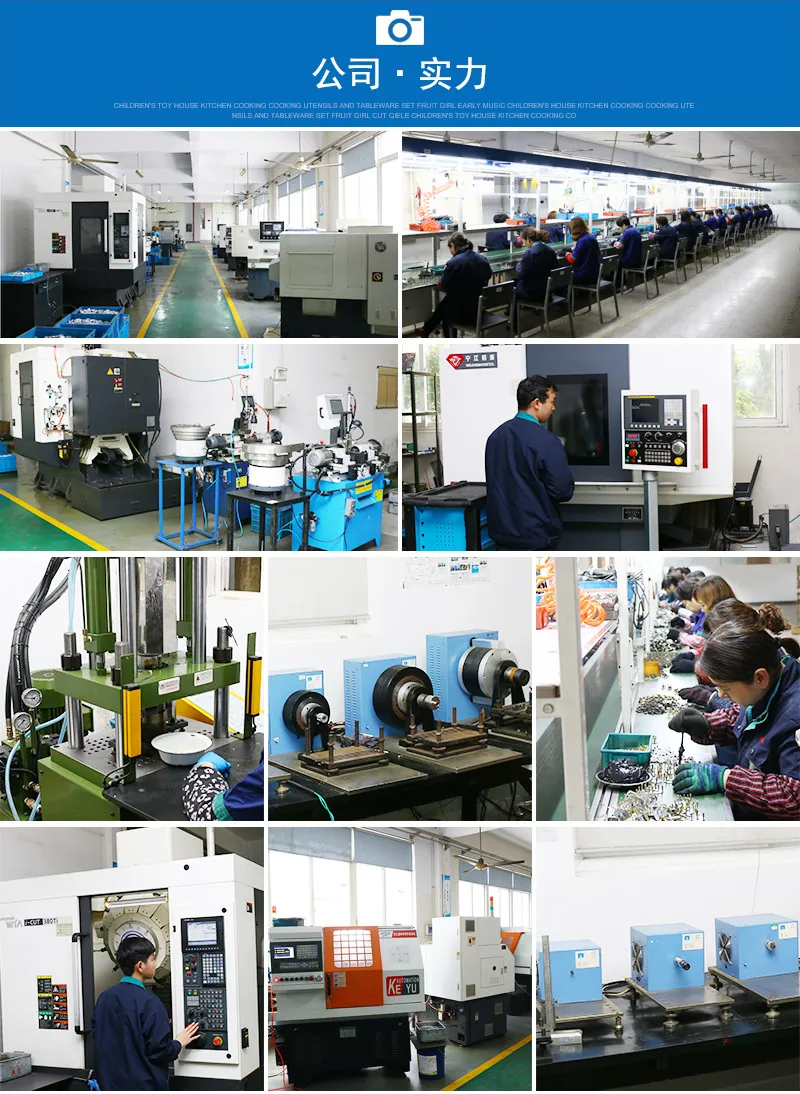

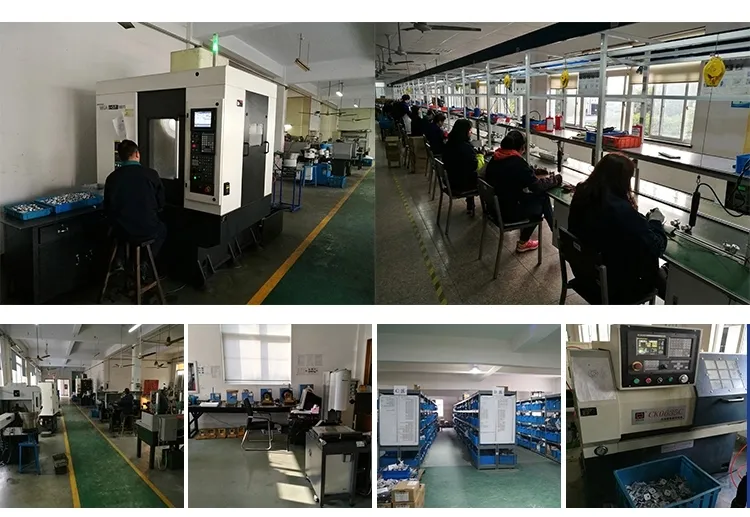

6)Workshop:
7)FAQ:
Q: Are you trading company or manufacturer ?
A: We are Integration of industry and trade, with over 20 years experience in DC worm gear motor. Our company have accumulated skilled production line, complete management and powerful research support, which could match all of the customers' requirements and make them satisfaction.
Q: What is your main product?
-DC Motor: Gear motor, Square motor, Stepped motor, and Micro motor-Welding equipment: Wire feeder, Welding rod, Welding Torch, Earth clamp, Electrode holder, and Rectifier
Q: What if I don't know which DC motor I need?
A: Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Q: How to delivery:
A: By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
By air - Buyer offer collect express account, or our sales team find suitable express for buyers. (Mostly for sample)
Others - Actually,samples send by DHL,UPS, TNT and Fedex etc. We arrange to delivery goods to some place from China appointed by buyers.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
