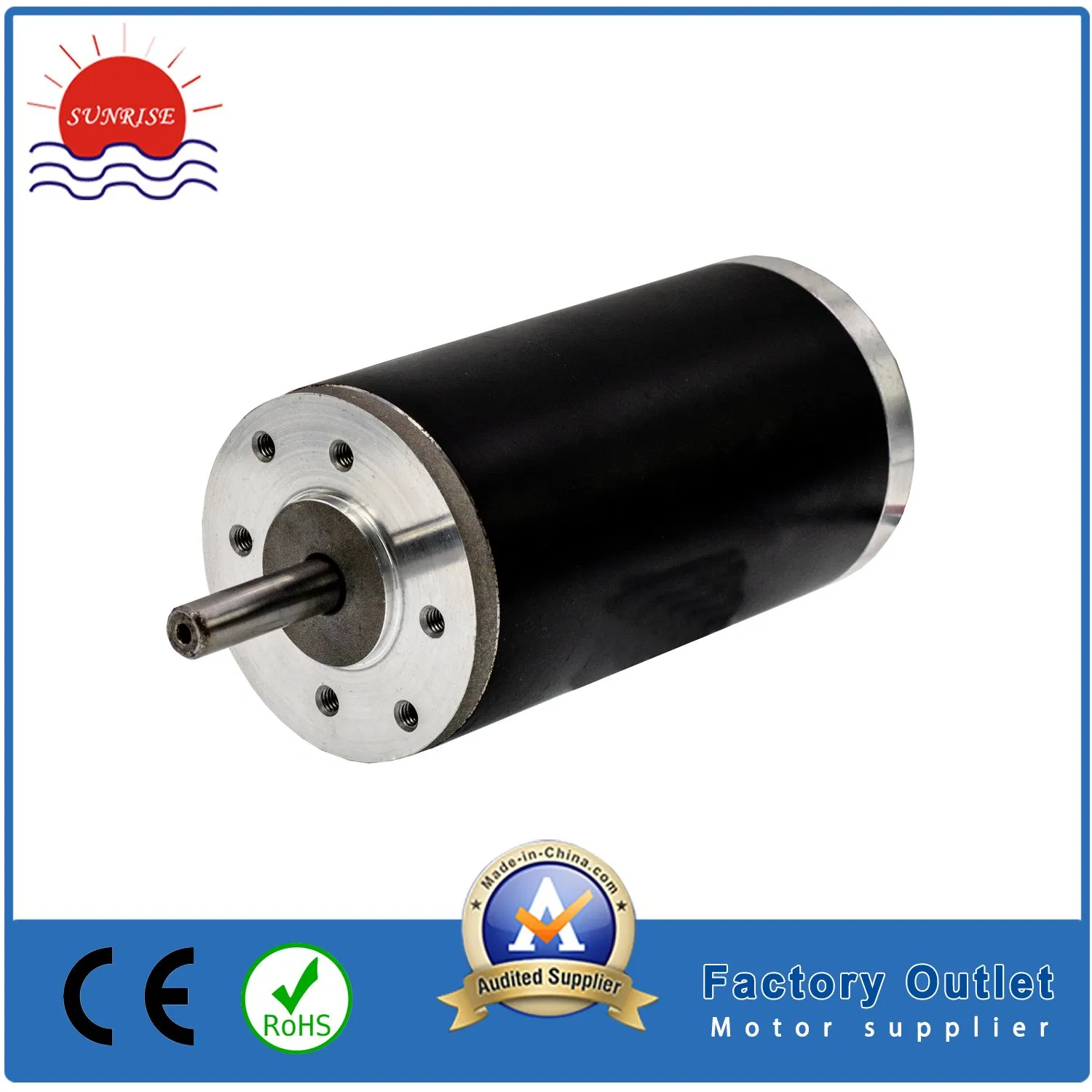

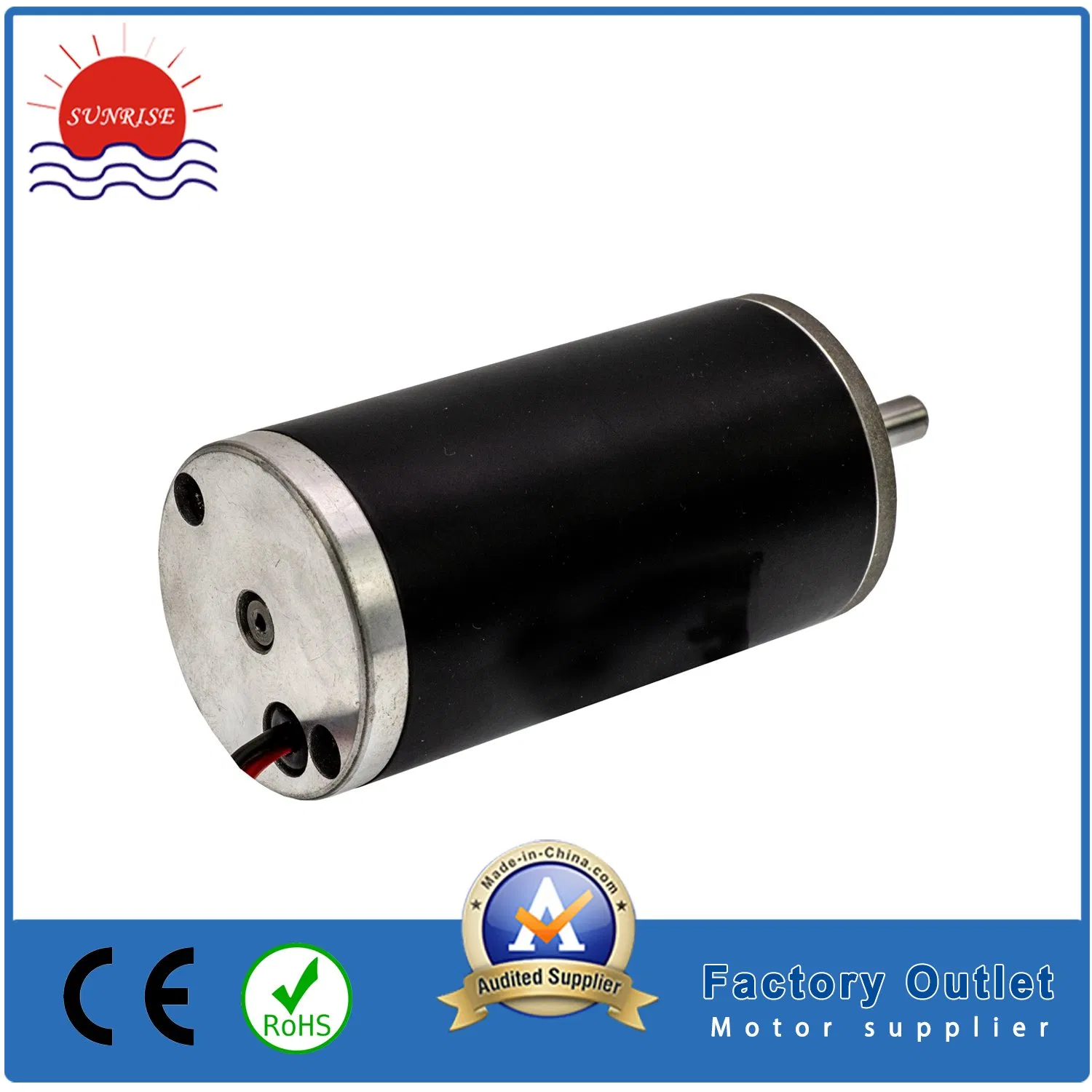

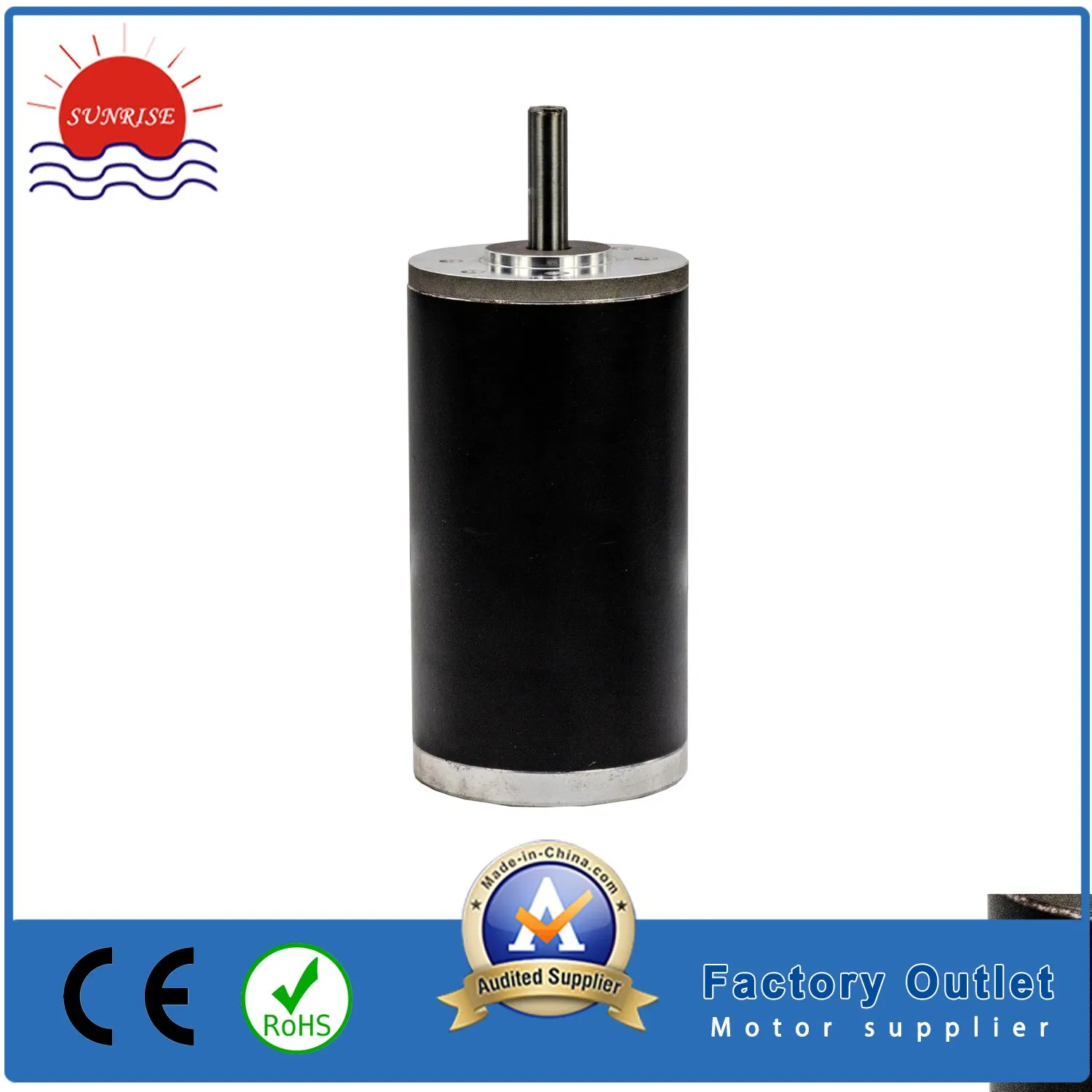

54zyt145-2432 24VDC 0.35n. M Brushed Motor DC Motor PMDC Motor Sunrise Motor
ModelVoltage(V DC)No LoadRated LoadLength(mm)Current(A)Speed(r/min)Torque(N.m)Current(A)Speed(r/min)54ZYT82-2440240.340000.12.333008254ZYT114-2430240.330000.223.5250011454ZYT145-2432240.332000.3562700145Special motors can be customized per your requirements.Encoder and gear box can be fixed.
Send Inquiry
Product Description
| Model | Voltage (V DC) | No Load | Rated Load | Length (mm) | |||
| Current (A) | Speed (r/min) | Torque (N.m) | Current (A) | Speed (r/min) | |||
| 54ZYT82-2440 | 24 | 0.3 | 4000 | 0.1 | 2.3 | 3300 | 82 |
| 54ZYT114-2430 | 24 | 0.3 | 3000 | 0.22 | 3.5 | 2500 | 114 |
| 54ZYT145-2432 | 24 | 0.3 | 3200 | 0.35 | 6 | 2700 | 145 |
Special motors can be customized per your requirements.
Encoder and gear box can be fixed.
