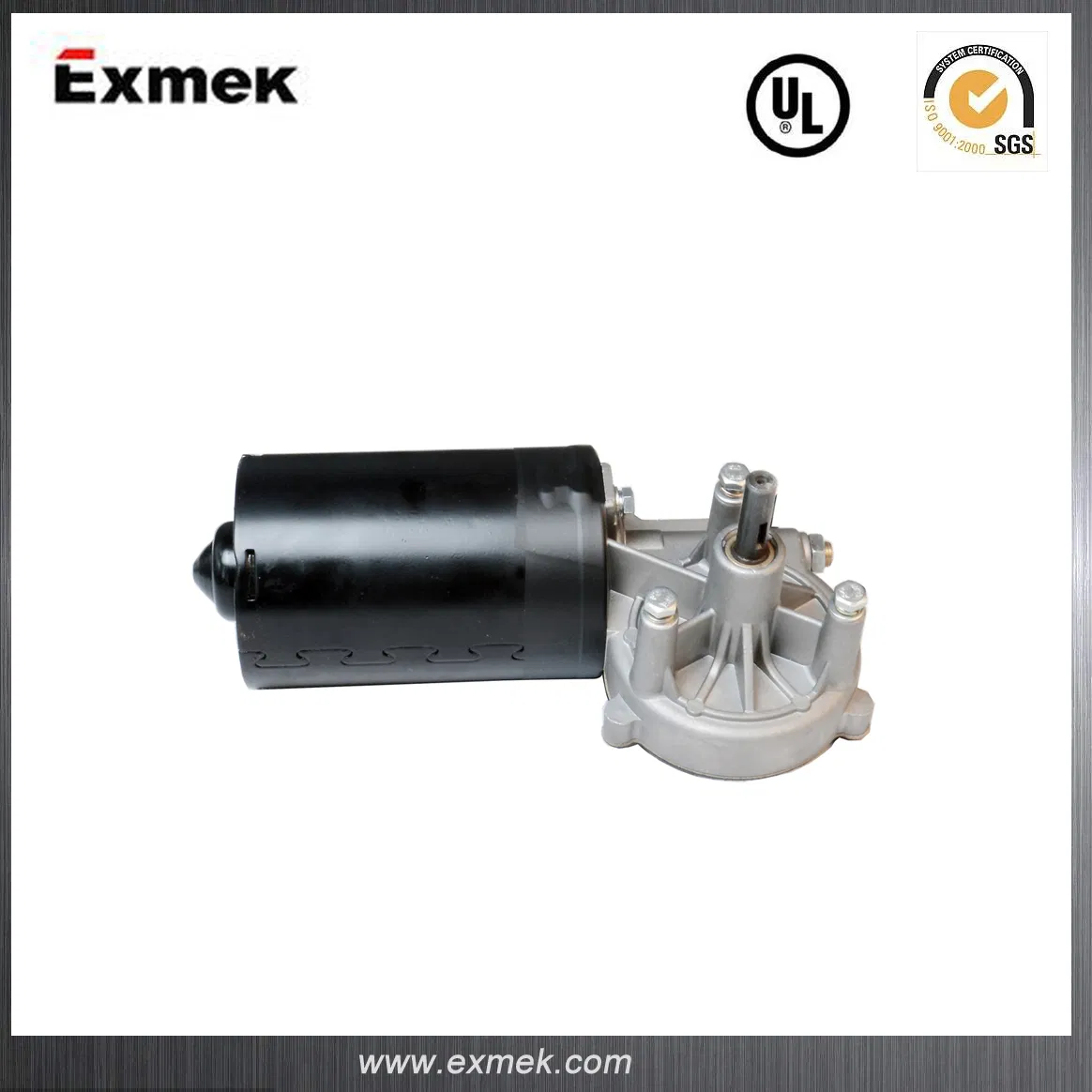

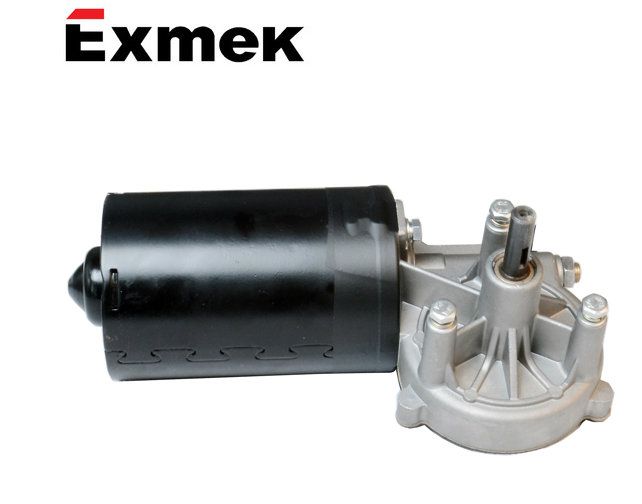

24V DC Geared Motor Electric with Rated Torque 8 Nm
General informationAluminum die-cast gearboxRolled steel housing constructionBuilt-in EMC componentsHall sensor feedback availableVarious output shaft extension are availableReduction ratio: 61:1Nominal efficiency: 25 - 70%SpecificationSpecificationMB083HB101-WH61Rated Voltage 24 VDCRated Current9 A......
Send Inquiry
Product Description
General information
- Aluminum die-cast gearbox
- Rolled steel housing construction
- Built-in EMC components
- Hall sensor feedback available
- Various output shaft extension are available
- Reduction ratio: 61:1
- Nominal efficiency: 25 - 70%
Specification
| Specification | MB083HB101-WH61 |
| Rated Voltage | 24 VDC |
| Rated Current | 9 A Max |
| Rated Torque | 8 Nm |
| Rated Speed | 50±10%RPM |
| Static Torque | 18 Nm |
| Starting Torque | 70 Nm |
| Current | 16A at 26 Nm |
| Duty Cycle | S2 5min |
| Insulation Class | B |
| Gearbox Specification | |
| Ratio | 61:1 |
| Noise | Less than 65dB |
Other gear ratio is avaiable at special production
Packaging & Shipping
1, Waterproof plastic bag packed in foam box and carton as outer packing.
2, Export wooden box packaging for products.
Company Profile
- Originally motor division of CMEC WUXI- China National Machinery & Equipment Imp & Exp Wuxi Co.,Ltd., one of TOP 20 stated owned Machinery Group
- Privately owned Ltd company since 2000: Wuxi Junhong Automation Technology Co. Ltd.
- Exmek Electric ---Registered Brand Name
- Business: Design and manufacture of motion control products and components
- Highly qualified personnel
- UL, CE, RoHS certification
- ISO 9001, ISO 14000
- Modern Motor Design and Manufacture
- Part Set Design and Manufacture
- Magnetic Design Software-Motorsolver
- Molding
- Shipping world wide
- Open for general discussion and questions
- Time to market or theatre of operations can be substantially reduced
- Talented team of engineers providing innovative technical solutions
- One stop "supplier" and complete sub-system
- Quality products provided at competitive low cost
- Ability to ship world wide
- On time delivery
- Training at Customer locations
- Fast service on return and repair results
- Many repeated customers
Use for swimming pool, automotive, semiconductor, chemical & medical, industrial automation, power tool, instrument, measuring equipment, office automation, various OEM application.
We are open for general discussion and questions. Contact us now!
Exmek Electric, your long-term reliable partner.
