China 24V Brushless DC Motor Engine BLDC Gear Motor

Product Description

24V Brushless DC Motor Engine BLDC Gear Motor

PG36M555 SERIES

voltage: 3VDC 6VDC 9VDC 12VDC 24VDC
Speed range: 3000-9500rpm
power: 3.3-13w
Typical applications: Central air-conditioning valve, Amusement equipment, Coin
Refund devices, Grill, Oven, Peristaltic pumps, ATM bank
Automatic system, Robot, Medical equipment, Office
Equipment, Household appliances, Automatic actuator.
Weight: 320~400g/PCS(approx)
Packing details: CTN size: 32X28XH26cm 40PCS/CTN G. W. 16Kgs

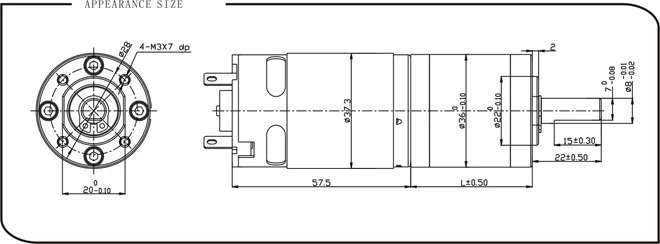

Gearbox data:

Number of stages	1stages reduction	2 stages reduction	3 stages reduction	4 stages reduction	5 stages reduction
Reduction ratio	3.7\5.2	13.7\19.2\26.9	50.9\71.2\99.5\139	188\264\369\516\721	669\977\1367\1911\2672\3736\
gearbox length " L" mm	26.4	32.6	38.9	45.3	52.5
Max.Running torque	3.0Kgf @ cm	6.0Kgf @ cm	8.0Kgf @ cm	12.0Kgf @ cm	20Kgf @ cm
Max. Gear breaking torque	9.0Kgf @ cm	18.0Kgf @ cm	24Kgf @ cm	36Kgf @ cm	60Kgf @ cm
Max. Gearing efficiency	90%	81%	73%	65%	59%

Motor data:

Motor name	Rated volt.v	No load		Load torque				Stall torque
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
		mA	r/min	mA	r/min	gf @ cm	W	gf @ cm	mA
RS-555123000	12	≤140	3000	≤800	2200	150	3.3	600	3000
RS-555124500	12	≤220	4500	≤1200	3300	220	7.2	880	7800
RS-555126000	12	≤350	6000	≤2000	4500	300	13.5	1200	6000
RS-555243000	24	≤70	3000	≤400	2200	150	3.3	600	1600
RS-555244500	24	≤110	4500	≤600	3300	220	7.2	880	3000
RS-555246000	24	≤180	6000	≤1000	4500	300	13.5	1200	4000
1\This table lists some motors parameters, others please refer to specific parameters of rs-555.htm" 2\Afier connecting motor and gearbox which is named gearmotor the output torque:motor torque X reduction ratio X gearing efficiency;output speed:motor speed / reduction ratio.

NOTE:

   1\ Gearmotor named methods: e . g . SG-555123000-99.5K    Motor please refer to the motor data RS-555123000.
          Gearbox please refer to gearbox data reduction ratio99.5 .Related to gearmotor output speed and torque please
          refer to motor data.
   2\ Motor can be installed wiht magnetic encorder. encorder parameters please refer to me-37.htm .
   3\Standard output shaft after reducing: 8.0mm. other sizes of then output shaft can make as client request.
   4\Chart only for reference,products shall prevail the entity.
