22JX10K/22ZY38B

22mm OD Planetary Gearbox,Permissible Load Range: 0.1N.m~1.0N.m

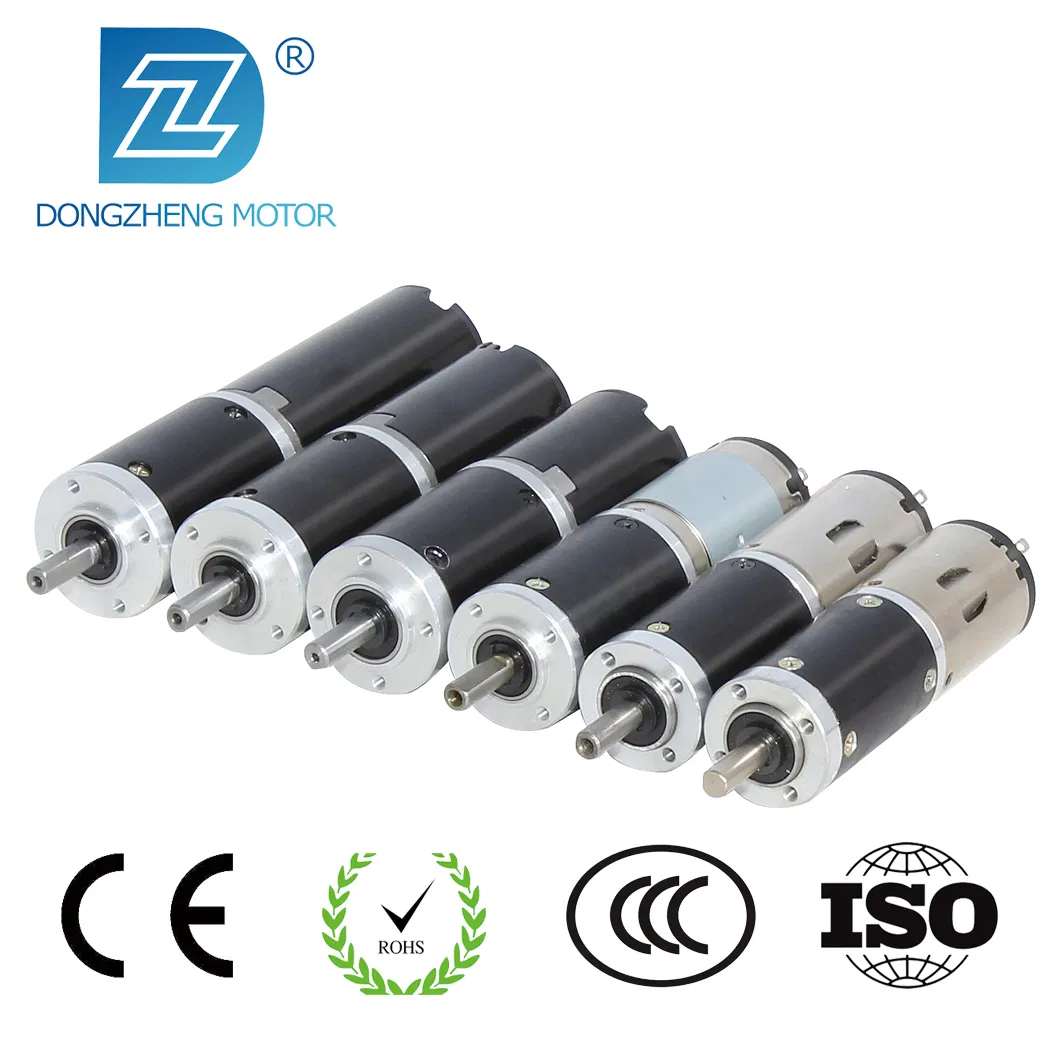

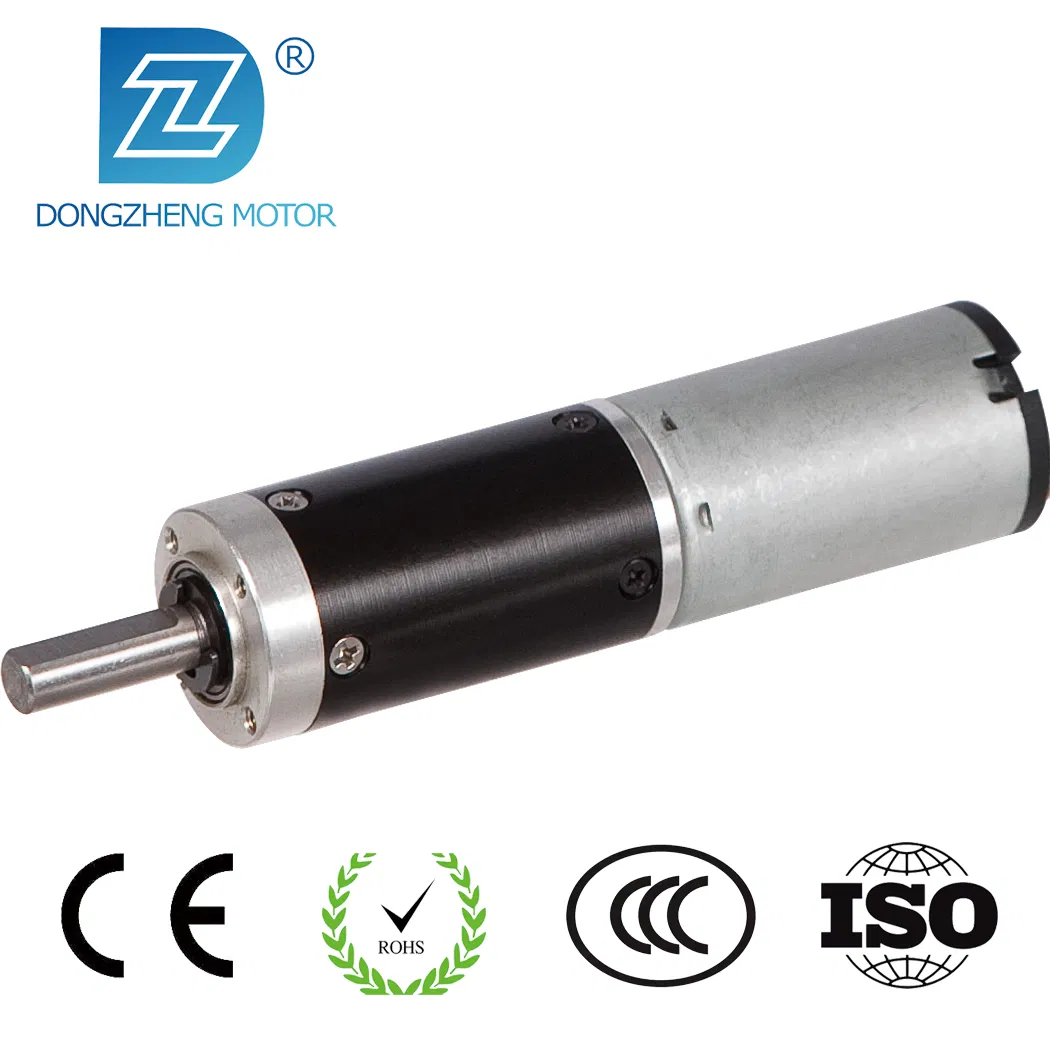

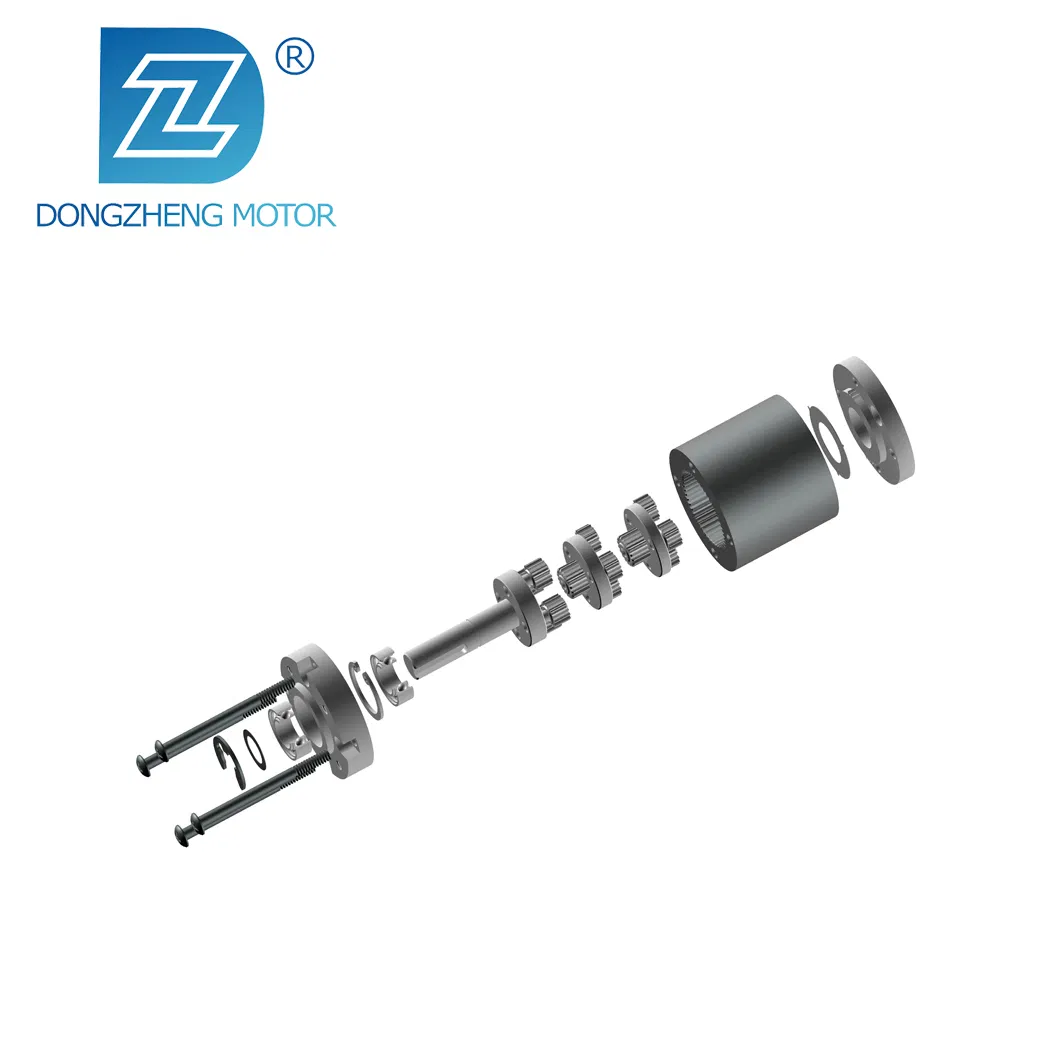

22mm Micro DC Planetary Transmission Gear Electric Motor

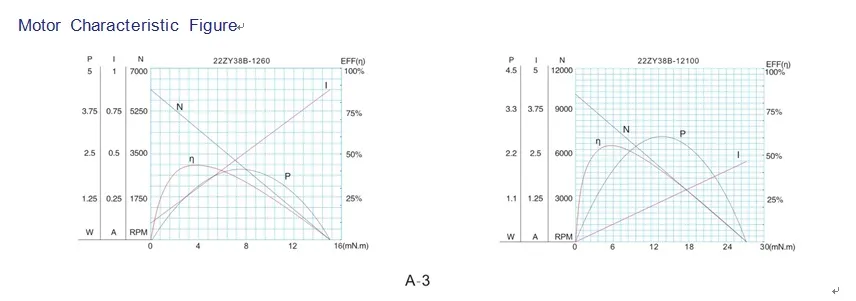

Motor Technical Data

TYPE	Rated voltage voe	No-load speed r/min	No- load current mA	Rated speed r/min	Rated torque mN.m	Output power w	Rat ed current mA	Stall torque mN.m	Stall current A
22ZY38B-1260	12	6000	100	5000	3	1.56	250	15	0.87
22ZY38B-12100	12	10000	150	8700	3	2.7	500	28	2.3

Gear Motor Technical Data

22ZY38B-1260 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369	516
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4
(L) Length(L) mm	24.4	24.4	33.0	33.0	33.0	41.5	41.5	41.5	41.5	49.8	49.8	49.8	49.8
No- load speed r/min	1617	1158	429	316	222	118	85	60	43	32	23	16	12
Rated speed r/min	1388	994	357	263	185	98	70	50	36	26	19	14	9.7
Rated torque N.m	0.010	0.014	0.034	0.046	0.066	10.11	0.16	0.22	0.30	0.37	0.51	0.72	1.0
N.m Max. permissible load in a short time	0.3	0.3	1.2	1.2	1.2	2.5	2.5	2.5	2.5	3	3	3	3

22ZY38B-12100 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369	516
Nu mber of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4
(L) Length(L) mm	24.4	24.4	33.0	33.0	33.0	41.5	41.5	41.5	41.5	49.8	49.8	49.8	49.8
No- load speed r/min	2695	1931	714	526	370	196	141	100	72	53	38	27	19
Rated speed r/mn	2480	1776	621	458	322	171	123	87	63	46	33	424	17
Rated torque N.m	0.010	0.014	0.034	0.046	0.066	0.11	0.16	0.22	0.30	0.37	0.51	0.72	1.0
N.m Max. permissible load in a short time	0.3	0.3	1.2	1.2	1.2	2.5	2.5	2.5	2.5	3	3	3	3

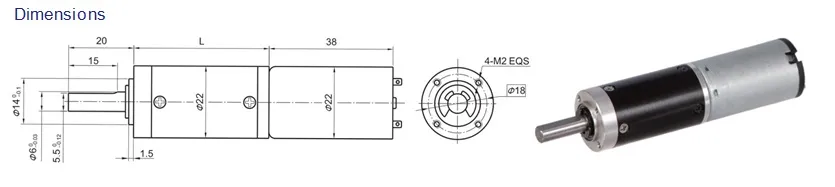

Dimensions (mm)	Rated Voltage (VDC)	Rated Speed ( r/min )	Reduction Ratio	Rated Torgue (N.m)
22	12	2200-8700	1:3.7-1:516	0.011-1.0
24	12	3600-8700	1:3.7-1:516	0.034-1.0
28	12~24	3800-5100	1:3.7-1:516	0.023-3.0
32	12~24	3800-5100	1:3.7-1:720	0.030-3.0
36	12~24	2400-4300	1:3.7-1:720	0.017-3.0
42	12~24	3400-6500	1:3.5-1:294	0.014-15.0
45	12~24	2400-3600	1:3.71-1:369	0.15-10.0
52	12~24	2400-3600	1:4.5-1:312	0.30-20.0
56	12~24	1600-4000	1:3.6-1:575	0.22-30.0
71	12~24	1600-2600	1:4-1:308	0.72-54.0
82	12~24	1700-2750	1:4-1:329	1.2-120.0
92	12~24	960-2400	1:4.3-1:422	0.9-450.0
120	12~24	1600-2800	1:4.8-1:427	3.4-600.0

Features:
The planetary gearbox for transmission is widely matched with DC motor and BLDC motor. It shows the characters of high torque and controlablity as well as the high lasting torque. The perfect combination fully expresses the product's smaller and high torque.
