20n Small Electric Gear Motors for Medical Equipment
Below are only some typical models, for more specification or a customed motor, pls contact us. 12ZYJ DC Gear MotorBasic InfoItemDataTem Rise40KWorking Tem(-20ºC~+80ºC)Insulation Resistance100MΩ min 500VDCSurge Test500VAC for 1minInsulation ClassEWeight15g The specificti......
Send Inquiry
Product Description
Below are only some typical models, for more specification or a customed motor, pls contact us.
The specifiction of 20n small electric gear motors for medical equipment

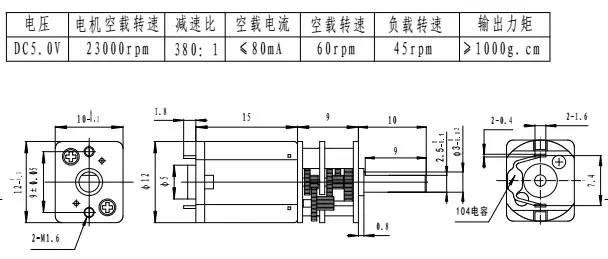

The drawing of 20n small electric gear motors for medical equipment

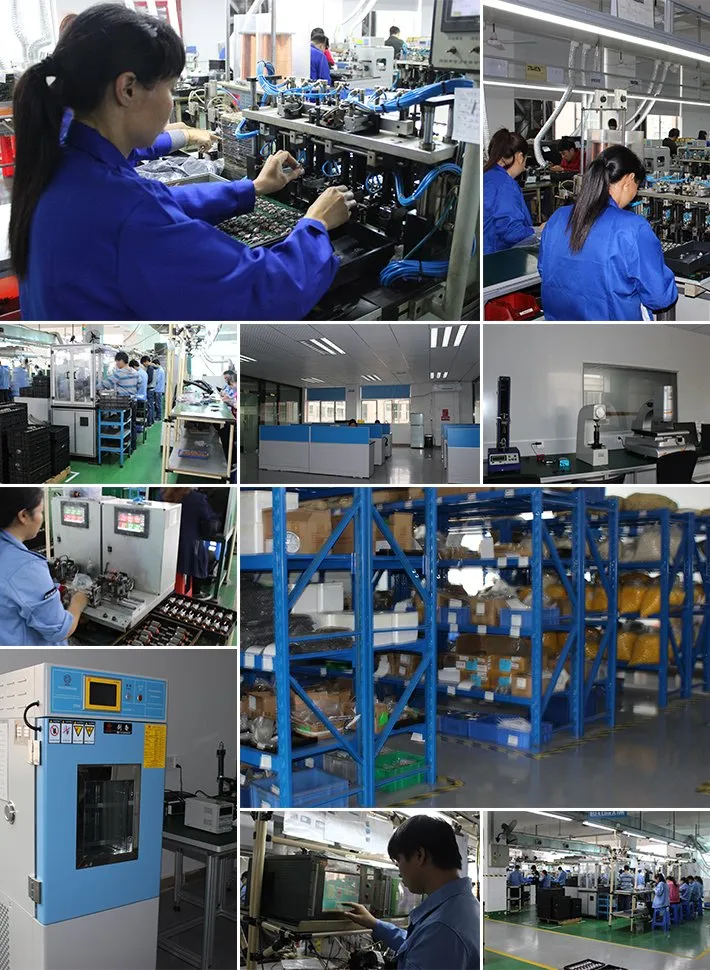

About our company
Probond motors designs brush, brushless, stepper, hysteresis and linear motors to meet customers requirements.
Our motors use standard and special components with customer selected torque/speed requirements that can be modified to your applications.
Probond motor owns professional sales team and engineer team with more than 10 years experience in motor industry, based on China mainland handling overseas business for years, we know your needs better than others.
Probond Sonicare Toothbrush Motor and Thermostatic Valve Hysteresis Motor are our hot products on sell in 2017 with highly quality level and competitive price.
Terms of Trade
Our promise to our Customers:
1. Answer customer's inquiry within 2 working days.
2. Reply to our customer questions & Concerns within 3 working days.
3. Acknowledge Customer purchase orders within 24 hours.
Contact
| 12ZYJ DC Gear Motor | |||||
| Basic Info | |||||
| Item | Data | ||||
| Tem Rise | 40K | ||||
| Working Tem | (-20ºC~+80ºC) | ||||
| Insulation Resistance | 100MΩ min 500VDC | ||||
| Surge Test | 500VAC for 1min | ||||
| Insulation Class | E | ||||
| Weight | 15g | ||||
| Technical Parameters | |||||||||||
| PN | Rated Voltage | Initial Speed | Ratio | Power | Noload Speed | Noload Current | Rated Speed | Rated Current | Rated Torque | Stall Torque | Stall Current |
| V DC | rpm | 1:xxx | W | rpm | mA | rpm | mA | Kg.cm | Kg.cm | mA | |
| 12ZYJ-25A | 3 | 7500 | 298 | 1 | 25 | 50 | 20 | 150 | 0.6 | 2 | 500 |
| 12ZYJ-150A | 6 | 15000 | 100 | 1 | 150 | 50 | 120 | 150 | 0.3 | 1.5 | 500 |
| 12ZYJ-80A | 6 | 20000 | 250 | 1 | 80 | 60 | 70 | 160 | 0.5 | 2 | 600 |
The drawing of 20n small electric gear motors for medical equipment
About our company
Probond motors designs brush, brushless, stepper, hysteresis and linear motors to meet customers requirements.
Our motors use standard and special components with customer selected torque/speed requirements that can be modified to your applications.
Probond motor owns professional sales team and engineer team with more than 10 years experience in motor industry, based on China mainland handling overseas business for years, we know your needs better than others.
Probond Sonicare Toothbrush Motor and Thermostatic Valve Hysteresis Motor are our hot products on sell in 2017 with highly quality level and competitive price.
Terms of Trade
| Terms of price | FOB,CIF,CFR,EXW,DDP,etc. |
| Terms of payment | 100% T/T in advance for samples |
| Bulk quantity payment way can be negotited | |
| Warranty | 12 months limited warranty once the items are delivered to the buyer. |
| Lead time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Carton o plywood pallet. |
| Place of loading | Shanghai, Ningbo, etc. |
| Shipment carrier | Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders. |
| Delivery time | Usually within 5 working days by Express 15-30 working days by vessel |
