Product Description
12v 24v 40v 48v 80ZYT4 High Torque Electrical dc Planetary Gear Motor sewing machine motor for Window Opener
Quiet, stable and reliable for long life operation
1.Diameters: 80mm
2.Lengths: 108mm;128mm;148mm
3.Continuous torques: 0.50Nm;0.82Nm;0.65Nm
4.Power: 106W;180W;140W
5.Speeds up to 2030rpm;2100rpm;2050rpm
6.Environmental conditions: -10~+40°C
7.Number of poles:4
8.Mangnet material:Hard Ferrit
9.Insulation class:B
10.Optional: electronic drivers, encoders and gearheads, as well as Hall effect resolver and sensorless feedback
11.We can design the special voltage and shaft, and so on

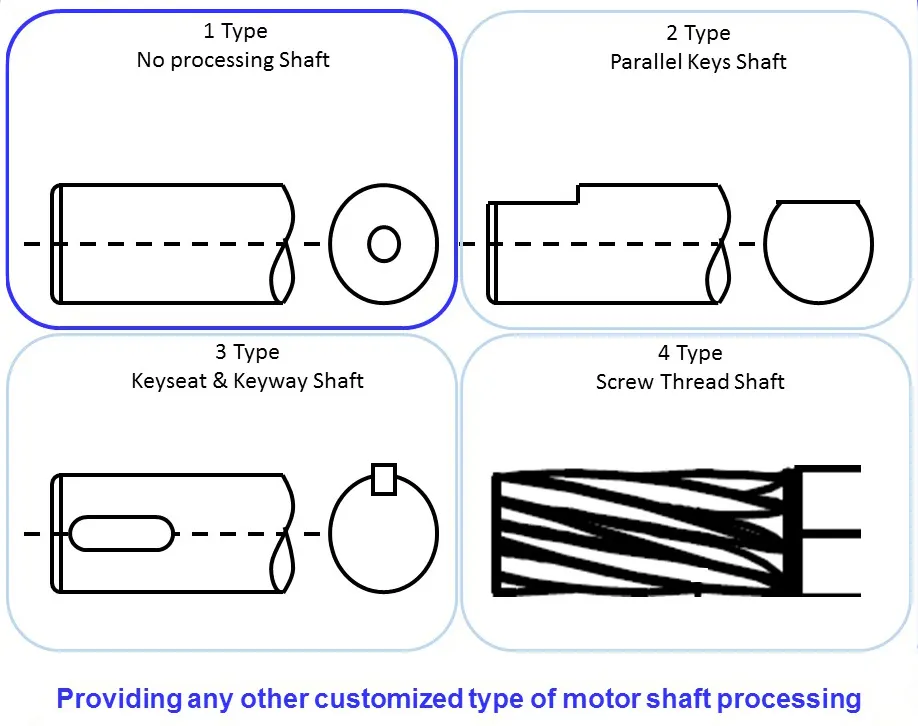

Normal type of shaft
Quiet, stable and reliable for long life operation
1.Diameters: 80mm
2.Lengths: 108mm;128mm;148mm
3.Continuous torques: 0.50Nm;0.82Nm;0.65Nm
4.Power: 106W;180W;140W
5.Speeds up to 2030rpm;2100rpm;2050rpm
6.Environmental conditions: -10~+40°C
7.Number of poles:4
8.Mangnet material:Hard Ferrit
9.Insulation class:B
10.Optional: electronic drivers, encoders and gearheads, as well as Hall effect resolver and sensorless feedback
11.We can design the special voltage and shaft, and so on

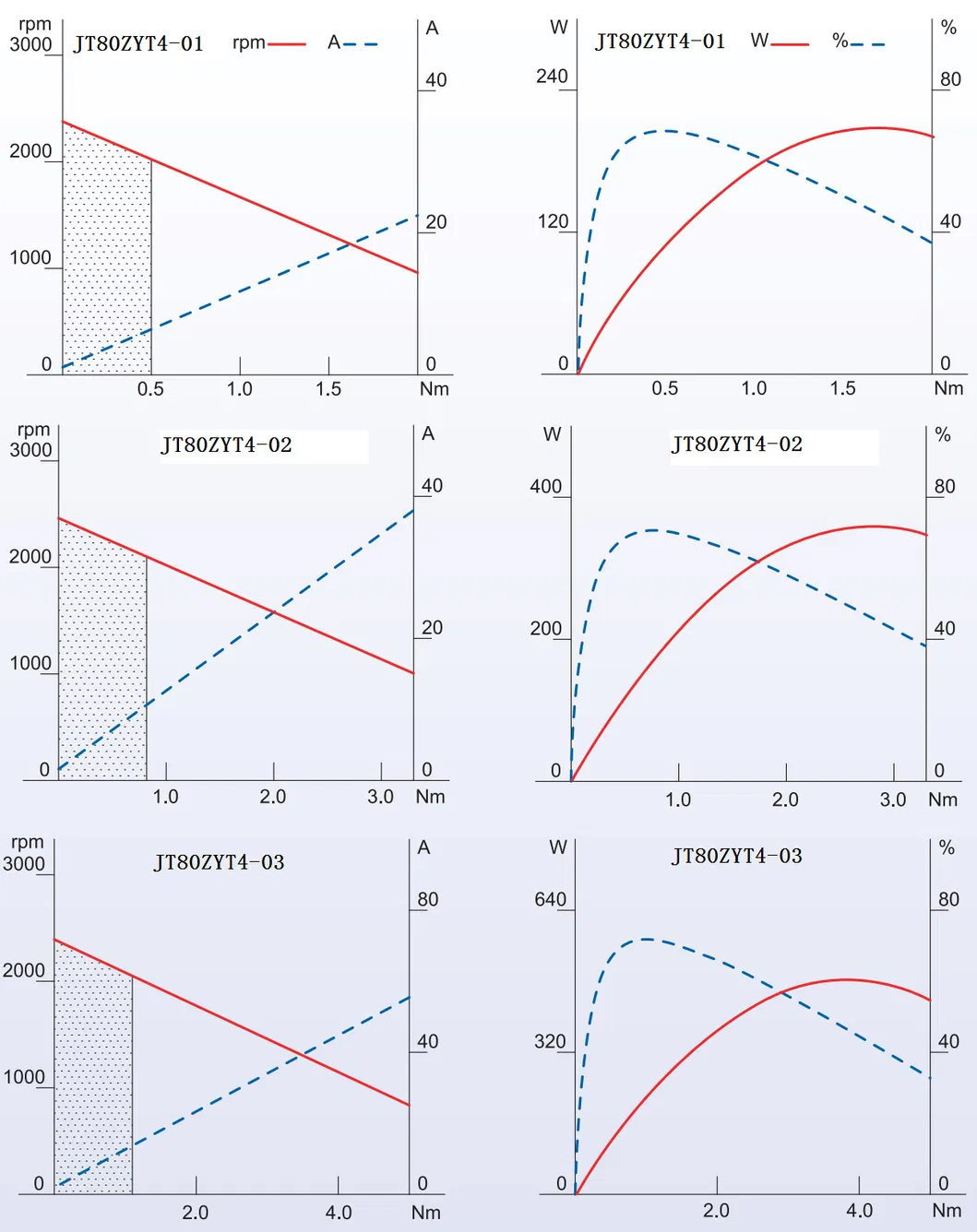

| Model | 80ZYT4-01 | 80ZYT4-02 | 80ZYT4-03 | |
| Voltage | V | 24 | ||
| No load speed | rpm | 2380 | 2460 | 2390 |
| Rated torque | Nm | 0.50 | 0.82 | 1.10 |
| Rated speed | rpm | 2030 | 2100 | 2050 |
| Rated current | A | 6.5 | 10.7 | 14.0 |
| Stall torque | Nm | 3.40 | 5.58 | 7.90 |
| Stall current | A | 37.4 | 63.2 | 84.6 |
| Rotor inertia | Kgmm² | 420 | 550 | 700 |
| Back-EMF constant | V/krpm | 9.8 | 9.5 | 9.8 |
| Torque Constant | Nm/A | 0.0935 | 0.0906 | 0.0934 |
| Resistance(20ºC) | ohm | 0.65 | 0.38 | 0.28 |
| Weight | Kg | 1.7 | 2.0 | 2.3 |

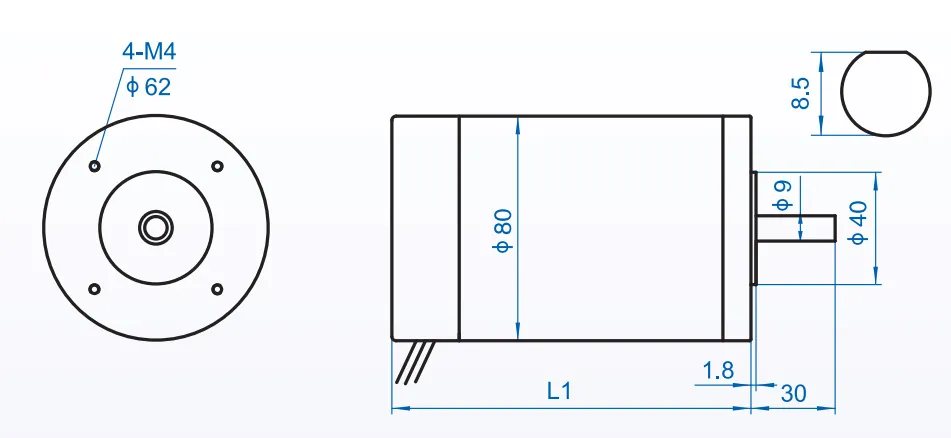

| L1 | mm | 108 | 128 | 148 |
| Rotor:La | mm | 30 | 50 | 70 |
Normal type of shaft
