China 12V High Torque Low Rpm Gear Motor for Vending Machine

Product Description

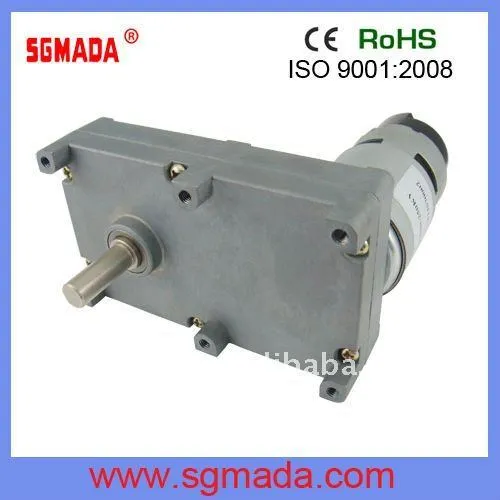

12V High Torque Low Rpm Gear Motor for Vending Machine

12V High Torque Low Rpm Gear Motor for Vending Machine

Main voltage,3VDC,6VDC,9VDC,12VDC,24VDC,36VDC
Typical applications, Auto shutter,Money detector,Binding machine,Automatic TV
                                     rack,Packing bank note machine,Limelight,Tissue machine,Office
                                      equipment,Household appliances,Automatic actuator.
Weight,950~1000g/pcs(approx)
Packing details,3 CTN size:31×30×H28cm 2pcs/CTN   G.W.14kgs

Gearbox data:

Number of stages	3 stages reduction	4 stages reduction	5 stages reduction	6 stages reduction
Reduction ratio	251	389,590,722,897	1269,1601,1929	3385,5078
Max.Running torque	30Kgf · cm	50Kgf · cm	80Kgf · cm	100Kgf · cm
Max. Gear breaking torque	90Kgf · cm	150Kgf · cm	240Kgf · cm	300Kgf · cm
Max. Gearing efficiency	65%	65%	59%	53%
Other reduction ratio please telephont or e-mail to out engineering department.

Motor data:

Motor name	Rated volt.v	No load		Load torque				Stall torque
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
		mA	r/min	mA	r/min	gf · cm	W	gf · cm	mA
RS-775123000	12	≤220	3000	≤1000	2200	350	7.7	1400	3.5
RS-775124500	12	≤450	4500	≤2000	3300	500	16.5	2000	6.5
RS-775126000	12	≤900	6000	≤4000	4500	750	34	3000	13.0
RS-775243000	24	≤110	3000	≤500	2200	350	7.7	1400	1.8
RS-775244500	24	≤230	4500	≤1000	3300	500	16.5	2000	3.3
RS-775246000	24	≤450	6000	≤2000	4500	750	34	3000	7.0
1,This table lists some motors parameters, others please refer to specific parameters of rs-775.htm. 2,Afier connecting motor and gearbox which is named gearmotor the output torque:motor torque X reduction ratio X gearing efficiency;output speed:motor speed / reduction ratio.

NOTE:

   1, Gearmotor named methods: e . g . GF-775123000-722K    Motor please refer to the motor data RS-775123000.
          Gearbox please refer to gearbox data reduction ratio 722.Related to gearmotor output speed and torque please
          refer to motor data.
   2, Motor can be installed wiht magnetic encorder, encorder parameters please refer to me-37.htm.
   3,Gearbox shell material:zinc alloy.
   4,Gearbox gear materials:The first stage gear:plastic gear. The final stage gear:45# steel Heat-treatment gear.Other
          stages gear;powder metallurgy gear.
   5,Standard output shaft after reducing: 9.5mm. other sizes of then output shaft can make as client request.
   6,Chart only for reference,products shall prevail the entity.
