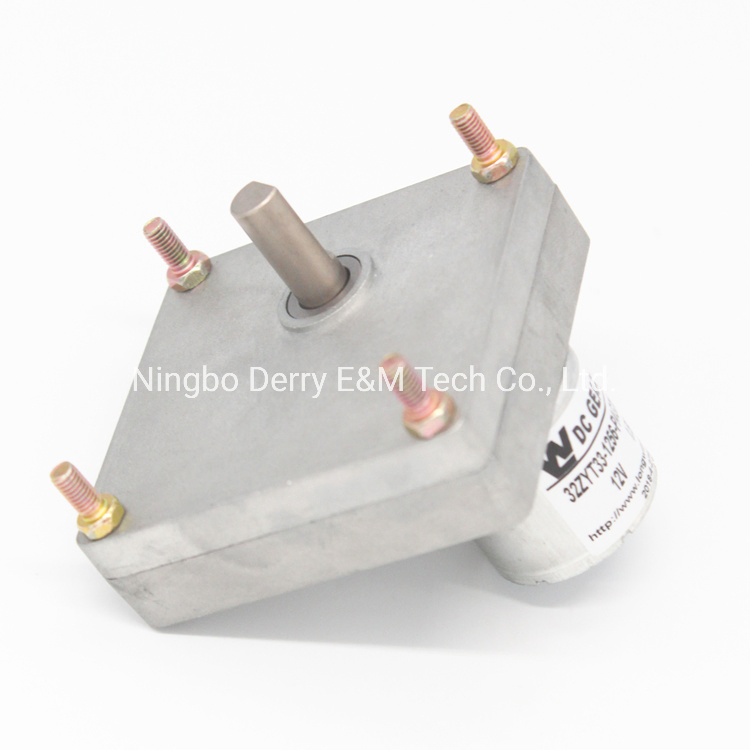

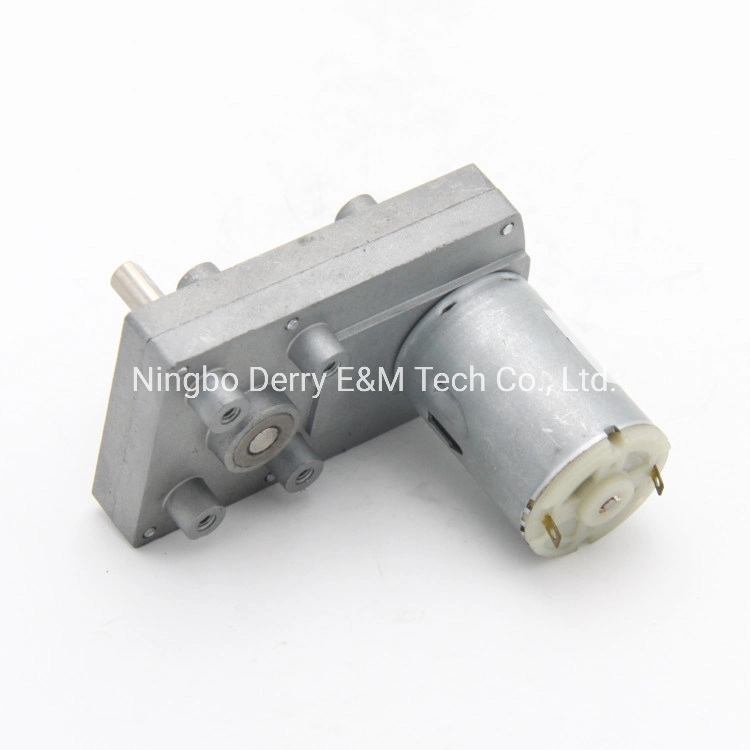

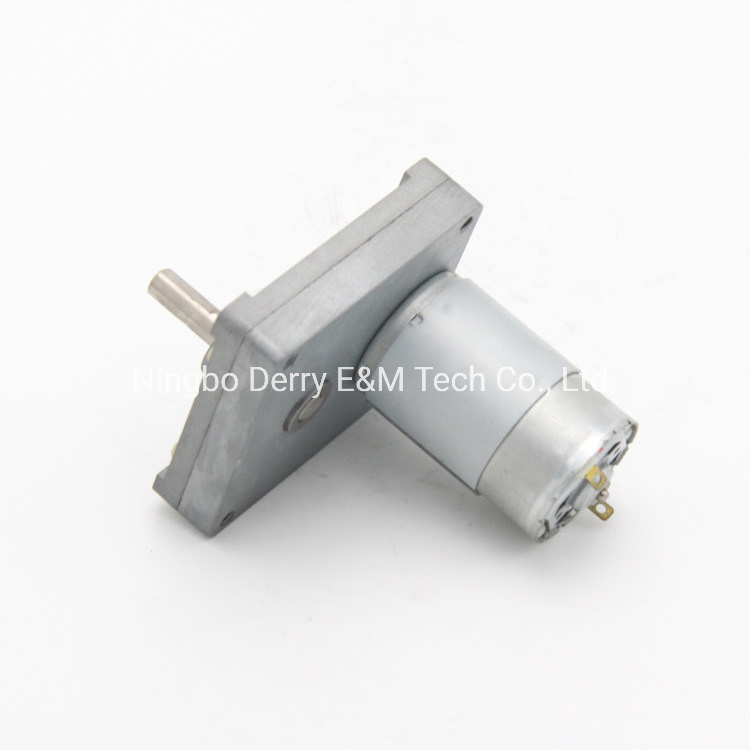

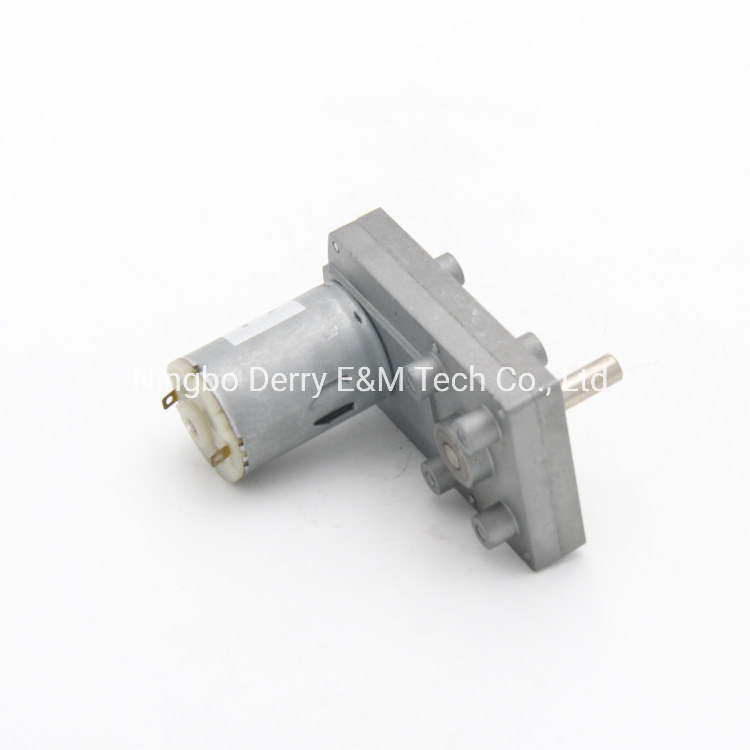

12V High Torque DC Motor with Gear Reduction Specification
1.Product DescriptionMain voltage:6V;9V;12V;24V,Typical applications:Welding machine, Garbage disposers,coffee machine, Mimeograph,Manostat ,Paper shredder, card conveyors,Central air-conditioning valve, Office equipment , Household appliances, Automatic actuator.Weight:500~550g/pcs(Approx)Packing ......
Send Inquiry
Product Description
Main voltage:6V;9V;12V;24V,
Typical applications:Welding machine, Garbage disposers,coffee machine, Mimeograph,Manostat ,Paper shredder, card conveyors,Central air-conditioning valve, Office equipment , Household appliances, Automatic actuator.
Weight:500~550g/pcs(Approx)
Packing details: CTN size:55*35*H18cm 24pcs/CTN G.W.:15kgs
Gearbox Data:
Number of stages | 3 stages reduction | 4 stages reduction | 5 stages reduction |
Reduction ratio | 36,66,94 | 129,139,155,196,219,277 | 232,392,456,555,833 |
Max .Running torque | 30Kgf.cm | 40Kgf.cm | 50Kgf.cm |
Max.Gear breaking torque | 90kgf.cm | 120kgf.cm | 150kgf.cm |
Max.Gearing efficiency | 73% | 65% | 59% |
Motor Data:
Type | Rated Votage | No load | Load Torque | Stall torque | |||||
Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
mA | rpm | mA | Rpm | gf.cm | W | gf.cm | mA | ||
ZF555-1230 | 12 | ≤140 | 3000 | ≤800 | 2200 | 150 | 3.3 | 600 | 3000 |
ZF555-1245 | 12 | ≤220 | 4500 | ≤1200 | 3300 | 220 | 7.2 | 880 | 4800 |
ZF555-1260 | 12 | ≤350 | 6000 | ≤2000 | 4500 | 300 | 13.5 | 1200 | 6000 |
ZF555-2430 | 24 | ≤70 | 3000 | ≤400 | 2200 | 150 | 3.3 | 600 | 1600 |
ZF555-2445 | 24 | ≤110 | 4500 | ≤600 | 3300 | 220 | 7.2 | 880 | 3000 |
ZF555-2460 | 24 | ≤180 | 6000 | ≤1000 | 4500 | 300 | 13.5 | 1200 | 4000 |
Remarks: motor data can be adjusted according to customers request !

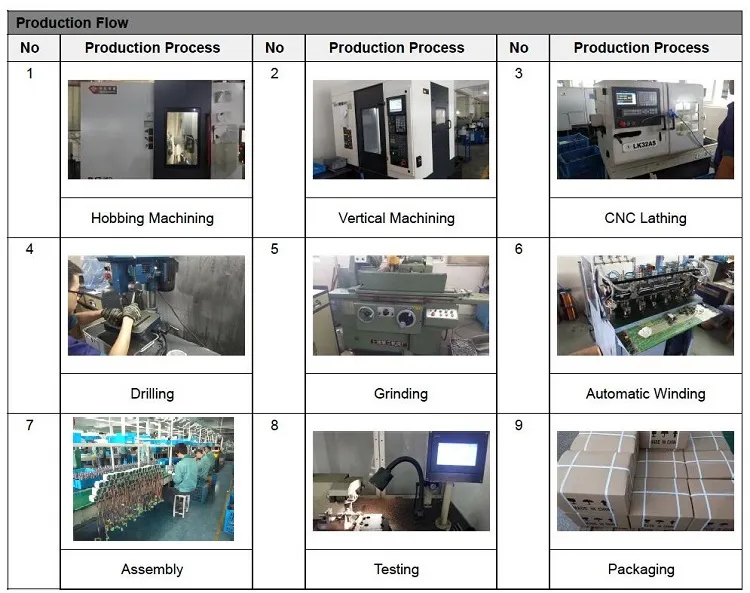

2.Production Flow

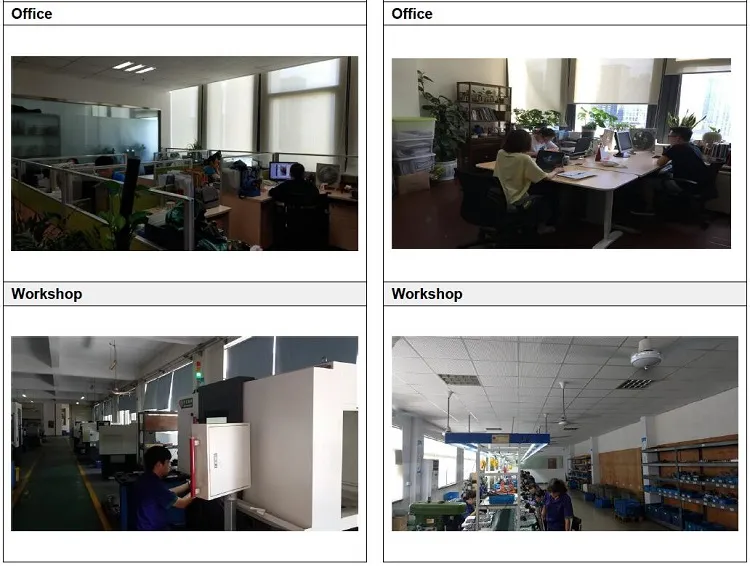

3.Company Information
In recent ten years, Derry has been dedicated to the manufacture of the motor products and the main products can be classified into the following series, namely DC motor, DC gear motor, AC motor, AC gear motor, Stepper motor, Stepper gear motor, Servo motor and Linear actuator series.
Our motor products are widely applied in the fields of aerospace industry, automotive industry, financial equipment, household appliance, industrial automation and robotics, medical equipment, office equipment, packing machinery and transmission industry, offering customers reliable tailored solutions for driving and controlling.
4.Our Services
1). General Service:
| Quick Reply | All enquiry or email be replied in 12 hours, no delay for your business. |
| Professional Team | Questions about products will be replied professionally, exactly, best advice to you. |
| Short Lead time | Sample or small order sent in 7-15 days, bulk or customized order about 30 days. |
| Payment Choice | T/T, Western Union,, L/C, etc, easy for your business. |
| Before shipment | Take photos, send to customers for confirmation. Only confirmed, can be shipped out. |
| Language Choice | Besides English, you can use your own language by email, then we can translate it. |
2). Customization Service:
Motor specification(no-load speed , voltage, torque , diameter, noise, life, testing) and shaft length can be tailor-made according to customer's requirements.
5.Package & Shipping
