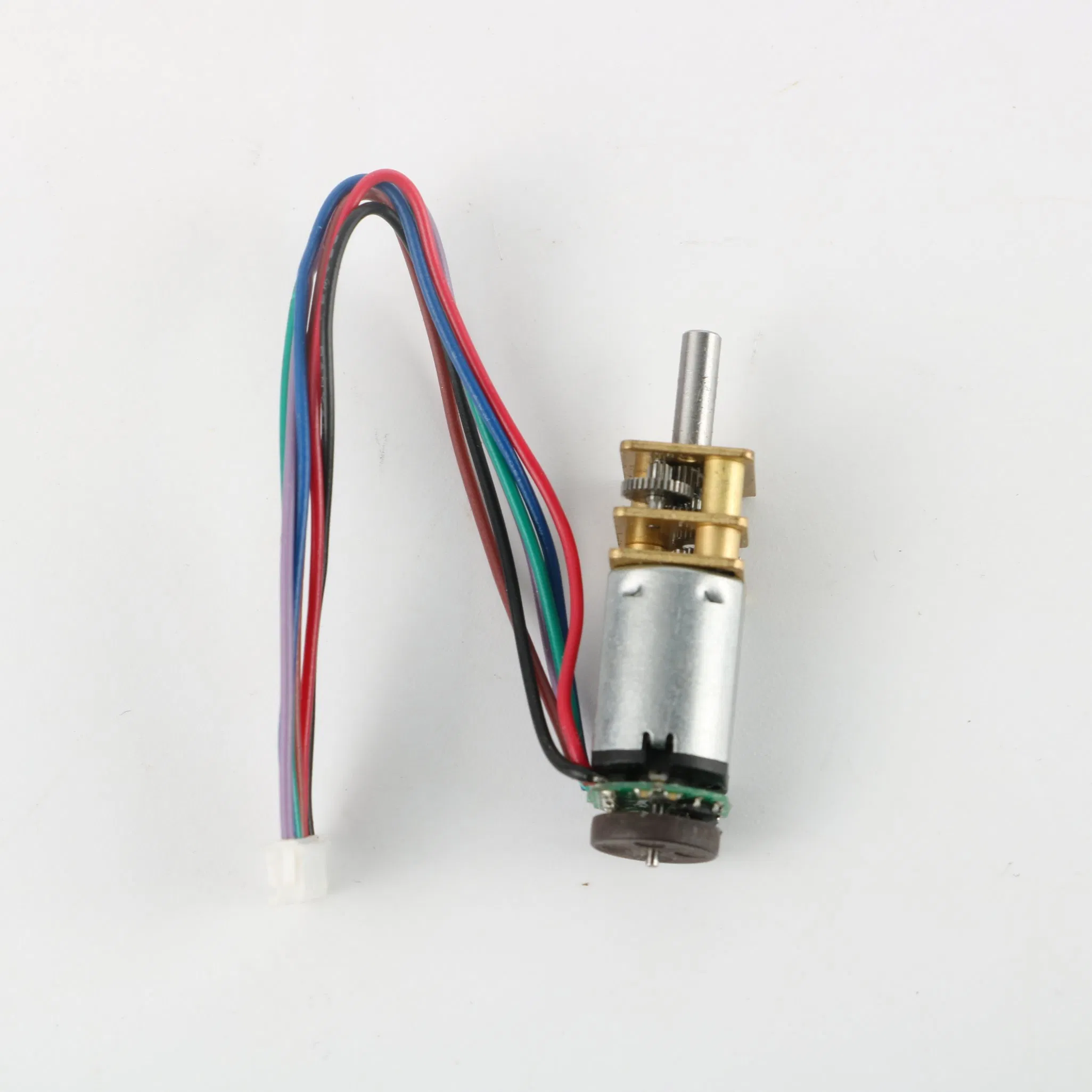

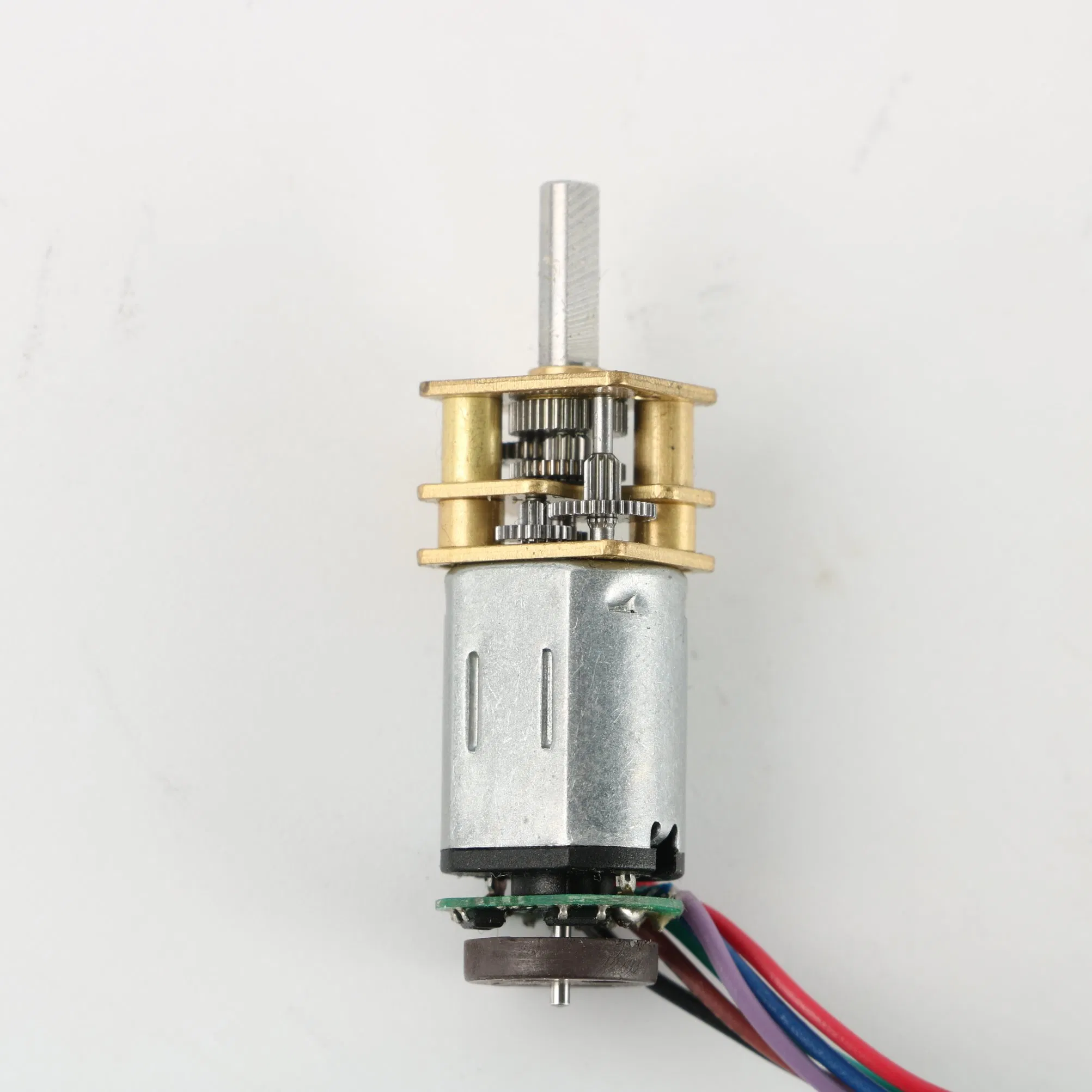

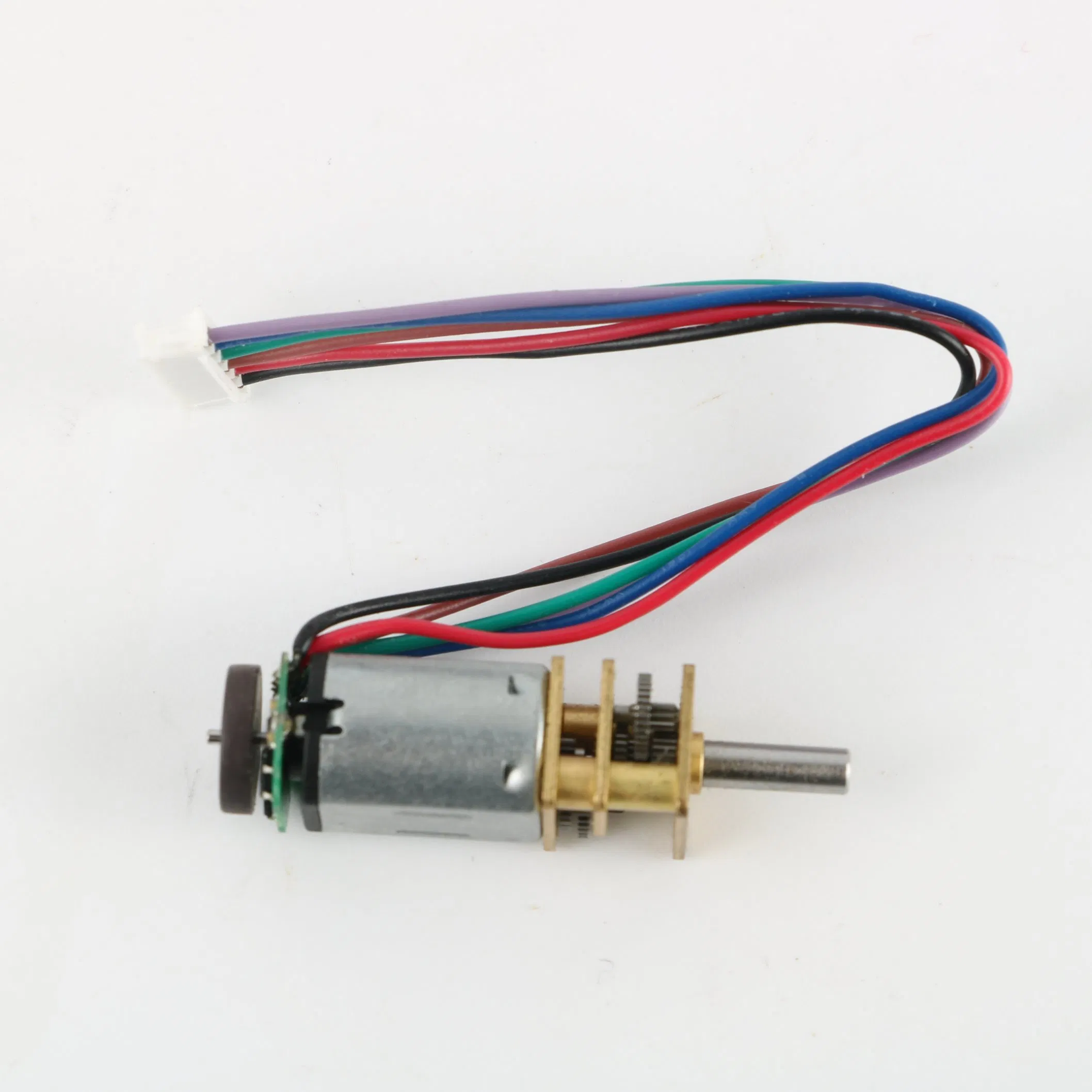

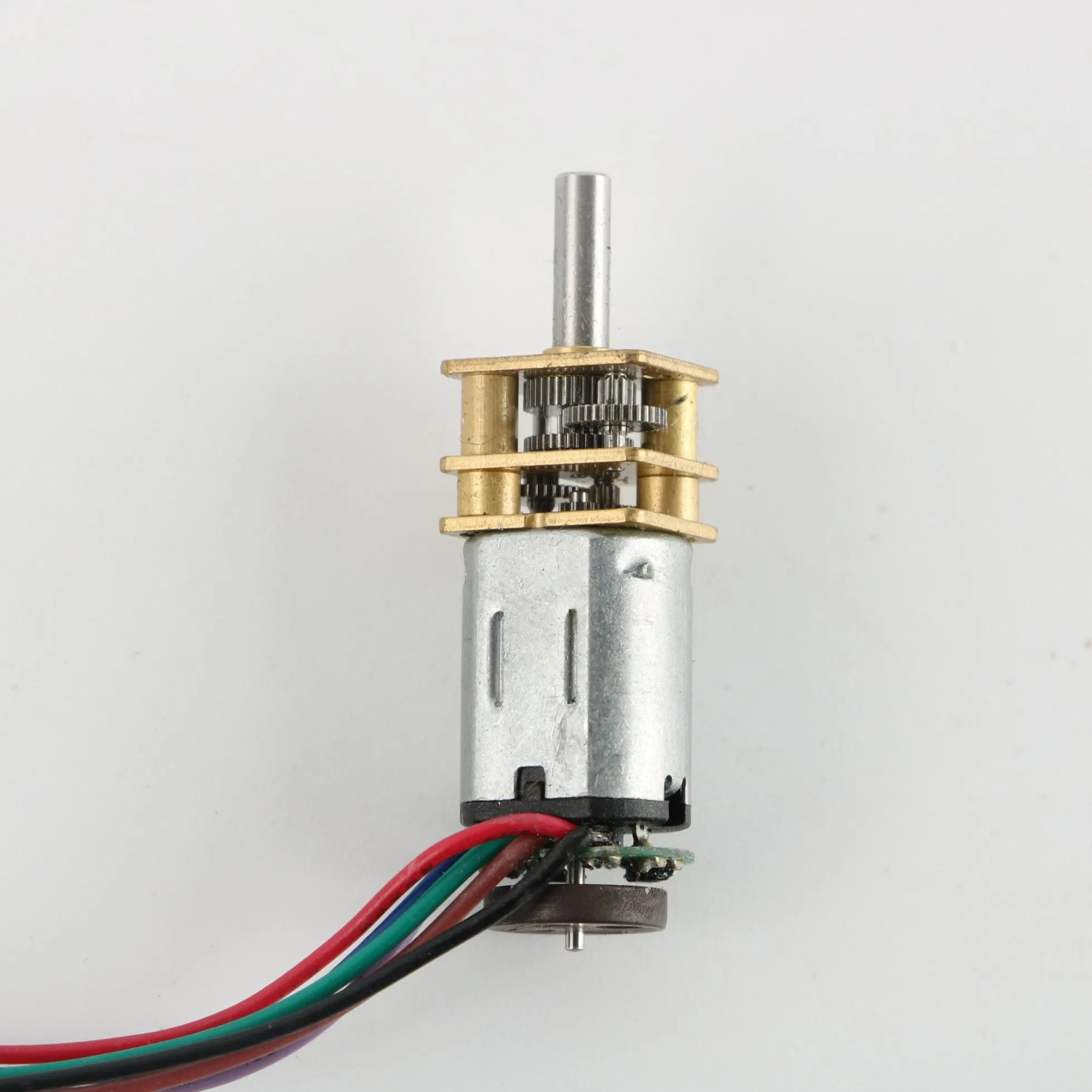

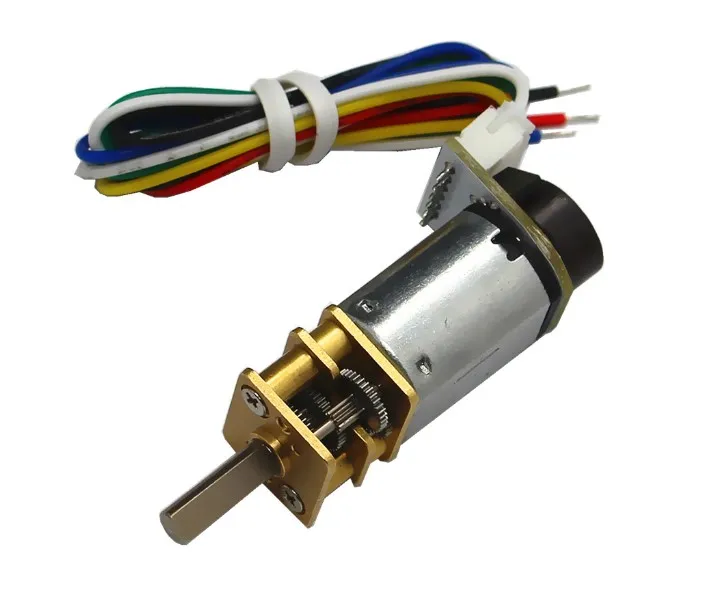

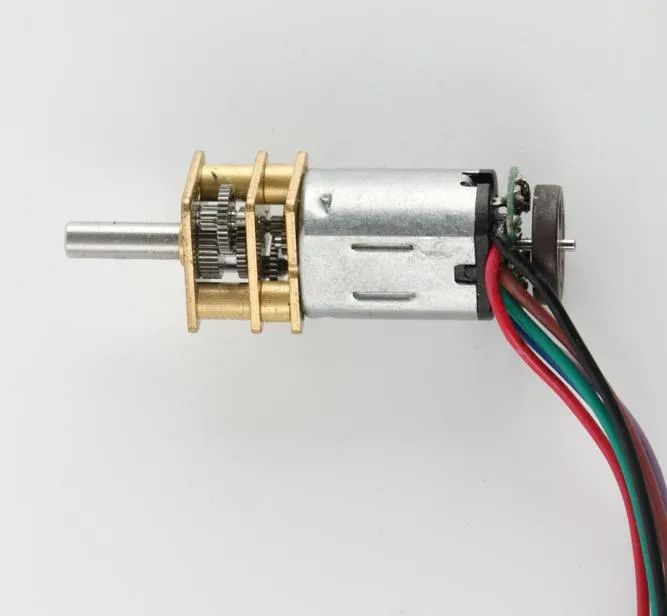

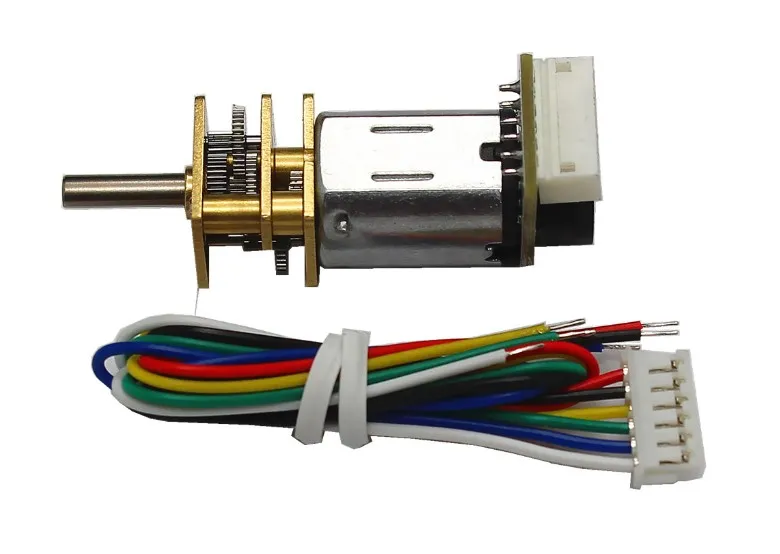

12V High Torque 60rpm Gear Motor with Encoder
voltageVDCno load speedRPMno load currentmAstall torqueKG.CMstall currentAratio660001200.11.65:1630001200.21.610:1615001200.41.620:1610001200.61.630:166251201.01.650:164001201.51.675:163201202.01.6100:1technical feature High Power version with 1.6A stall current:With 12CPR encoder or not 12CPRWith b......
Send Inquiry
Product Description

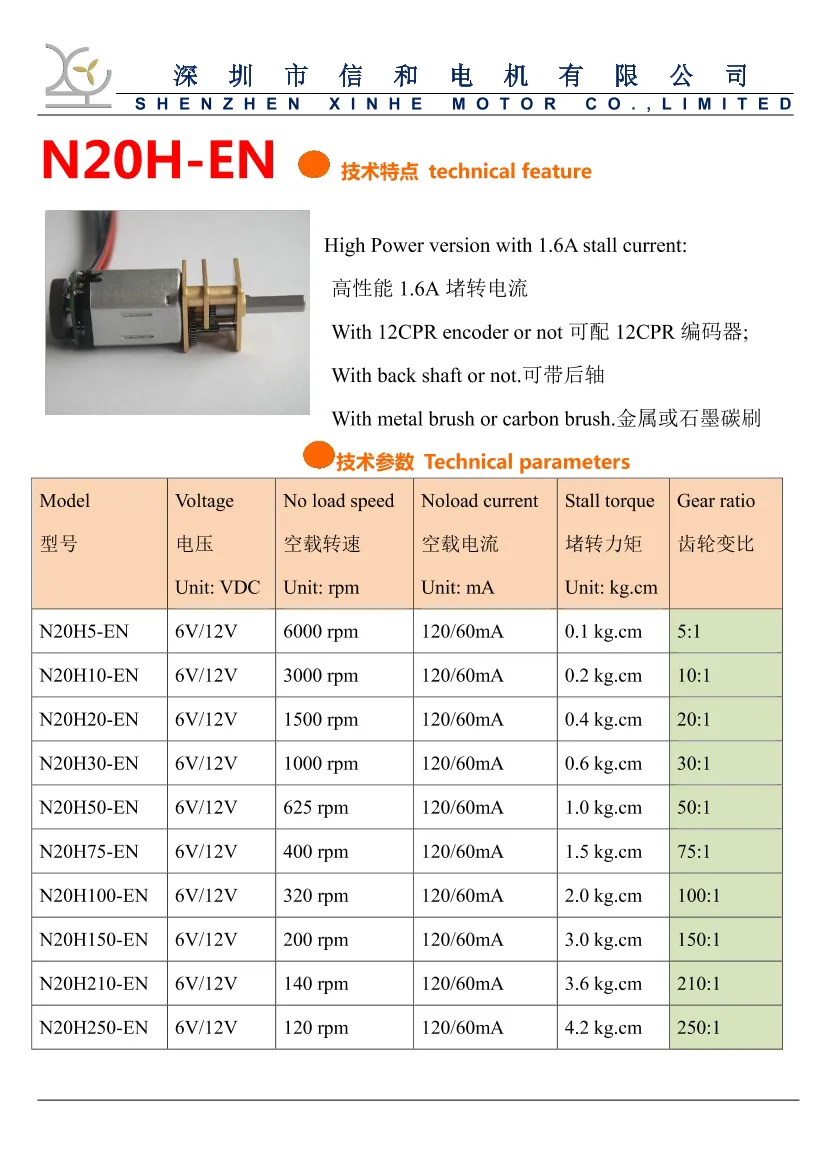

| voltage VDC | no load speed RPM | no load current mA | stall torque KG.CM | stall current A | ratio |
| 6 | 6000 | 120 | 0.1 | 1.6 | 5:1 |
| 6 | 3000 | 120 | 0.2 | 1.6 | 10:1 |
| 6 | 1500 | 120 | 0.4 | 1.6 | 20:1 |
| 6 | 1000 | 120 | 0.6 | 1.6 | 30:1 |
| 6 | 625 | 120 | 1.0 | 1.6 | 50:1 |
| 6 | 400 | 120 | 1.5 | 1.6 | 75:1 |
| 6 | 320 | 120 | 2.0 | 1.6 | 100:1 |
technical feature High Power version with 1.6A stall current:

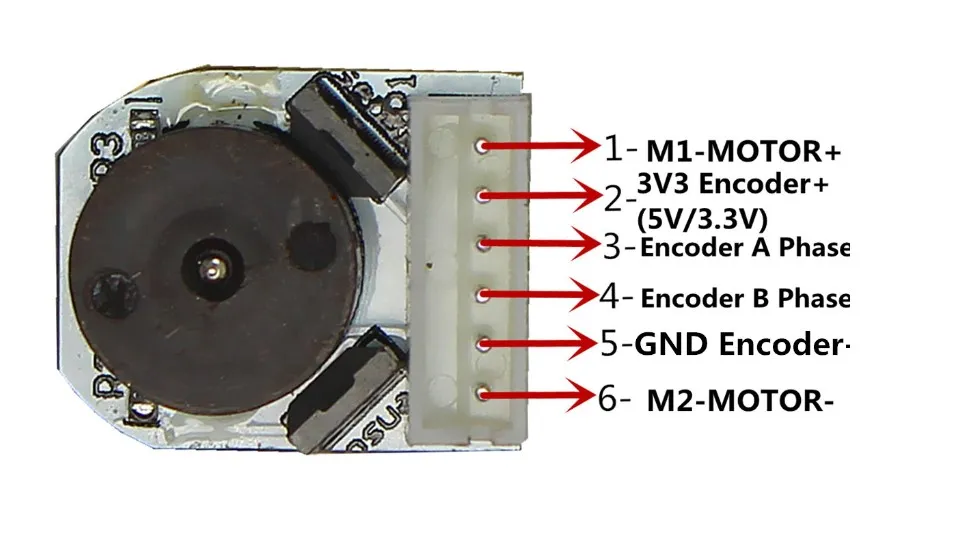

With 12CPR encoder or not 12CPR
With back shaft or not.
With metal brush or carbon brush.
12mm dc gear motor
