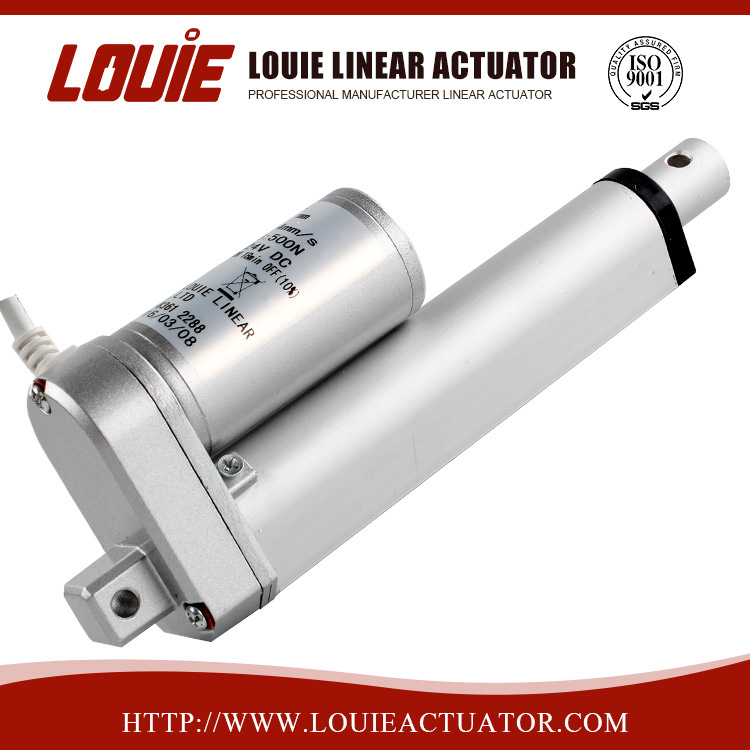

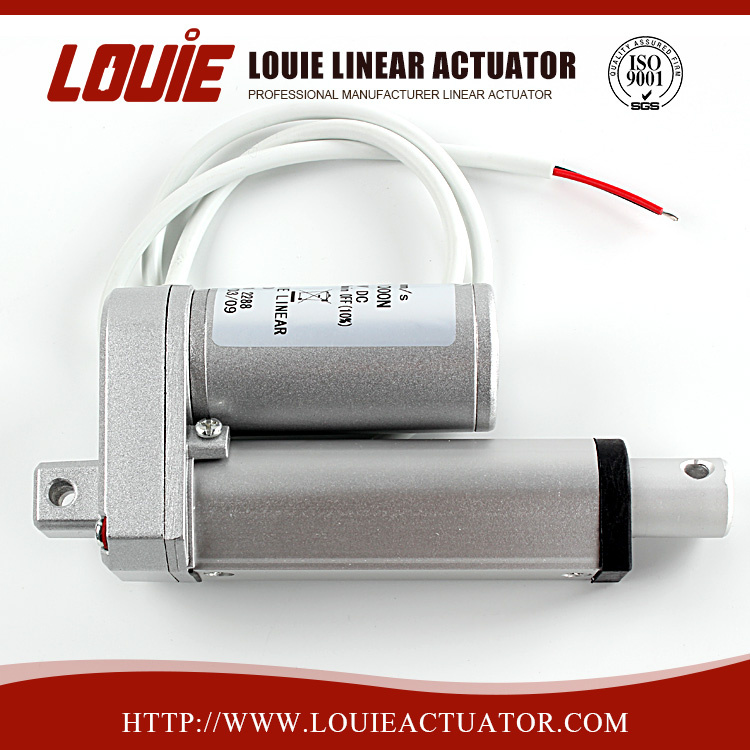

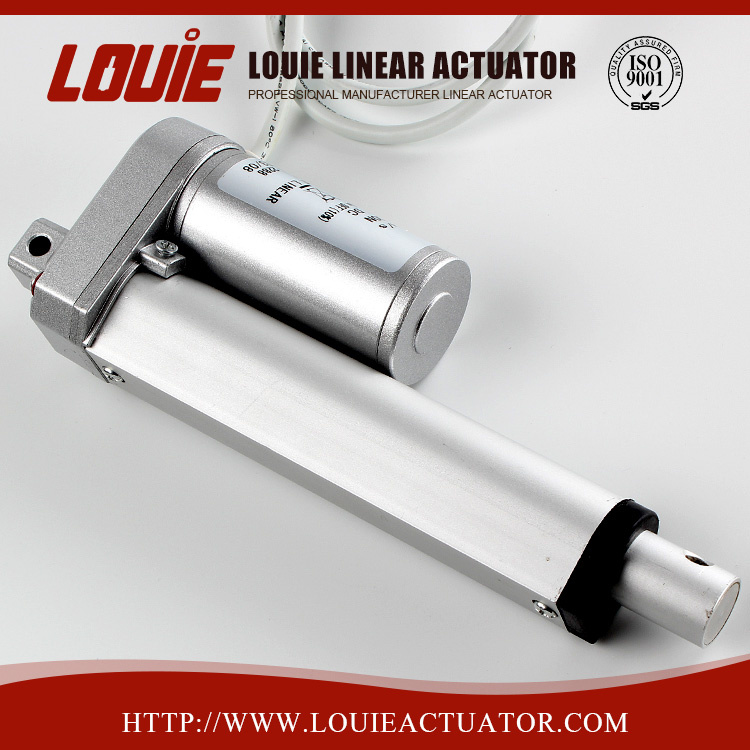

12V High Speed Electric Linear Actuator for Window Open

Name: 12V High Speed  Electric Linear Actuator for Window Open
Website: czlouie.en.made-in-china.com

Working Principle

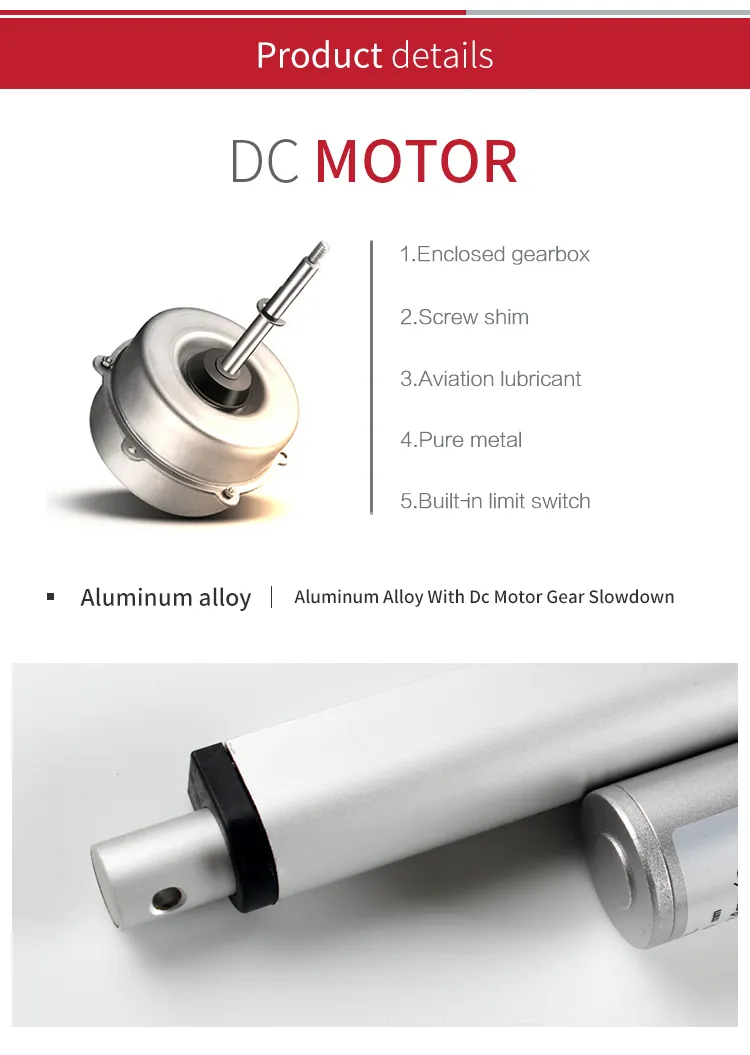

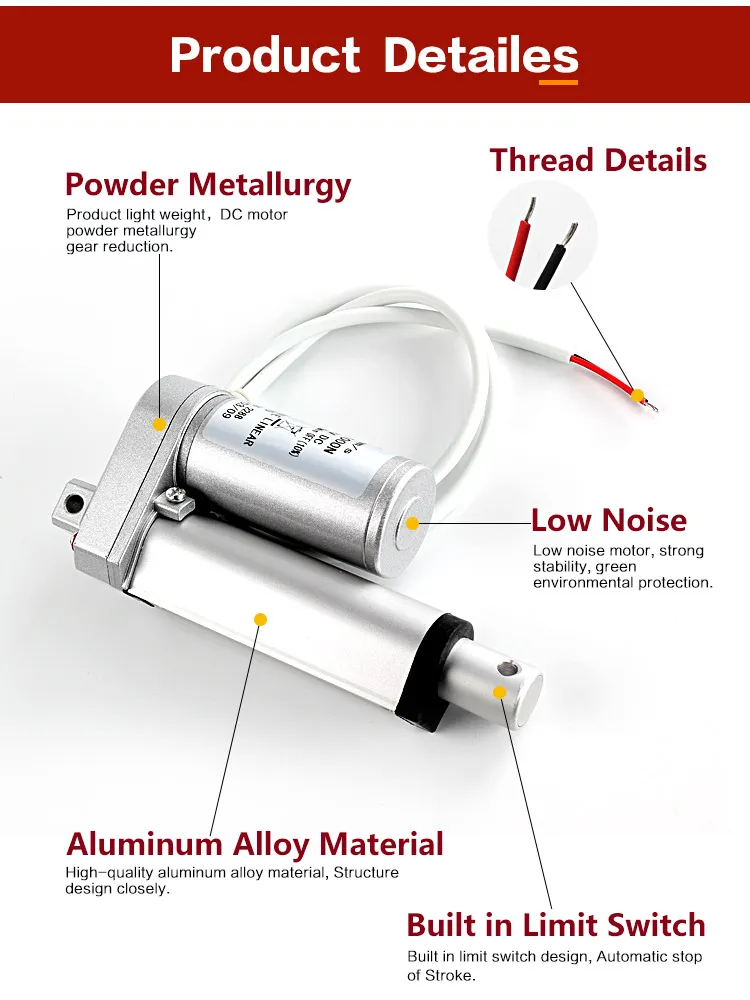

The Linear actuator is a device that converts the rotational motion of a low voltage DC motor into linear motion that is push and pull movements. The electric linear actuator consists of a motor, a gear and a spindle including a nut. A special version of the linear actuator is the built-in actuator meant for integration in a customer guidance. A complete actuator system solution includes one or more linear actuators, a control box and a control device to operate the actuator

Advantage

The linear actuator are finding their way into a wide range of applications. When something needs to be raised, lowered, pushed, pulled, rotated, positioned, lifted, shifted or moved, the linear actuators are making an irrefutable case for electrification. These actuators operate more simply, efficiently, cleanly and quietly. And with fewer components to act up or wear out, the linear actuators offer exceptional durability. Despite being perceived as costing more, the actuator actually nets out to be more cost-efficient because of savings on several fronts.


Application

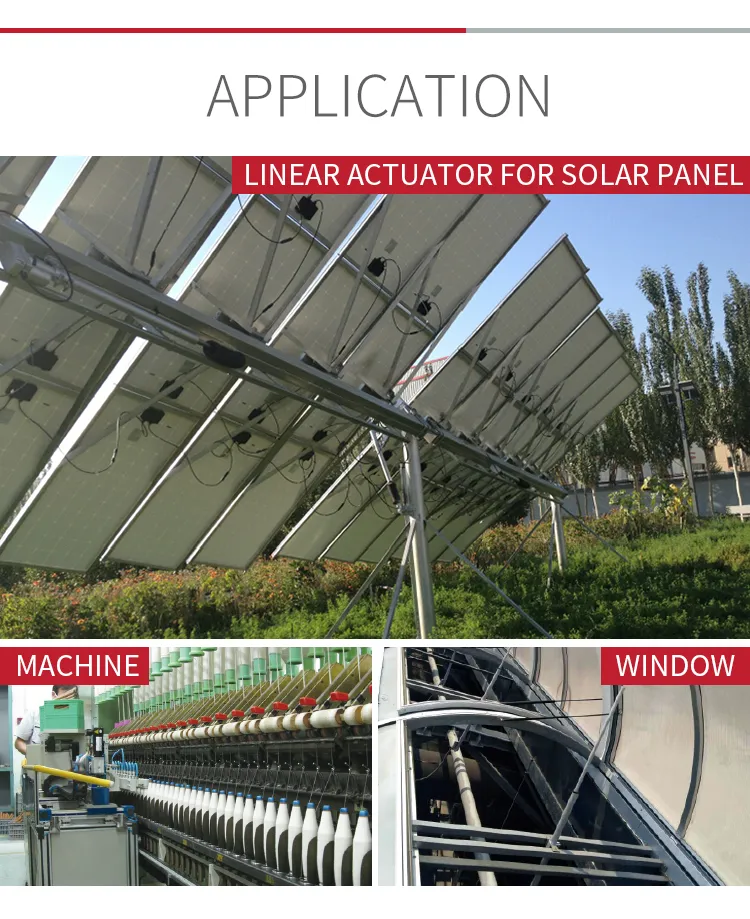

The linear actuator are used in many different industries, making both work and private life easier for a lot of people. The actuators are ideal for hospital beds, patient lifts, dental chairs, bath lifts and wheelchairs, industrial workstations, kitchens, construction and machinery, ventilation and farming solutions, marine applicationssolar tracking systems.

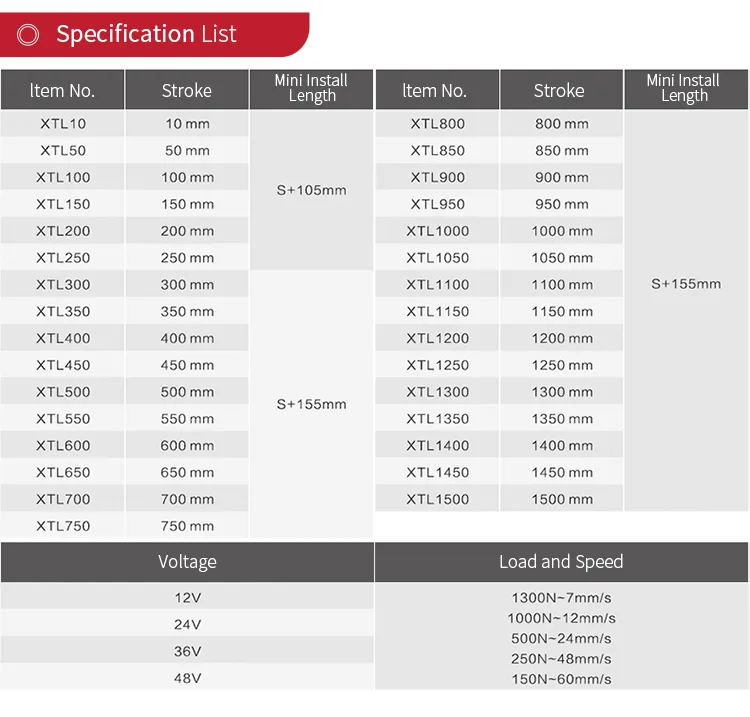

1. Input 12|24V
2. Load capacity 500n -1000n
3. Speed 5~33mm/s|0.2~1.32inch
4. Current 0.5~4.2A
5. Strokelength 0~1000mm|0~40inch
6. Standard protection class IP65
7. Working temperature -45centigrade ~ 65 Centigrade
8. Housing material plastic
9. Inner tube material Aluminum Alloy

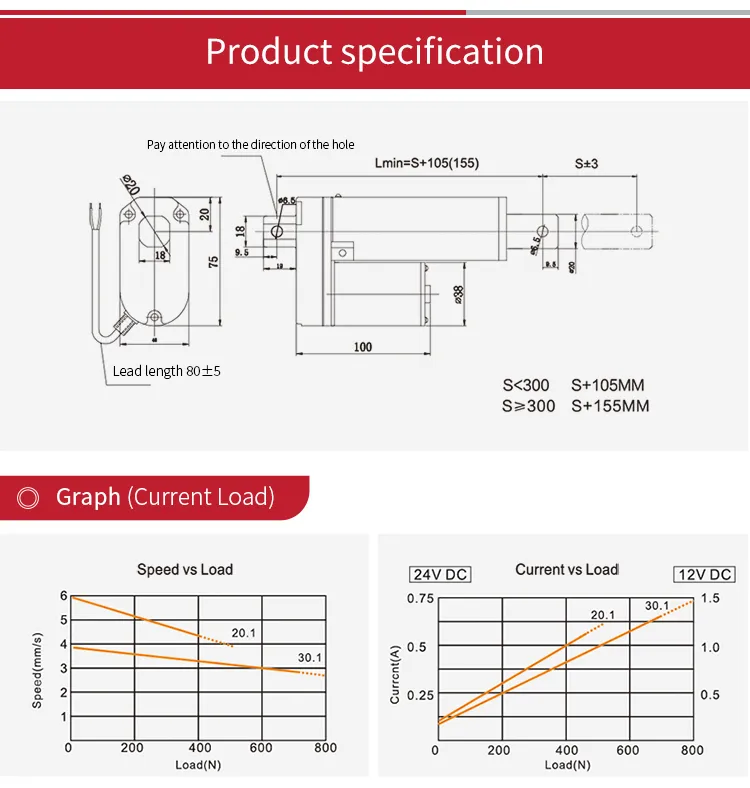

10. Min installation dimension 105mm+stroke
11. With limited switch With
12. Color Grey/black




Packaging Detail: Standard Exporting Box
Delivery Detail: 20 DAYS

Our advantage:

1. Professional R&D team, advanced design concept
2. Modern production equipment and reliable production process

3. Full set of testing equipment to ensure product's performance
4. Strict quality control process
5. Considerate after service
