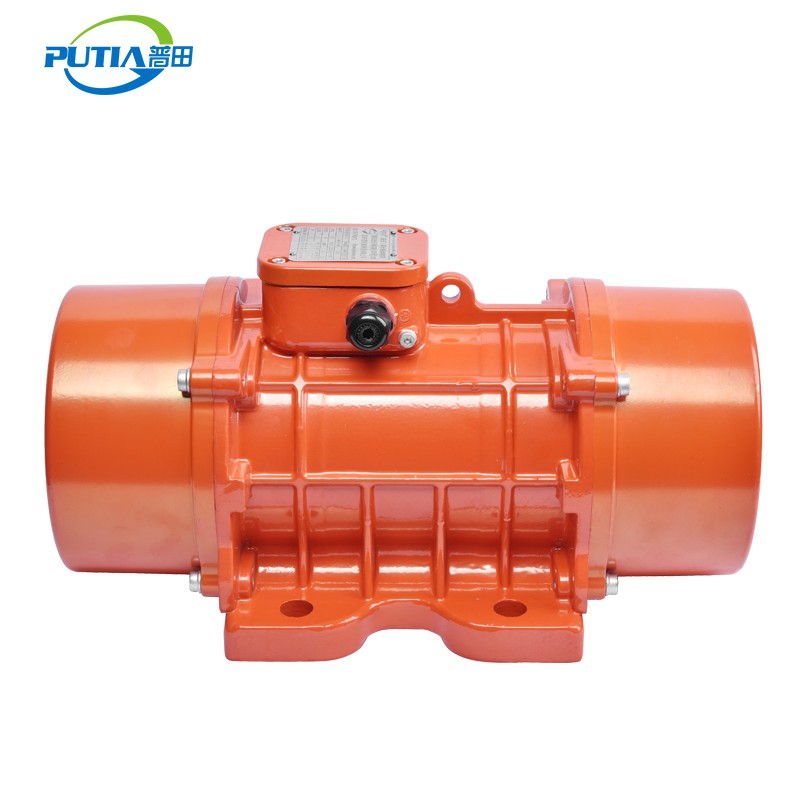

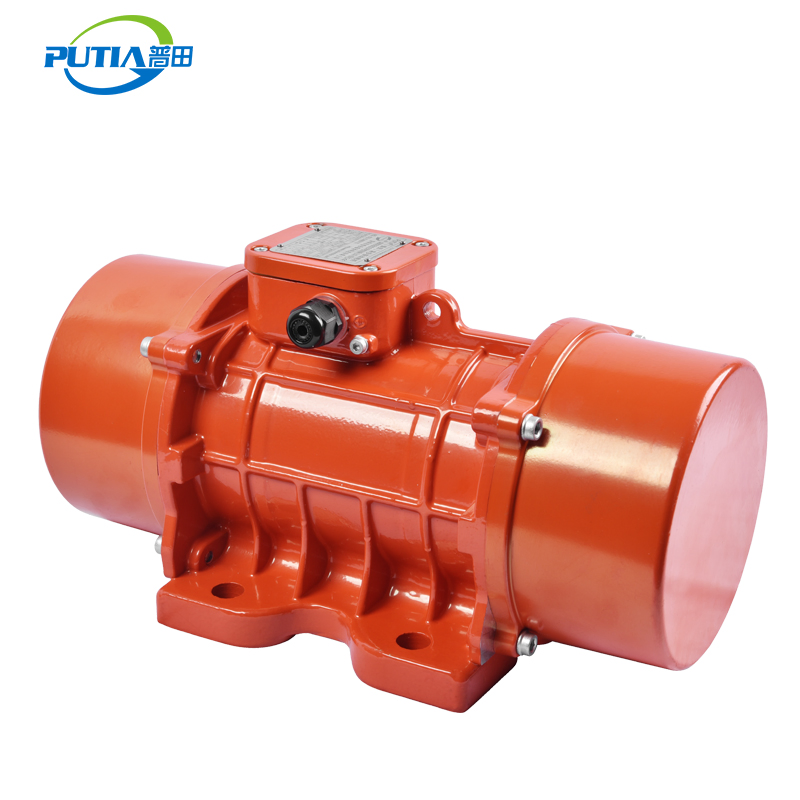

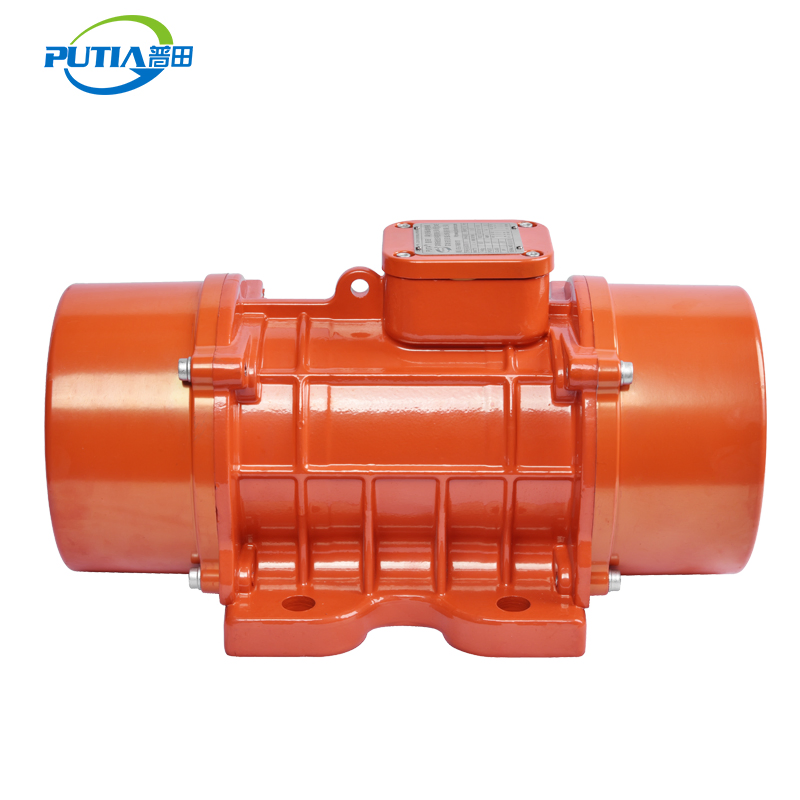

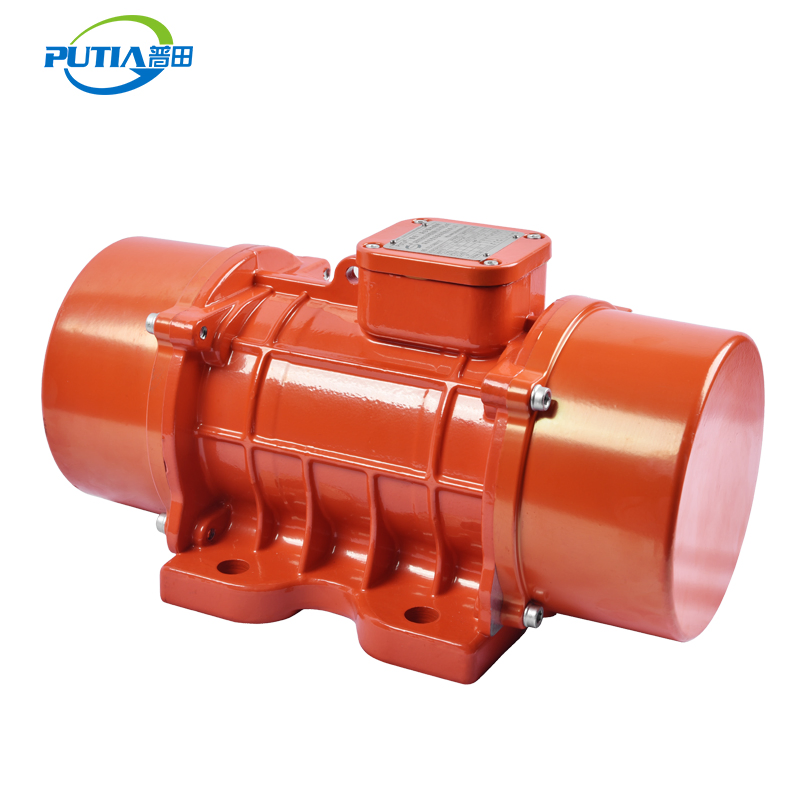

Vibrator Motor AC Electric Motor 2.2kw 50kn Electric Motor Vibrator Mve800/15-50
Product introduction PT-MVE standard Putian vibration motor is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, casting, food, powder spraying equipment, sieve powder, food machinery, etc.Suitable for vibrating screen, blanking, conveying, elec......
Send Inquiry
Product Description
Product introduction |
This series of vibration motor has single-phase vibration motor and three-phase vibration motor two series, a variety of voltage (110V / 220V / 380V /415V), a variety of power (0.03-1.4KW) for choice.
PUTIAN can design and manufacture customized electric vibrators with 50HZ/60HZ frequency, customized voltage range ,high altitude according to custom's special requirement.
Vibration motor technical parameters |
| Three-phase 2poles(380V/220V)-3000/3600rpm | ||||||
| Model | Force | Power (KW) | Current (A) | Weight (KG) | Frame No. | |
| kg | kn | |||||
| PT-MVE60/3-10 | 71 | 0.7 | 0.03 | 0.16 | 4.38 | 10 |
| PT-MVE100/3-10 | 99 | 1 | 0.04 | 0.19 | 4.6 | 10 |
| PT-MVE200/3-20 | 198 | 2 | 0.09 | 0.35 | 7.6 | 20 |
| PT-MVE300/3-30 | 311 | 3 | 0.16 | 0.52 | 9.5 | 30A |
| PT-MVE400/3-30 | 400 | 4 | 0.2 | 0.58 | 10.3 | 30B |
| PT-MVE500/3-40 | 516 | 5 | 0.37 | 0.96 | 15.3 | 40 |
| PT-MVE700/3-40 | 750 | 7 | 0.45 | 1.25 | 15.5 | 40 |
| PT-MVE800/3-50 | 788 | 8 | 0.55 | 1.45 | 22.5 | 50 |
| PT-MVE1200/3-50 | 1018 | 10 | 0.75 | 1.85 | 23.1 | 50 |
| PT-MVE1300/3-50 | 1386 | 13 | 1.1 | 2.44 | 24.5 | 50 |
| Three-phase 4poles(380V/220V)-1500/1800rpm | ||||||
| Model | Force | Power (KW) | Current (A) | Weight (KG) | Frame No. | |
| kg | kn | |||||
| PT-MVE40/15-10 | 32 | 0.3 | 0.03 | 0.26 | 4.6 | 10 |
| PT-MVE90/15-20 | 90 | 0.9 | 0.04 | 0.31 | 7 | 20 |
| PT-MVE200/15-30 | 183 | 2 | 0.06 | 0.49 | 11.5 | 30B |
| PT-MVE250/15-30 | 257 | 2.5 | 0.07 | 0.54 | 13.1 | 30 |
| PT-MVE300/15-30 | 305 | 3 | 0.08 | 0.62 | 13.5 | 30 |
| PT-MVE400/15-40 | 388 | 4 | 0.15 | 0.84 | 19 | 40 |
| PT-MVE500/15-40 | 518 | 5 | 0.25 | 1.06 | 20 | 40 |
| PT-MVE700/15-50 | 693 | 7 | 0.37 | 1.32 | 28 | 50 |
| PT-MVE800/15-50 | 807 | 8 | 0.4 | 1.36 | 29.5 | 50 |
| PT-MVE1100/15-50 | 1045 | 11 | 0.4 | 1.4 | 35 | 50 |
| Three-phase 6poles(380V/220V)-1000/1200rpm | ||||||
| Model | Force | Power (KW) | Current (A) | Weight (KG) | Frame No. | |
| kg | kn | |||||
| PT-MVE50/1-30 | 51 | 0.5 | 0.03 | 0.38 | 10.9 | 30B |
| PT-MVE100/1-30 | 105 | 1 | 0.04 | 0.42 | 13 | 30 |
| PT-MVE200/1-40 | 185 | 1.8 | 0.05 | 0.48 | 18.6 | 40 |
| PT-MVE300/1-50 | 308 | 3 | 0.16 | 0.67 | 29.3 | 50 |
| PT-MVE400/1-50 | 408 | 4 | 0.25 | 1.22 | 31.5 | 50 |
| PT-MVE500/1-50 | 510 | 5 | 0.37 | 1.22 | 35.2 | 50 |
| Three-phase 8poles(380V/220V)-750/900rpm | ||||||
| Model | Force | Power (KW) | Current (A) | Weight (KG) | Frame No. | |
| kg | kn | |||||
| PT-MVE150/075-40 | 105 | 1 | 0.08 | 0.38 | 21.4 | 40 |
| PT-MVE250/075-50 | 180 | 2 | 0.12 | 0.9 | 29.5 | 50 |
| PT-MVE400/075-50 | 264 | 2.5 | 0.12 | 0.9 | 34.2 | 50 |
Vibration motor technical parameters |
| Single-phase 2poles(220V/110V)-3000/3600rpm | ||||||
| Model | Force | Power (KW) | Current (A) | Weight (KG) | Frame No. | |
| kg | kn | |||||
| PT-MVE60/3M-10 | 71 | 0.7 | 0.03 | 0.16 | 4.38 | 10 |
| PT-MVE100/3M-10 | 99 | 1 | 0.04 | 0.19 | 4.6 | 10 |
| PT-MVE200/3M-20 | 198 | 2 | 0.09 | 0.35 | 7.6 | 20 |
| PT-MVE300/3M-30 | 311 | 3 | 0.16 | 0.52 | 9.5 | 30A |
| PT-MVE400/3M-30 | 400 | 4 | 0.2 | 0.58 | 10.3 | 30B |
| Single-phase 4poles(220V/110V)-1500/1800rpm | ||||||
| Model | Force | Power (KW) | Current (A) | Weight (KG) | Frame No. | |
| kg | kn | |||||
| PT-MVE40/15M-10 | 32 | 0.3 | 0.03 | 0.26 | 4.6 | 10 |

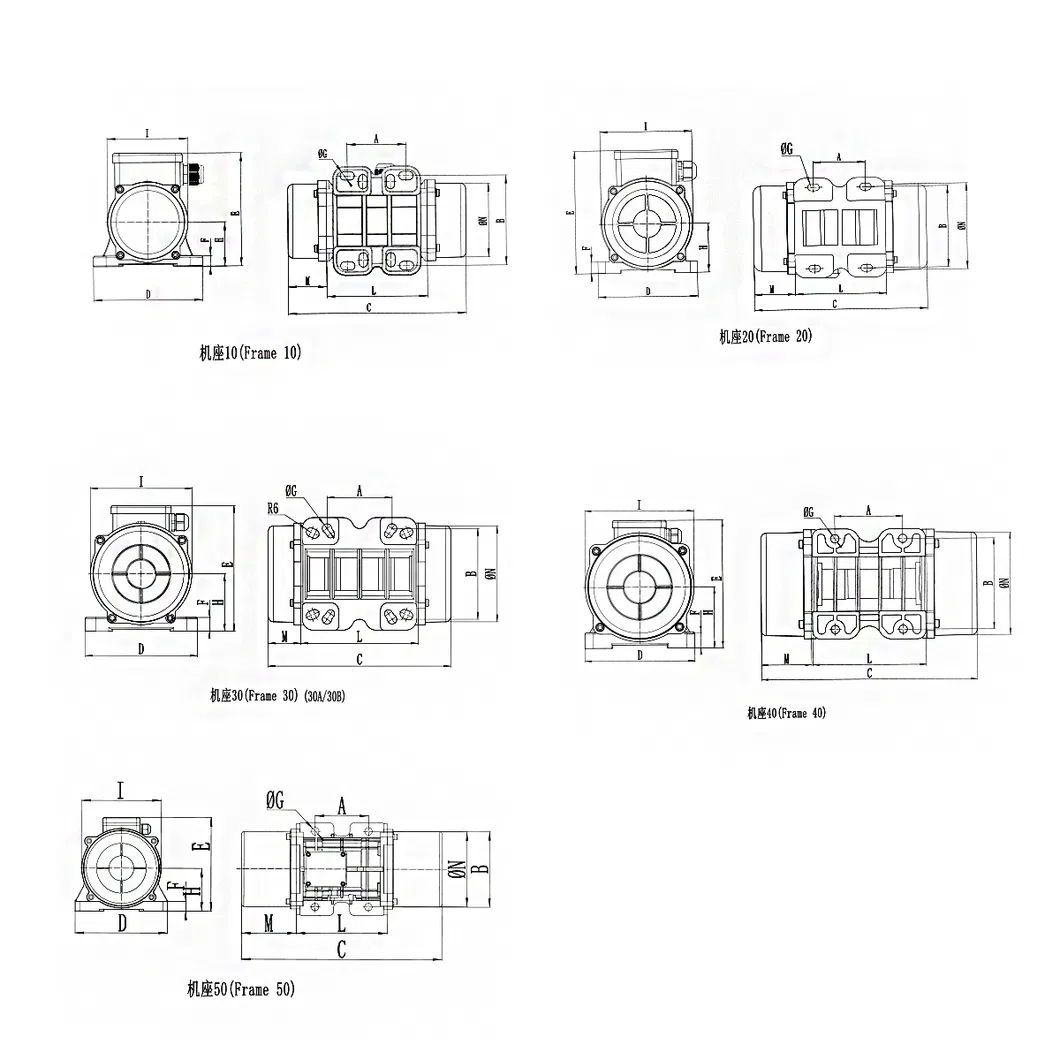

| Installation of overall dimention | |||||||||||||

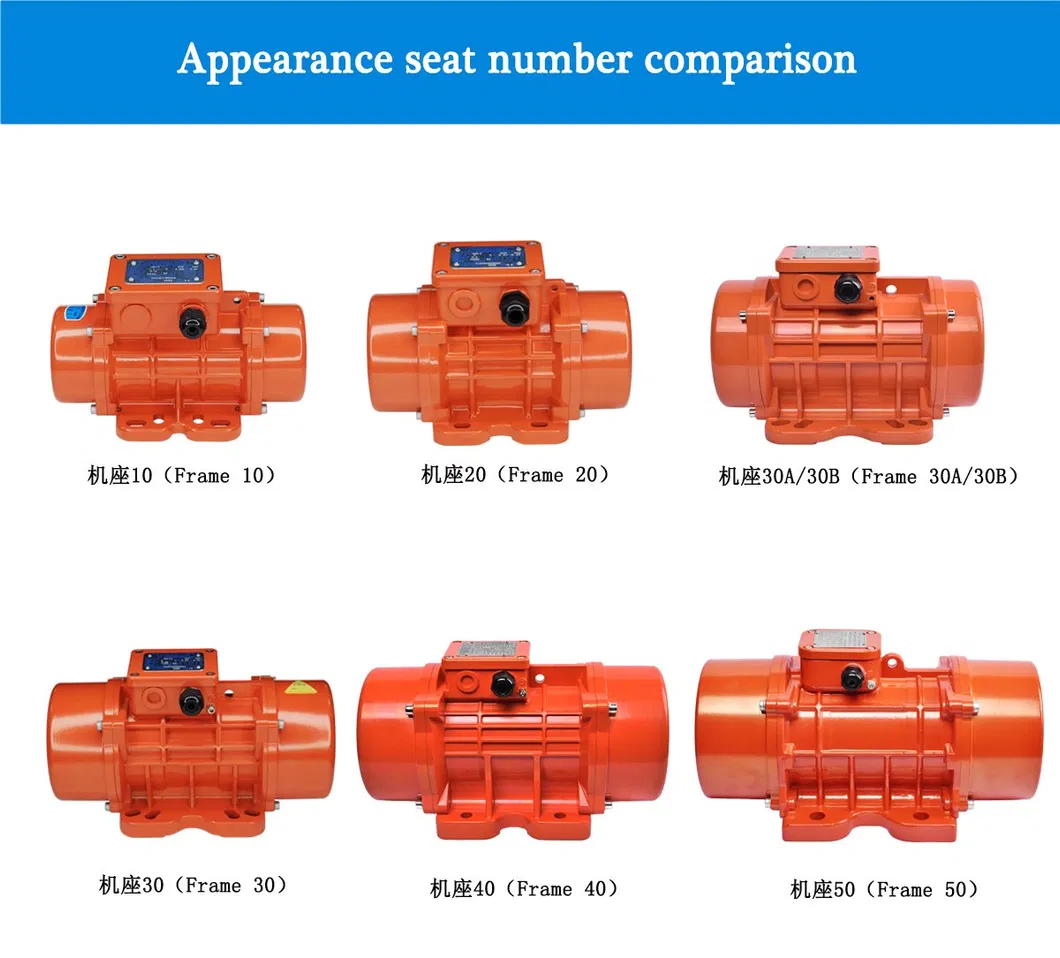

| Frame No. | A | B | C | D | E | F | G | H | I | L | M | N | Gable Gland |
| 10 | 62-74 | 106 | 210 | 130 | 136 | 12 | 10 | 52.5 | 96 | 120 | 45 | 86 | M16*1.5 |
| 20 | 62-74 | 106 | 227 | 131 | 159 | 15 | 9 | 64 | 121 | 119 | 54 | 112 | M20*1.5 |
| 30 | 90 | 125 | 300 | 155 | 173 | 19 | 13 | 79 | 140 | 160 | 70 | 131 | M20*1.5 |
| 30B | 90 | 125 | 276 | 155 | 173 | 19 | 13 | 79 | 140 | 160 | 58 | 132 | M20*1.5 |
| 30A | 90 | 125 | 250 | 155 | 173 | 19 | 13 | 79 | 140 | 160 | 45 | 132 | M20*1.5 |
| 40 | 105 | 140 | 525 | 168 | 196 | 22 | 13 | 92 | 169 | 178 | 78 | 158 | M20*1.5 |
| 50 | 120 | 170 | 590 | 208 | 210 | 22 | 17 | 94 | 180 | 205 | 58 | 170 | M20*1.5 |

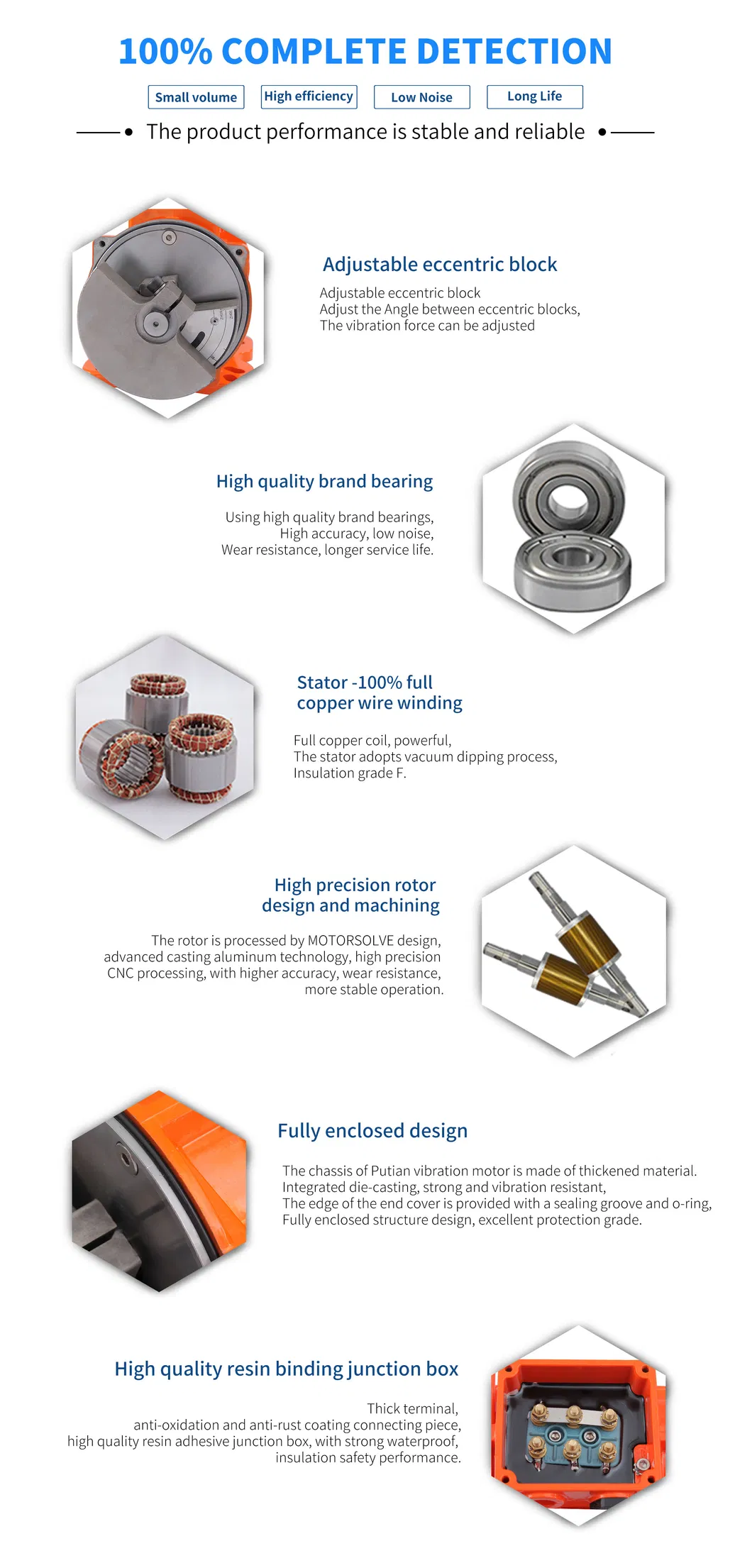

MVE series vibration motor advantages |
Product advantages
PUTIAN vibration motor adopts the eccentric block adjustable design, only need to adjust the Angle of the eccentric block, can achieve the adjustment of vibration force, to meet the needs of various vibration.
· High quality brand bearing
PUTIAN vibration motor selection of high quality brand bearings, high precision. Low noise and wear resistance. Has a longer service life.
· Stator -100% full copper wire winding
PUTIAN vibration motor adopts 100% pure copper enamoured wire, full copper winding, stator adopts special vacuum painting process, reaching F insulation level.
· Fully enclosed design
The shell of PUTIAN vibration motor is made of thickened material, integrated die-casting, strong and vibration resistant. The edge of the end cover is equipped with sealing groove, O-type sealing ring, fully enclosed structure design, excellent protection grade.
· Double protection of power cord
Vibration motor adopts oil resistance, oxidation resistance special power line, plus power line fixed head, to achieve double protection, prevent the motor power line from being damaged by vibration for a long time.
· High precision rotor design and machining
The rotor is processed by MOTORSOLVE design, advanced casting aluminum technology, high precision CNC processing, with higher accuracy, wear resistance, more stable operation.

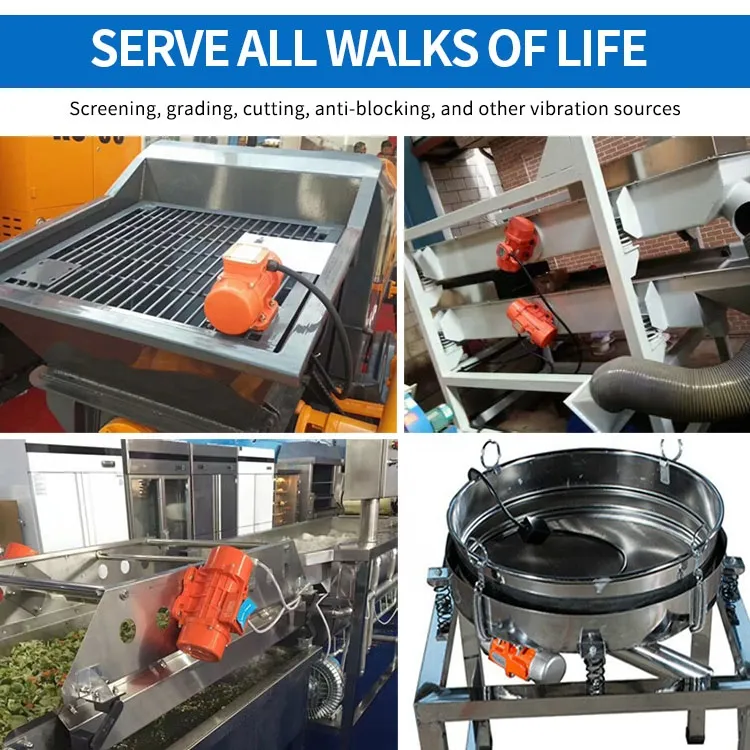

· MVE horizontal vibration motor can be used for flow aid, installed on the bin or hopper to speed up the material unloading, or in various industrial fields installed on the vibration equipment as a driver, to provide transportation, screening, grading or compaction.
· If only one vibration motor is installed on the vibration equipment, it will produce circular motion, if two vibration motors are installed in reverse rotation, it will produce linear motion. Customers can choose circular or linear motion depending on the application.
Company introduction |
. was established in 2000.Its headquarters is located in Shajing,an industrial town in Shenzhen.It is a company specialized in researching, manufacturing and selling AC vibration motors,DC vibration motors, AC and DC high-frequency vibration motors,pneumatic vibrator and vibration damping support,Products have entered many industries such as mining,medical care,casting,food,powder spraying equipment,sieve powder,grain machinery and so on,which are highly praised and praised by domestic and foreign customers.
Headquartered in Shenzhen,the company has set up branches in East China,Taiwan and Hong Kong,providing vibration motors and vibration motor control and monitoring solutions for more than 90 industries and more than 20,000 customers.Products are exported to more than 100 countries and regions in the world, become thousands of well-known vibration machinery equipment designated special motor brand.
FAQ |
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we can provide samples, but there is a charge.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
If you have another question, pls feel free to contact us .
