Yx3 Series High Torque High Efficiency IEC Standard Electric Motor
1.Motor IntroductionYX3 series high efficiency three phase induction motor is high efficiency. Efficiency index of motor reached GB1863. Advantage:High efficiency, energy-saving, low noise and reliable running ensure YX3 series perform well. Compare with Y2&Y3, 3% efficiency is increased but 4dB......
Send Inquiry
Product Description
1.Motor Introduction
YX3 series high efficiency three phase induction motor is high efficiency. Efficiency index
of motor reached GB1863.
Advantage:High efficiency, energy-saving, low noise and reliable running ensure YX3 series
perform well. Compare with Y2&Y3, 3% efficiency is increased but 4dB noise is reduced.
2.Motor Features:
YX3 series AC motor technical parameter
1, Frame Size: 63-355 MM;
2, Rated Output: 0.12—315 KW or 0.15—465 HP;
3, Rated Voltage: 380/660 V or to be your request;
4, Rated Frequency: 50 Hz,60 Hz,50 Hz / 60 Hz;
5, Poles: 2 / 4 / 6 / 8 / 10;
6, Speed: 590 —2980 r/min
7, Ambient Temperature: -15°C—40°C
8, Model of CONEECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;
9, Mounting: B3; B35; B34; B14; B5; V1;
10, Current: 1.5—465 A (AC);
11, Duty: continuous (S1);
12, Insulation Class: B / F;
13, Protection Class: IP54 / IP55;
14, Cooling Method: ICO 141 Standards;
15, Altitude: No more than 1,000 meters above sea level;
16, Packing: 1pc in a Strong carton several cartons on a Pallet.
Kailida motors advantage:
Prompt Quotation.
Competitive Price
Guaranteed Quality
Timely Delivery.
100% Tested.
Sincere and Professional Service.
Outstanding Finishing Surface.
Strictly and Perfect Management is guaranteed for Production.
Specialized in Manufacturing and Supplying a wide range of Electric Motors since year 2002.
Have Rich Experience and Strong ability to Develop New Products.
Have Ability to Design the Products Based on Your Original Samples.
Our promise:
Prompt Reply to Your Inquiry within 24 Hs during Working Days.
Long Life Time Products
Products One Year Guarantee from the Date of Sales.
Professional Service in Handling Your Goods in Daily Communications
Deliver Time about 15-20 days for Normal Models.
Deliver Time about 30 days for New Models upon Receiving the New Samples.

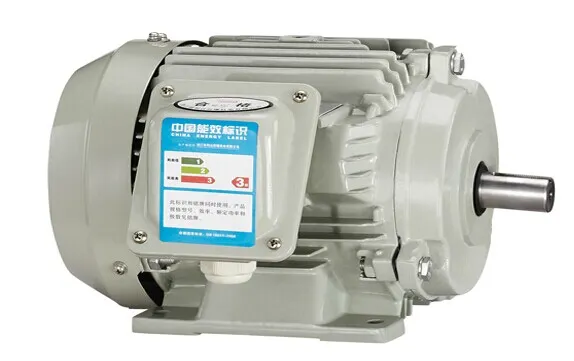

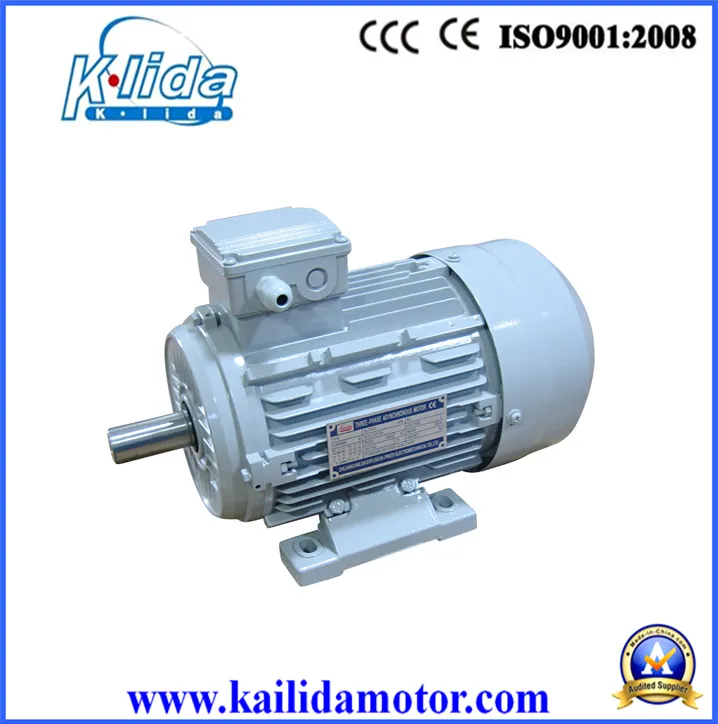

3.Motor Pictures
