Yvf2 Series Variable Frequency Adjustibale Speed Three -Phase Asynchronous Motor

Product Description

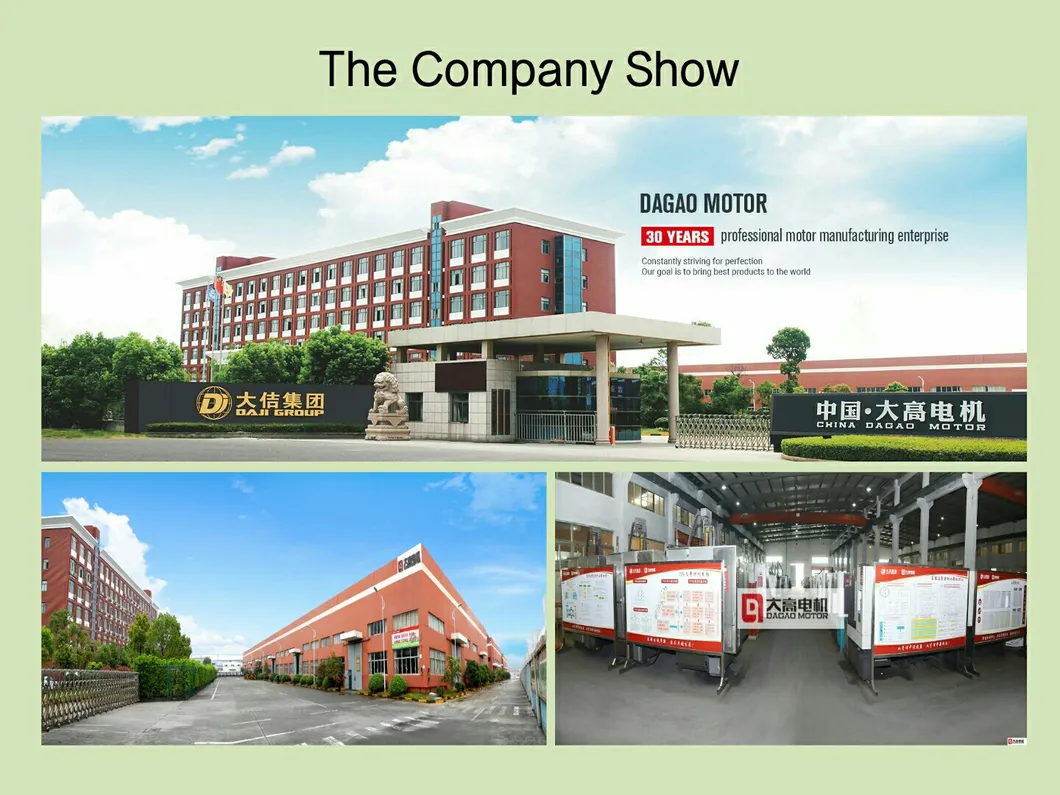

Company Introduction

DAJI GROUP. ZHEJIANG DAGAO ELECTRIC MOTOR Co., Ltd, is professional enaged in electric motor manufacturing for 30 years since 1988. The headquarters is located in Shanghai city, group with 4 manufacturing bases in zhejiang and Shanghai, has more than 300 national sales centers and special agencies, and exported to more than 50 countries and regions.

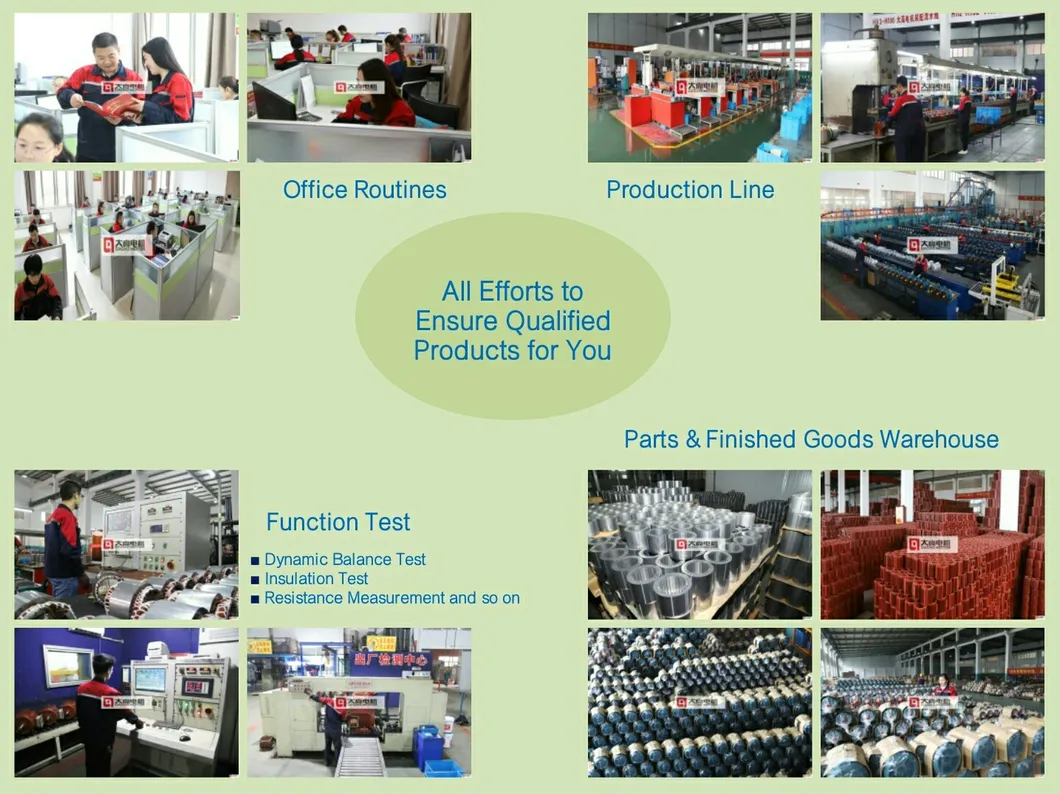

Factory Advantages

1. 30 years history
2. Competitive price
3. Guaranteed quality
4. Fast delivery time: normal models about 15-20 days , unusual models about 30 days
5. 100% testing after every process, 100% raw materials are selective
6. High efficiency
7. Low noise
8. Long life
9. Power saving
10. Slight vibration
11. It is newly designed in conformity with the relevant rules of IEC standards
12. Professional Service
13. Warranty: 12 months from date of delivery
14. Main Market: South America, Europe, Middle East, Southest Asia, Africa and so on
15. We have certificates for CE, CCC, ISO9001, SGS and so on

Yvf2 Series Variable Frequency Adjustibale Speed Three -Phase Asynchronous Motor

Yvf2 Series Variable Frequency Adjustibale Speed Three -Phase Asynchronous Motor

Product Introduction

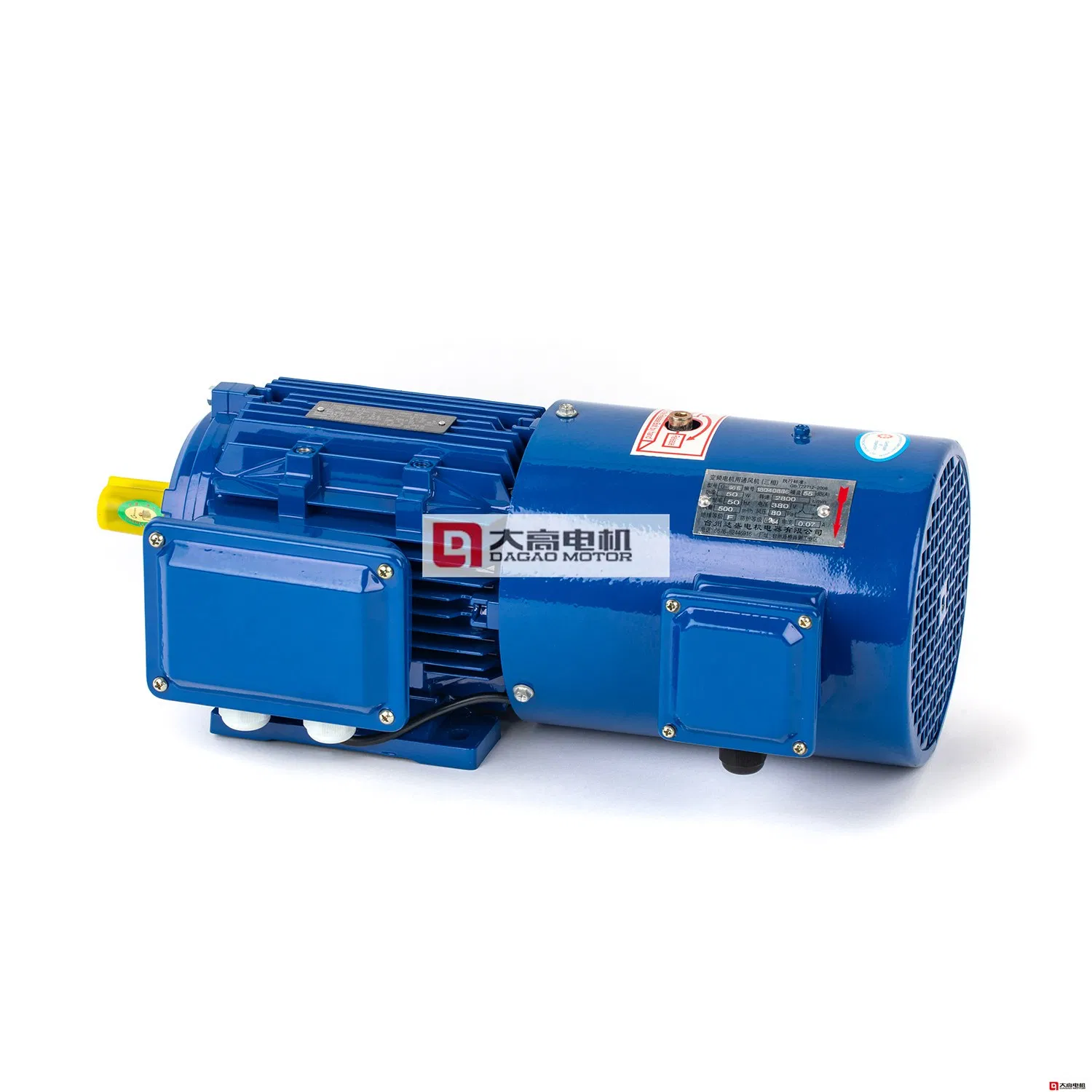

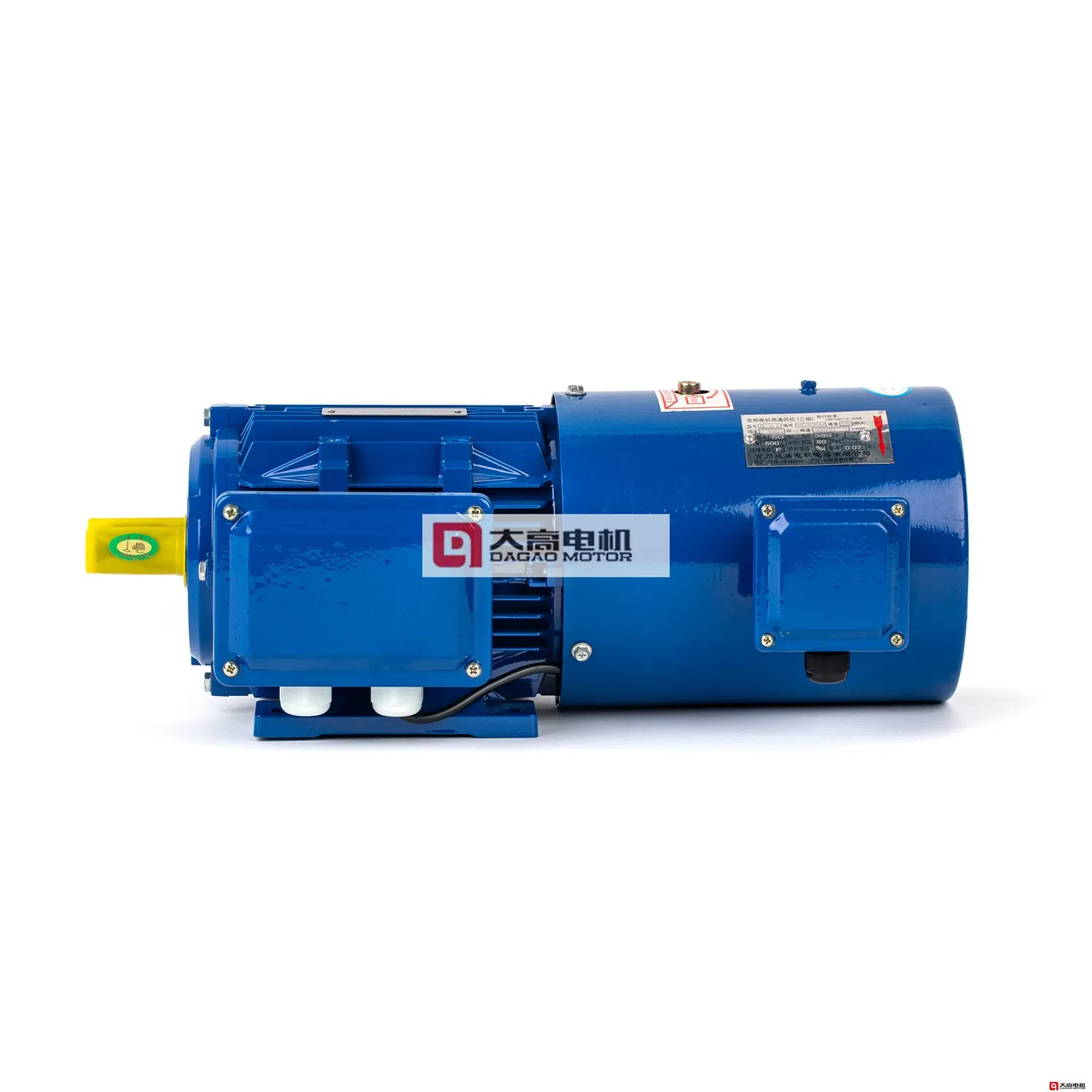

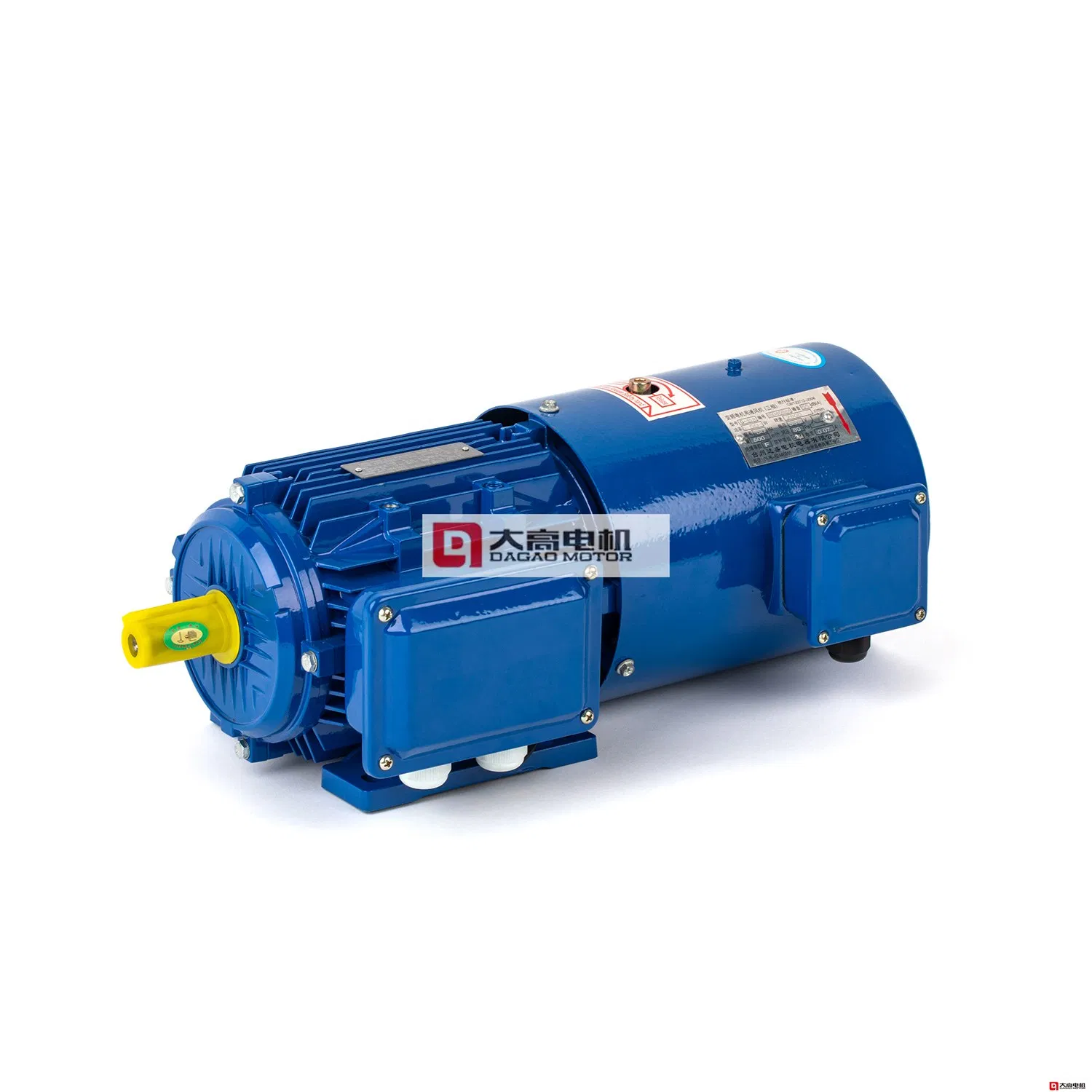

The series of YVF2 motor is fully enclosed and independent three-phase asynchronous motor with forced frequency conversion adjusting speed. The variable frequency motor with different reference poles can realize stepless speed regulation within the range of 100 ~3550 r/min, and it has a wide range of speed regulation.

It's suitable for all kinds of drive devices that need speed regulation, such as fan, pump, transmission line automation equipment and machine tool (such as CNC machine tool, machining center). So it is widely used in metallurgy, chemical industry, textile, pharmaceutical, printing and other industries.

YVF2 Series Variable Frequency Adjustibale Speed Three -Phase Asynchronous Motor
1). Frame:	80 - 355 mm
2). Power:	0.55 - 315 kW
3). Voltage:	380 V
4). Frequency:	50 Hz
5). Shell:	cast iron body, aluminum body
6). Pole:	2, 4, 6
7). Protection degree:	IP54
8). Insulation class:	F
9). Cooling method:	IC416
10). Duty Type:	S1
11).Certificates:	CE, CCC, ISO9001, SGS and so on

Working Condition: ambient temperature is -15^oC to 40^oC, and below 1000 meters above sea level

Mounting Type:
Conventional mounting type and suitable frame size are given in following table(with "√")

Frame

Basic Type

Derived Type

B3

B5

B6

B7

B8

B35

V1

V3

V5

V6

V15

V8

V35

V36

V37

80~160

√

-

√

-

180~280

√

-

√

-

315~355

√

-

√

-

FAQ:

Q: What is your delivery time?
A: Within 20-25 days after receiving deposit.

Q: Do you offer OEM service?
A: Yes. We accept OEM service.

Q: What is your MOQ of this item ?
A: 10 PCS per item.

Q: Can we type our brand on it?
A: Yes, of course.

Q: Where is your loading port ?
A: Ningbo Port, Shanghai Port, China.

Q: What is your production capacity?
A: About 1000 PCS per day.

Yvf2 Series Variable Frequency Adjustibale Speed Three -Phase Asynchronous Motor

Ordering Instructions

1. Please indicate the fram size, power, synchronous speed, voltage, frequency, install measurements, inlet cable entrance type and direction of rotation etc.

2. If have special request, such as the voltage, frequency, protection degree, duplex shaft, direction of rotation, temperature monitoring device, install measurements, bearing oil discharge device and so on, please indicate in details in the ordering contract and sign technical agreement if necessary.

3. When ordering other series of motor and derived motor in the sample, please follow this instruction without further notice, thank you for your cooperation!
