Product Description

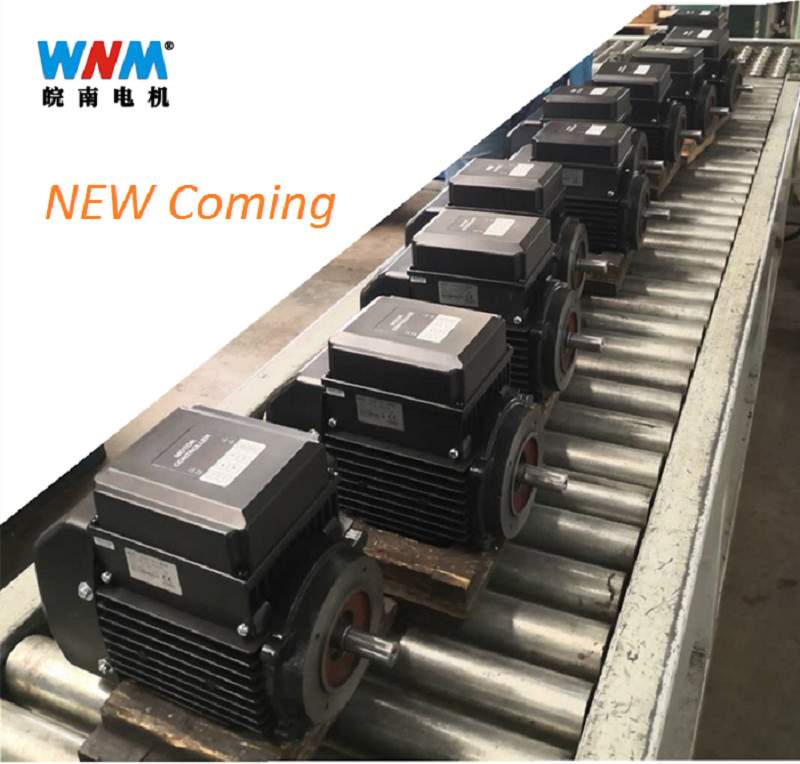

Smart Control Variable Frequency Electric Motor Integrated with controller for Pumps Compressors Blowers
---------------------------------------------------------------------------------------------

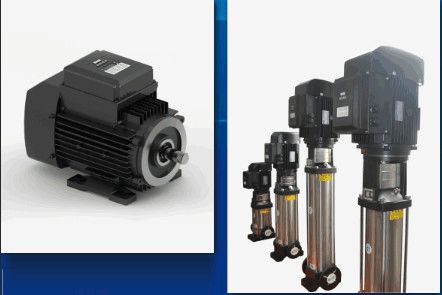

Applications: Widely used in fans, pumps, compressors, CNC machine tools and other industries. It's in line with the current trend of intelligent development of new products.

General Description

Frame sizes: 80 to 132
Rated output: 0.18 to 7.5kW
Voltage: 380V
Frequency range: 25Hz or 100 Hz
Number of poles: 2,4
Insulation class: F
Degree of protection: IP55
Efficiency levels: IE2/ IE3

High Lights:
*Highly -integrated
*Space-Saving
*Independent brand
*Stability
*Reliability
*Perfect Service
*Wide Application
*Attractive Profile
*Compact structure
*Simple operation

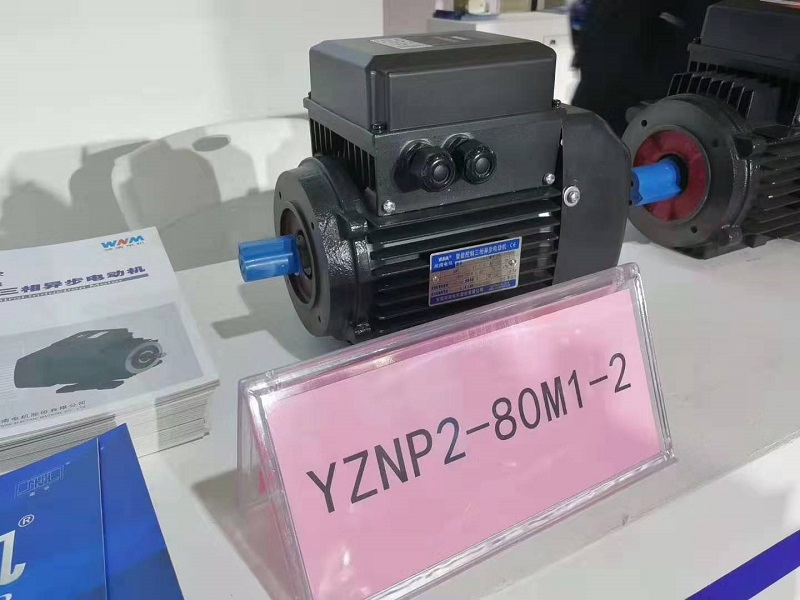

Features:

These series motor is different from general frequency variable motor. The motor and inverter is highly integrated as an organic whole, with small size, light weight, wide range of frequency conversion, stable performance and other advantages.

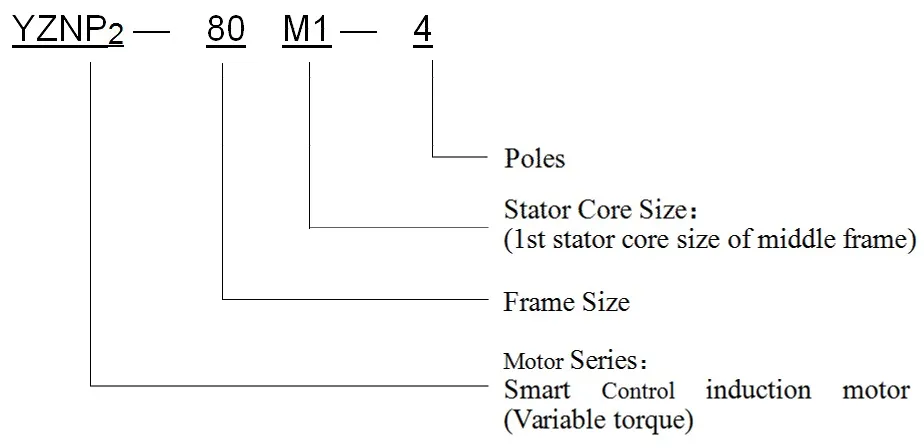

The Implication of the Symbol:

Item		Description
Basic Control Function	Control	Open-loop vector control(No PG), V/F control
	Max frequency	Vector control:0~300Hz V/F control: 0~3200Hz
	Carrier Frequency		0.5kHz~16kHz Self-adjust frequency basing on the load characteristic
		Input FREQ Resolution		Digital setting:0.01Hz Analog setting:max frequency×0.025%
		Start Torque		0.5Hz/150%
		Speed Range		1:100
		Steady Speed Accuracy		±0.5%
		Overload Capacity		150% rating current 60s;180% rating current 3s.
		Torque Boost		Automatically;Manually 0.1%~30.0%
		V/F Curve		3 Modes:Linear;Multi-point;N-th power V/F curve(1.2 powers,1.4 powers,1.6 powers,1.8 powers,2 powers)
		V/F Separation		2 Modes:Total separation,Semi separation
		ACC/DCC Curve		Linear or S curve ACC/DCC PTN. 4 time modes of ACC/DCC (Timer range 0.0~6500.0s)
		DC Brake		DC braking frequency:0.00Hz~Max FREQ Braking time:0.0s~36.0s Braking current:0.0%~100.0%
		JOG Control		JOG FREQ:0.00Hz~50.00Hz. JOG ACC/DCC time range 0.0s~6500.0s.
		PLC,Multi-section speed		Max 16- section speed operation available with built-in PLC or terminal control
		Built-in PID		Process close-loop control system available
		AVR Function		Automatically regulate the voltage to constant output though the changing in the grid voltage.
		Overcurrent / overvoltage stalling		Automatically limit the current and voltage during running to avoid frequent overcurrent /overvoltage trip.
		Current limiting function		Reduce overcurrent malfunction, ensure motor's operation
		TORQ Limitation		Automatically limit the torque during running to avoid frequent overcurrent trip.

Specifications of cooling blower and brake for the motor

Motor	Frame	80	90	100	112	132	160	180	200	225	250	280	315	355
Cooling Fan	(W) Power	30	42	52	55	55	80	80	150	200	230	320	700	700
	(A) Current	0.09	0.16	0.18	0.18	0.19	0.26	0.30	0.6	0.6	0.6	1.1	1.8	1.9
	Voltage	Standard 380V, but blower of other voltage can be customized depending on user's requirement.
Brake	(N·m) Braking Torque	7.5	15	30	40	80	150	200	300	450	600	850	200	-
	(W) Excitation Power	50	60	80	110	130	150	150	200	200	210	340	400	-
	Excitation Voltage	DC99,DC170												-
Encoder	Incremental Encoder

Mounting Type:
B3,B5,B35

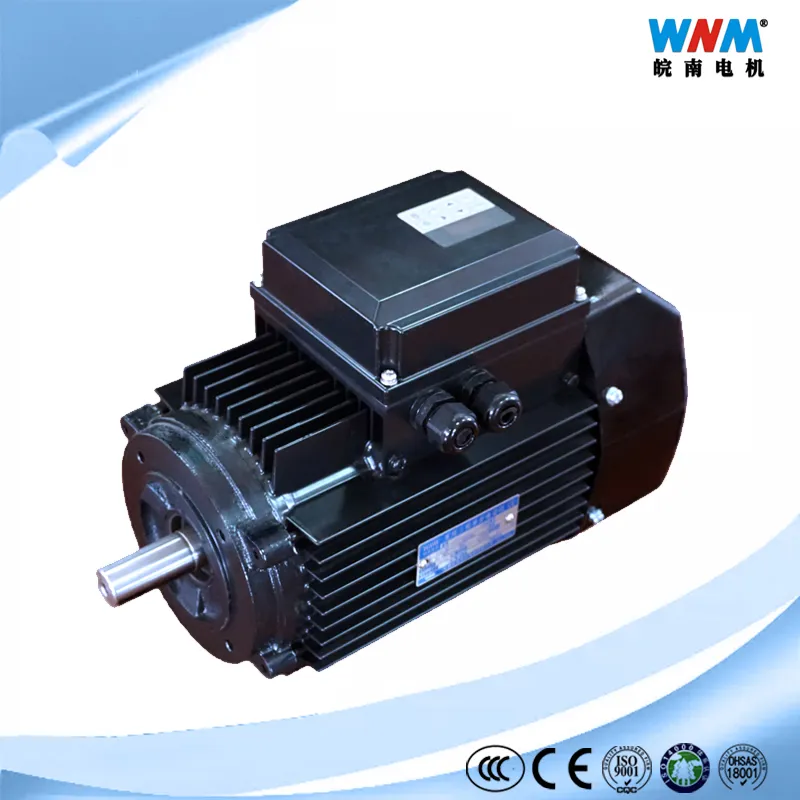

Super Premium Ie2 & Ie3 Efficiency Smart Control Three Phase AC Electric Motor with Inverter 25Hz~60Hz for Hydraulic Power Units 5.5kw 7.5kw

Super Premium Ie2 & Ie3 Efficiency Smart Control Three Phase AC Electric Motor with Inverter 25Hz~60Hz for Hydraulic Power Units 5.5kw 7.5kw

Show Room

Premium Service

Quality Control
Super Premium Ie2 & Ie3 Efficiency Smart Control Three Phase AC Electric Motor with Inverter 25Hz~60Hz for Hydraulic Power Units 5.5kw 7.5kw

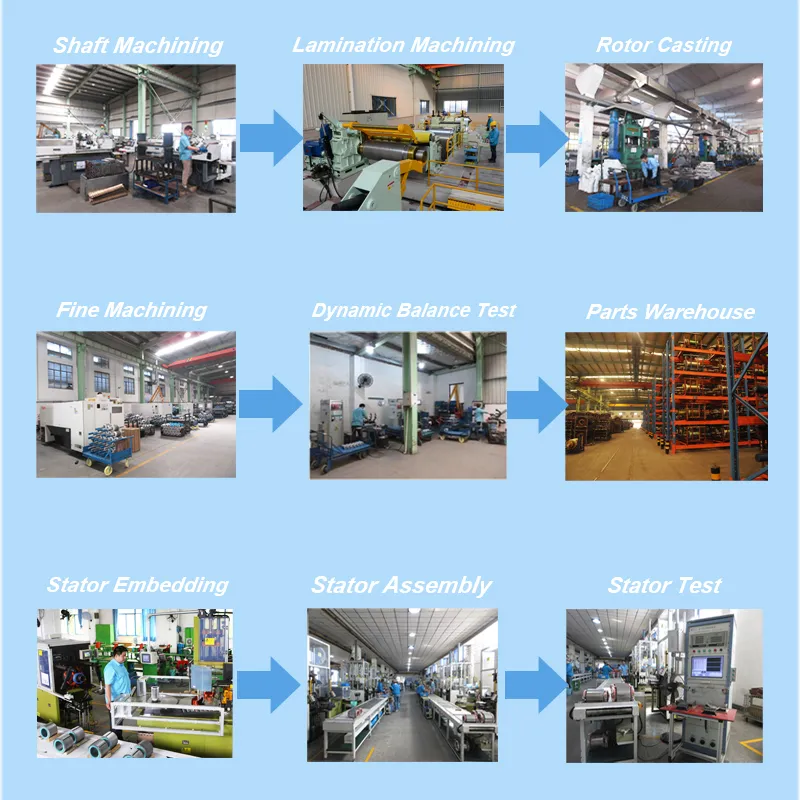

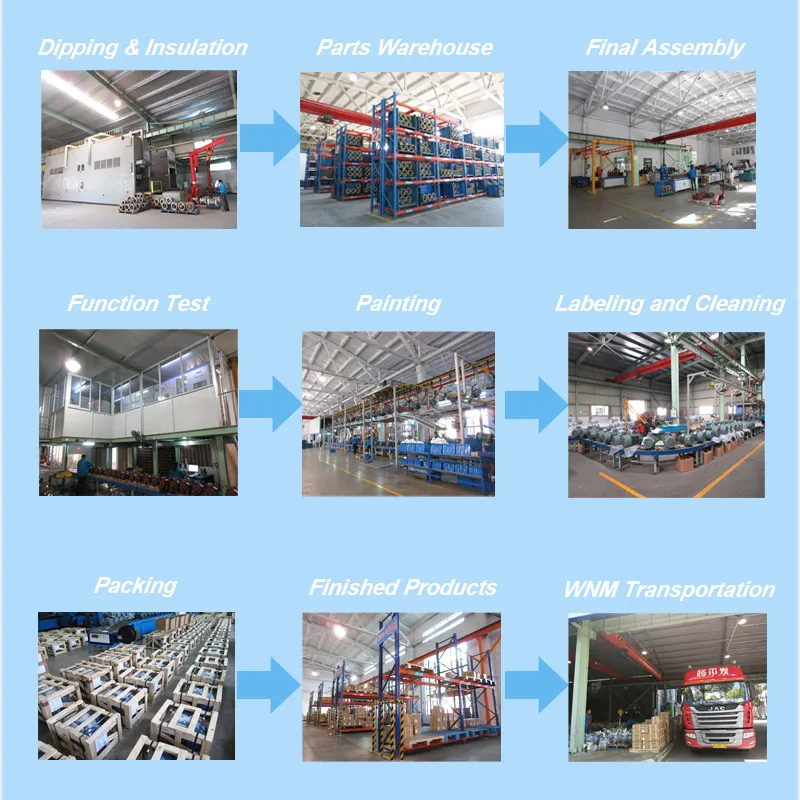

Wannan Motor Production Workshop and Flow Chart
