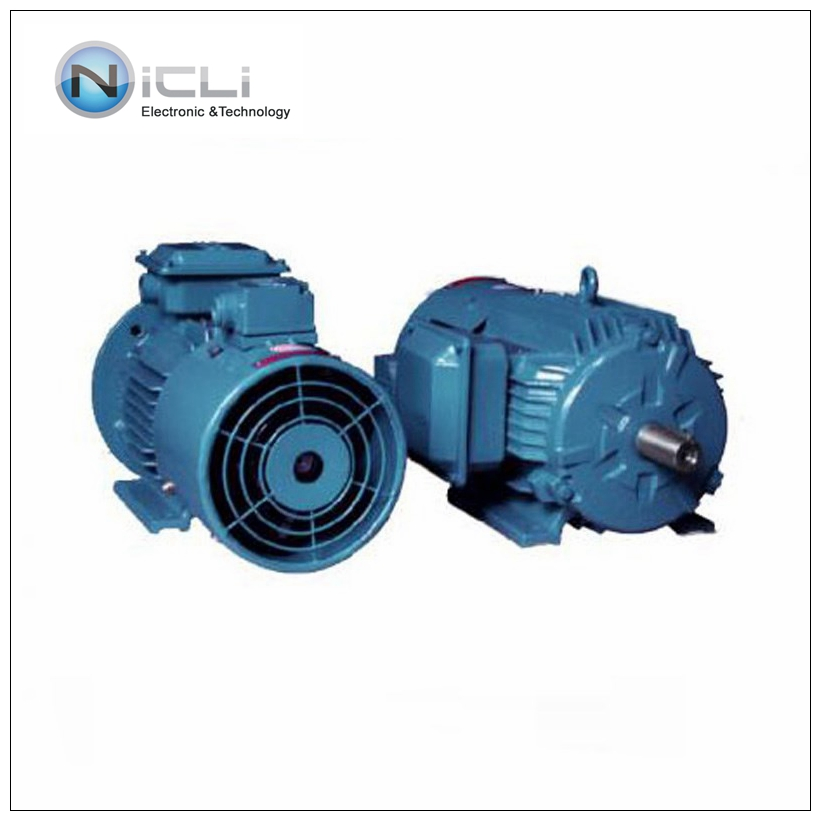

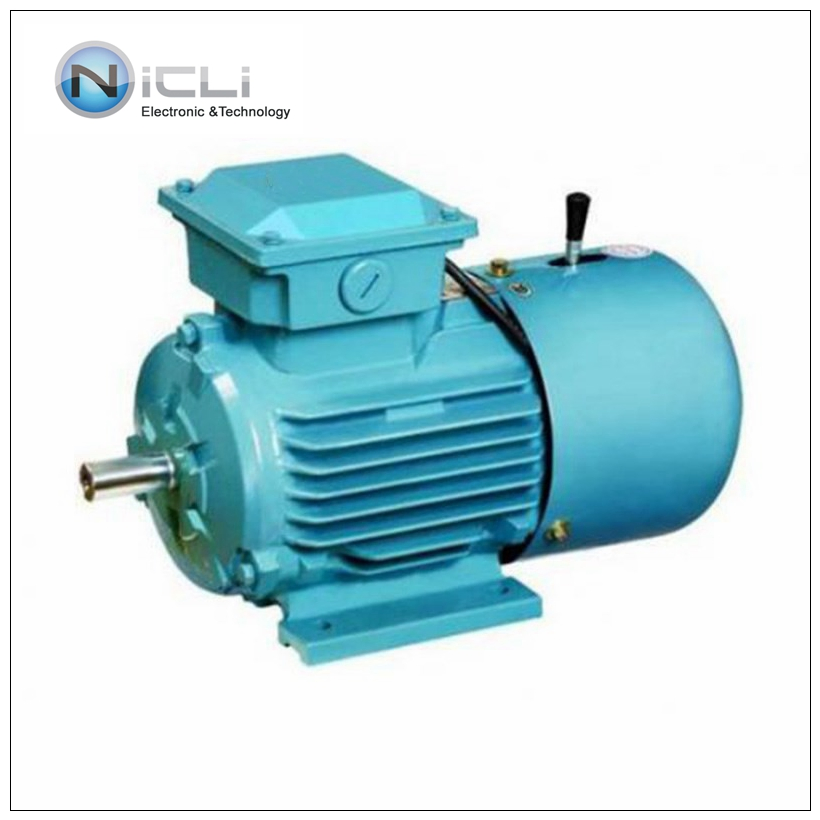

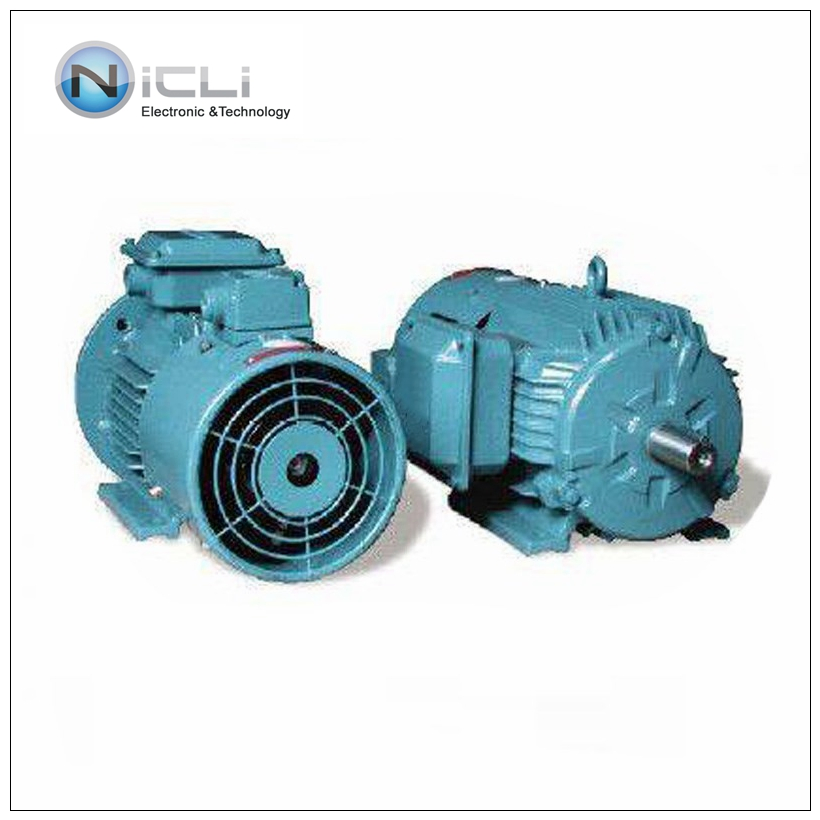

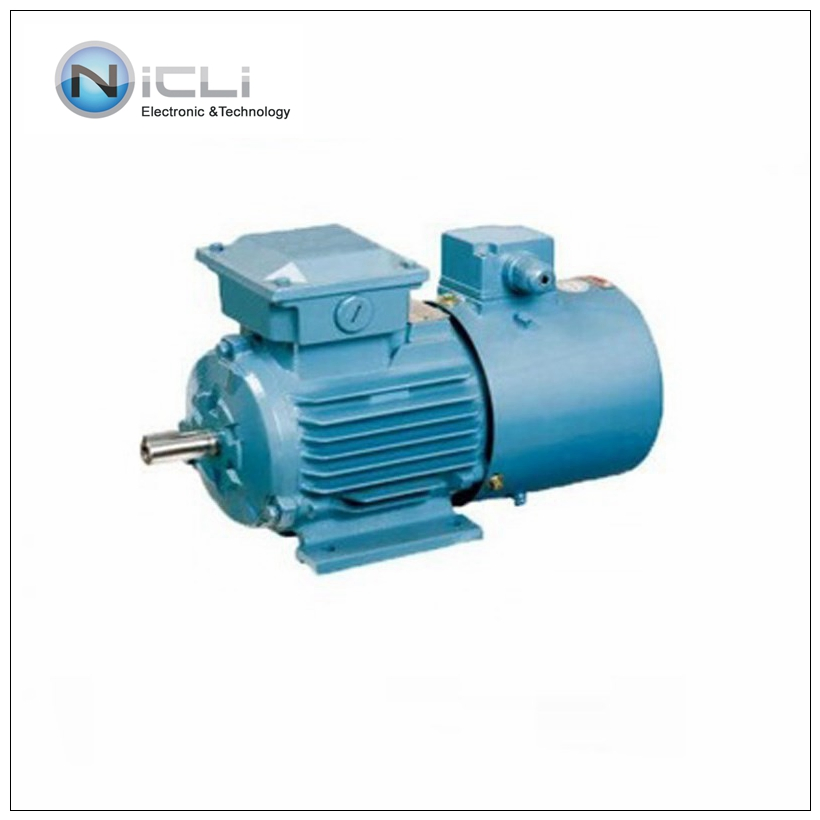

Qabp280m2a 90kw Salable Variable Frequency Motor 2p
Summary QABP Series Three-phase Induction Motors for Frequency Converter(H71-H355)QABP series three-phase induction motors for frequency converter are designed for use in various industrial areas such as light industry,text......
Send Inquiry
Product Description
Summary
QABP Series Three-phase Induction Motors for Frequency Converter(H71-H355)
QABP series three-phase induction motors for frequency converter are designed for use in various industrial areas such as light industry,textile,chemical,metallurgical and machine tool industries.Where ever variable speed driven equipment is used.
The QABP motors have a special copper wire insulation that makes them suitable for operations with frequencies between 5 and 100Hz.
Qutstanding Features of QABP Motors
1.QABP motors can operate in the range between 5 and 100Hz,dependIng of load and execution of the motor.
2.For outputs above 100KW a special insulated bearing is used to prevent damages in case of frequency peaks.
3.For low speed operations the QABP can be equipped with a separate cooling fan.
Major Performance
Technical Date Table
Company Introduction
Fujian Nicli Electronic Technology Co.,Ltd was founded in 2006. It is an automation system integrator located in the software park of Fuzhou Hightech Industrial Park and passed the ISO9001 quality management system. After twelve years of hard work, the company has become a wellknown automation company that provides employees with a good working environment and incentive mechanism and enables employees to grow up with the company.
Fujian Nicli Electronic Technology Co.,Ltd has formed an enterprise development model focusing on automation technology services and industrial control product sales. At present, its main business scope covers machinery, petrochemical, metallurgy, papermaking, nuclear power, municipal engineering and other industries.
The company have established longterm strategic partnerships with wellknown manufacturers such as ABB, YASKAWA, FLOWSERVE and IWAKI.
Up to now, the company has offices in Xiamen, Xi'an, Wuxi and other places. Sales teams are with rich work experience, good quality, and a high sense of corporate honor. We firmly believe that our products and technical strength can provide our customers with professional service requirements.
Our vision: Focus on corporate integrity and dedicated service, to become an excellent, honorable company and provide customers with quality products and services.
Product Application
QABP Series Three-phase Induction Motors for Frequency Converter(H71-H355)
QABP series three-phase induction motors for frequency converter are designed for use in various industrial areas such as light industry,textile,chemical,metallurgical and machine tool industries.Where ever variable speed driven equipment is used.
The QABP motors have a special copper wire insulation that makes them suitable for operations with frequencies between 5 and 100Hz.
Qutstanding Features of QABP Motors
1.QABP motors can operate in the range between 5 and 100Hz,dependIng of load and execution of the motor.
2.For outputs above 100KW a special insulated bearing is used to prevent damages in case of frequency peaks.
3.For low speed operations the QABP can be equipped with a separate cooling fan.
Major Performance
| Duty:S1 |
| Voltage:Three phase 380V(50Hz or 60Hz) |
| Range of frequency converter velocity modulation:5-100Hz stepless velocity modulation below 50Hz(or 60Hz) velocity modulating over 50Hz(or 60Hz) with constant torque velocity modulating with constant output. |
| The motor can undergo overload of 160% at rated rotor torque for 1 minute. |
| The motor torque appears as smooth at lower speed and the motor runs without creep. |
| The motor can guarantee rated rotor torque output at frequency or 5Hz by voltage rising of frequency converter device and not go so far as to be burned as heating. |
| Insulation:F |
| Protection:IP55(motor);IP55(ventilator) |
| Cooling method:IC416 |
Technical Date Table
| Model Number | QABP 280M2A | Rated Speed/ r/min | 2970 |
| Standard Power/KW | 90 | Maximum Torque/ Nominal Torque | 3.0 |
| Rated Current/A | 164 | Rotational Inertia/kgm² | 0.615 |
| Power Factor | 0.91 | Weight/kg | 591 |
| Nominal Torque/Nm | 287 | QABP | |
Company Introduction
Fujian Nicli Electronic Technology Co.,Ltd was founded in 2006. It is an automation system integrator located in the software park of Fuzhou Hightech Industrial Park and passed the ISO9001 quality management system. After twelve years of hard work, the company has become a wellknown automation company that provides employees with a good working environment and incentive mechanism and enables employees to grow up with the company.
Fujian Nicli Electronic Technology Co.,Ltd has formed an enterprise development model focusing on automation technology services and industrial control product sales. At present, its main business scope covers machinery, petrochemical, metallurgy, papermaking, nuclear power, municipal engineering and other industries.
The company have established longterm strategic partnerships with wellknown manufacturers such as ABB, YASKAWA, FLOWSERVE and IWAKI.
Up to now, the company has offices in Xiamen, Xi'an, Wuxi and other places. Sales teams are with rich work experience, good quality, and a high sense of corporate honor. We firmly believe that our products and technical strength can provide our customers with professional service requirements.
Our vision: Focus on corporate integrity and dedicated service, to become an excellent, honorable company and provide customers with quality products and services.

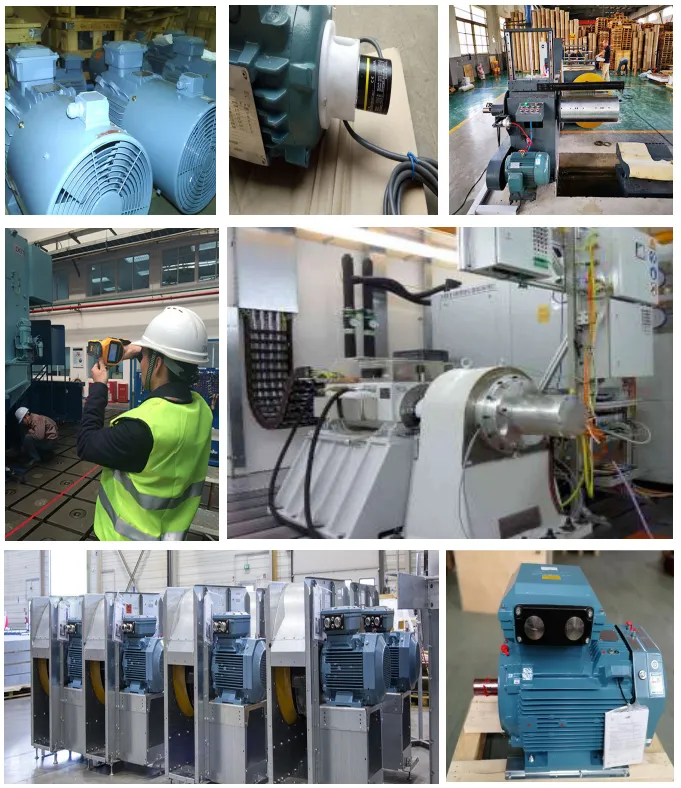

Product Application
