Product Description

MY Series electrical induction Motor
Advantage:
1. Safety & reliable operation
2. Nice appearance
3. Low noises
4. Little vibration
5. Light weight
6. Simple construction.

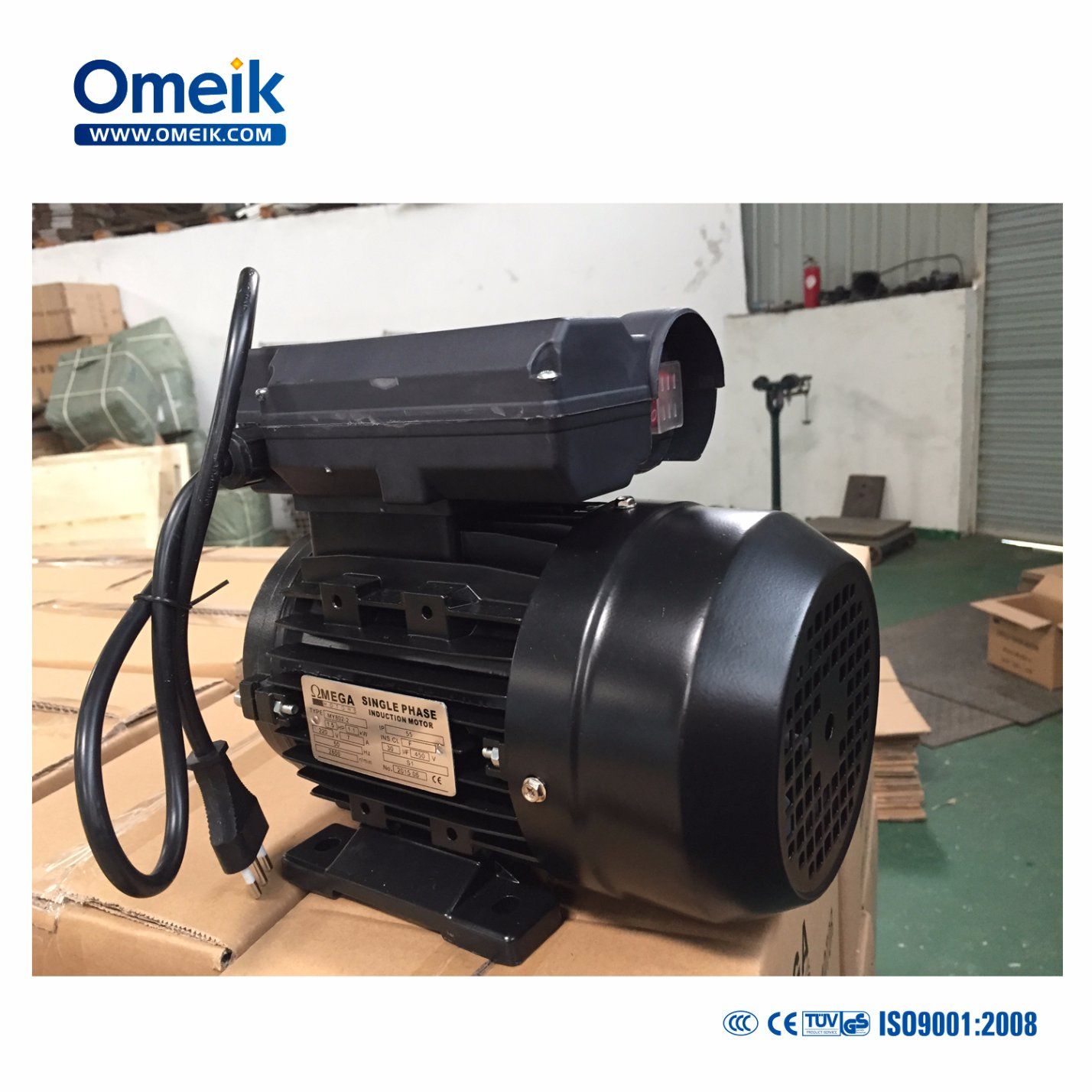

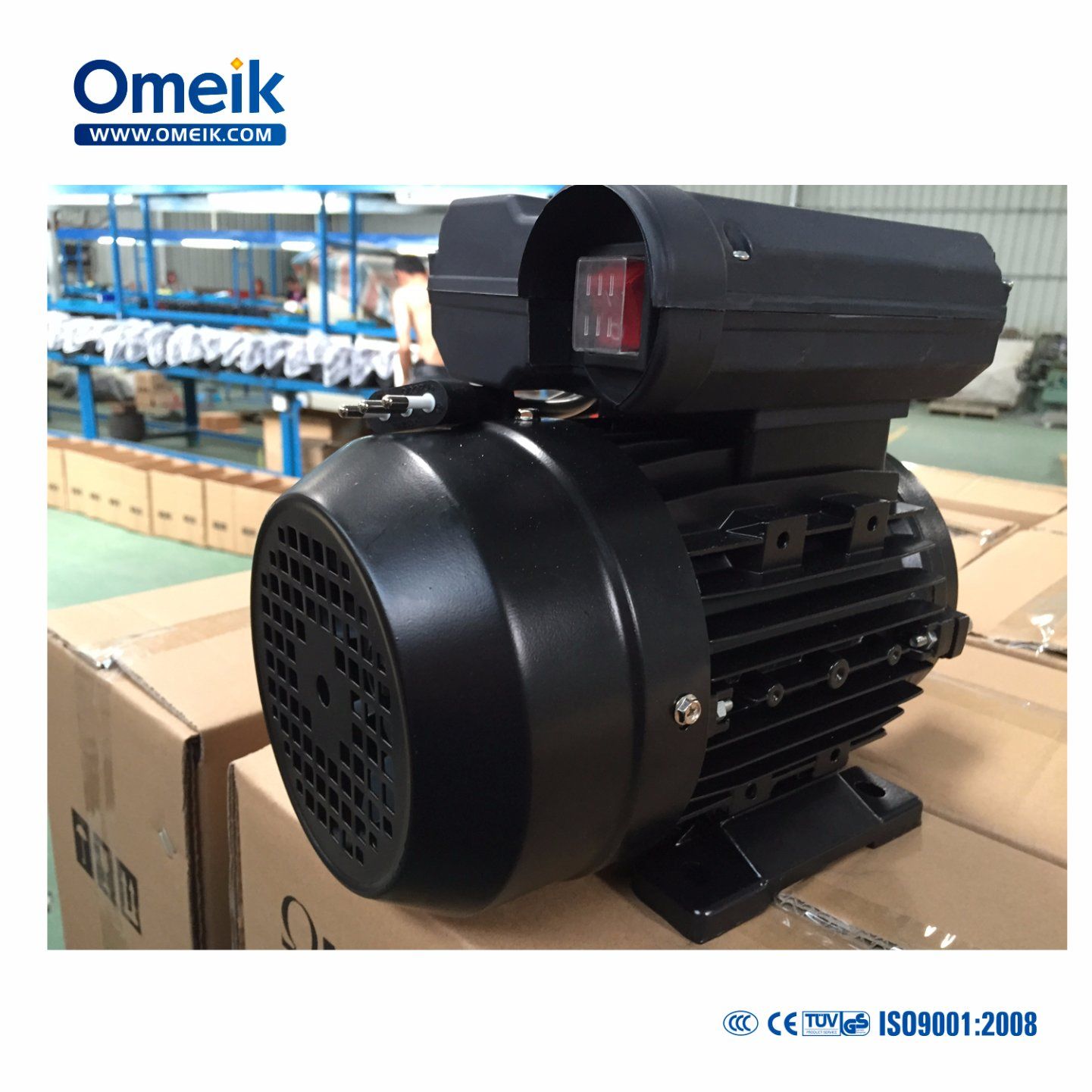

Omeik 1.5HP Single Phase AC Motor

Appliation:

MY series Hydraulic motors can be used on household appliance, pumps, fan and recording meters, etc.

Operating Conditions:

1. Ambient temperature: -15 º C≤ ≤ 40º C
2. Altitude: ≤ 1000m
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55
8. Cooling method: IC0141

Note: If you have any special requirements, please contact us.

TYPE	Output		Voltage	Current	Speed	Eff	Power	Tstart/Tn	Ist/In
	KW	HP	(V)	(A)	(r. p. m)	(%)	factor	Tstart/Tn	Ist/In
MY561-2	0.09	0.12	220	0.9	2730	54	0.9	0.85	4.5	1.7
MY562-2	0.12	0.16	220	0.97	2730	58	0.9	0.85	4.5	1.7
MY631-2	0.18	0.25	220	1.8	2740	63	0.9	0.8	4.5	1.7
MY632-2	0.25	0.33	220	2.16	2740	65	0.9	0.8	4.5	1.7
MY711-2	0.37	0.5	220	2.96	2750	68	0.95	0.8	4.5	1.7
MY712-2	0.55	0.75	220	4.15	2760	69	0.95	0.8	4.5	1.7
MY801-2	0.75	1	220	5.17	2780	70	0.95	0.7	4.5	1.7
MY802-2	1.1	1.5	220	7.26	2790	71	0.95	0.7	4.5	1.7
MY90S-2	1.5	2	220	9.67	2800	72	0.95	0.6	5	1.7
MY90L-2	2.2	3	220	14.1	2800	73	0.95	0.6	5	1.7
MY5614	0.06	0.08	220	0.68	1330	48	0.85	0.85	4.5	1.7
MY5624	0.09	0.12	220	0.99	1340	49	0.85	0.85	4.5	1.7
MY6314	0.12	0.16	220	1.22	1350	53	0.9	0.8	4.5	1.7
MY6324	0.18	0.25	220	1.75	1360	57	0.9	0.8	4.5	1.7
MY7114	0.25	0.33	220	2.2	1370	59	0.95	0.8	4.5	1.7
MY7124	0.37	0.5	220	3.12	1370	62	0.95	0.8	4.5	1.7
MY8014	0.55	0.75	220	4.2	1380	65	0.95	0.7	4.5	1.7
MY8024	0.75	1	220	5.8	1380	68	0.95	0.7	4.5	1.7
MY90S-4	1.1	1.5	220	7.6	1390	69	0.95	0.6	5	1.8
MY90L-4	1.5	2	220	10.2	1400	70	0.95	0.6	5	1.8
