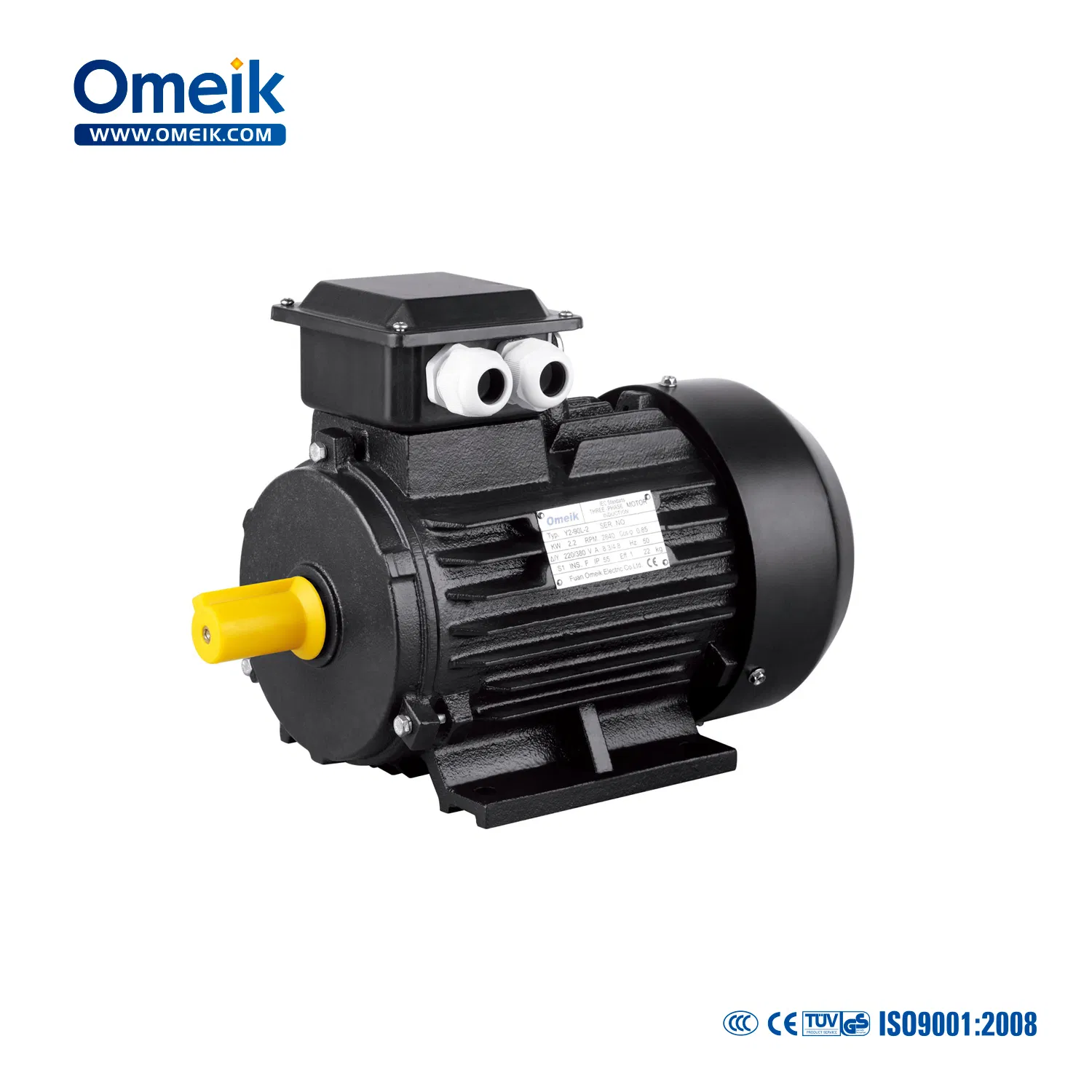

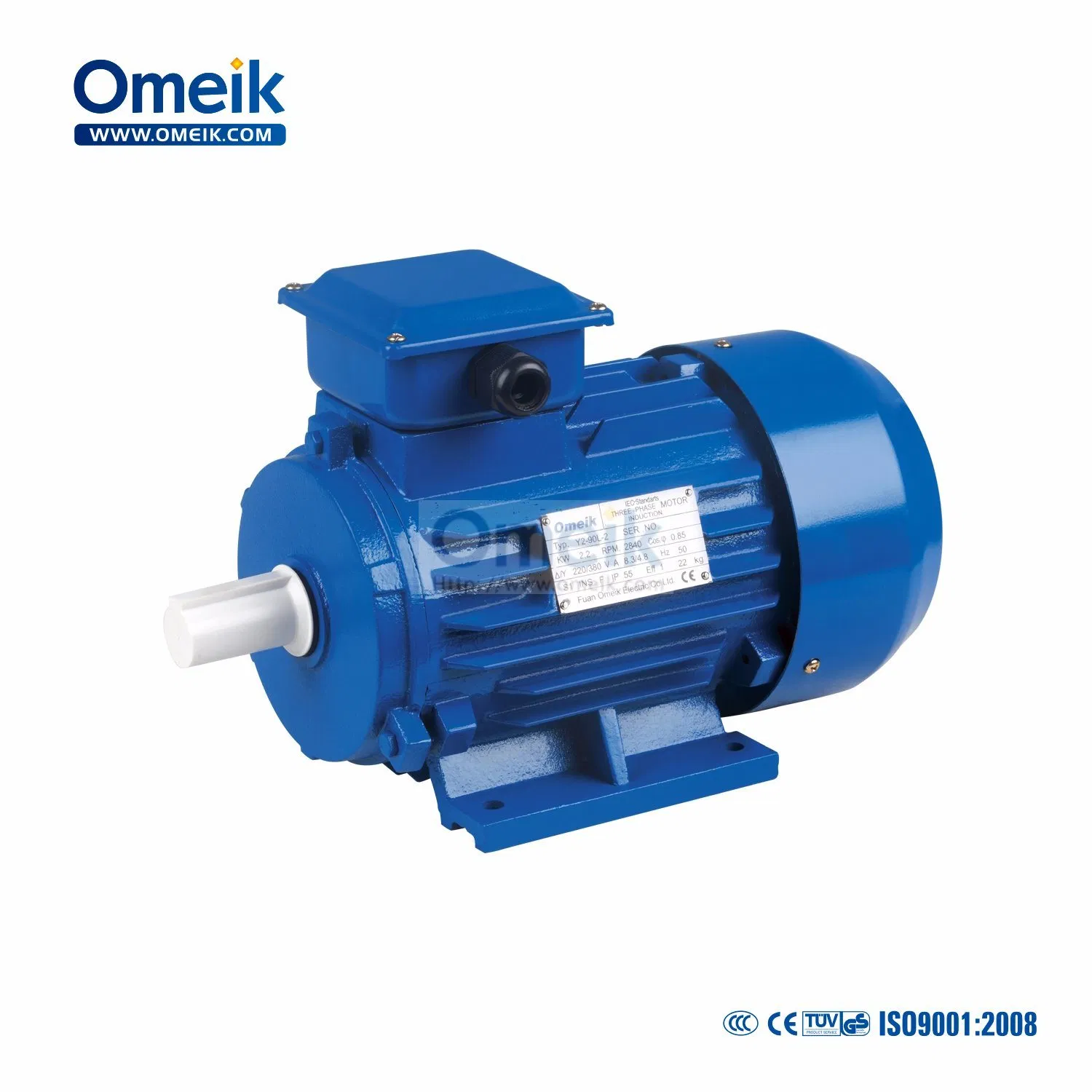

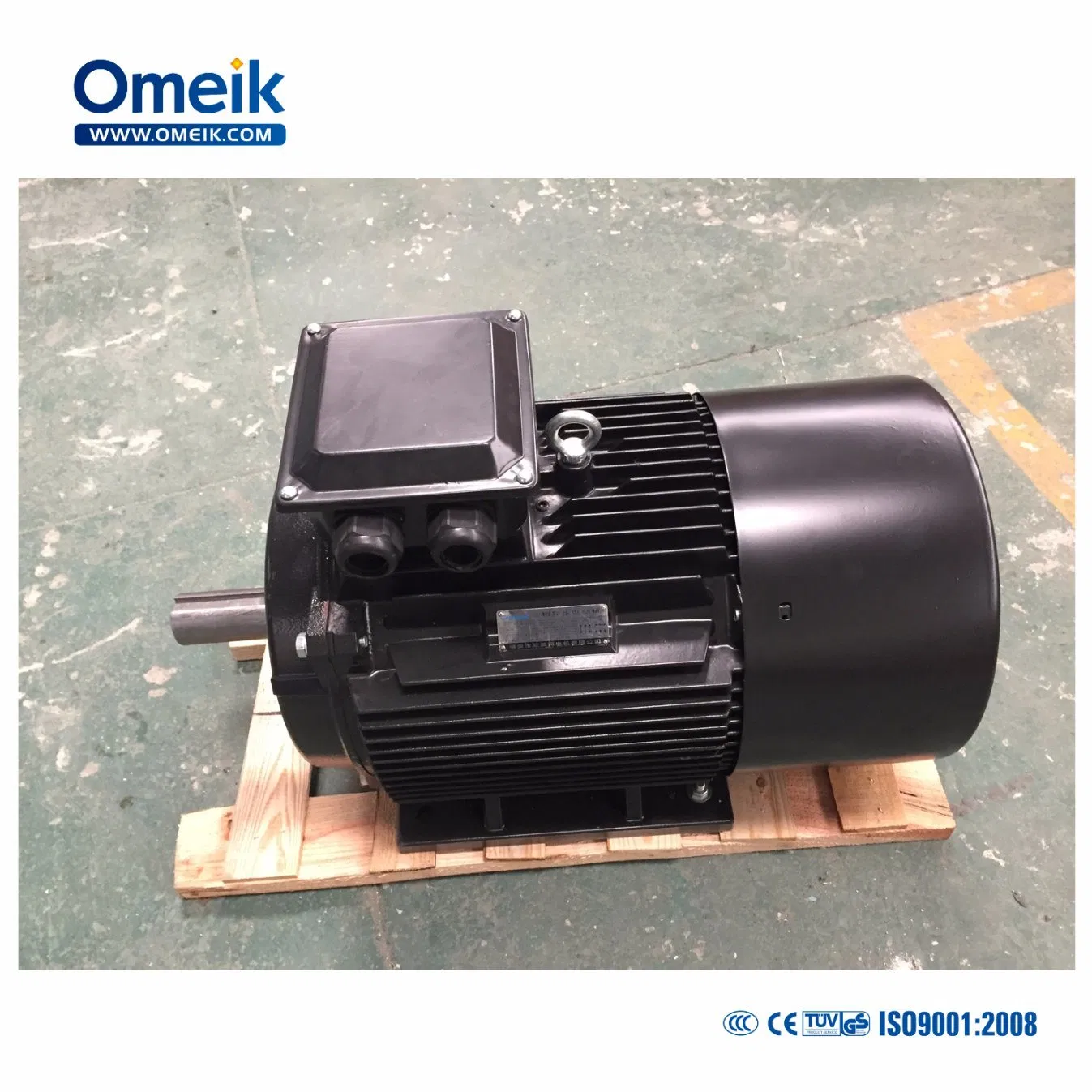

OMEIK Y2 Series 3 phase electric motor

Advantage:
1. Novel design
2. Beautiful modelling
3. Compact structure
4. Low noise, high efficiency
5. Large torque
6. Excellent starting performance
7. Easy serving

Application:
Y2 series 3 phase electric motors are widely used as driving equipments of various machineries such as: Machine tools, blowers, pumps, compressors, transporters, agricultural and food processing.

Operating Conditions:
1. Ambient temperature: -15° C≤ θ ≤ 40° C
2. Altitude: ≤ 1000m
3. Rated voltage: 380V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP55/IP54/IP55
8. Cooling method: IC0141

Note:
If you have any special requirements, please contact us.

Model	Output		Full load				75%load		Tstart/Tn	Ist/In	Tmax/Tn
	kW	HP	Current	Speed	Eff	Power	Eff	Power
	kW	HP	(A)	(r/min)	(%)	Factor	(%)	Factor
380V 50Hz Synchronous Speed 3000 r/min (2 poles)
Y2-631-2	0.18	0.25	0.53	2720	65	0.8	63.1	0.75	2.2	5.5	2.2
Y2-632-2	0.25	0.34	0.69	2720	68	0.81	65.1	0.76	2.2	5.5	2.2
Y2-711-2	0.37	0.5	0.99	2740	70	0.81	69	0.76	2.2	6.1	2.2
Y2-712-2	0.55	0.75	1.4	2740	73	0.82	71.2	0.7	2.2	6.1	2.3
Y2-801-2	0.75	1	1.83	2830	75	0.83	73	0.77	2.2	6.1	2.3
Y2-802-2	1.1	1.5	2.58	2830	77	0.84	75.1	0.78	2.2	7	2.3
Y2-90S-2	1.5	2	3.43	2840	79	0.84	77	0.78	2.2	7	2.3
Y2-90L-2	2.2	3	4.85	2840	81	0.85	80	0.79	2.2	7	2.3
Y2-100L-2	3	4	6.31	2870	83	0.87	82	0.8	2.2	7.5	2.3
Y2-112M-2	4	5.5	7.1	2890	85	0.88	83.9	0.83	2.2	7.5	2.3
Y2-132S1-2	5.5	7.5	11	2900	86	0.88	84.2	0.83	2.2	7.5	2.3
Y2-132S2-2	7.5	10	14.9	2900	87	0.88	85.8	0.84	2.2	7.5	2.3
Y2-160M1-2	11	15	28.8	2930	88	0.89	86.6	0, , , , . 84	2.2	7.5	2.3
Y2-160M2-2	15	20	34.7	2930	89	0.89	87.9	0.84	2.2	7.5	2.3
Y2-160L-2	18.5	25	34.7	2930	90	0.9	89.8	0.86	2.2	7.5	2.3
Y2-180M-2	22	30	41	2940	90	0.9	88.9	0.86	2	7.5	2.3
Y2-200L1-2	30	40	55.5	2950	91.2	0.9	89.4	0.85	2	7.5	2.3
Y2-200L2-2	37	50	67.9	2950	92	0.9	91	0.86	2	7.5	2.3
Y2-225M-2	45	60	82.3	2970	92.3	0.9	90.5	0.85	2	7.5	2.3
Y2-250M-2	55	75	101	2970	92.5	0.9	91.3	0.85	2	7.5	2.3
Y2-280S-2	77	100	134	2970	93	0.9	91.9	0.86	2	7.5	2.3
Y2-280M-2	90	125	160	2970	93.8	0.91	92.6	0.87	2	7.5	2.3
380V 50Hz Synchronous Speed 1500 r/min (4 poles)
Y2-631-4	0.12	0.16	0.42	1310	57	0.72	56.1	0.69	2.1	5.2	2.2
Y2-632-4	0.18	0.25	0.63	1310	60	0.73	58.5	0.7	2.1	5.2	2.2
Y2-711-4	0.25	0.34	0.79	1330	65	0.74	62.4	0.73	2.1	5.2	2.2
Y2-712-4	0.37	0.5	1.12	1330	67	0.75	65.3	0.74	2.1	5.2	2.2
Y2-801-4	0.55	0.75	1.57	1390	71	0.75	69.2	0.74	2.4	5.2	2.3
Y2-802-4	0.75	1	2.03	1390	73	0.76	71.7	0.75	2.3	6	2.3
Y2-90S-4	1.1	1.5	2.89	1400	75	0.77	73.1	0.75	2.3	6	2.3
Y2-90L-4	1.5	2	3.7	1400	78	0.79	76.1	0.76	2.3	6	2.3
Y2-100L1-4	2.2	3	5.16	1430	80	0.81	78	0.79	2.3	7	2.3
Y2-100L2-4	3	4	6.78	1430	82	0.82	79.9	0.78	2.3	7	2.3
Y2-112M-4	4	5.5	8.8	1440	84	0.82	82.9	0.79	2.3	7	2.3
Y2-132S-4	5.5	7.5	11.7	1440	85	0.83	83.8	0.81	2.3	7	2.3
Y2-132M-4	7.5	10	15.6	1440	87	0.84	85.6	0.82	2.3	7	2.3
Y2-160M-4	11	15	22.3	1460	88	0.84	86.8	0.83	2.2	7	2.3
Y2-160L-4	15	20	30.1	1460	89	0.85	88.9	0.83	2.2	7.5	2.3
Y2-180M-4	18.5	25	36.5	1470	90.5	0.86	90	0.82	2.2	7.5	2.3
Y2-180L-4	22	30	43.2	1470	91	0.86	90.2	0.84	2.2	7.5	2.3
Y2-200L-4	30	40	57.6	1470	92	0.86	91.5	0.84	2.2	7.2	2.3
Y2-225S-4	37	50	69.3	1480	92.5	0.87	91.9	0.87	2.2	7.2	2.3
Y2-225M-4	45	60	84.7	1480	92.8	0.87	92.4	0.87	2.2	7.2	2.3
Y2-250M-4	55	75	103	1480	93	0.87	92.7	0.89	2.2	7.2	2.3
Y2-280S-4	75	100	140	1480	93.8	0.87	92.4	0.86	2.2	7.2	2.3
Y2-280M-4	90	125	167	1490	94.2	0.87	93	0.86	2.2	7.2	2.3
380V 50Hz Synchronous Speed 1000 r/min (6 poles)
Y2-711-6	0.18	0.25	0.74	850	56	0.66	53.1	0.66	0.9	4	2
Y2-712-6	0.25	0.34	0.95	850	59	0.68	56	0.68	1.9	4	2
Y2-801-6	0.37	0.5	1.3	890	62	0.7	60.5	0.69	1.9	4.7	2
Y2-802-6	0.55	0.75	1.79	890	65	0.72	63.3	0.72	1.9	4.7	2.1
Y2-90S-6	0.75	1	2.29	910	69	0.72	67.3	0.72	2	5.5	2.1
Y2-90L-6	1.1	1.5	3.18	910	72	0.73	70.2	0.72	2	5.5	2.1
Y2-100L-6	1.5	2	3.94	940	76	0.75	74	0.75	2	5.5	2.1
Y2-112M-6	2.2	3	5.6	940	79	0.76	77.1	0.77	2	6.5	2.1
Y2-132S-6	3	4	7.4	960	81	0.76	78.9	0.77	2.1	6.5	2.1
Y2-132M1-6	4	5.5	9.8	960	82	0.76	80	0.76	2.1	6.5	2.1
Y2-132M2-6	5.5	7.5	12.9	960	84	0.77	82.1	0.77	2.1	6.5	2.1
Y2-160M-6	7.5	10	17	970	86	0.77	83.4	0.77	2	6.5	2.1
Y2-160L-6	11	15	24.2	970	87.5	0.78	86.6	0.78	2	6.5	2.1
Y2-180L-6	15	20	31.6	970	89	0.81	88.1	0.82	2	7	2.1
Y2-200L1-6	18.5	25	38.6	970	90	0.81	89	0.82	2.1	7	2.1
Y2-200L2-6	22	30	44.7	970	90	0.83	89.8	0.83	2.1	7	2.1
Y2-225M-6	30	40	59.3	980	91.5	0.84	89.2	0.84	2	7	2.1
Y2-250M-6	37	50	71	980	92	0.86	90.5	0.86	2.1	7	2.1
Y2-280S-6	45	60	86	980	92.5	0.86	90.8	0.86	2.1	7	2
Y2-280M-6	55	75	105	980	92.8	0.86	90.5	0.86	2.1	7	2
380V 50Hz Synchronous Speed 750 r/min (8 poles)
Y2-801-8	0.18	0.25	0.88	630	51	0.61	46.4	0.52	1.8	4	1.9
Y2-802-8	0.25	0.34	1.15	640	54	0.61	48.5	0.54	1.8	4	1.9
Y2-90S-8	0.37	0.5	1.49	660	62	0.61	57.1	0.57	1.8	4	1.9
Y2-90L-8	0.55	0.75	2.18	660	63	0.61	58.5	0.58	1.8	4	2
Y2-100L1-8	0.75	1	2.53	690	71	0.67	67.2	0.63	1.8	4	2
Y2-100L2-8	1.1	1.5	3.32	690	73	0.69	71.5	0.61	1.8	5	2
Y2-112M-8	1.5	2	4.5	680	75	0.69	73.8	0.64	1.8	5	2
Y2-132S-8	2.2	3	6	710	78	0.71	77.1	0.61	1.8	6	2
Y2-132M-8	3	4	7.9	710	79	0.73	78.5	0.62	1.8	6	2
Y2-160M1-8	4	5.5	10.3	720	81	0.73	79.8	0.63	1.9	6	2
Y2-160M2-8	5.5	7.5	13.6	720	83	0.74	82.2	0.61	2	6	2
Y2-160L-8	7.5	10	17.8	720	85.5	0.75	85	0.63	2	6	2
Y2-180L-8	11	15	25.1	730	87.5	0.76	86.1	0.66	2	6.6	2
Y2-200L-8	15	20	34.1	730	88	0.76	87.2	0.66	2	6.6	2
Y2-225S-8	18.5	25	40.6	730	90	0.76	89.4	0.68	1.9	6.6	2
Y2-225M-8	22	30	47.4	740	90.5	0.78	89.6	0.69	1.9	6.6	2
Y2-250M-8	30	40	64	740	91	0.79	90	0.69	1.9	6.6	2
Y2-280S-8	37	50	78	740	91	0.79	91.2	0.71	1.9	6.6	2
Y2-280M-8	45	60	94	740	92	0.79	91.8	0.75	1.9	6.6	2
