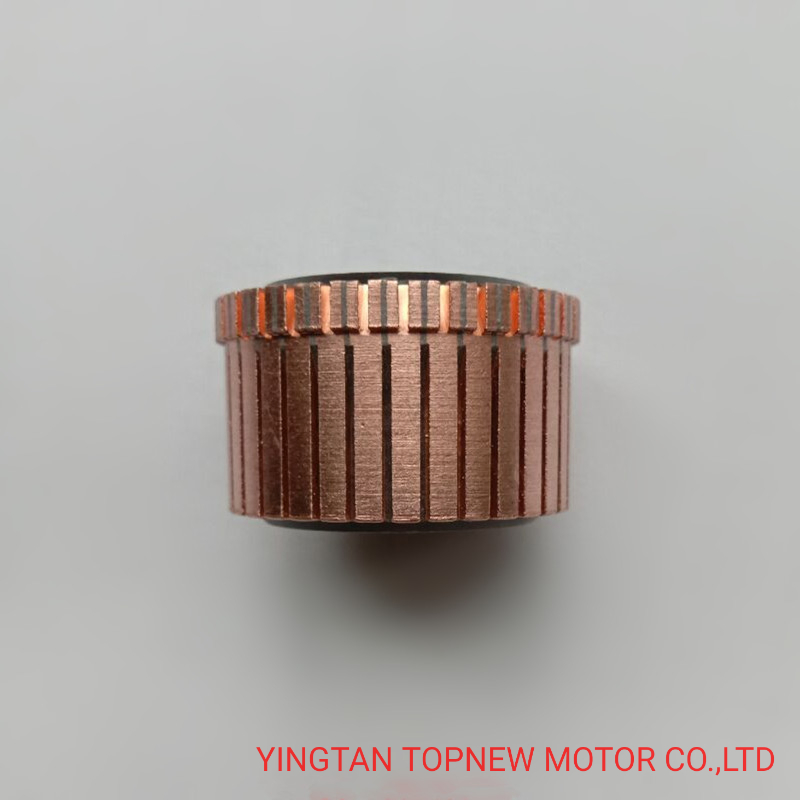

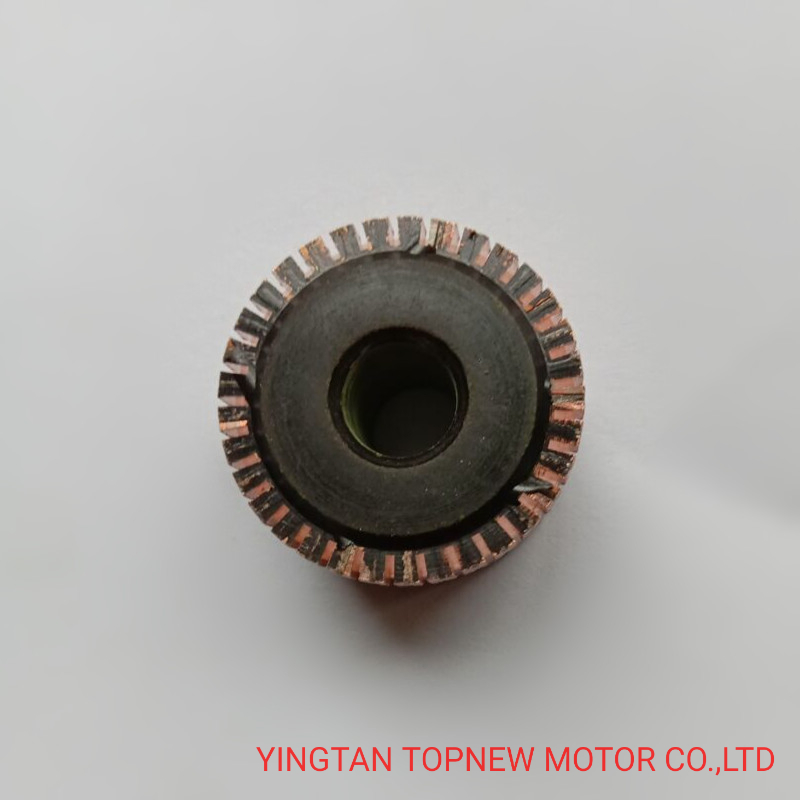

33 Segments Groove Type DC Motor Commutator 25.3*8/9*17mm* 33p
Product Descriptions:Materials0.03% or 0.08% sliver copper/bakelite CN6551 or Japanese resinSize25.3*8/9*17mm*33PStructureSegmented/ Groove commutatorUsageMotor spare partsMOQ500pcsSample Time7-15 daysDelivery Time15-30 daysPackingPaper cartons on pallets/ CustomizedBrandLX series commutatorProducti......
Send Inquiry
Product Description
Product Descriptions:
| Materials | 0.03% or 0.08% sliver copper/bakelite CN6551 or Japanese resin |
| Size | 25.3*8/9*17mm*33P |
| Structure | Segmented/ Groove commutator |
| Usage | Motor spare parts |
| MOQ | 500pcs |
| Sample Time | 7-15 days |
| Delivery Time | 15-30 days |
| Packing | Paper cartons on pallets/ Customized |
| Brand | LX series commutator |
| Production Capacity | 1000000pcs/month |
| Service& Warranty | Best service for all customers, with 6 months' warranty |
Technical Specifications:
1. To be free from void(bubble) more than 1mm and cracks in molded resin surface, but air hole(depth 1.4± 0.1, width 0.5± 0.05 ) should be tolerated. |
| 2. Voltage Test: Bar to bar at 500V, 1s, and bar to shaft at 2000V, 1 min, there will be no breakdown or spark. |
| 3. Spin Test: Under 180 ºC , 20000rpm, 3mins, the max change in OD is 0.015mm and the max deviation between bar to bar is 0.005mm. |
| 4. Insulation Resistance: The insulation resistance is greater than 50MΩ under 500V. |

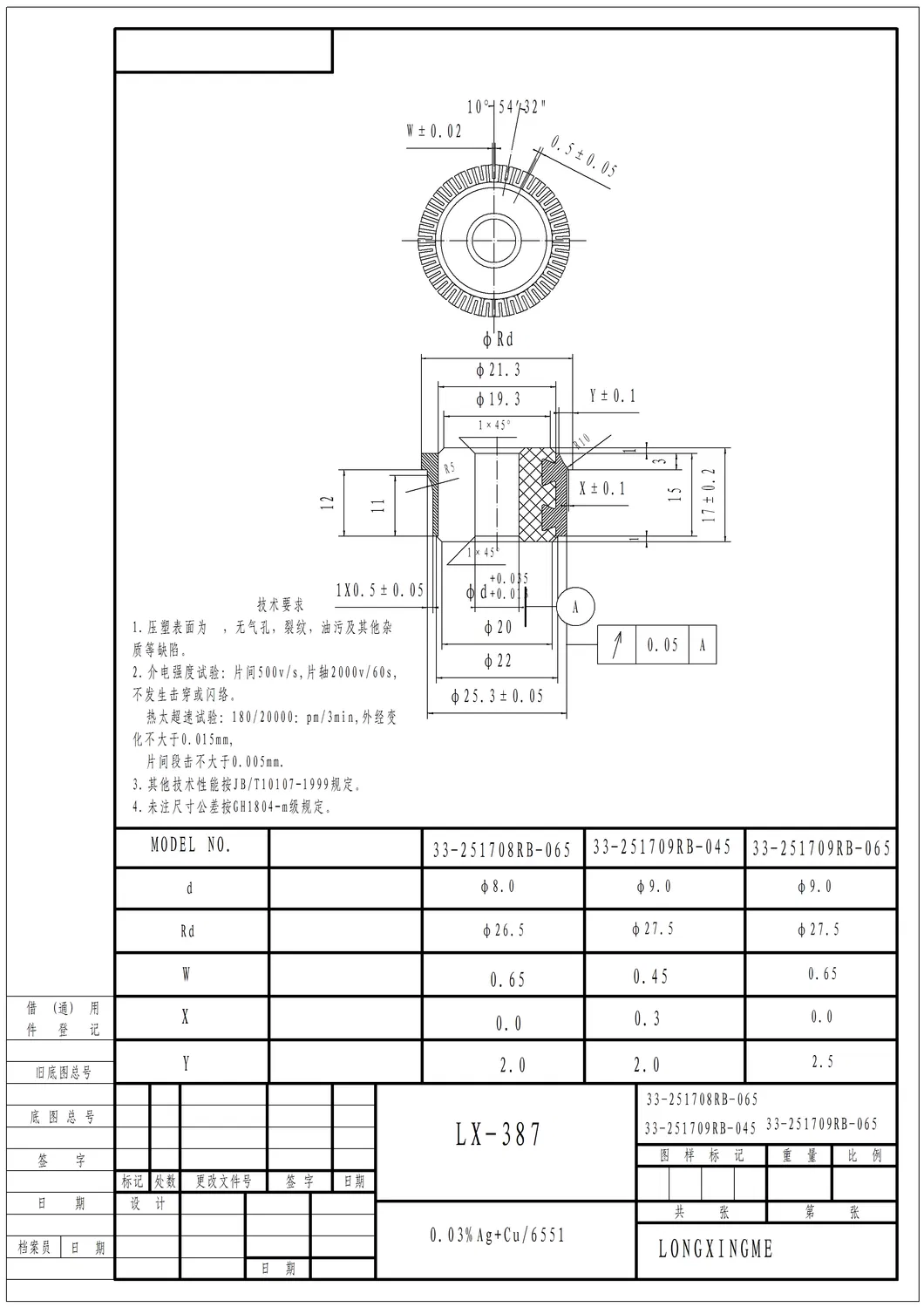

Drawing:
