Product Description

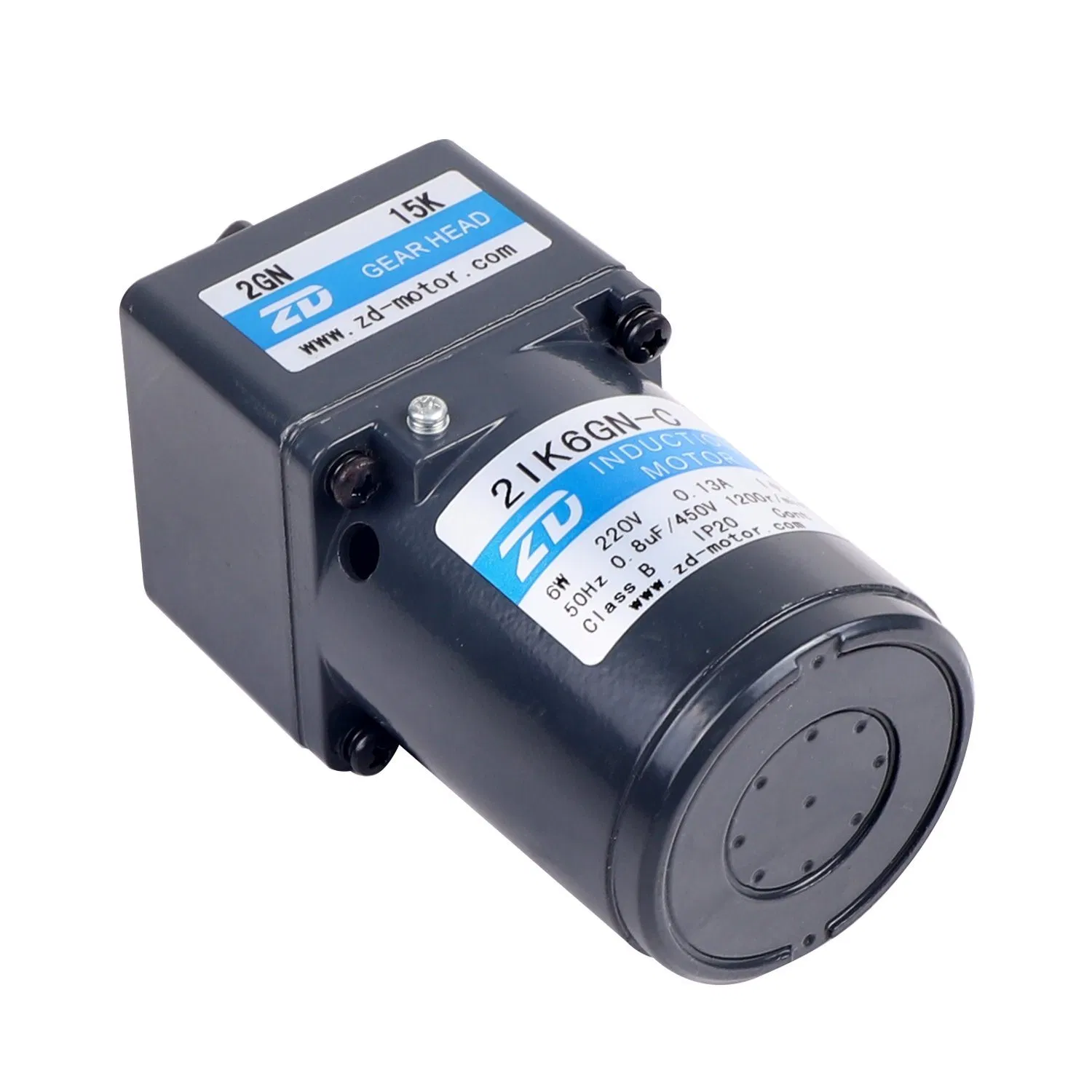

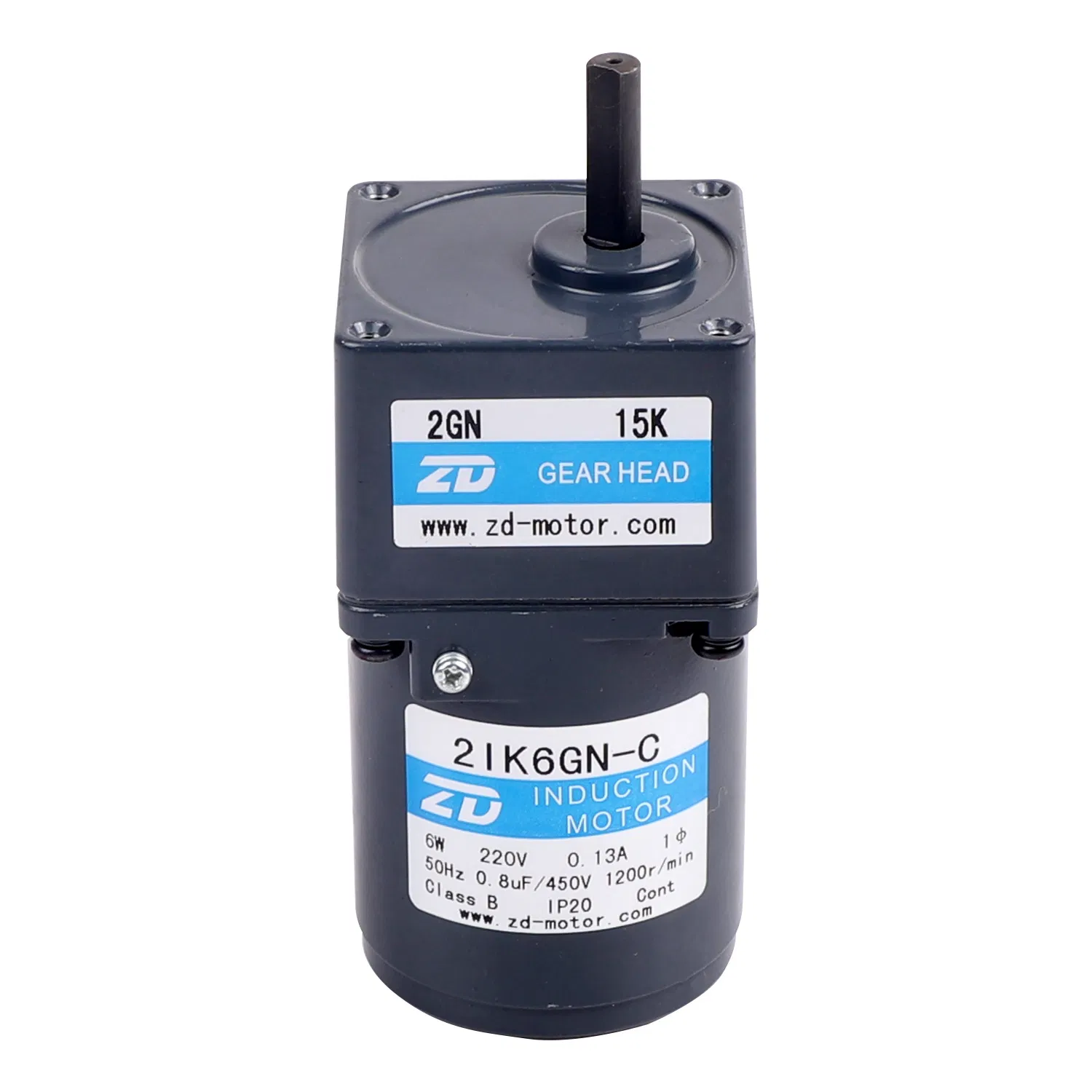

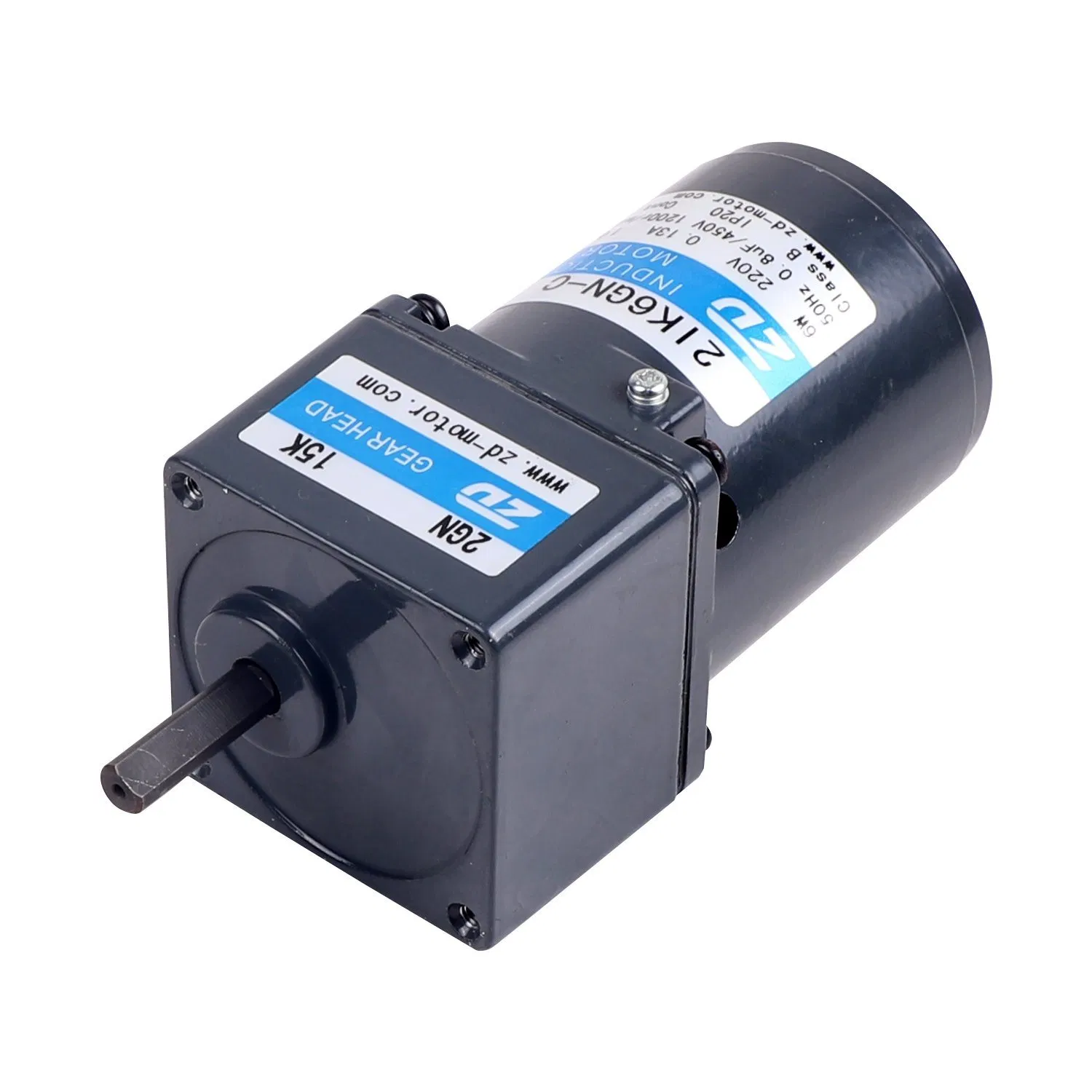

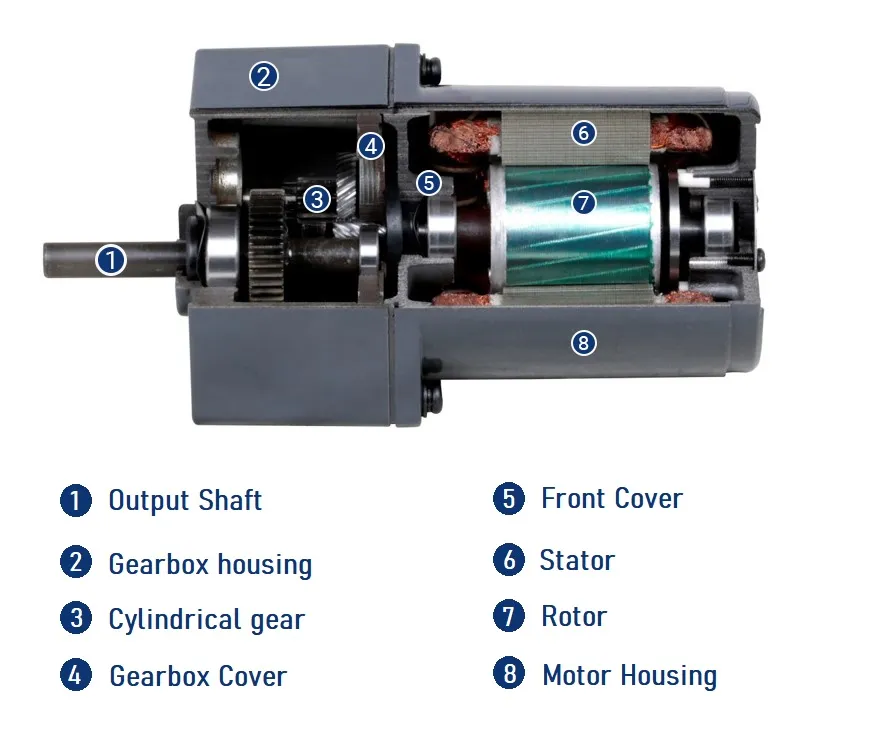

ZD Closed Type Micro 60mm AC Induction Gear Motor
Induction motors have single-phase type and three-phase type. This kind of motors do not only use electromagnetic coils and capacitors during starting, but also during operation. Although the starting torque is not very large, but it has a simple structure, high reliability, high efficiency and could continuously work. It is widely used in automation industry, logistics, assembly line and etc.
The Features of Induction Motor:
1.Induction motor relies on capacitor and electromagnet coil when starting and rotating. Though its starting torque is not very large, it has a simple structure, high efficiency and can rotate continuously.
2.The single-phase motor can generate torque in the opposite to the direction of rotation when rotating. Please change the rotation direction of single-phase motor only after it stopped.
3.Three-phase motor relies on three-phase supply. It has a high efficiency and can get a high starting torque.
How To Read
Motor :
2 I K 6 (R) GN - C T
a b c d e f g h
| a | Frame size | 2 = 60mm |
| b | Motor Type | I: Induction Motor R: Reversible Motor T: Torque Motor |
| c | Series | K: K series |
| d | Output power (W) | (e.g) 6: 6W |
| e | The auffix "-R" after the output power means speed adjustable motor. | |
| f | Motor shaft type | GN: GN type gear shaft GU: GU type gear shaft A: Circular shaft type A1: Keyway type |
| g | Voltage - Poles | A: Single-phase 110V 50/60Hz 4P B: Single-phase 110V 50Hz 2P C: Single-phase 220V/230 50Hz 4P D: Single-phase 220V 50Hz 2P E: Single-phase 110V/120 60Hz 4P H: Single-phase 220V/230 60Hz 4P S: Three-phase 200V/220V//230V 50/60Hz 4P S3:Three-phase 380V/400V//415V 50/60Hz 4P T: Three-phase 200V/220V//230V 50/60Hz 2P T3:Three-phase 380V/400V//415V 50/60Hz 4P |
| h | T: with terminal box F:with fan FF: with enhanced fan M: with brake | |
Gearbox:
2 GN 15 K
a b c d
| a | Frame size | 2 = 60mm |
| b | Type of output shaft | GN: GN type gear shaft GU: GU type gear shaft |
| c | Reduction Ratio | (e.g) 50 = 1:50 |
| d | Bearing Type | K: Ball bearing KB: Enhanced ball bearing (For GU type) |
Continuous Rating
| Model Type Lead Wire Type | Output power (W) | Voltage (V) | Frequency (Hz) | Current (A) | Stating Torque (mN.m) | Rated Torque (mN.m) | Rated Speed (r/min) | Capacitor (μF) | |
| Gear shaft type | Circular shaft type | ||||||||
| 2IK6GN-A | 2IK6A-A | 6 | 1ph 100 | 50 | 0.240 | 55 | 48 | 1200 | 3.5 |
| 60 | 0.250 | 50 | 40 | 1450 | |||||
| 2IK6GN-E | 2IK6A-E | 6 | 1ph 110 | 60 | 0.160 | 40 | 40 | 1450 | 2.0 |
| 1ph 120 | 0.180 | ||||||||
| 2IK6GN-C | 2IK6A-C | 6 | 1ph 220 | 50 | 0.130 | 50 | 48 | 1200 | 0.8 |
| 1ph 230 | 0.140 | 40 | 1450 | ||||||
| 2IK6GN-H | 2IK6A-H | 6 | 1ph 220 | 60 | 0.130 | 55 | 40 | 1450 | 0.8 |
| 1ph 230 | 0.140 | ||||||||
| 2IK6GN-S | 2IK6A-S | 6 | 3ph 220 | 50 | 0.076 | 85 | 48 | 1200 | - |
| 60 | 0.065 | 70 | 40 | 1450 | |||||
| 2IK6GN-S3 | 2IK6A-S3 | 6 | 3ph 380 | 50 | 0.044 | 85 | 48 | 1200 | - |
| 60 | 0.038 | 70 | 40 | 1450 | |||||
When the motor is approved under various safety standards, the model name on the nameplate is the approved model name.
Note: "-A" means the voltage 110V, the assembly capacitor value it is according the label.

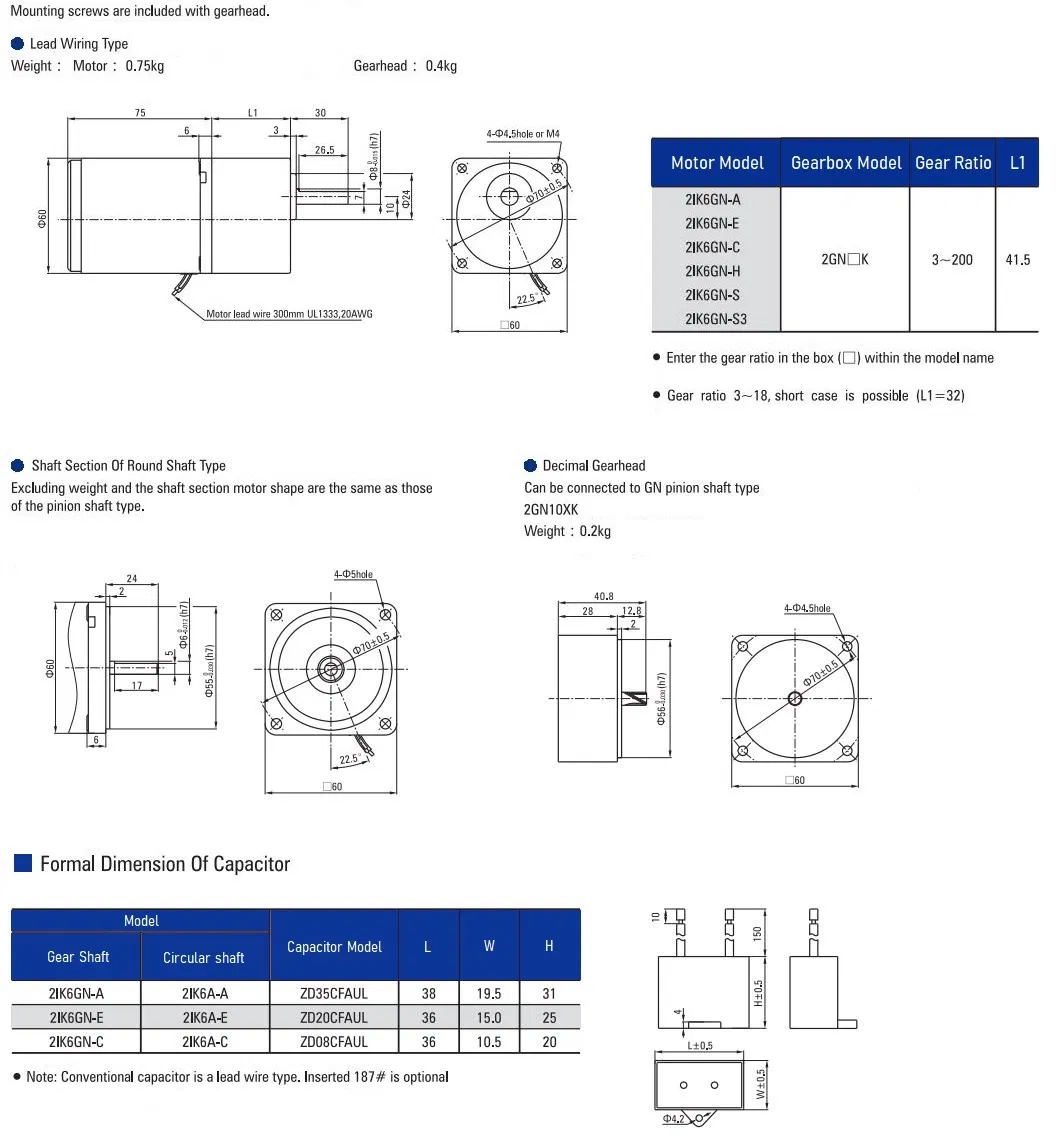

Dimensions(Unit: mm):
Gear Motor-Torque Table
•Gearbox and mid-gearbox can be sold separately.
•Enter the gear ratio in the box ( ) within the model name.
•The gray background indicates the same rotating direction of the motor while the rotating direction of others are opposite.
•The speed is calculated by dividing the motor's synchronous speed (50Hz: 1500r/min, 60Hz: 1800r/min) by the gear ratio.The actual speed is 2%~20% less than the displayed value, depending on the size of the load.
•To reduce the speed beyond the gear ratio in the table, attach a decimal gearbox (gear ratio: 10) between the gearbox and motor. In that case, the permissible torque is 5 N.m.
Allowable Torque Unit: Upside (N.m)/Below-side (N.m)
| Type Motor/Gearbox | Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | |
| Speed (r/min) | 50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 150 | 120 | 100 | 83 | 75 | 60 | |
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 | 100 | 90 | 72 | ||
| 2IK6GN-A 2IK6GN-E 2IK6GN-C 2IK6GN-H 2IK6GN-S 2IK6GN-S3 | 2GN ( )K | 50Hz | 0.12 | 0.14 | 0.19 | 0.23 | 0.29 | 0.35 | 0.39 | 0.49 | 0.58 | 0.70 | 0.75 | 0.88 |
| 1.22 | 1.43 | 1.94 | 2.35 | 2.96 | 3.57 | 3.98 | 5.00 | 5.92 | 7.14 | 7.65 | 8.98 | |||
| 60Hz | 0.10 | 0.12 | 0.16 | 0.19 | 0.24 | 0.29 | 0.32 | 0.41 | 0.49 | 0.58 | 0.62 | 0.73 | ||
| 1.02 | 1.22 | 1.63 | 1.94 | 2.45 | 2.96 | 3.26 | 4.18 | 5.00 | 5.92 | 6.32 | 7.45 | |||
| Type Motor/Gearbox | Gear Ratio | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
| Speed (r/min) | 50Hz | 50 | 41 | 37 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 7.5 | |
| 60Hz | 60 | 50 | 45 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | ||
| 2IK6GN-A 2IK6GN-E 2IK6GN-C 2IK6GN-H 2IK6GN-S 2IK6GN-S3 | 2GN ( )K | 50Hz | 1.10 | 1.30 | 1.39 | 1.60 | 1.90 | 2.40 | 2.90 | 3.00 | 3.00 | 3.00 | 3.00 | 3.00 |
| 11.2 | 13.3 | 14.2 | 16.3 | 19.4 | 24.5 | 29.6 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 | |||
| 60Hz | 0.88 | 1.10 | 1.15 | 1.30 | 1.60 | 2.00 | 2.40 | 2.60 | 3.00 | 3.00 | 3.00 | 3.00 | ||
| 8.98 | 11.2 | 11.7 | 13.3 | 16.3 | 20.4 | 24.5 | 26.5 | 30.0 | 30.0 | 30.0 | 30.0 | |||

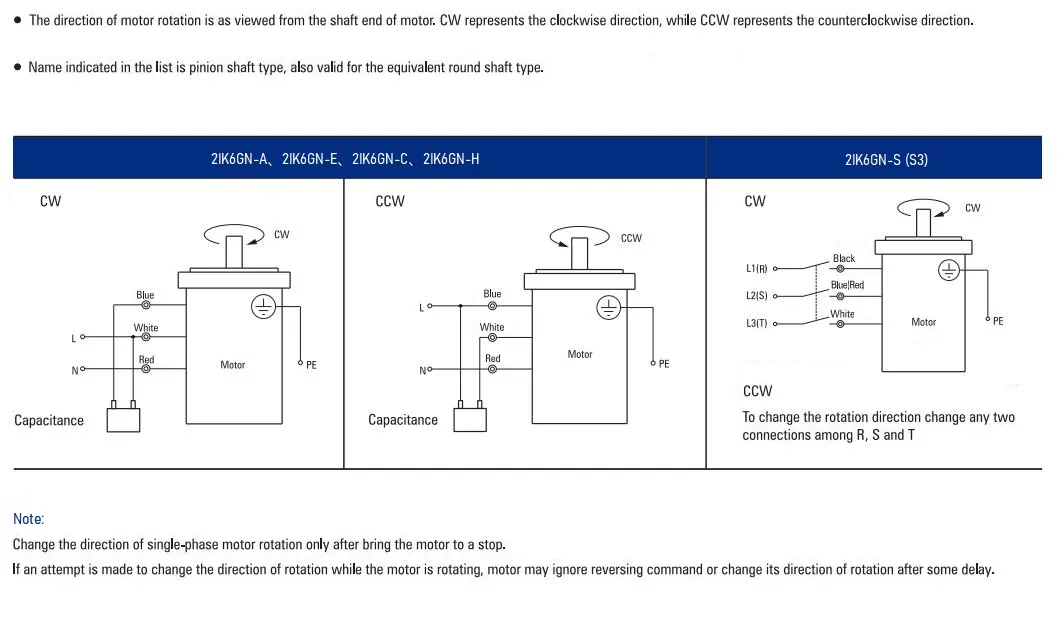

Wiring Diagram
