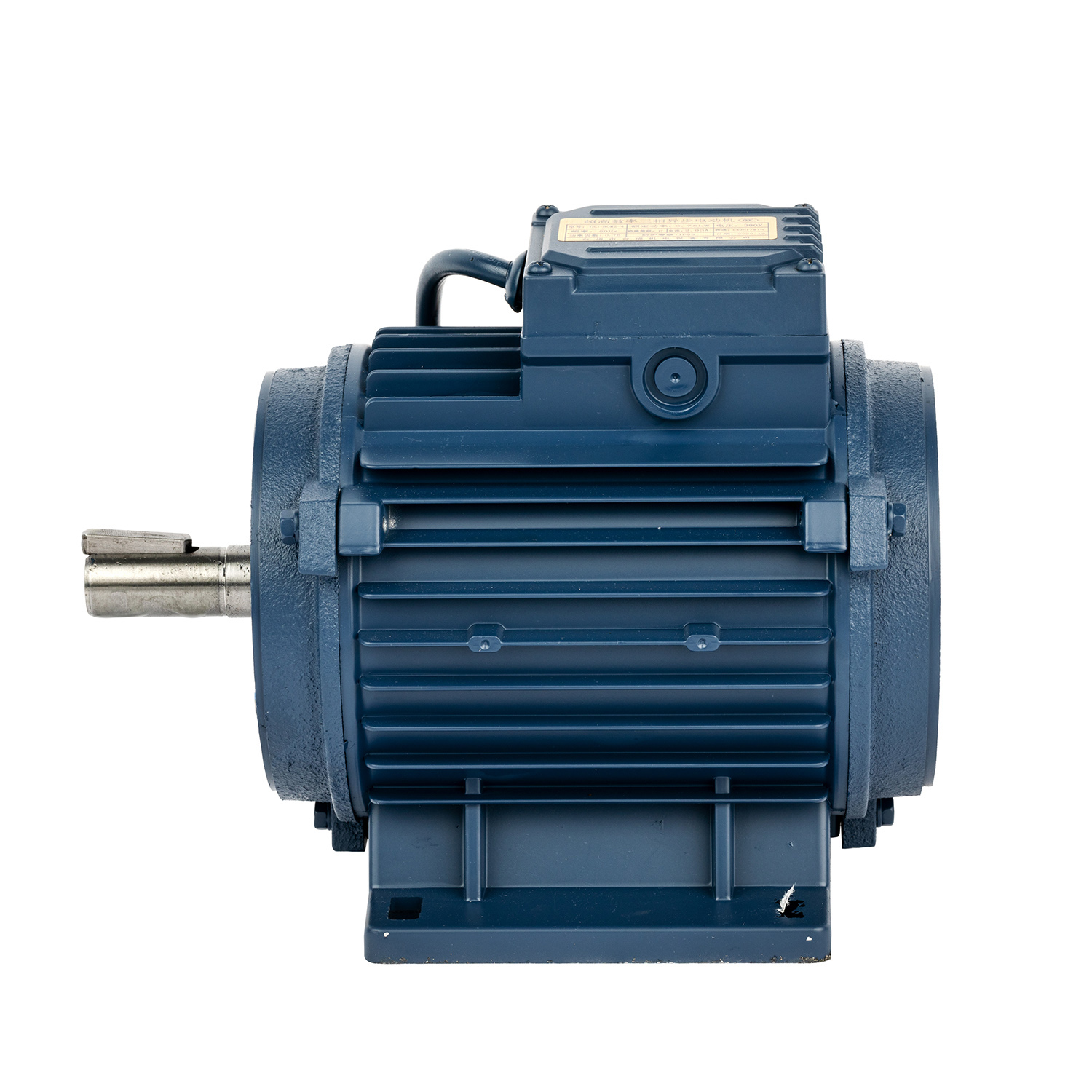

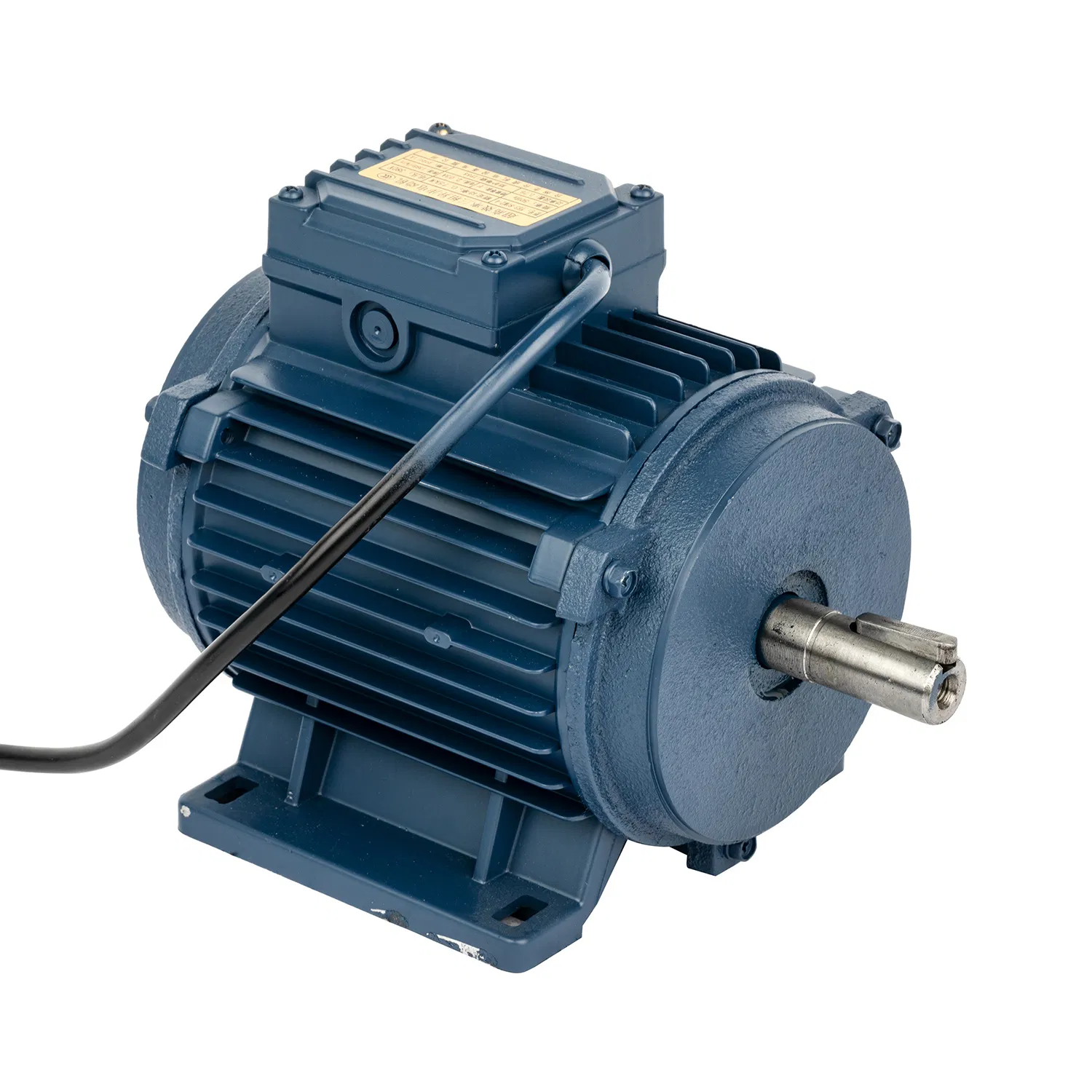

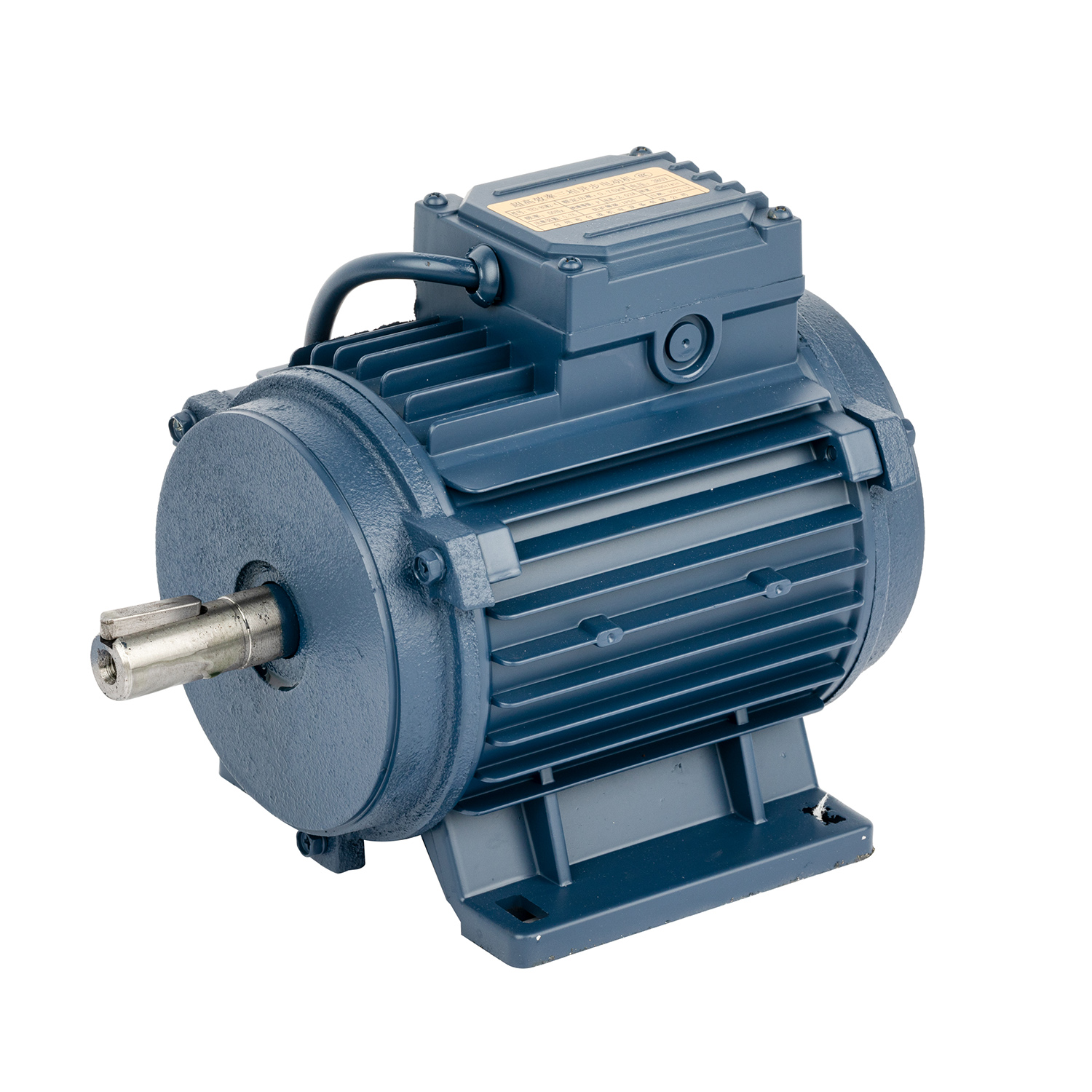

The Ysf- 712 -4 (0.37KW) 0.57HP 380V Exhaust Fan Motor 1400rpm Three-Phase Induction Electric Motor with Aluminum Housing with CCC CE High Efficiency
The YSF-712-4 (0.37KW) 0.57HP 380V Exhaust Fan Motor 1400rpm Three-Phase Induction Electric Motor with Aluminum Housing with CCC CE High EfficiencyThe YSF Motors adopt the latest design and are made of selected quality material and conform to the international IEC standard. 1.Product IntroductionTh......
Send Inquiry
Product Description
The YSF-712-4 (0.37KW) 0.57HP 380V Exhaust Fan Motor 1400rpm Three-Phase Induction Electric Motor with Aluminum Housing with CCC CE High Efficiency
The YSF Motors adopt the latest design and are made of selected quality material and conform to the international IEC standard.
1.Product Introduction
The YSF-712-4 (0.37KW) 0.57HP 380V Exhaust Fan Motor 1400rpm Three-Phase Induction Electric Motor with Aluminum Housing with CCC CE High Efficiency have a very safe and reliable performance, and attractive in appearance and can be easily maintained. It has low noise with little vibration but at the same time are light weight and of simple structure.
2.Products Parameter
3.Product Application
The YSF-712-4 (0.37KW) 0.57HP 380V Exhaust Fan Motor 1400rpm Three-Phase Induction Electric Motor with Aluminum Housing with CCC CE High Efficiency are specialized be used for exhaust fan.

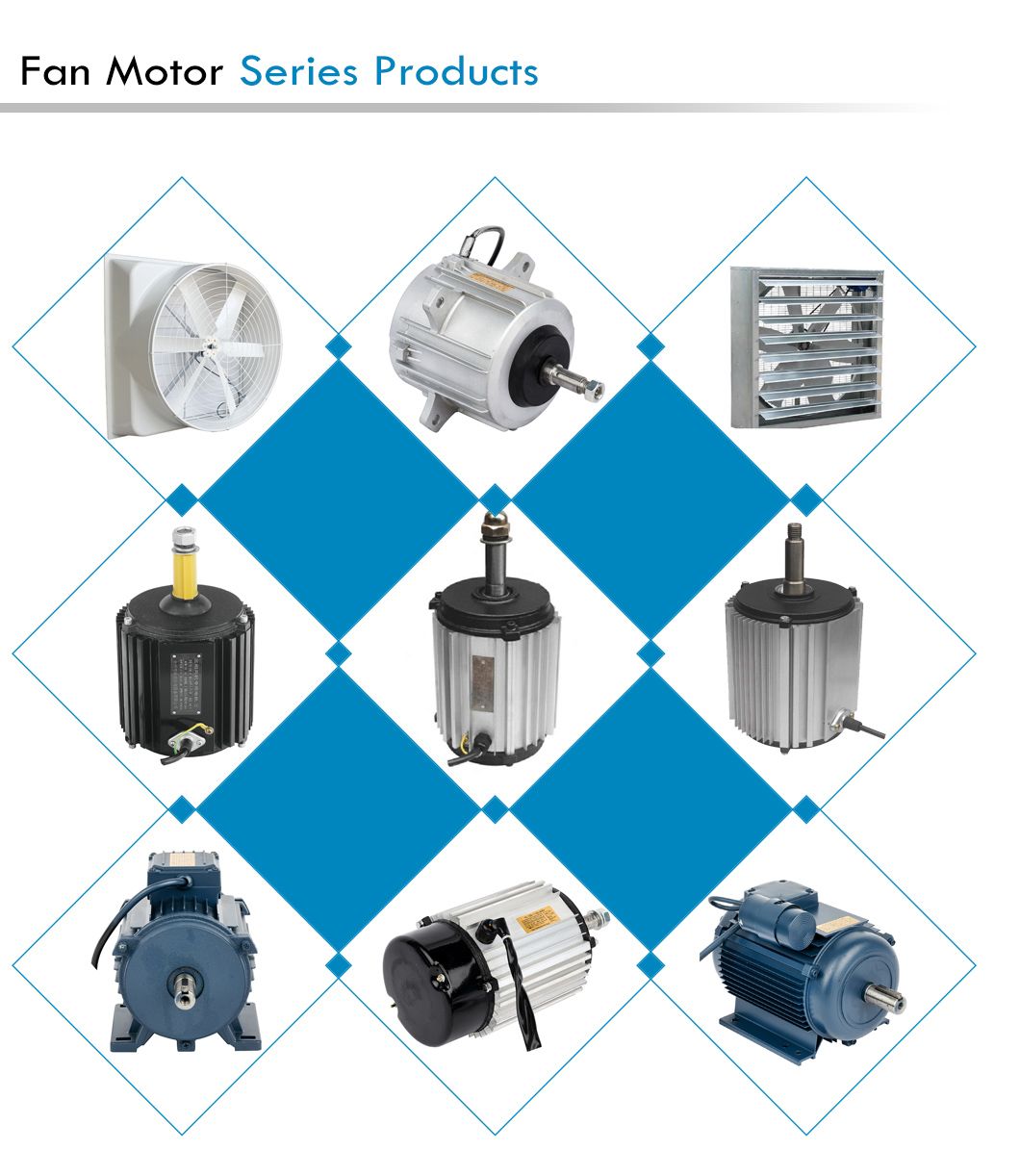

4.Related Products

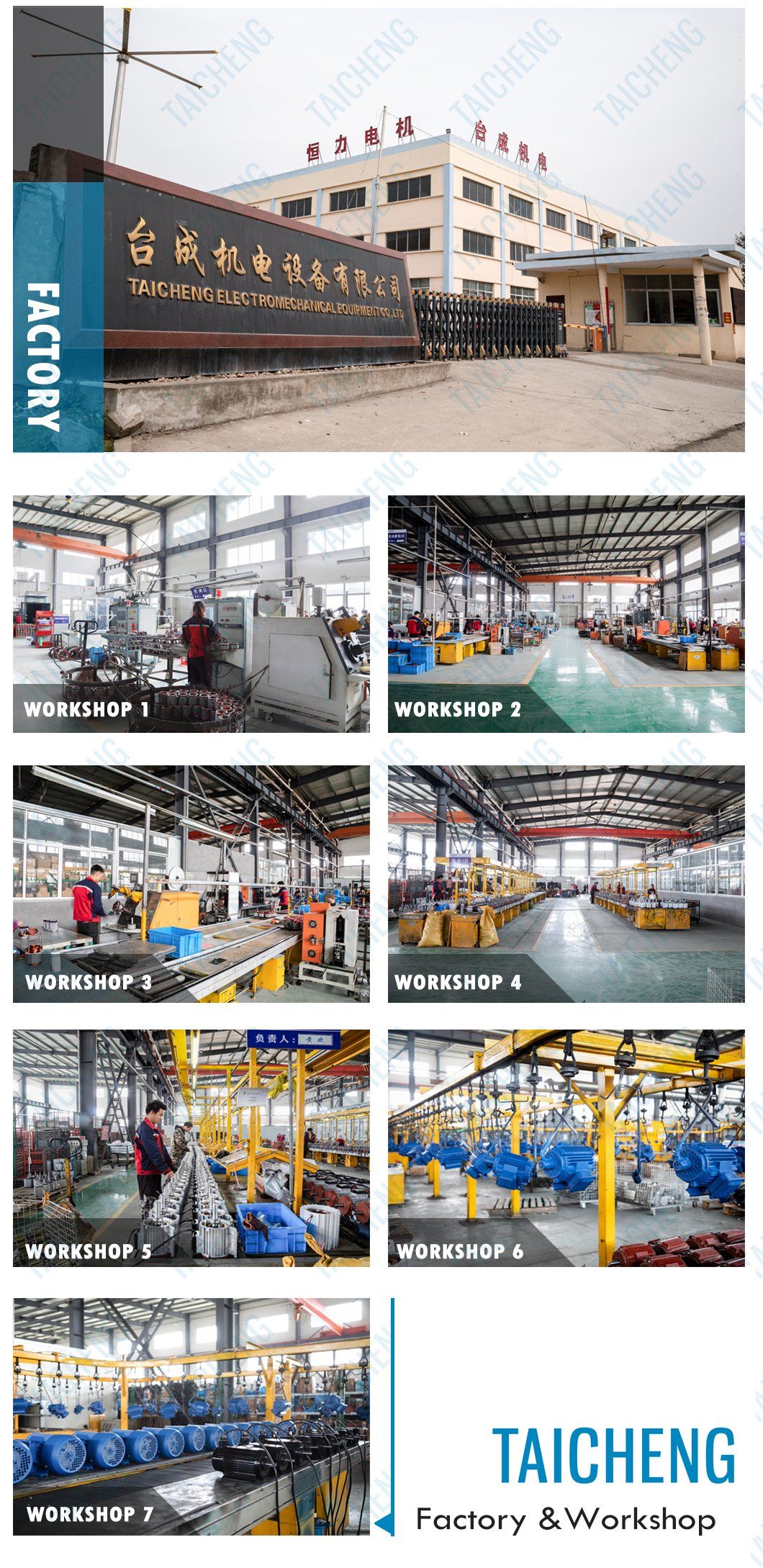

5.TAIHCNENG MOTOR FACTORY AND WORKSHOP
6.HIGH-QUALITY MATERIALS
7.SHOWROOM

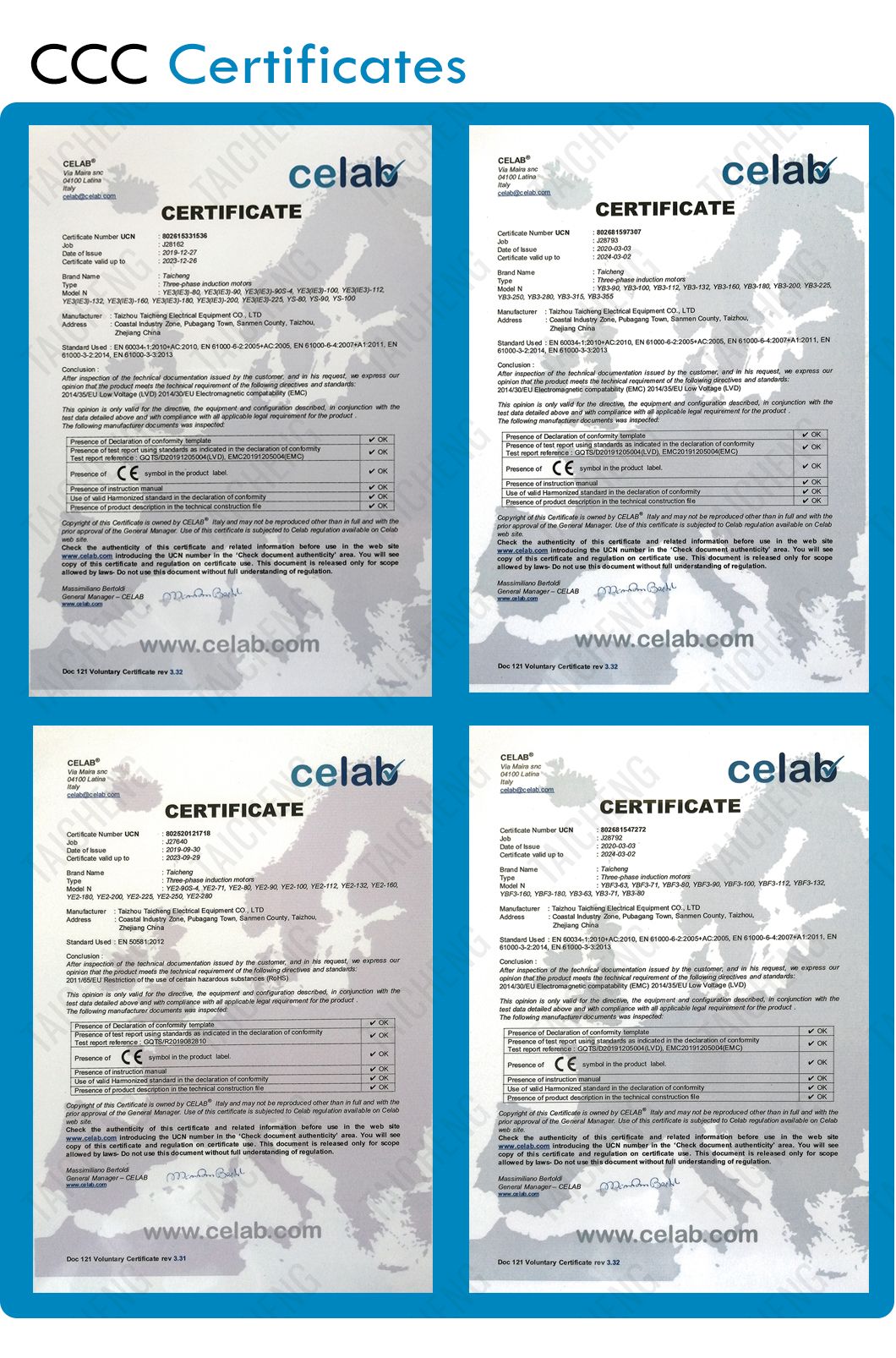

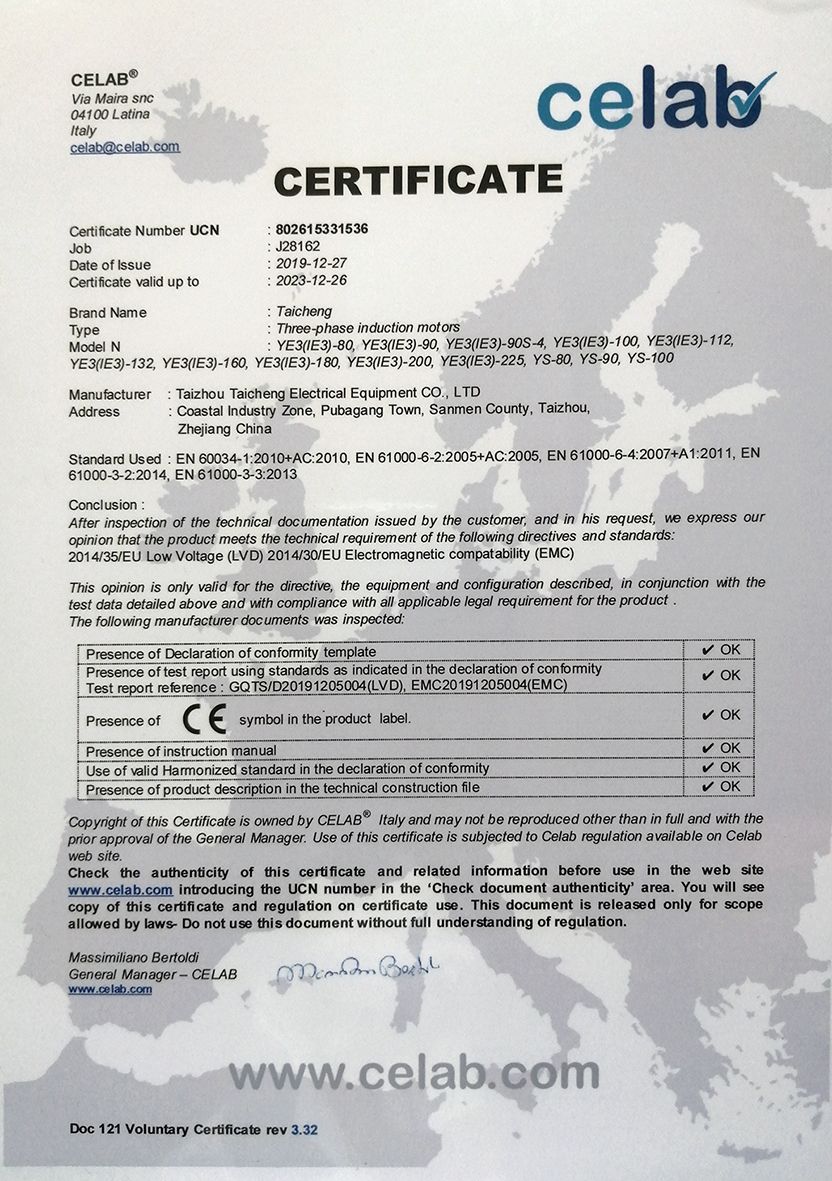

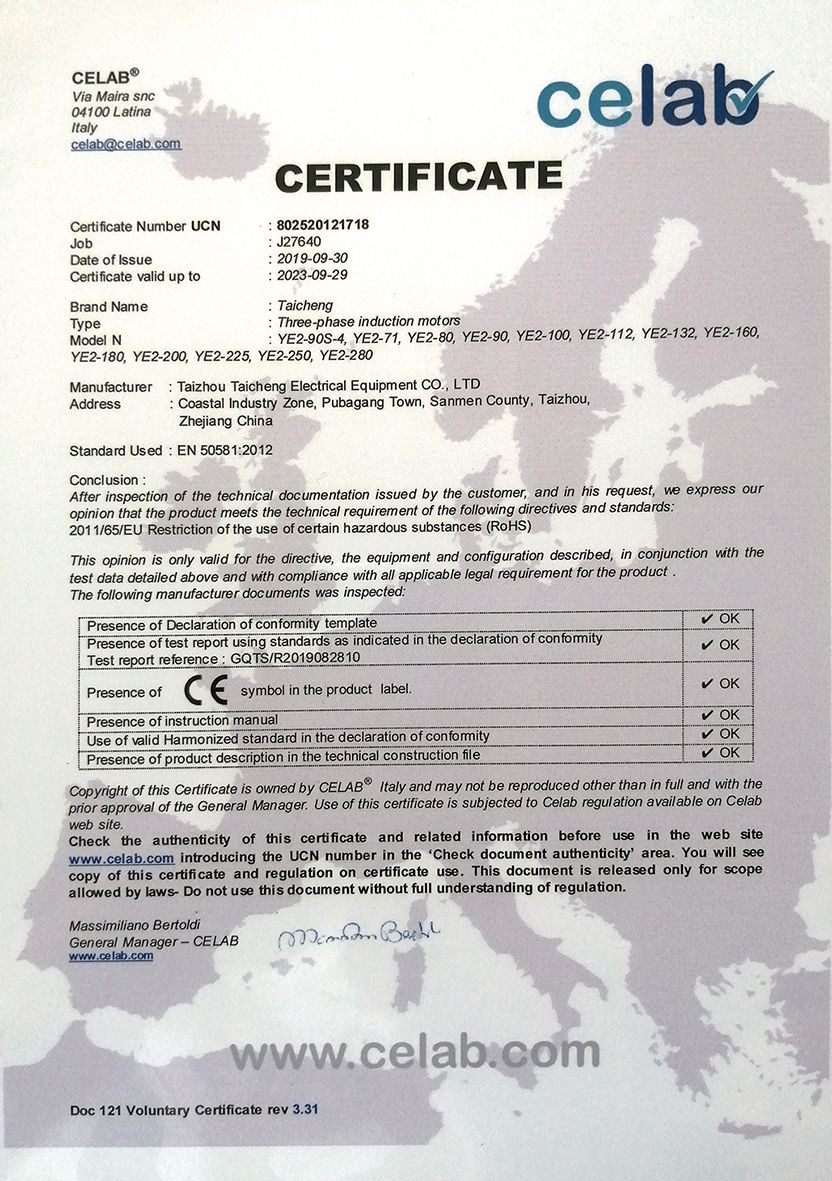

8.HONORS& CERTIFICATES
The YSF Motors adopt the latest design and are made of selected quality material and conform to the international IEC standard.
1.Product Introduction
The YSF-712-4 (0.37KW) 0.57HP 380V Exhaust Fan Motor 1400rpm Three-Phase Induction Electric Motor with Aluminum Housing with CCC CE High Efficiency have a very safe and reliable performance, and attractive in appearance and can be easily maintained. It has low noise with little vibration but at the same time are light weight and of simple structure.
2.Products Parameter
| TYPE | Output | RATED SPEED | RATED CURRENT | EFF | LOCKED ROTOR TORQUE | LOCKED ROTOR CURRENT | PULL OUT TORQUE | Fan Size | |
| KW | R/MIN | A | % | RATED TORQUE | RATED TORQUE | RATED TORQUE | |||
| YSF712-4 | 0.37 | 1400 | 1.12 | 67 | 5.2 | 2.3 | 2.3 | 900*900*400 | 32 INCH |
| YSF801-4 | 0.55 | 1400 | 1.57 | 71 | 5.2 | 2.3 | 2.3 | 1060*1060*400 | 36 INCH |
| YSF802-4 | 0.75 | 1400 | 2.03 | 73 | 6 | 2.3 | 2.3 | 1220*1220*400 | 42-44 INCH |
| YSF90S-4 | 1.1 | 1400 | 2.89 | 75 | 6 | 2.3 | 2.3 | 1380*1380*400 | 48-54 INCH |
3.Product Application
The YSF-712-4 (0.37KW) 0.57HP 380V Exhaust Fan Motor 1400rpm Three-Phase Induction Electric Motor with Aluminum Housing with CCC CE High Efficiency are specialized be used for exhaust fan.
4.Related Products
5.TAIHCNENG MOTOR FACTORY AND WORKSHOP

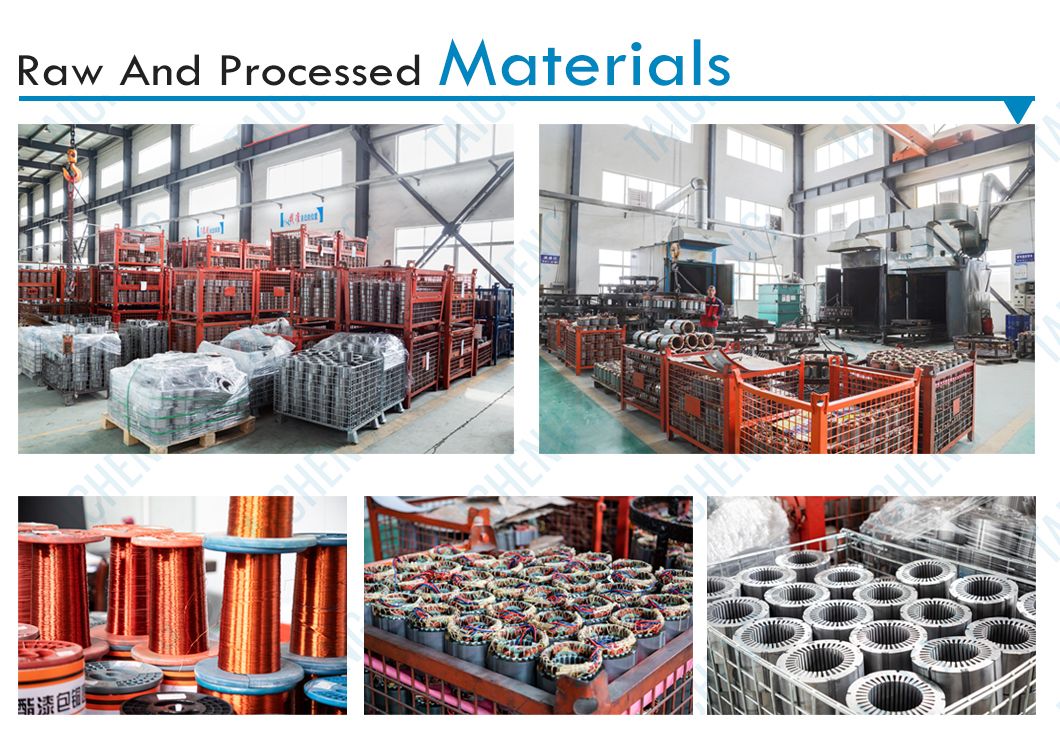

6.HIGH-QUALITY MATERIALS

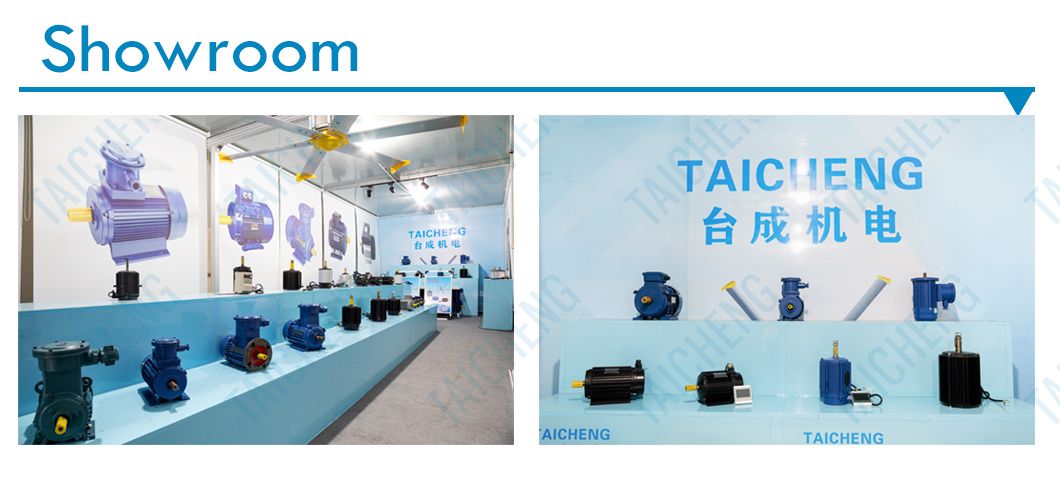

7.SHOWROOM

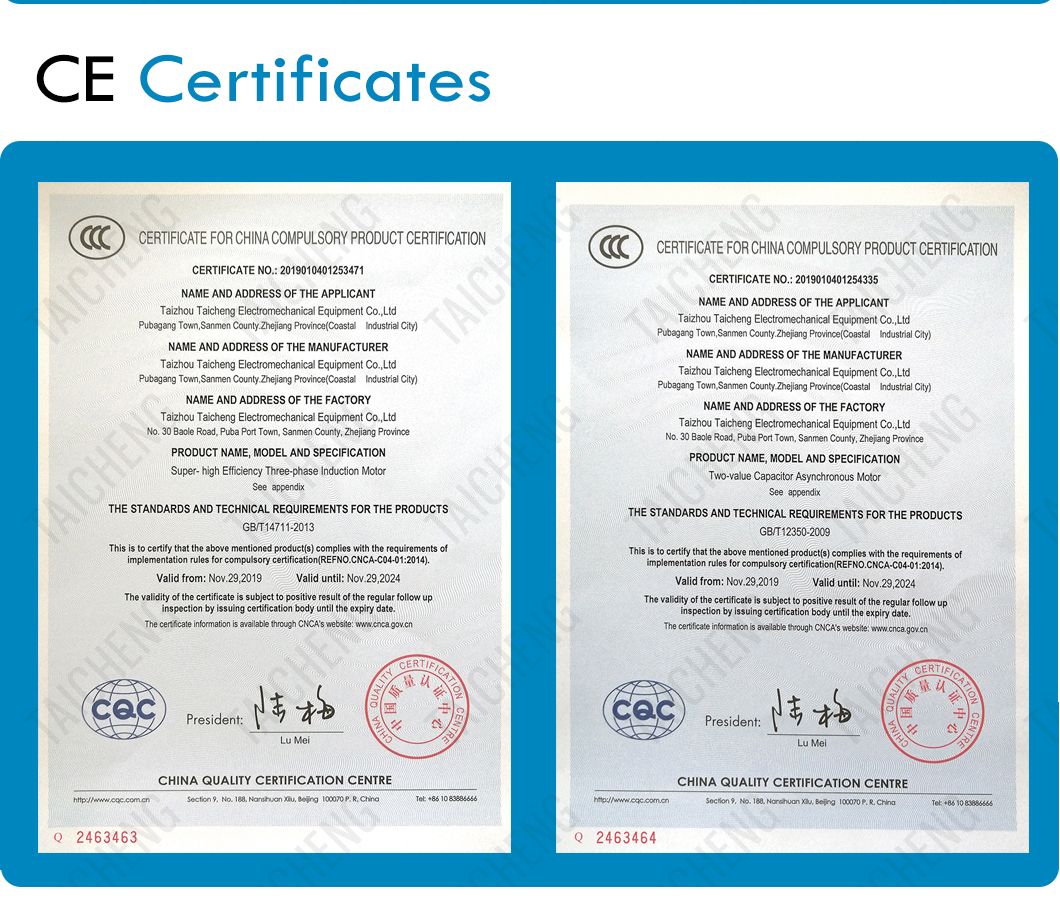

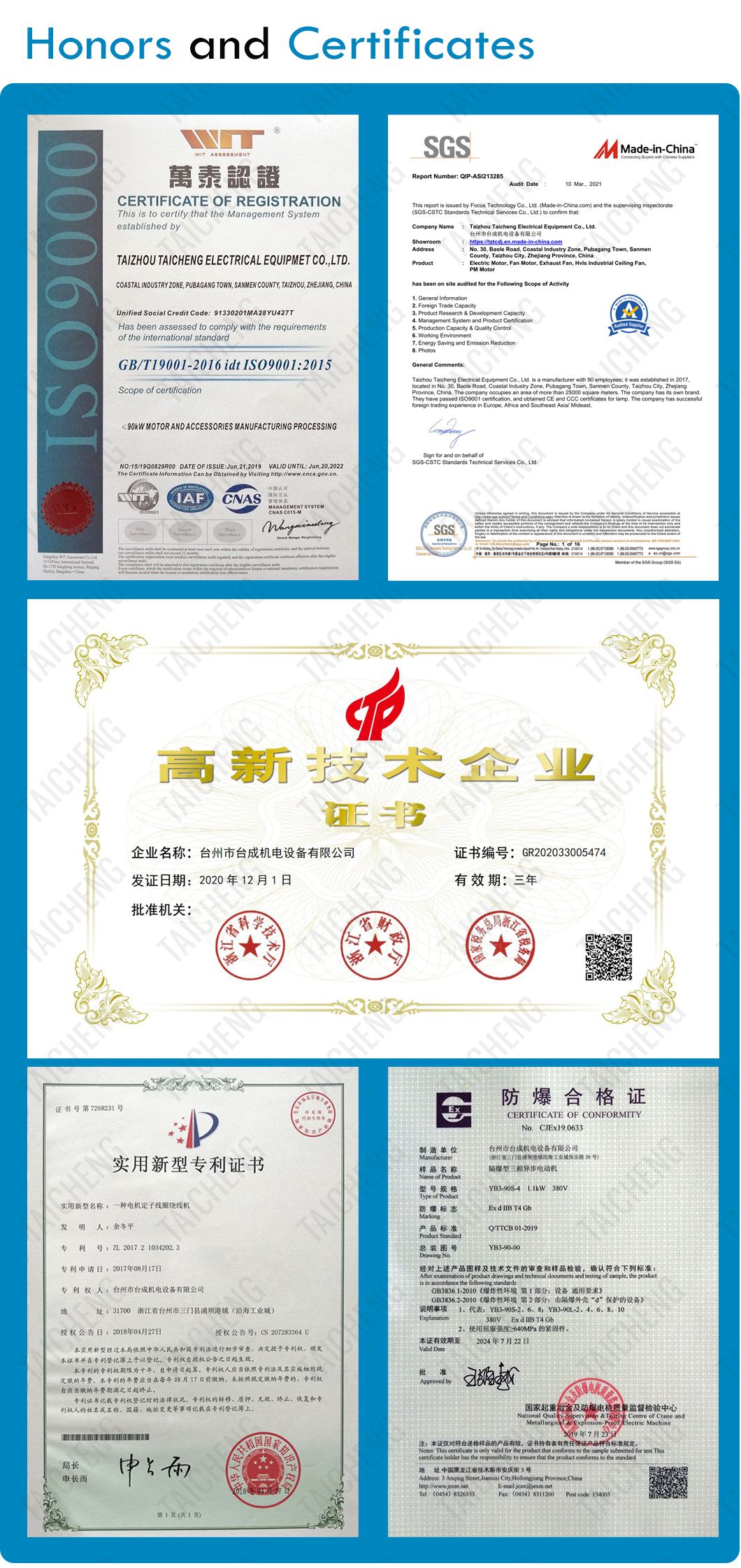

8.HONORS& CERTIFICATESRelated Category
