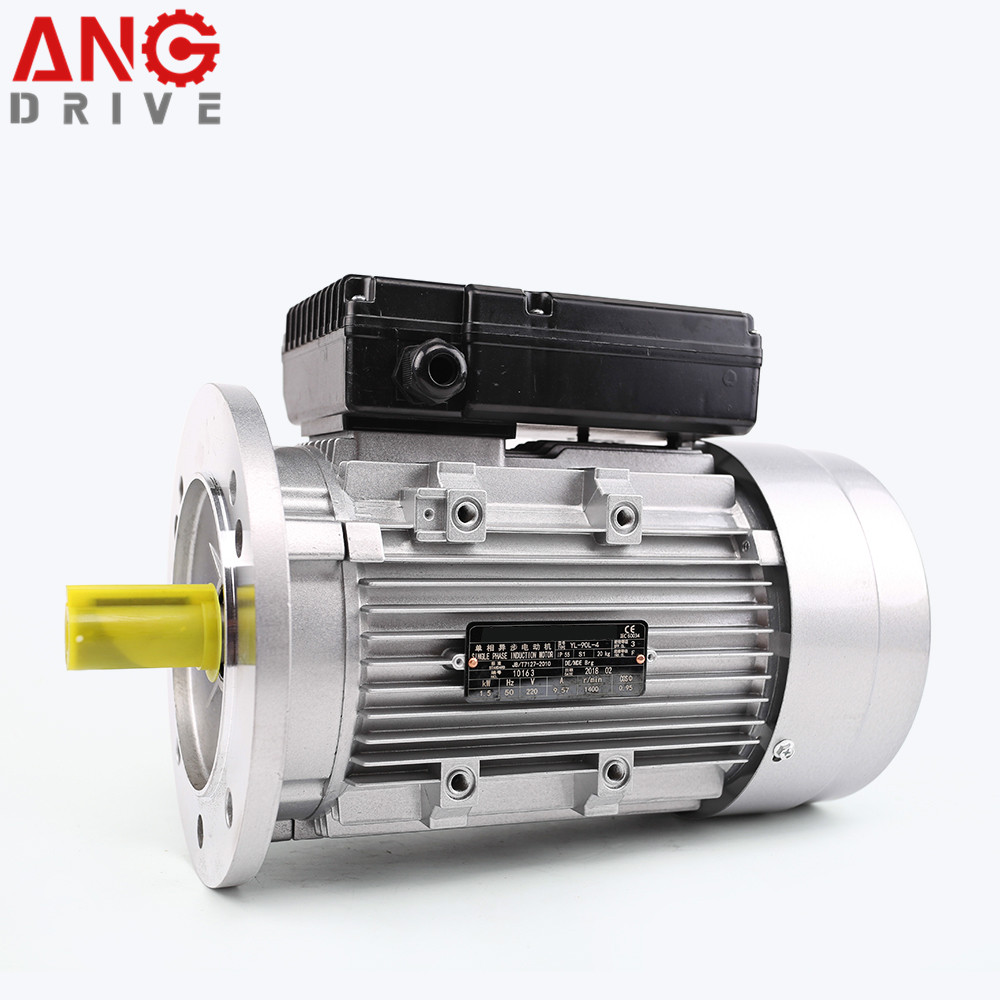

Single 1 Phase 0.55kw 0.75HP 71b5 71b14 AC Asynchronous IEC Electric Gear Motor
Single 1 Phase 0.55kw 0.75HP 71b5 71b14 AC Asynchronous IEC Electric MotorFeatures:1. Good performance, safe and reliable operation2. Low noise, low vibration and light weight3. Used for household appliance, swimming pool pumps, fan and recording meters4. Mounting dimensions conform to IEC standards......
Send Inquiry
Product Description
Single 1 Phase 0.55kw 0.75HP 71b5 71b14 AC Asynchronous IEC Electric Motor
Features:
1. Good performance, safe and reliable operation
2. Low noise, low vibration and light weight
3. Used for household appliance, swimming pool pumps, fan and recording meters
4. Mounting dimensions conform to IEC standards
Specification:
FAQ
Q: Can you make the gear motor with customization?
A: Yes, we can customize per your request, like power, voltage, speed, shaft size, wires, connectors, capacitors, terminal box, IP grade, etc.
Q: Do you provide samples?
A: Yes. Sample is available for testing.
Q: What is your MOQ?
A: It is 10pcs for the beginning of our business.
Q: What's your lead time?
A: Standard product need 5-30days, a bit longer for customized products.
Q: Do you provide technology support?
A: Yes. Our company have design and development team, we can provide technology support if you
need.
Q: How to ship to us?
A: It is available by air, or by sea, or by train.
Q: How to pay the money?
A: T/T and L/C is preferred, with different currency, including USD, EUR, RMB, etc.
Q: How can I know the product is suitable for me?
A: >1ST confirm drawing and specification >2nd test sample >3rd start mass production.
Q: Can I come to your company to visit?
A: Yes, you are welcome to visit us at any time.
Q: How shall we contact you?
A: You can send inquiry directly, and we will respond within 24 hours.
Features:
1. Good performance, safe and reliable operation
2. Low noise, low vibration and light weight
3. Used for household appliance, swimming pool pumps, fan and recording meters
4. Mounting dimensions conform to IEC standards

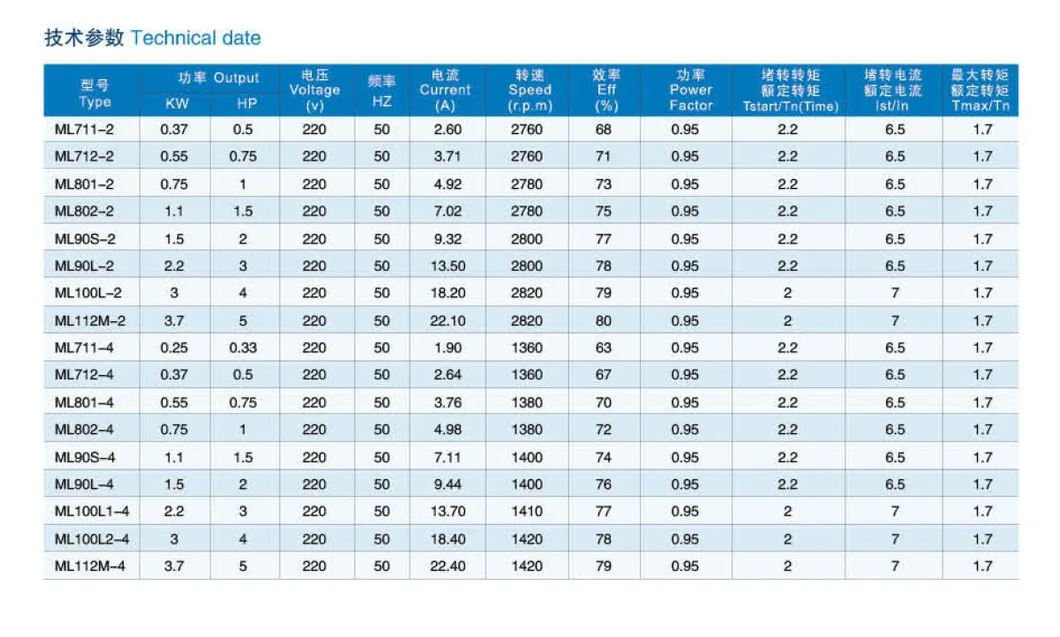

Specification:
| Power | 0.09 ~ 3.7kw |
| Frame Size | 56 ~ 112 |
| Phase | Single |
| Efficiency Class | IE1 ~ IE4 |
| Poles | 2, 4, 6, 8 poles |
| Protection Class | IP44, IP54, IP55, IP56 |
| Insulation Class | B, F, H |

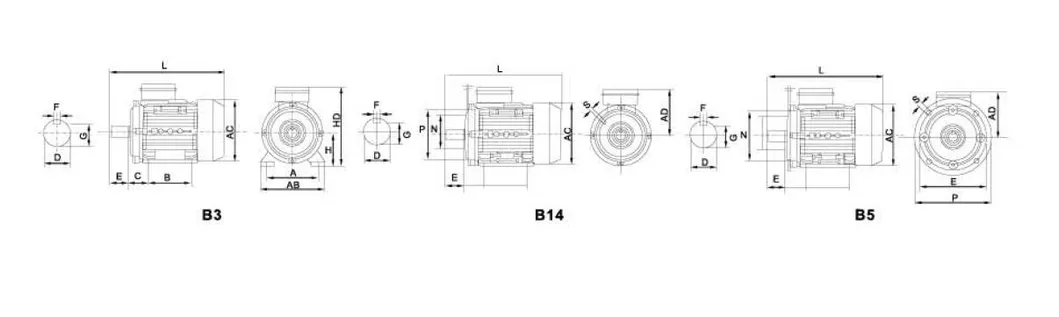

| Mounting Type | B14, B3, B5, B35, B34 |
| Ambient Temperature | -15 ~ +40 °C |
| Altitude | ≤1000M |
| Material | Aluminum/Cast Iron |
FAQ
Q: Can you make the gear motor with customization?
A: Yes, we can customize per your request, like power, voltage, speed, shaft size, wires, connectors, capacitors, terminal box, IP grade, etc.
Q: Do you provide samples?
A: Yes. Sample is available for testing.
Q: What is your MOQ?
A: It is 10pcs for the beginning of our business.
Q: What's your lead time?
A: Standard product need 5-30days, a bit longer for customized products.
Q: Do you provide technology support?
A: Yes. Our company have design and development team, we can provide technology support if you
need.
Q: How to ship to us?
A: It is available by air, or by sea, or by train.
Q: How to pay the money?
A: T/T and L/C is preferred, with different currency, including USD, EUR, RMB, etc.
Q: How can I know the product is suitable for me?
A: >1ST confirm drawing and specification >2nd test sample >3rd start mass production.
Q: Can I come to your company to visit?
A: Yes, you are welcome to visit us at any time.
Q: How shall we contact you?
A: You can send inquiry directly, and we will respond within 24 hours.
