China Yzs Series High Frequency Industries Electric Vibration Motor (YZS-20-6)

Product Description

Product description

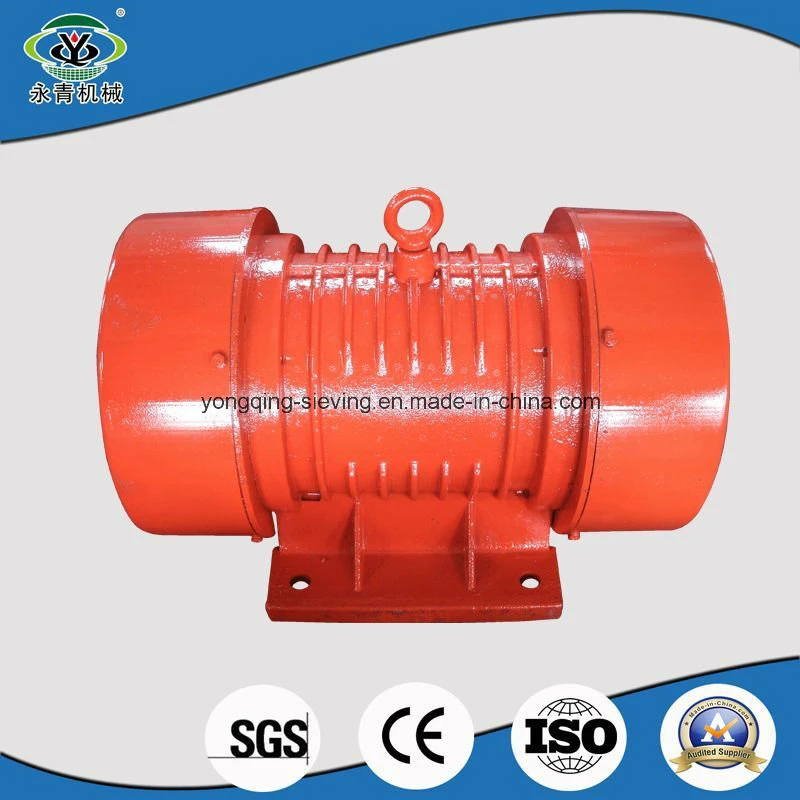

YZS series high frequency industries electric vibration motor(YZS-20-6)

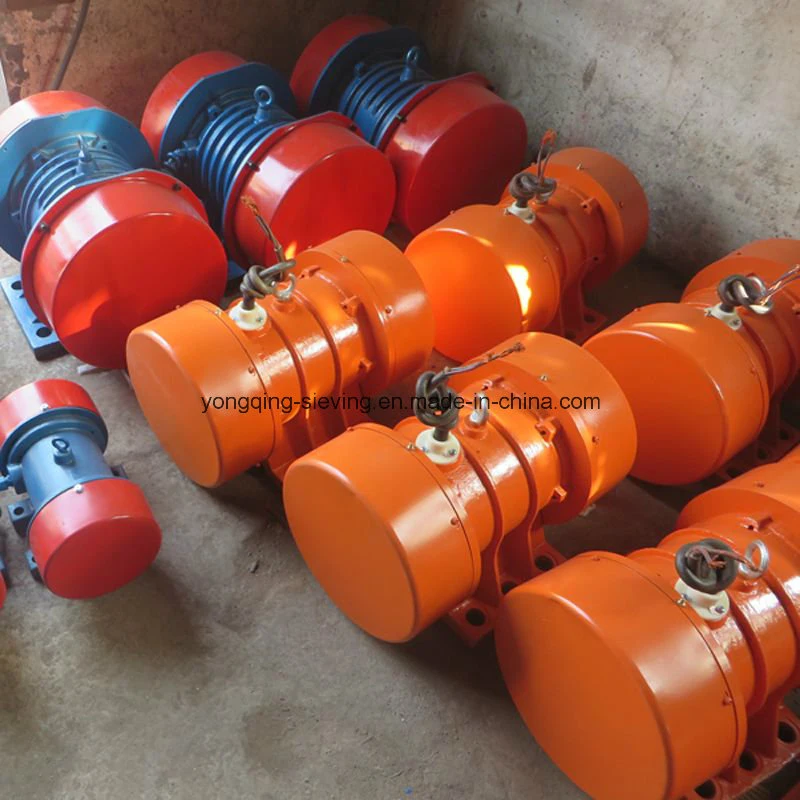

Our YZS series vibration motor is designed as a high-end vibrating motor. It is available in several types with different specifications, while the most powerful one comes with an exciting force of 100 KN, and is driven by 30kw power. The rotor and stator are made of excellent silicon steel sheet. The heat dissipation is limited. High purity copper wire is used for better performance of the motor.

Specification Sheet

Weight Kg	RPM	Current A	Force N	Power KW	Model	Installing size(mm)				Dimension(mm)
Weight Kg	RPM	Current A	Force N	Power KW	Model	A	B	N-d	HA	AB	BB	HD	L
13	2900	0.5	1500	0.12	YZS 1.5-2	130	80	4-12	20	170	118	200	245
15	2900	0.55	2500	0.20	YZS 2.5-2	130	80	4-12	20	170	118	200	250
18	2900	0.6	3000	0.25	YZS 3-2	150	90	4-14	22	185	125	200	280
20	2900	0.9	5000	0.37	YZS 5-2	150	90	4-14	24	185	155	220	280
30	2900	1.75	10000	0.75	YZS 10-2	180	110	4-18	29	225	190	240	335
47	2900	2.3	15000	1. 1	YZS 15-2	220	140	4-22	26	272	190	265	385
80	2900	3.1	20000	1. 5	YZS 20-2	260	150	6-26	30	315	225	295	450
120	2900	5.0	30000	2.2	YZS 30-2	310	170	6-33	35	375	245	260	490
16	1450	0.5	1500	0.12	YZS 1.5-4	130	80	4-12	20	170	118	200	245
22	1450	0.6	3000	0.18	YZS 3-4	150	90	4-14	22	182	124	220	280
38	1450	0.75	5000	0.25	YZS 5-4	180	110	4-18	24	225	155	350	320
58	1450	1.5	10000	0.55	YZS 10-4	220	140	4-22	26	275	190	415	385
92	1450	1.9	15000	0.75	YZS 15-4	260	150	6-26	30	315	225	295	450
95	1450	2.6	20000	1.1	YZS 20-4	260	150	6-26	30	315	225	295	450
126	1450	3.6	30000	1.5	YZS 30-4	310	170	6-33	35	375	245	350	490
230	1450	5.1	50000	2.2	YZS 50-4	350	220	6-36	40	460	320	430	580
340	1450	7.9	75000	3.7	YZS 75-4	380	250	6-39	45	490	360	480	690
500	1450	14.5	100000	6.63	YZS 100-4	440	248	6-45	50	560	370	500	830
38	960	0.84	3000	0.25	YZS 3-6	180	110	4-14	24	225	155	238	320
60	960	1.2	5000	0.37	YZS 5-6	220	140	4-22	26	272	190	265	385
75	960	2.2	10000	0.75	YZS 10-6	260	150	6-26	30	315	225	295	450
130	960	3.1	15000	1.1	YZS 15-6	310	170	6-33	35	375	245	350	490
135	960	4.0	20000	1.5	YZS 20-6	310	170	6-33	35	375	245	350	490
220	960	5.6	30000	2.2	YZS 30-6	350	220	6-39	40	460	320	430	580
240	960	6.8	40000	3.0	YZS 40-6	350	220	6-39	40	460	320	430	620
305	960	8.5	50000	3.7	YZS 50-6	380	250	6-39	45	490	360	465	690
450	960	12.5	75000	5.5	YZS 75-6	380	250	6-39	45	490	360	465	750
500	960	17.8	100000	7.5	YZS 100-6	440	280	6-39	50	570	410	500	850
780	960	24	135000	10.0	YZS 135-6	480	420	8-39	50	710	770	610	960
900	960	28	165000	11.0	YZS 165-6	480	420	8-45	50	710	770	610	1050
1000	960	32	185000	13.0	YZS 185-6	540	420	8-45	50	730	790	640	1100
1150	960	36	210000	15.0	YZS 210-6	540	510	8-45	50	730	790	640	1140
126	720	2,5	10000	0.75	YZS 10-8	310	170	6-33	35	375	245	350	490
210	720	4,5	20000	1,5	YZS 20-8	350	220	6-39	40	460	320	430	590
316	720	6,0	30000	2,2	YZS 30-8	380	250	6-39	45	490	360	465	690
456	720	9,1	50000	3,7	YZS 50-8	380	250	6-39	45	490	360	465	730
620	720	11,8	750000	5,5	YZS 75-8	440	248	6-45	50	560	370	500	830

Feature:

1. Advanced design

All the parameter calculation and design optimization are conducted by computer. Our precise manufacturing techniques and rigid quality control system can guarantee that the related components work together on a desirable condition during the operation of our vibration motor.

2. Special electromagnetic design

The rotor and stator of the motor are both made of premium silicone steel sheet with great magnetic conductivity, remarkably reducing the eddy-current loss of the iron core. Thus a powerful starting torque can be achieved, making the rotor reach the operation speed in as short time.

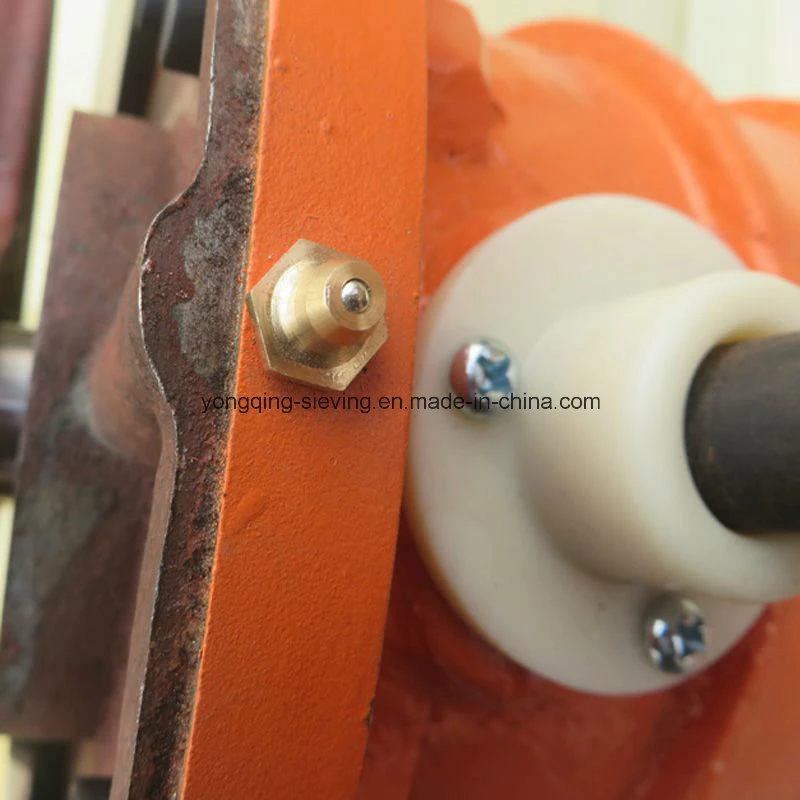

3. Heavy load bearing

All the bearings of the vibration motor are specially designed heavy load bearings, which can endure and transfer radical exciting force and axial load. The thermal dissipation performance is excellent. The double sealing design gives the bearing compartment great dustproof property. The high temperature resistant lithium-based grease is adopted for longer service life of the bearings.

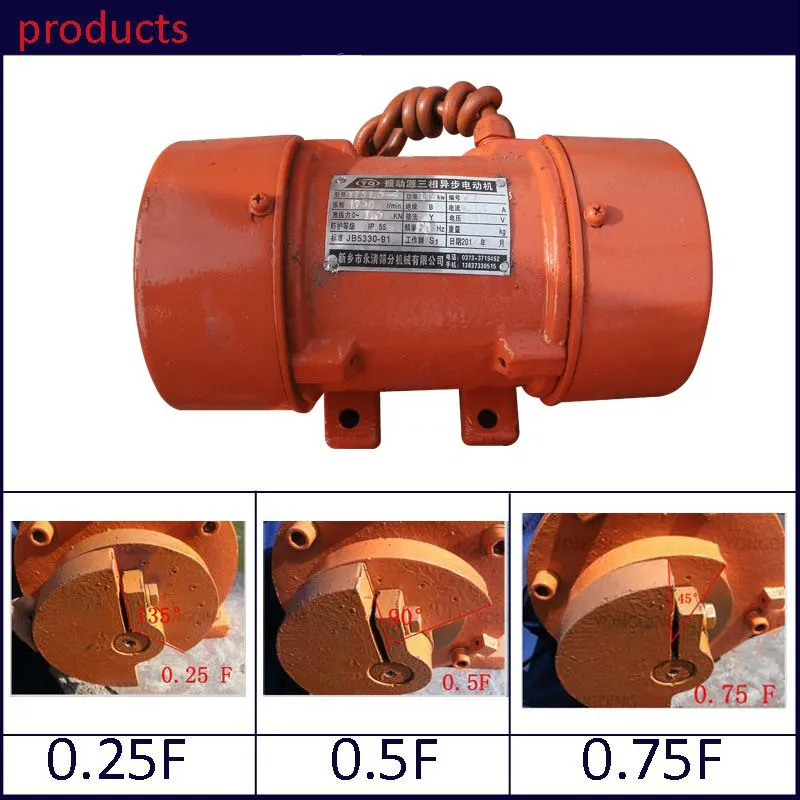

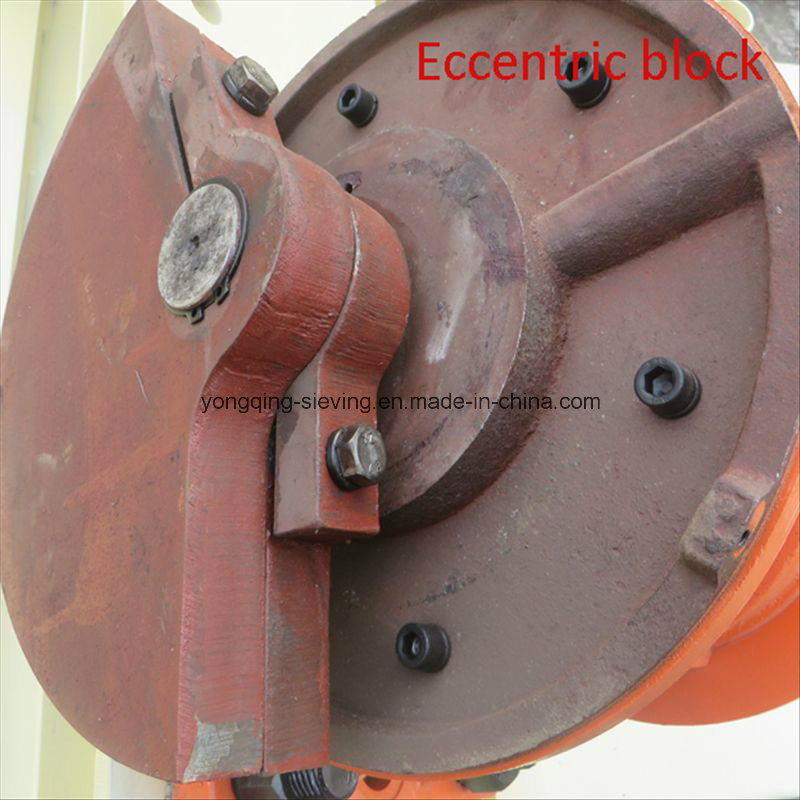

4.Stepless adjustment

A precise dial is marked on the eccentric blocks at the both sides of the vibration motor. So it is easy adjust the exciting force and working torque steplessly from Zero to the maximum values.

5. Flexible power supply.

Our XVM series AC power vibration motor is designed for working on different kinds of three-phase AC power, including the 220V/380V power in China and Europe, 230V/460V and 60HZ power in the U.S., and the 220V 50HZ/60HZ in Japan. Actually, this motor can be used almost everywhere around the world.

YZS series high frequency industries electric vibration motor(YZS-20-6)
Model	YZS electric vibrating motor
Excitation Force	0.7KN-200KN
Poles	2 pole/ 4 pole/ 6 pole/ 8 pole
Rotation speed	3000RPM/1500rpm/1000rpm/750rpm
Power	0.15KW-20KW
Workable temperature	-20~ -40°C
Working Height	Below 1000m
Voltage	220/240/380/415/450V are all available
Frequency	50HZ or 60HZ
Protective grade	IP55 or IP65
Phase	3
Way of connection	Y
Insulating grade	B or F
Way of working	Continuous
Type	AC

Yzs Series High Frequency Industries Electric Vibration Motor (YZS-20-6)
RFQ
If you interested in our products, please feel free to contact us. We will help choose the best material equipment for you. So pls provide the follow information.
1. Please advice your usage.
2. Please advice the power you need
3. Please advice the rated speed.
4. Please advice the voltage you use.
5. Other special requirement.
