Ywf. A4s -450s-5eia00 Refrigeration Axial Fan Motor for Air Conditioning
YWFA4T-450S Sucking type AC axial fan motorThe Features of Axial fan motor:1. Material: Rotro: Aluminum casting2. Protect Class: IP543. Insulation Class: F4. Bearings: Ball bearingsTechnical Data:ModelVoltageFrequencyCurrentInputpower Speed Capacitor Air FlowNosieOperation Temp.VHzAWRPMuFm3/hCFMdB(A......
Send Inquiry
Product Description

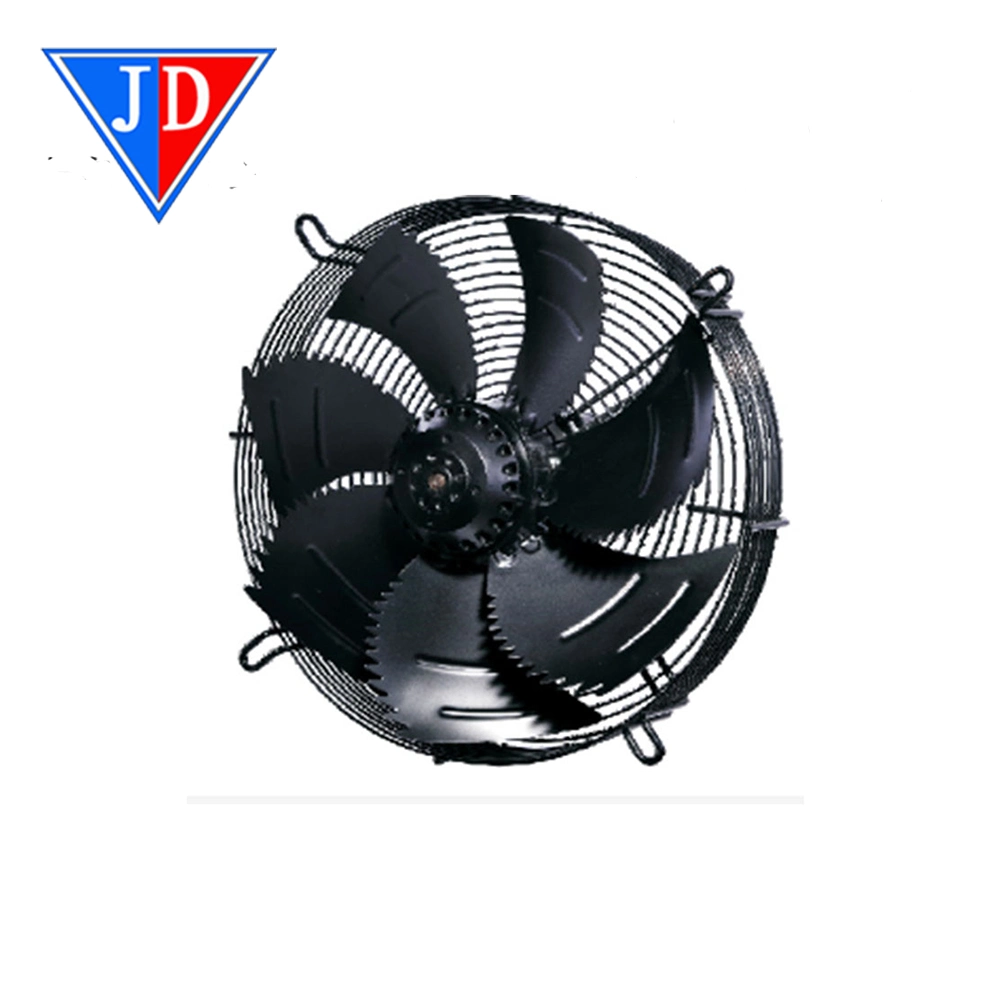

YWFA4T-450S Sucking type AC axial fan motor
The Features of Axial fan motor:
1. Material: Rotro: Aluminum casting
2. Protect Class: IP54
3. Insulation Class: F
4. Bearings: Ball bearings
| Model | Voltage | Frequency | Current | Input power
| Speed
| Capacitor
| Air Flow | Nosie | Operation Temp. | |
| V | Hz | A | W | RPM | uF | m3/h | CFM | dB(A) | min/max(ºC) | |
| YWF.A4S-200S | 380/400 | 50 | 0.21 | 40 | 1400 | 1.5 | 510 | 300 | 43 | -30/+60 |
| YWF.A4S-250S | 230 | 50 | 0.25 | 55 | 1400 | 2 | 860 | 505 | 53 | -30/+60 |
| YWF.A4S-300S | 220/230 | 50 | 0.42 | 90 | 1350 | 3 | 1650 | 970 | 54 | -30/+60 |
| YWF.A4T-300S | 380/400 | 50 | 0.25 | 90 | 1380 | / | 1650 | 970 | 54 | -30/+60 |
| YWF.A4S-350S | 220/230 | 50 | 0.60 | 135 | 1380 | 4 | 2670 | 1570 | 58 | -30/+60 |
| YWF.A4T-350S | 380/400 | 50 | 0.30 | 135 | 1360 | / | 2670 | 1570 | 58 | -30/+60 |
| YWF.A4S-400S | 220/230 | 50 | 0.90 | 190 | 1350 | 6 | 3500 | 2060 | 60 | -30/+60 |
| YWF.A4T-400S | 380/400 | 50 | 0.50 | 190 | 1370 | / | 3500 | 2060 | 60 | -30/+60 |
| YWF.A4S-450S | 220/230 | 50 | 1.15 | 250 | 1350 | 7 | 4500 | 2650 | 62 | -30/+60 |
| YWF.A4T-450S | 380/400 | 50 | 0.55 | 250 | 1380 | / | 4500 | 2650 | 62 | -30/+60 |
| YWF.A4S-500S | 220/230 | 50 | 2.00 | 420 | 1320 | 10 | 6500 | 3835 | 69 | -30/+60 |
| YWF.A4T-500S | 380/400 | 50 | 0.95 | 420 | 1350 | / | 6500 | 3835 | 69 | -30/+60 |
| YWF.A4S-550S | 220/230 | 50 | 2.50 | 550 | 1320 | 12 | 7500 | 4425 | 73 | -30/+60 |
| YWF.A4T-550S | 380/400 | 50 | 1.10 | 550 | 1330 | / | 7500 | 4425 | 73 | -30/+60 |
| YWF.A4S-630S | 220/230 | 50 | 3.70 | 800 | 1360 | 16 | 10800 | 6381 | 74 | -30/+60 |
| YWF.A4T-630S | 380/400 | 50 | 1.60 | 850 | 1350 | / | 10800 | 6381 | 73 | -30/+60 |
| YWF.A6T-710S | 380/400 | 50 | 2.00 | 1100 | 900 | / | 15500 | 8990 | 75 | -30/+60 |

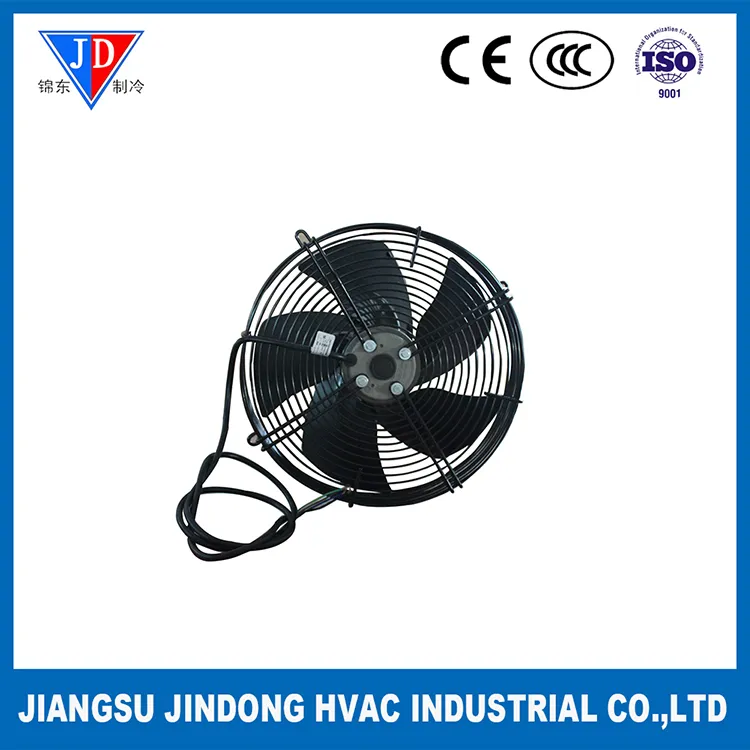

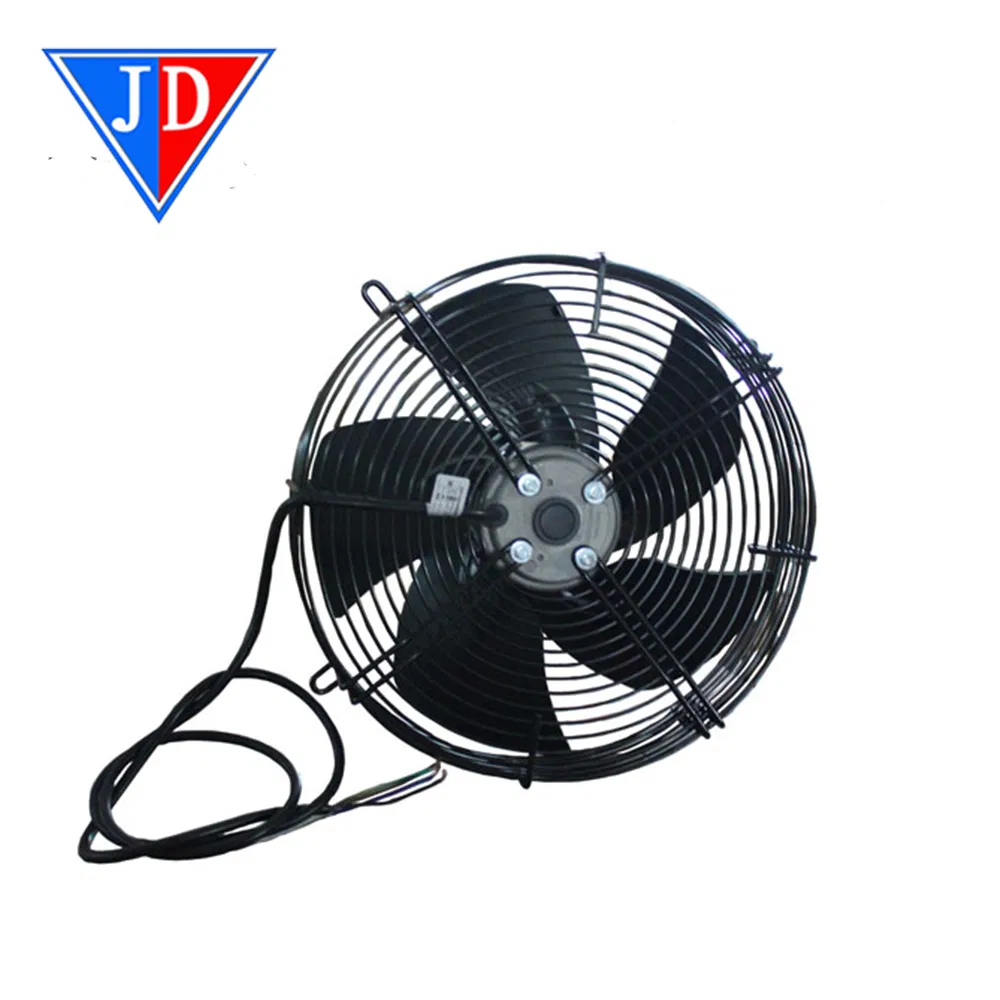

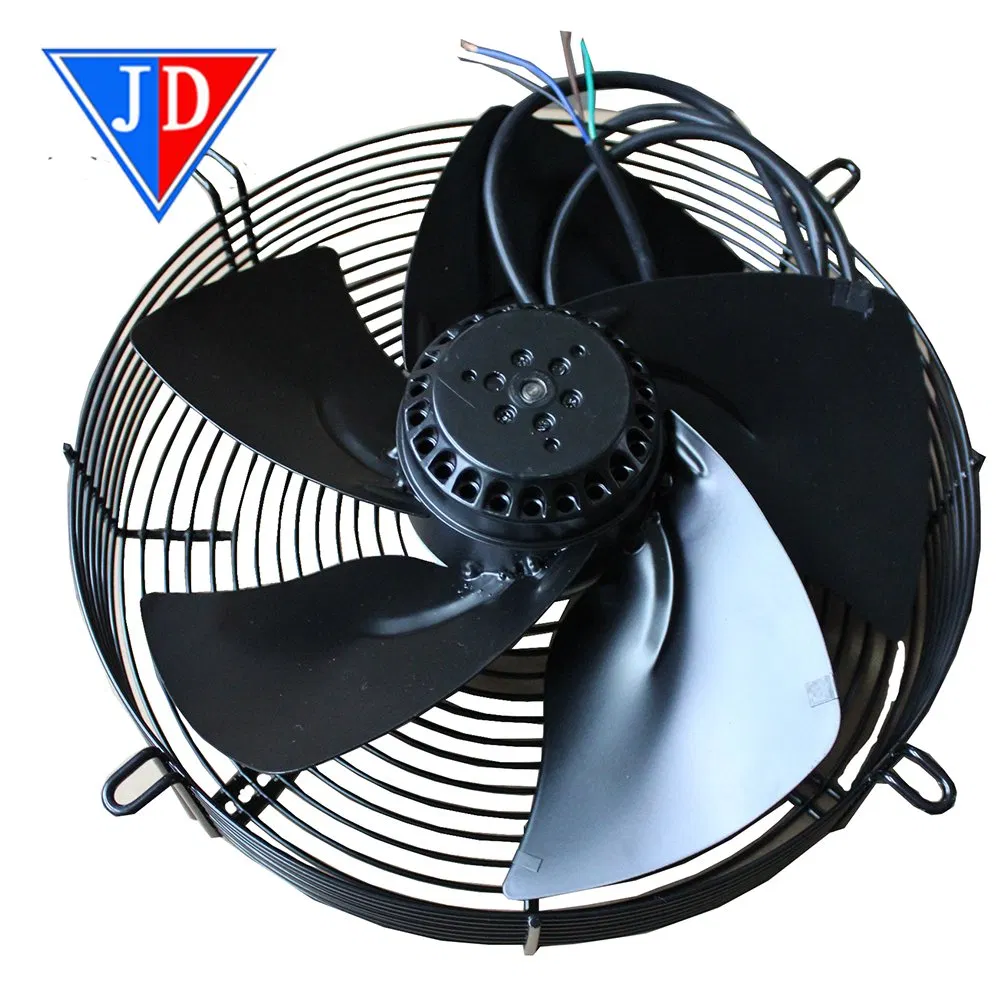

Detailed picture:
