Yl Yy Yc Ce Approved Single Phase Start Capacitor Fractional Horsepower Mini Single Motor Yc90s -2 0.75kw
YL YY YC CE Approved Single Phase Start Capacitor Fractional Horsepower Mini Single Motor ---------------------------------------------------------------------------------------------ApplicationsCompressors, refrigerator, remedy apparatus and machine tools, etc.FeaturesOut-standing performance of st......
Send Inquiry
Product Description

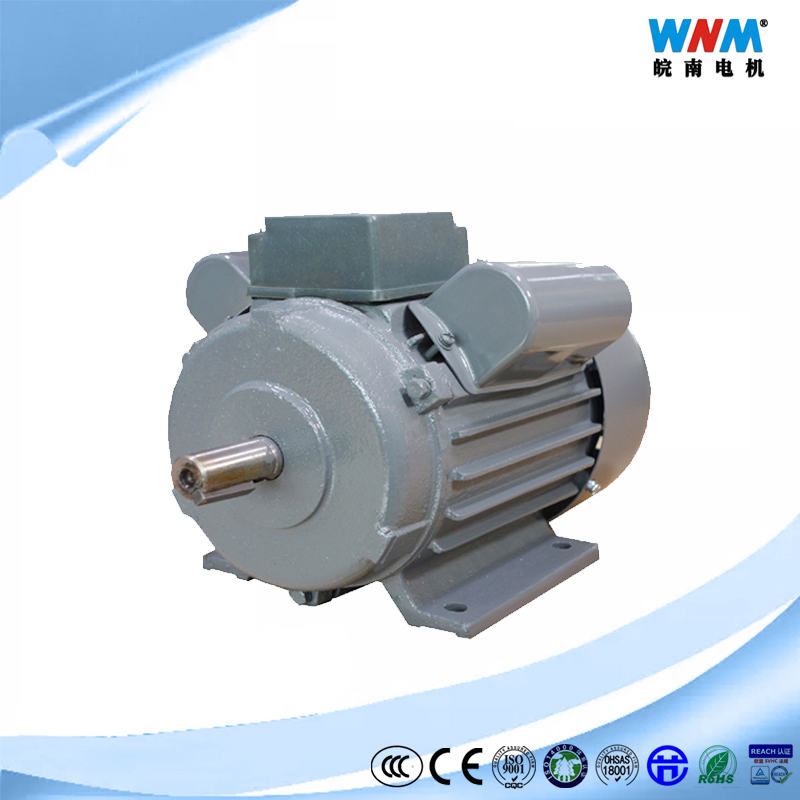

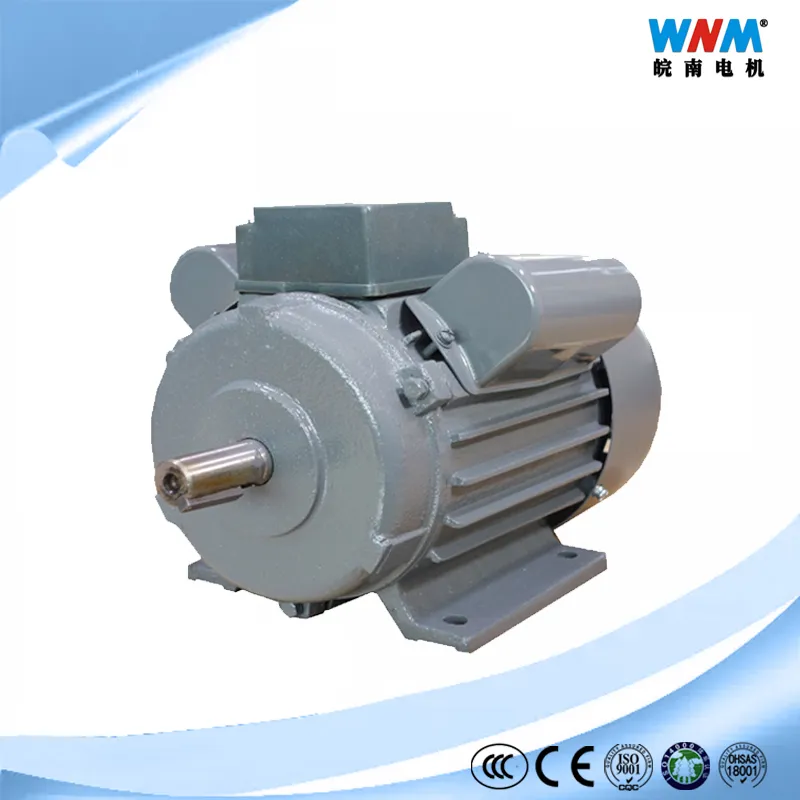

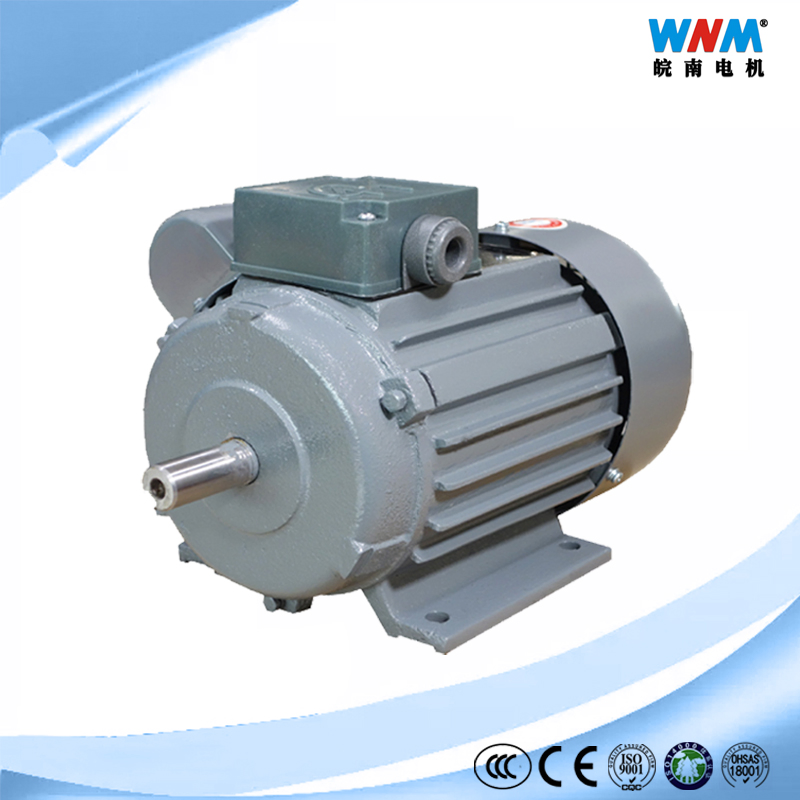

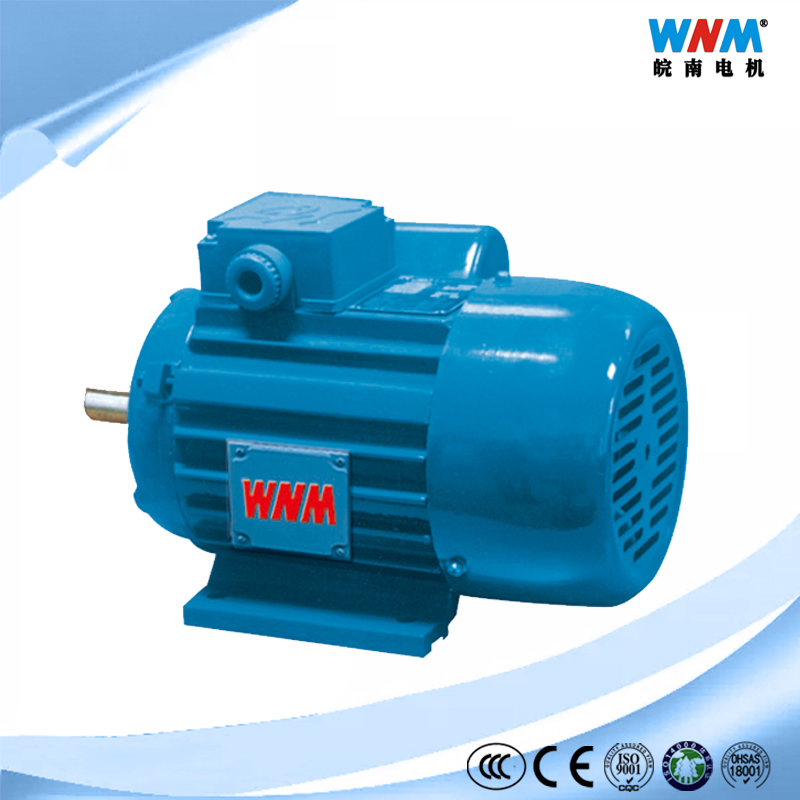

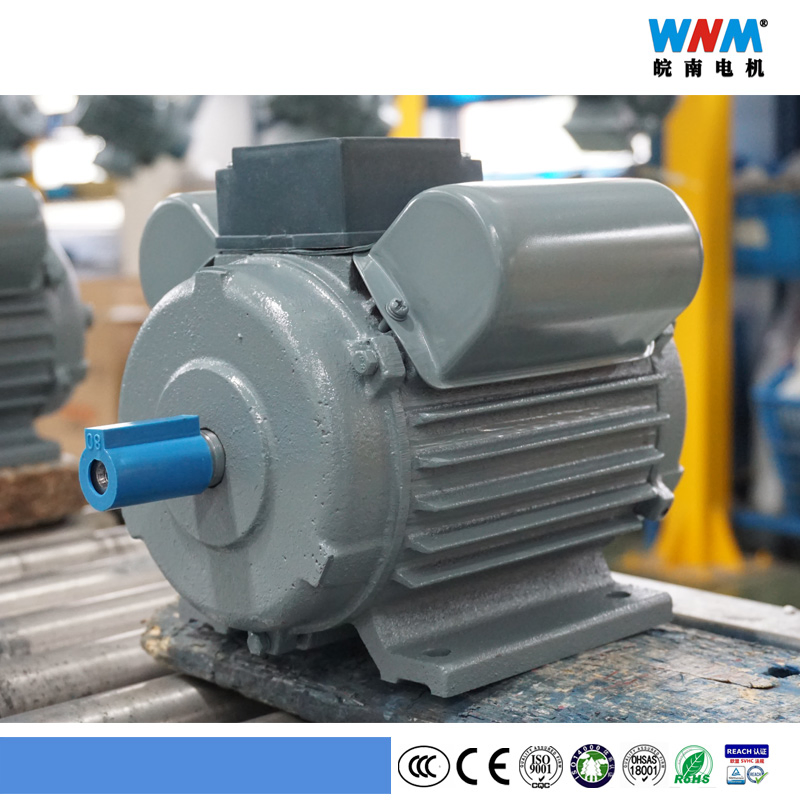

YL YY YC CE Approved Single Phase Start Capacitor Fractional Horsepower Mini Single Motor
---------------------------------------------------------------------------------------------
Applications---------------------------------------------------------------------------------------------
Compressors, refrigerator, remedy apparatus and machine tools, etc.
Features
Out-standing performance of starting and operation, low noise, compact dimensions and smooth running.
General Description
- Frame sizes: 71 to 100mm
- Rated output: 0.25 to 3kW
- Voltage: 220V
- Frequency: 50Hz
- Duty cycle: S1
- Insulation class: B / F
- Number of poles: 2,4,6
Mounting
The other dimensions of IMB14, IMB34 and IMB5 are the same as those of IMB3.
Conventional mounting type and suitable frame size are given in following table(with "√")
| Frame | IMB3 | IMB14 IMB34 | IMB5 IMB35 | IMB3 | ||||||||||||||||||||||||
| A | A/2 | B | C | D | E | F | G | H | K | M | N | P | R | S | T | M | N | P | R | S | T | AB | AC | AD | AE | HD | L | |
| YL80 | 125 | 62.5 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 100 | 80 | 120 | 0 | M8 | 3 | 165 | 130 | 200 | 0 | 12 | 3.5 | 136 | 140 | 109 | 95 | 180 | 250 |
| YL90S | 140 | 70 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 140 | 0 | M8 | 3 | 165 | 130 | 200 | 0 | 12 | 3.5 | 160 | 165 | 108 | 110 | 188 | 290 |
| YL90L | 140 | 70 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 140 | 0 | M8 | 3 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 180 | 120 | 120 | 210 | 315 |
| YL100L | 160 | 80 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | 215 | 180 | 250 | 0 | 15 | 4 | 205 | 220 | 180 | 140 | 260 | 430 | ||||||
| YL711J | 112 | 56 | 90 | 45 | 16 | 40 | 5 | 13 | 71 | 7 | 85 | 70 | 105 | 0 | M6 | 3.5 | 130 | 110 | 160 | 0 | 10 | 3.5 | 139 | 142 | 109 | 100 | 180 | 265 |
| YL714J | 112 | 56 | 90 | 45 | 16 | 40 | 5 | 13 | 71 | 7 | 85 | 70 | 105 | 0 | M6 | 3.5 | 130 | 110 | 160 | 0 | 10 | 3.5 | 139 | 142 | 109 | 100 | 180 | 281 |
Conventional mounting type and suitable frame size are given in following table(with "√")
| Frame | Basic Type | Derived Type | ||||||||||
| B3 | B5 | B35 | V1 | V3 | V5 | V6 | V18 | V19 | V36 | B14 | B34 | |
| 71~80 | √ | √ | - | √ | √ | √ | √ | √ | √ | - | √ | √ |
| 90 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| 100 | √ | √ | √ | √ | √ | √ | √ | - | - | √ | - | - |

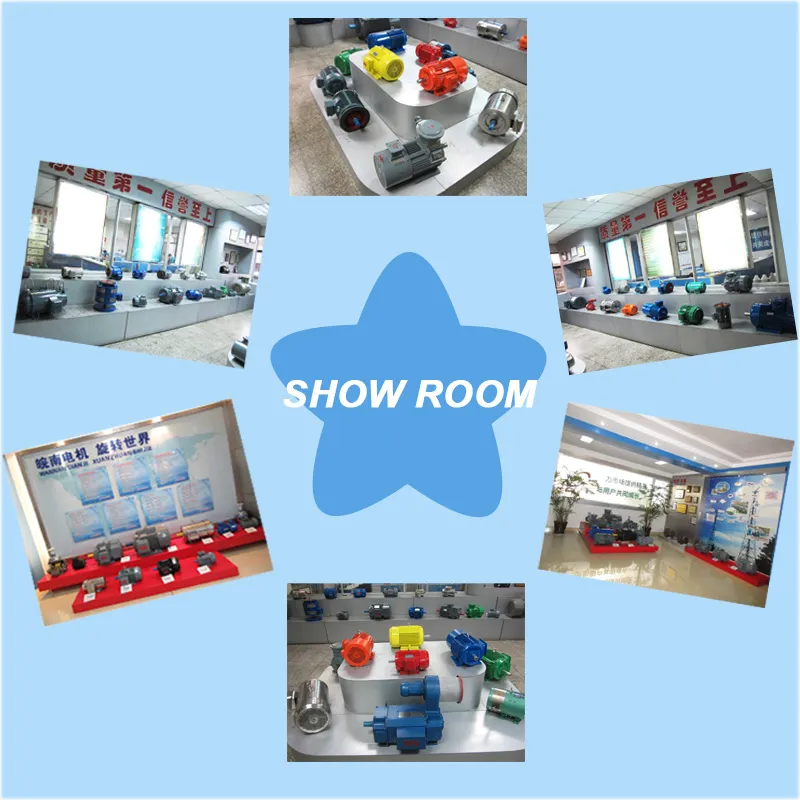

Show Room
Product and System Certificates
Patents
Honors
Premium Service
Quality Control

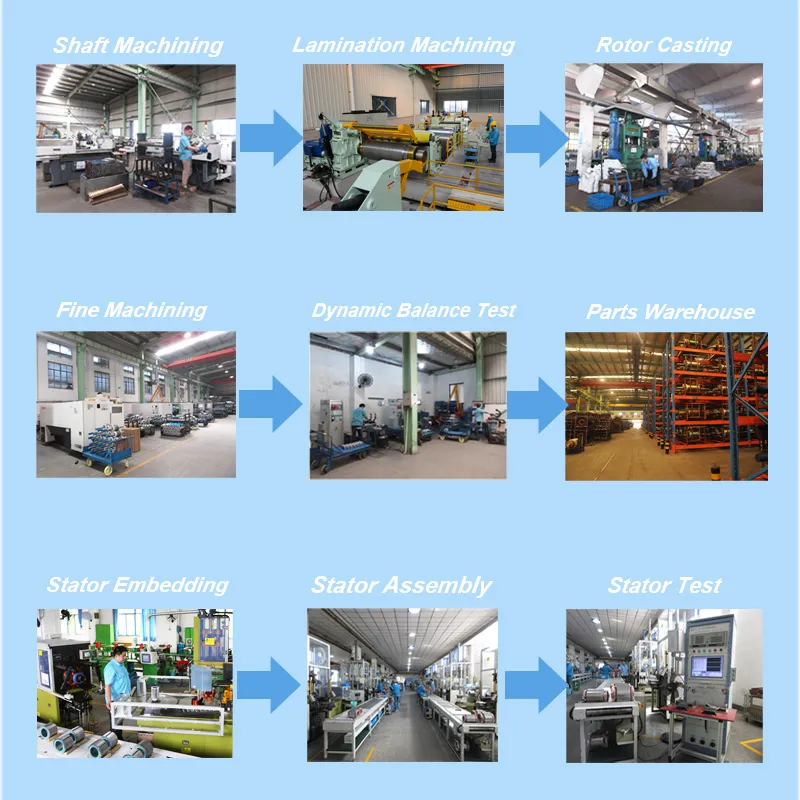

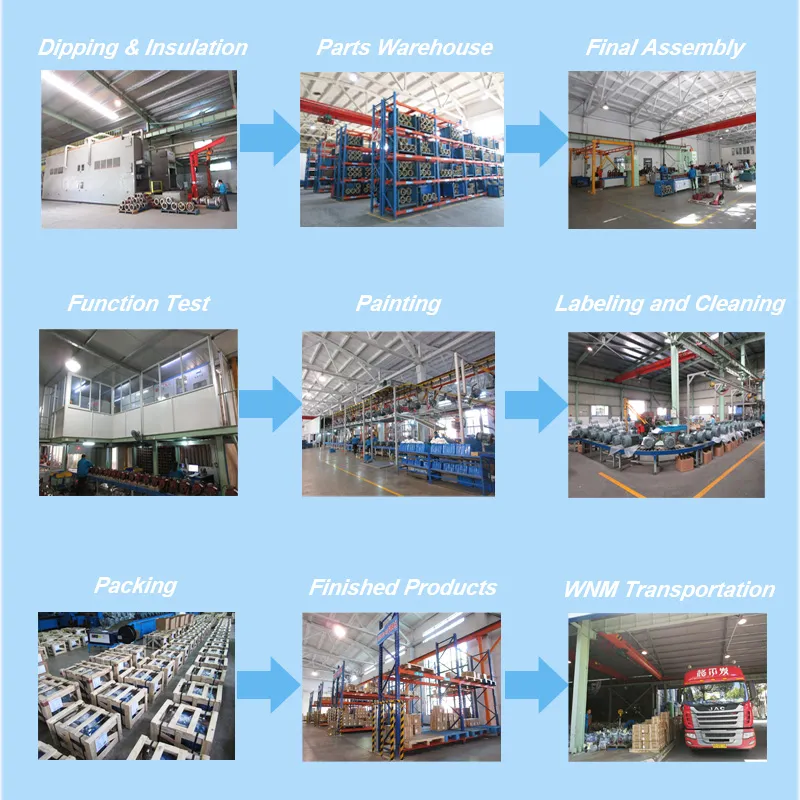

Wannan Motor Production Workshop and Flow Charts
