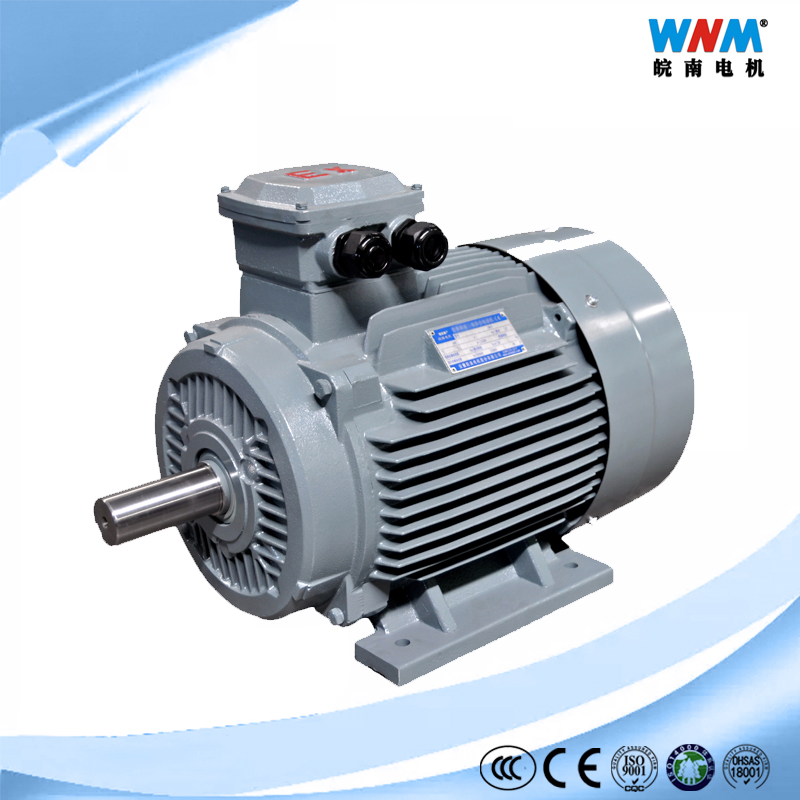

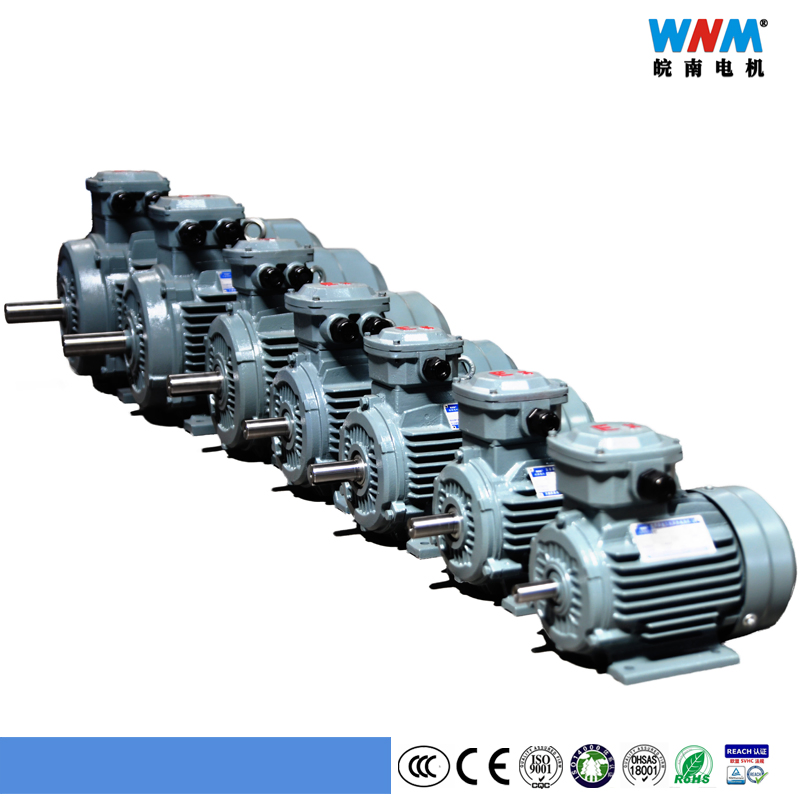

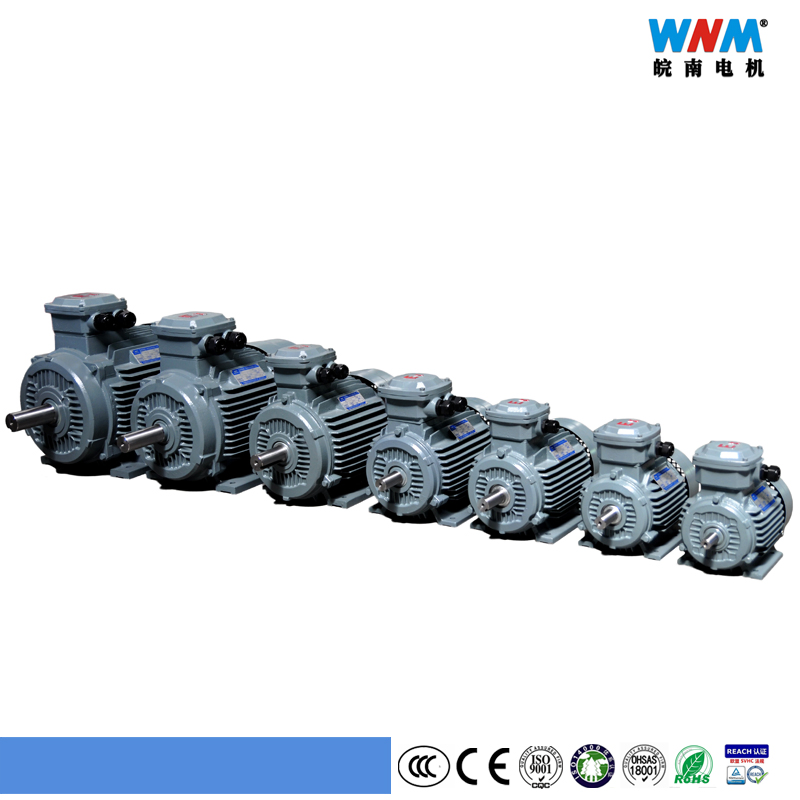

Yfb3 Premium Efficiency Ie3 Dust Explosion Proof Three Phase AC Electric Motor for Hazardous Area Extd A21 for Food Equipment & Textile Mill & Chemical Plant
YFB3 0.18~315KW Three Phase AC Induction Electric Plant Dust Explosion Proof Conveyor Motor and Gearbox---------------------------------------------------------------------------------------------ApplicationsGrain storage facilities, food processing, textile mill, chemical plant and other applicatio......
Send Inquiry
Product Description
YFB3 0.18~315KW Three Phase AC Induction Electric Plant Dust Explosion Proof Conveyor Motor and Gearbox
---------------------------------------------------------------------------------------------
Applications---------------------------------------------------------------------------------------------
Grain storage facilities, food processing, textile mill, chemical plant and other applications where hazardous fumes or dust may be present area.
Features
Limit the maximum surface temperature and have IP65 protection class of the enclosure to ensure limit the dust go inside the motor.
Ex-code:Ex tD A21 IP65 T135ºC
Temperature Group:T1~T4
- Frame sizes: 80 to 355
- Rated output: 0.18 to 315kW
- Voltage: 380V660V,380/660V
- Frequency: 50Hz or 60 Hz
- Duty Cycle: S1
- Insulation class: F
- Degree of protection: IP65 T135ºC
- Efficiency levels: IE3
- Ex-code: Ex tD A21
Mounting
Conventional mounting type and suitable frame size are given in following table(with "√")
Conventional mounting type and suitable frame size are given in following table(with "√")
| Frame | Basic Type | Derived Type | |||||||||||||||
| B3 | B5 | B35 | V1 | V3 | V5 | V6 | B6 | B7 | B8 | V15 | V17 | V35 | V37 | B14 | B34 | V18 | |
| 80~112 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| 132~160 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | - | - | - |
| 180~280 | √ | √ | √ | √ | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 315~355 | √ | - | √ | √ | - | - | - | - | - | - | - | - | - | - | - | - | - |

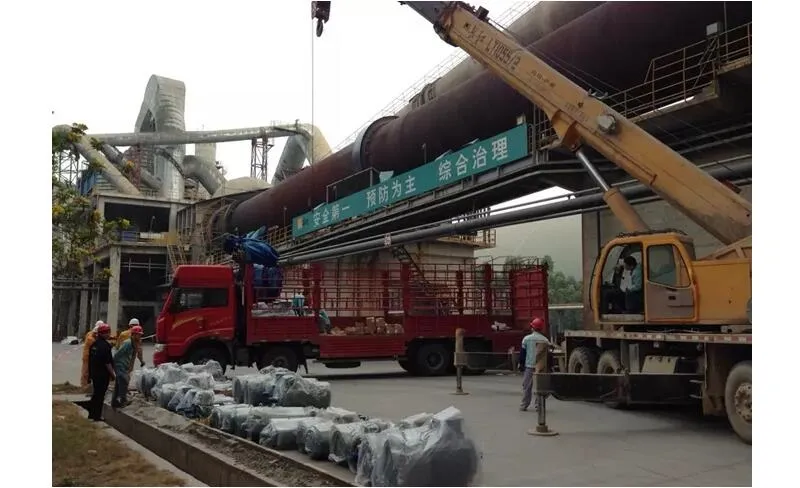

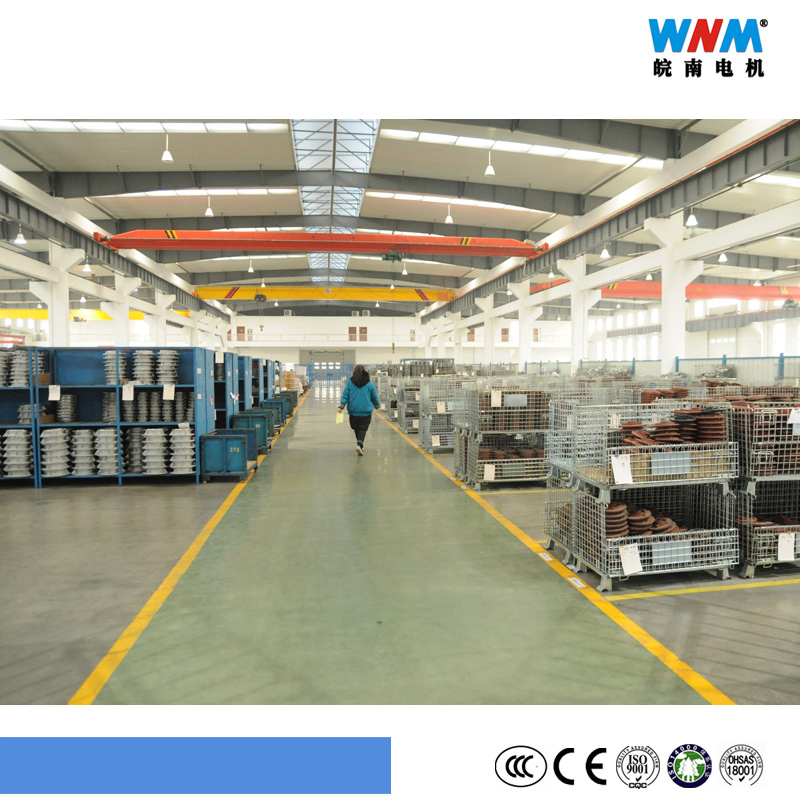

SITE

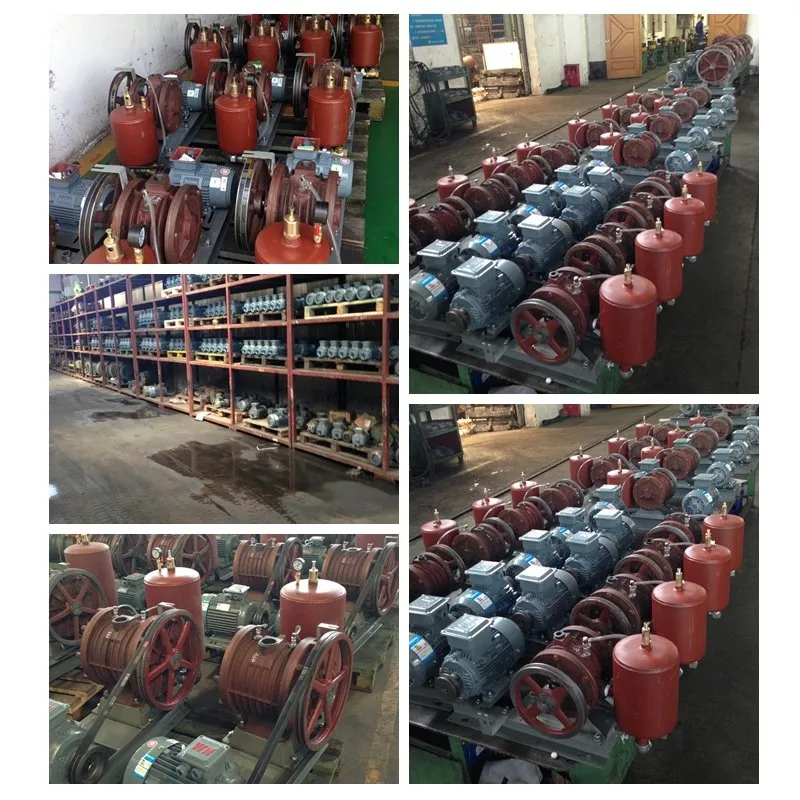

Show Room
Certificates
Premium Service

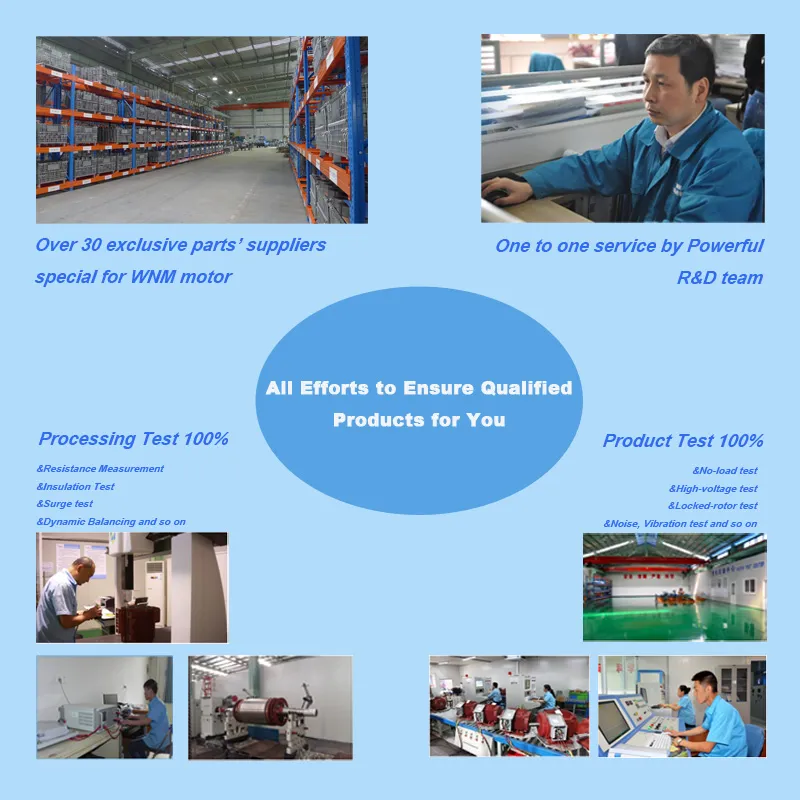

Quality Control

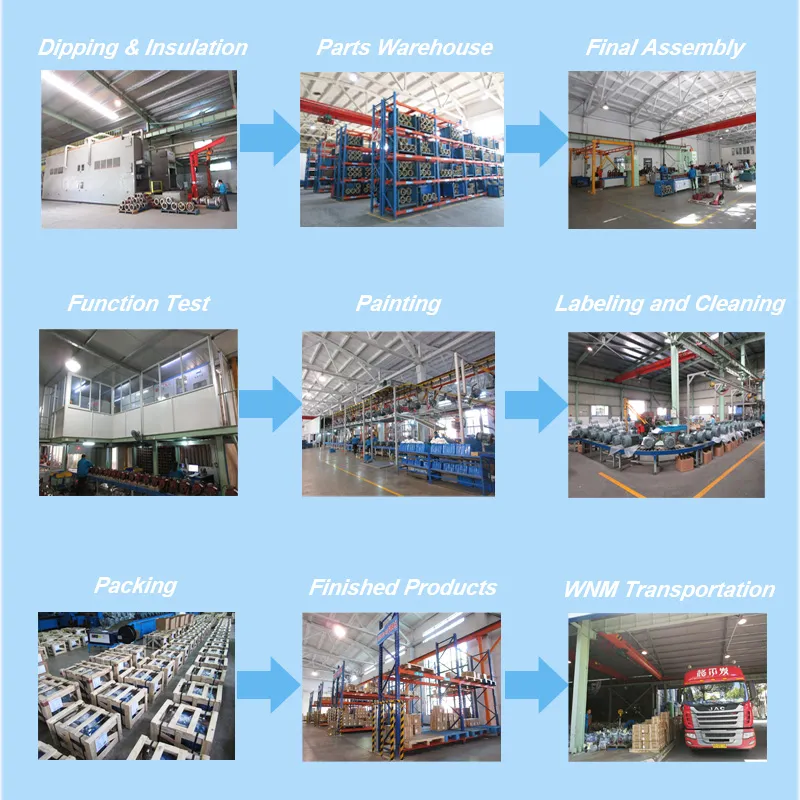

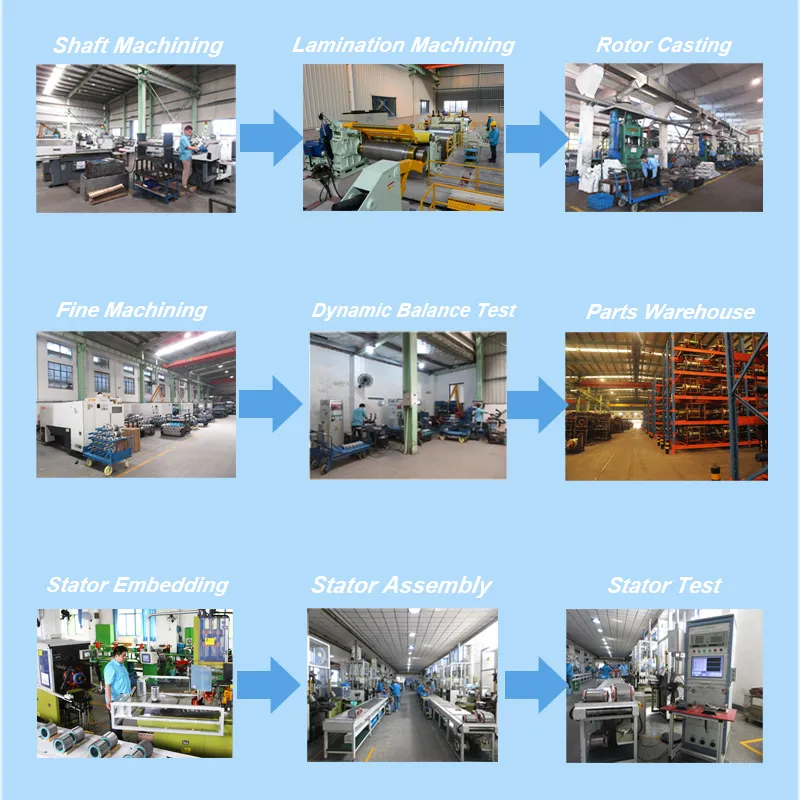

Wannan Motor Production Workshop and Flow Chart
