Yej2 Series Electromagnetism Brake Three Phase Asynchronous Motors
YEJ2 Series Electromagnetism Brake Three Phase Asynchronous MotorsYEJ2 series electromagnetic brake motors are improved products of YEJ series, it is in accordance with JB/T6456 requirements, and its electrical performance is in accord with Y2 series technical standard. The electric power of the con......
Send Inquiry
Product Description

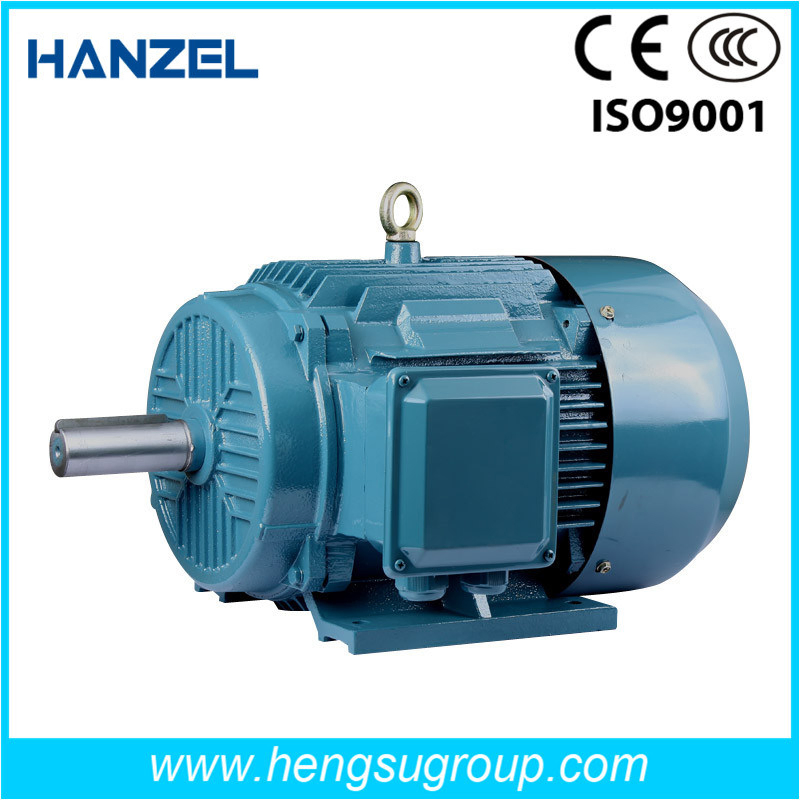

YEJ2 Series Electromagnetism Brake Three Phase Asynchronous Motors
YEJ2 series electromagnetic brake motors are improved products of YEJ series, it is in accordance with JB/T6456 requirements, and its electrical performance is in accord with Y2 series technical standard. The electric power of the controller should be synchronized with the electric power of the motor.
The electric motors are equipped the electromagnetic brake on the non-shaft end, when electricity off, retarding disc will automatically press in end-shield which produce friction brake torque and stop the running of motor, the no-load brake duration is changed with the frame size of the motor, the range is 0.15-0.45 seconds. This kind of motor is considered as the driving force of various machinery and widely used in mechanical workout machine tool, transport machinery, package, woodworking, food, chemical engineering, textile, construction, shop, roll door machinery.
OPERATING CONDITIONS:
Ambient temperature: -15senti degree≤ 0≤ 40 senti degree
Altitude: Not exceeding 1000 meters
Rated voltage: 380V, 400V, 415V
Rated frequency: 50Hz / 60Hz
Insulation class: Class B / F
Y Start-connection for 3KW and below
Delta-connection for 4KW or more
Duty / Rating: Continuous(S1)
Voltage for brake: DC 99V for motors up to H100
DC170V for motors H112 and up
YEJ2 series electromagnetic brake motors are improved products of YEJ series, it is in accordance with JB/T6456 requirements, and its electrical performance is in accord with Y2 series technical standard. The electric power of the controller should be synchronized with the electric power of the motor.
The electric motors are equipped the electromagnetic brake on the non-shaft end, when electricity off, retarding disc will automatically press in end-shield which produce friction brake torque and stop the running of motor, the no-load brake duration is changed with the frame size of the motor, the range is 0.15-0.45 seconds. This kind of motor is considered as the driving force of various machinery and widely used in mechanical workout machine tool, transport machinery, package, woodworking, food, chemical engineering, textile, construction, shop, roll door machinery.
OPERATING CONDITIONS:
Ambient temperature: -15senti degree≤ 0≤ 40 senti degree
Altitude: Not exceeding 1000 meters
Rated voltage: 380V, 400V, 415V
Rated frequency: 50Hz / 60Hz
Insulation class: Class B / F
Y Start-connection for 3KW and below
Delta-connection for 4KW or more
Duty / Rating: Continuous(S1)
Voltage for brake: DC 99V for motors up to H100
DC170V for motors H112 and up
