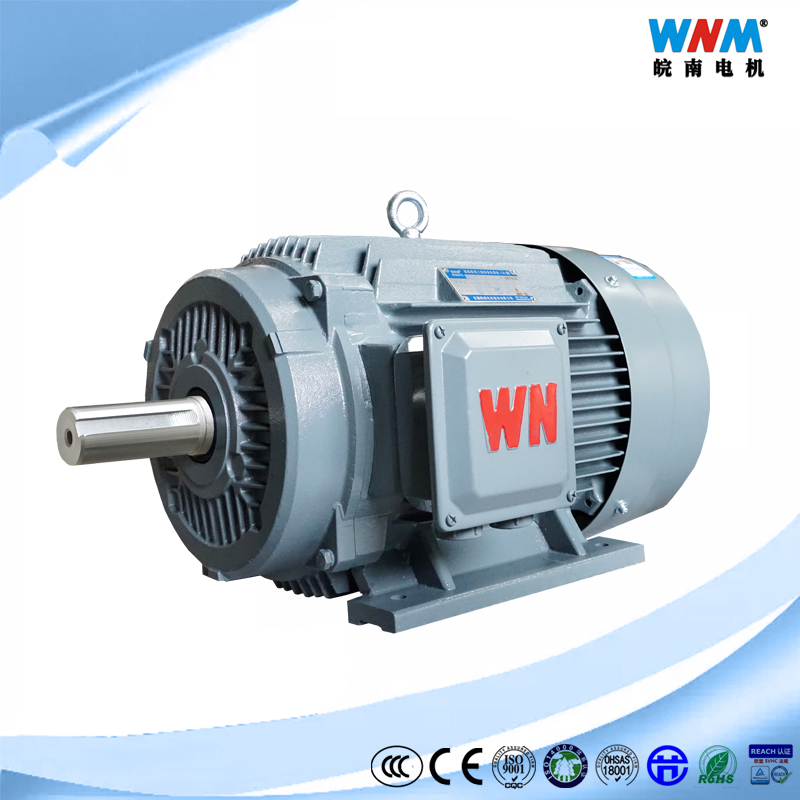

Ye3 Ce CCC Ie3 Tefc Three Phase AC Induction Electric Industrial Motor Manufacturers in China for Fan Pump Blower Crusher Conveyor Ye3-355m-4 250kw
YE3 CE CCC IE3 F IP55 TEFC Three Phase AC Induction Electric Industrial Motor Manufacturers in China for fan pump blower crusher conveyor---------------------------------------------------------------------------------------------Applications: Can be applied in the machines where continuous duty is ......
Send Inquiry
Product Description

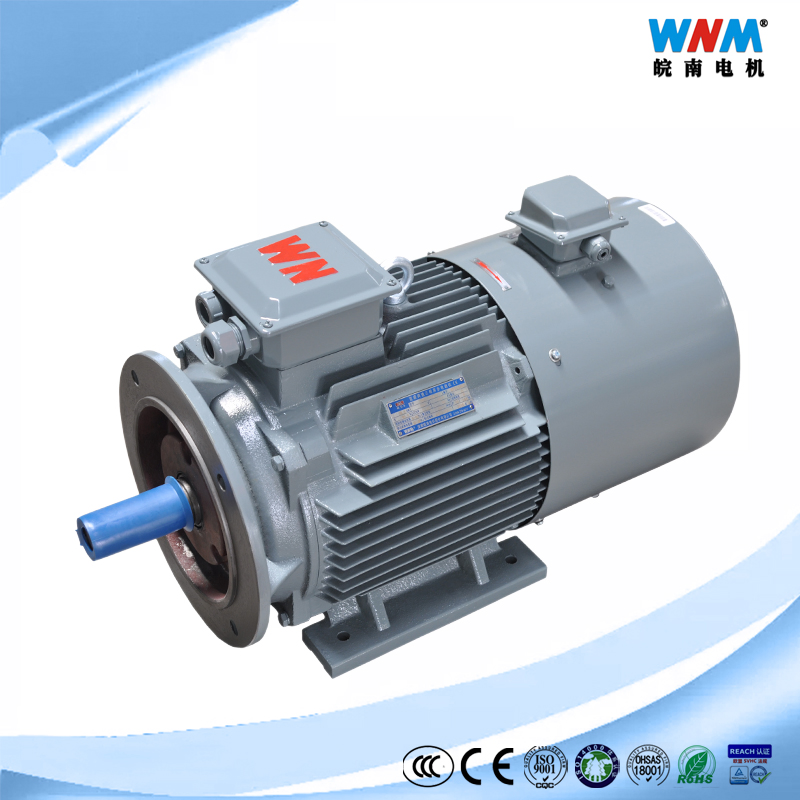

YE3 CE CCC IE3 F IP55 TEFC Three Phase AC Induction Electric Industrial Motor Manufacturers in China for fan pump blower crusher conveyor
---------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------

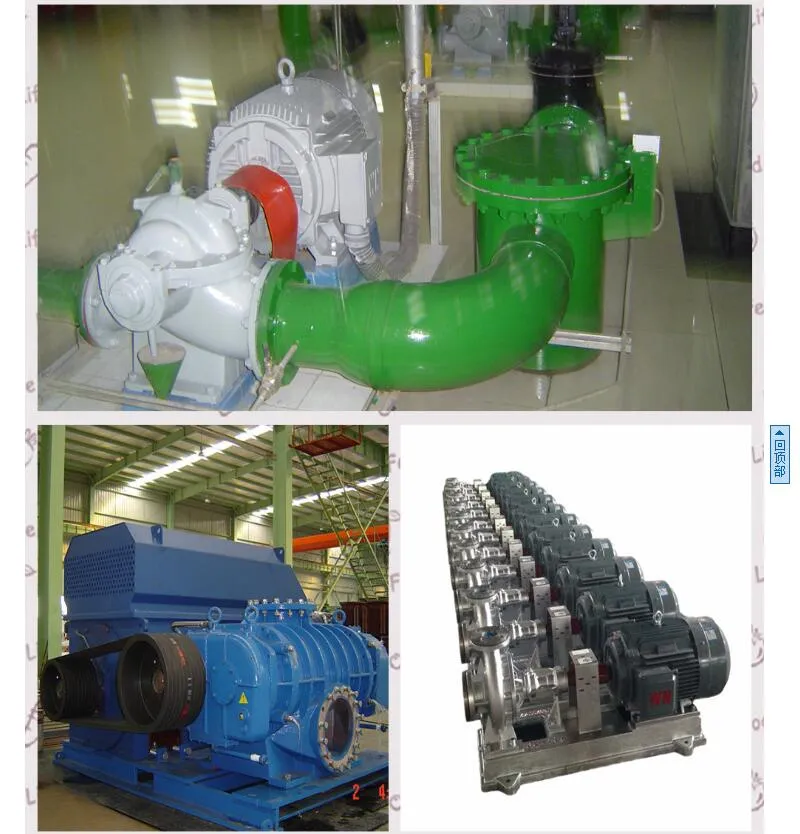

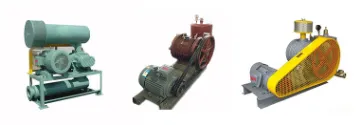

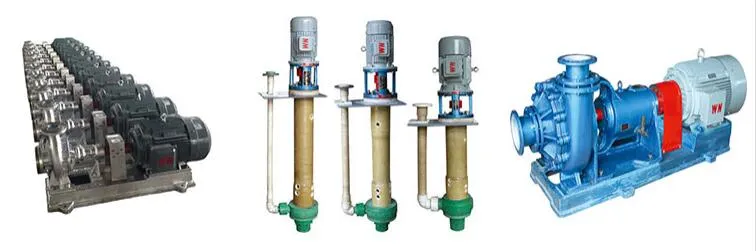

Applications: Can be applied in the machines where continuous duty is required, typical applications like
General Description
- Pumps
- Fans
- Compressors
- Lifting equipment
- Production industry
General Description
- Frame sizes: 63 to 355M/L
- Rated output: 0.12 to 400kW
- Voltage: 380V
- Frequency: 50Hz or 60Hz
- Poles: 2, 4, 6, 8,10
- Efficiency levels: IE3
- Duty Cycle: S1
- Enclosure: IC411 - TEFC
- Insulation class: F
- Degree of protection: IP55/56/65/66
- Service Factor: 1.0
- Regreasing system: Frame 250 and above
Features
Beautiful profile, high efficiency and energy saving (Level 2 of GB18613-2012), low noise, little vibration, reliable running.
Beautiful profile, high efficiency and energy saving (Level 2 of GB18613-2012), low noise, little vibration, reliable running.
Optional Features
Electrical:
Insulation Class:H
Thermal Protection: PTC Thermistor, Thermostat or PT100
Mechanical:
Others mountings
Protection Degree:IP56, IP65, IP66
Sealing:Lip seal, Oil seal
Space Heater, Double shaft ends
Drain Hole
Mounting
Conventional mounting type and suitable frame size are given in following table(with "√")
| Frame | basic type | derived type | |||||||||||||
| B3 | B5 | B35 | V1 | V3 | V5 | V6 | B6 | B7 | B8 | V15 | V36 | B14 | B34 | V18 | |
| 63~112 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| 132~160 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | - | - | - |
| 180~280 | √ | √ | √ | √ | - | - | - | - | - | - | - | - | - | - | - |
| 315~355 | √ | - | √ | √ | - | - | - | - | - | - | - | - | - | - | - |

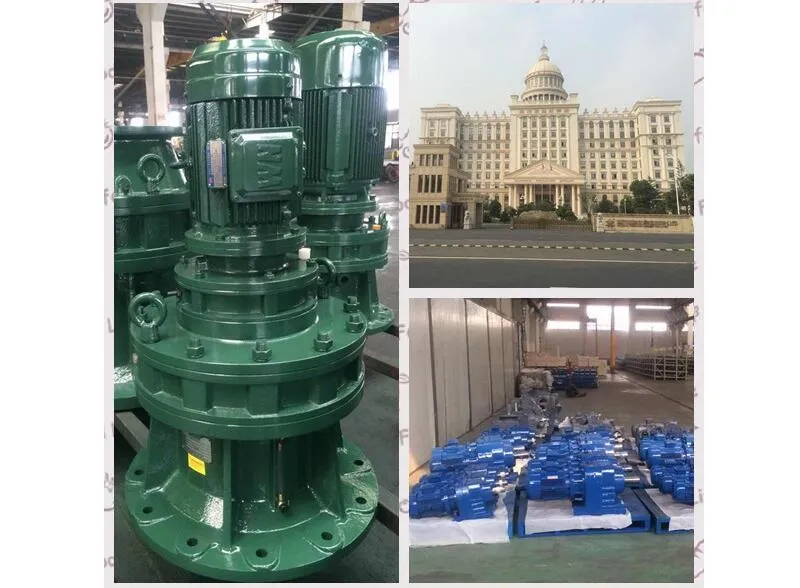

SITE

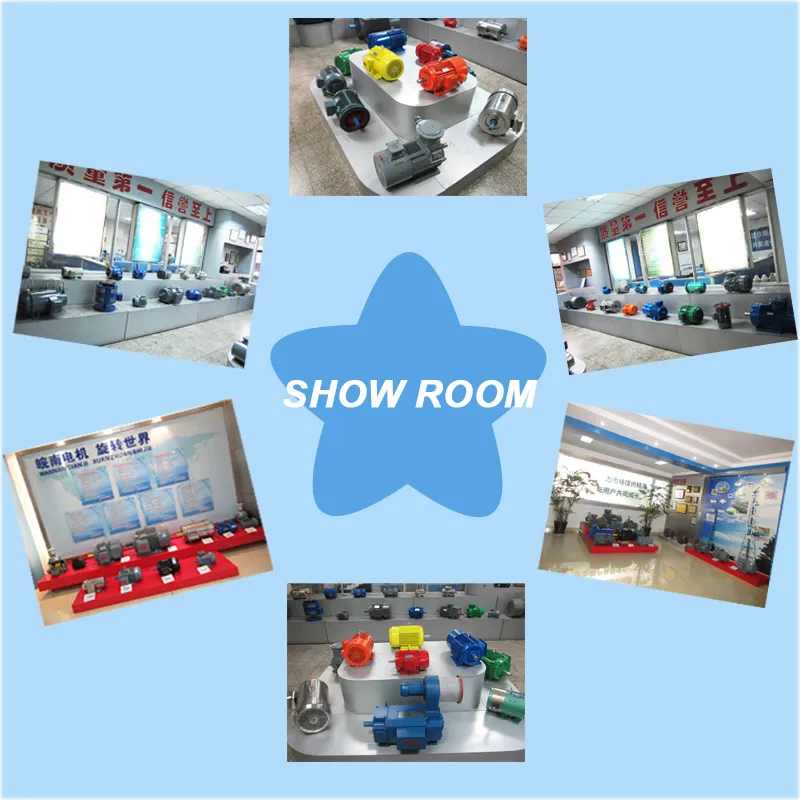

Show Room
Certificates
Premium Service

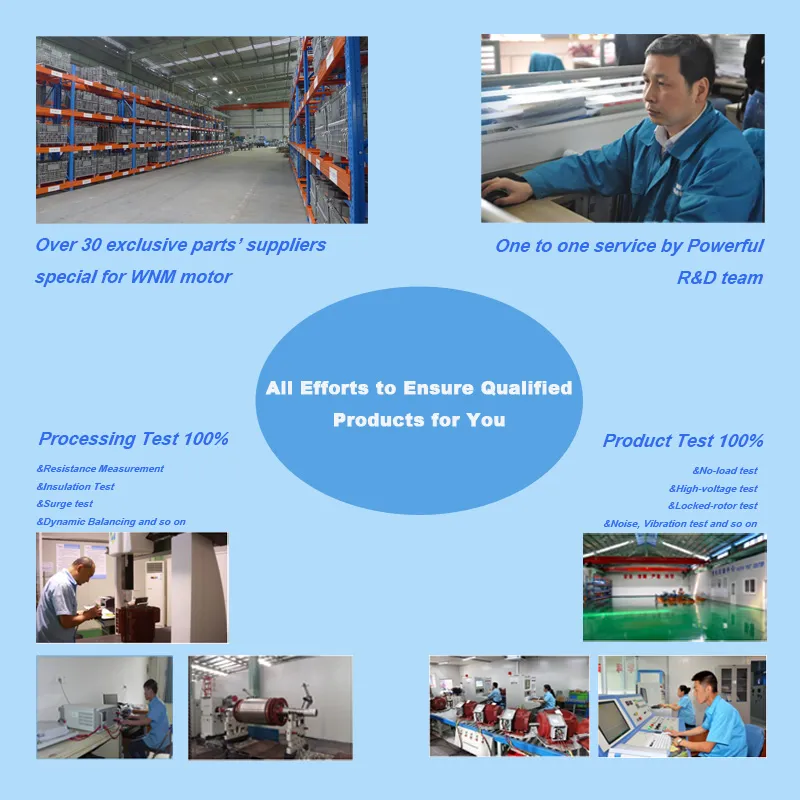

Quality Control

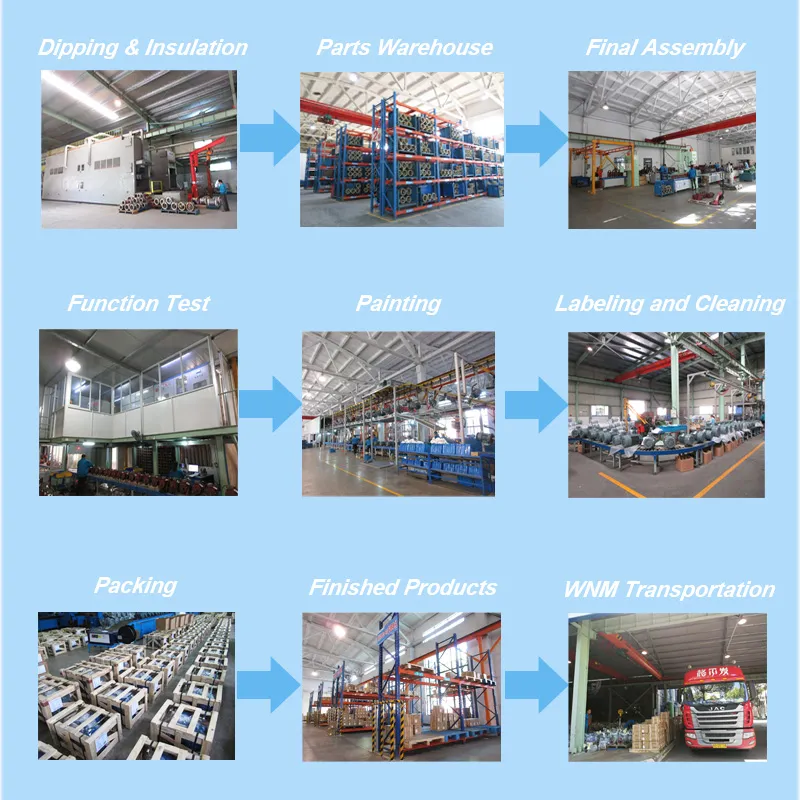

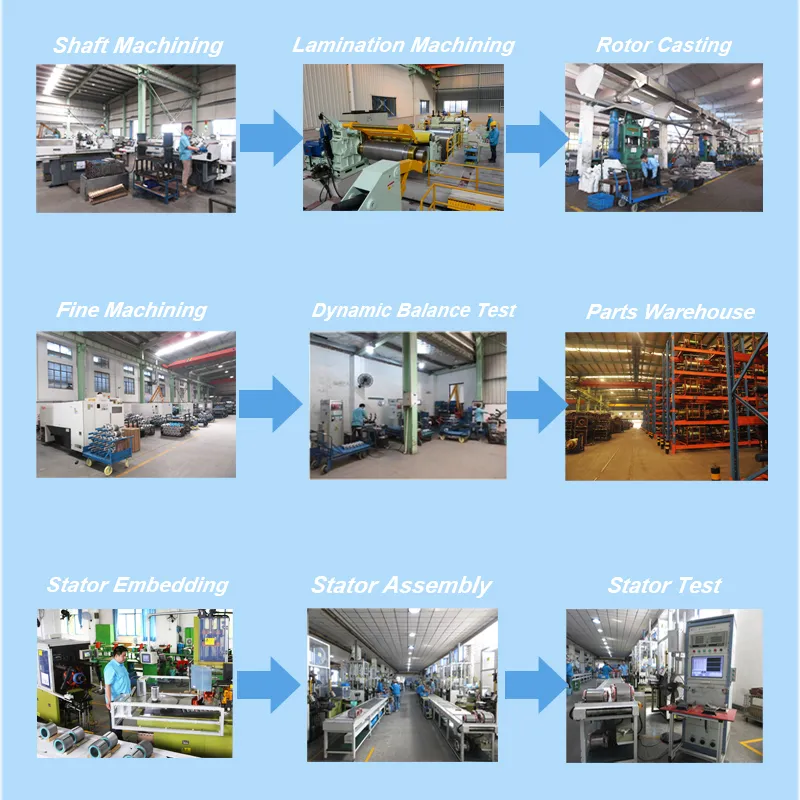

Wannan Motor Production Workshop and Flow Chart
