Yc/Ycl Series Single-Phase Capacitor Start Asynchronous Electric/Electrical AC Motor with High Starting Torque
YC90S-2 (0.75KW) CCC CE Capacitor-Start Single-Phase Induction Electric Motor 220V 2/4 Poles Aluminium Housing for Pump Centrifugal MachinesYC Motors are of IP44 totally enclosed fan-cooling type.Under reted voltage and 50Hz,the starting torque is three times more than the rated torque and 60Hz is ......
Send Inquiry
Product Description

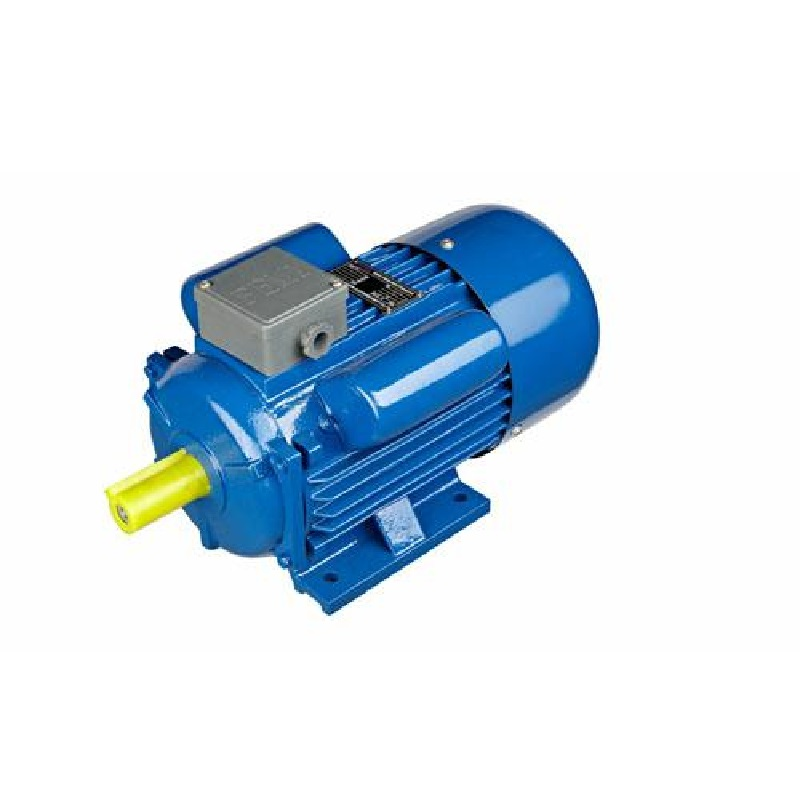

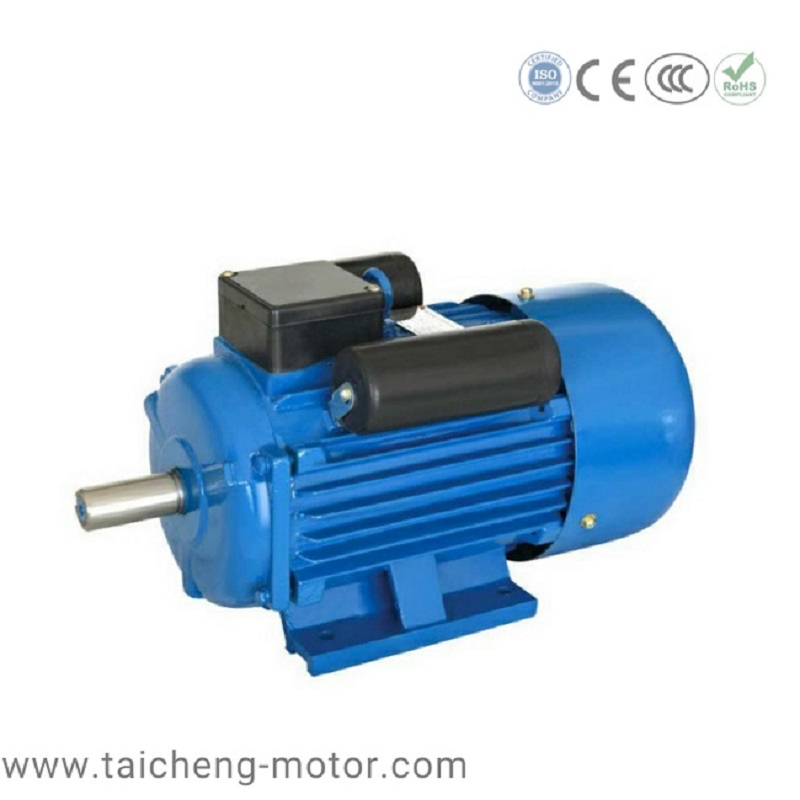

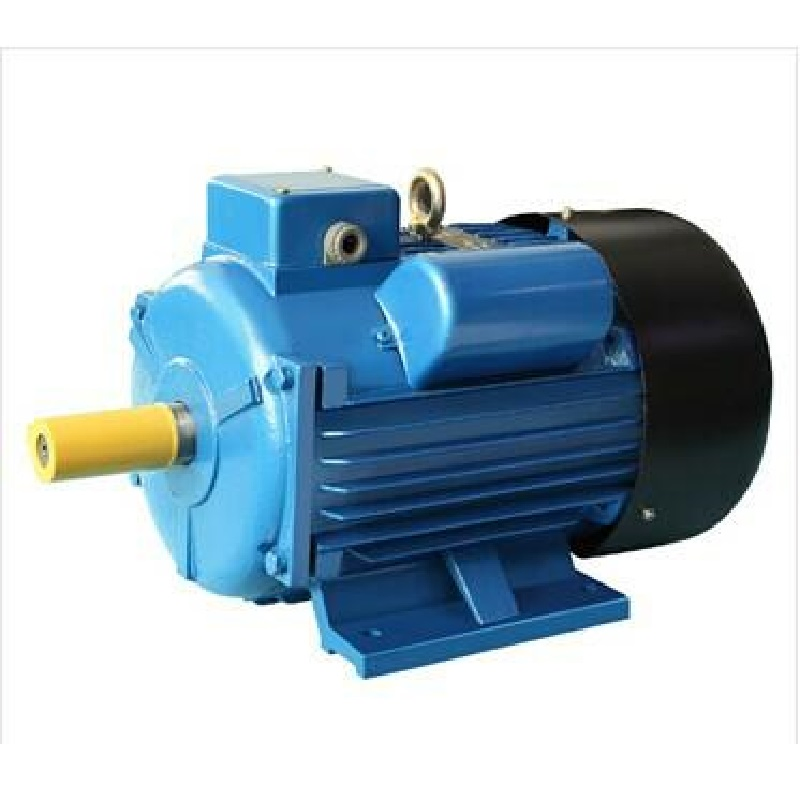

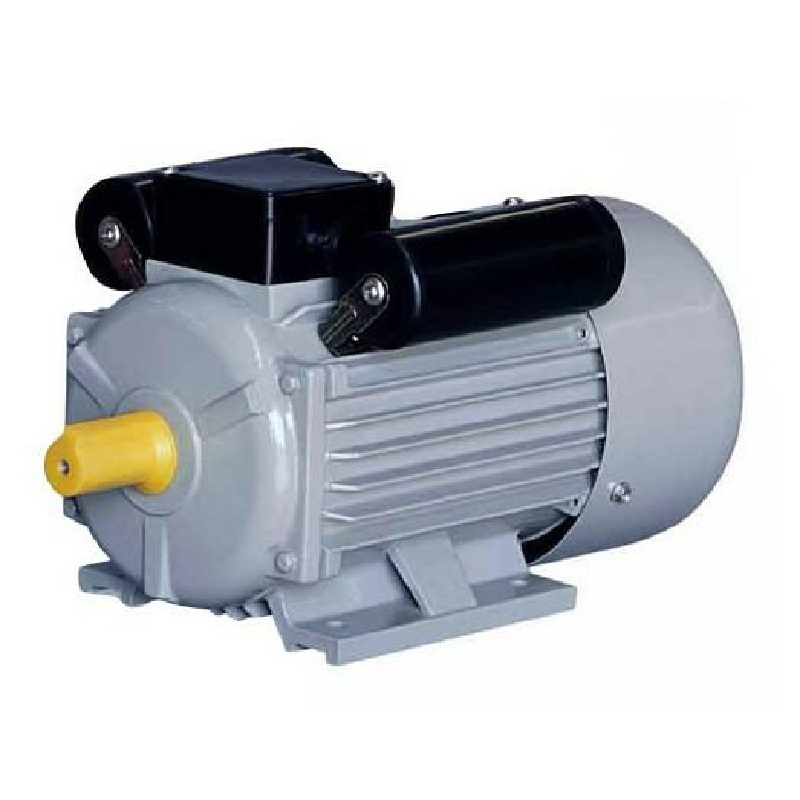

YC90S-2 (0.75KW) CCC CE Capacitor-Start Single-Phase Induction Electric Motor 220V 2/4 Poles Aluminium Housing for Pump Centrifugal Machines
YC Motors are of IP44 totally enclosed fan-cooling type.Under reted voltage and 50Hz,the starting torque is three times more than the rated torque and 60Hz is more than 2.75 times.Motors for 4 HP and over are of capacitor start and run type.They all have the advantage of high starting torque,smooth running,low temperature rise,low noise and greater overload performance.
1.Product Introduction
YC90S-2 (0.75KW) CCC CE Capacitor-Start Single-Phase Induction Electric Motor 220V 2/4 Poles Aluminium Housing for Pump Centrifugal Machines are of IP44 totally enclosed fan-cooling type.Under reted voltage and 50Hz,the starting torque is three times more than the rated torque and 60Hz is more than 2.75 times.Motors for 4 HP and over are of capacitor start and run type.They all have the advantage of high starting torque,smooth running,low temperature rise,low noise and greater overload performance.
The YC Single-phase Electric Motor are of IP44 totally enclosed fan-cooling type.Under reted voltage and 50Hz,the starting torque is three times more than the rated torque and 60Hz is more than 2.75 times.Motors for 4 HP and over are of capacitor start and run type.They all have the advantage of high starting torque,smooth running,low temperature rise,low noise and greater overload performance.
2.Products Parameter
3.Product Application
YC90S-2 (0.75KW) CCC CE Capacitor-Start Single-Phase Induction Electric Motor 220V 2/4 Poles Aluminium Housing for Pump Centrifugal Machines are suitable for small size machine tools and water pumps, especially for family workshops where only single-phase power supply is available

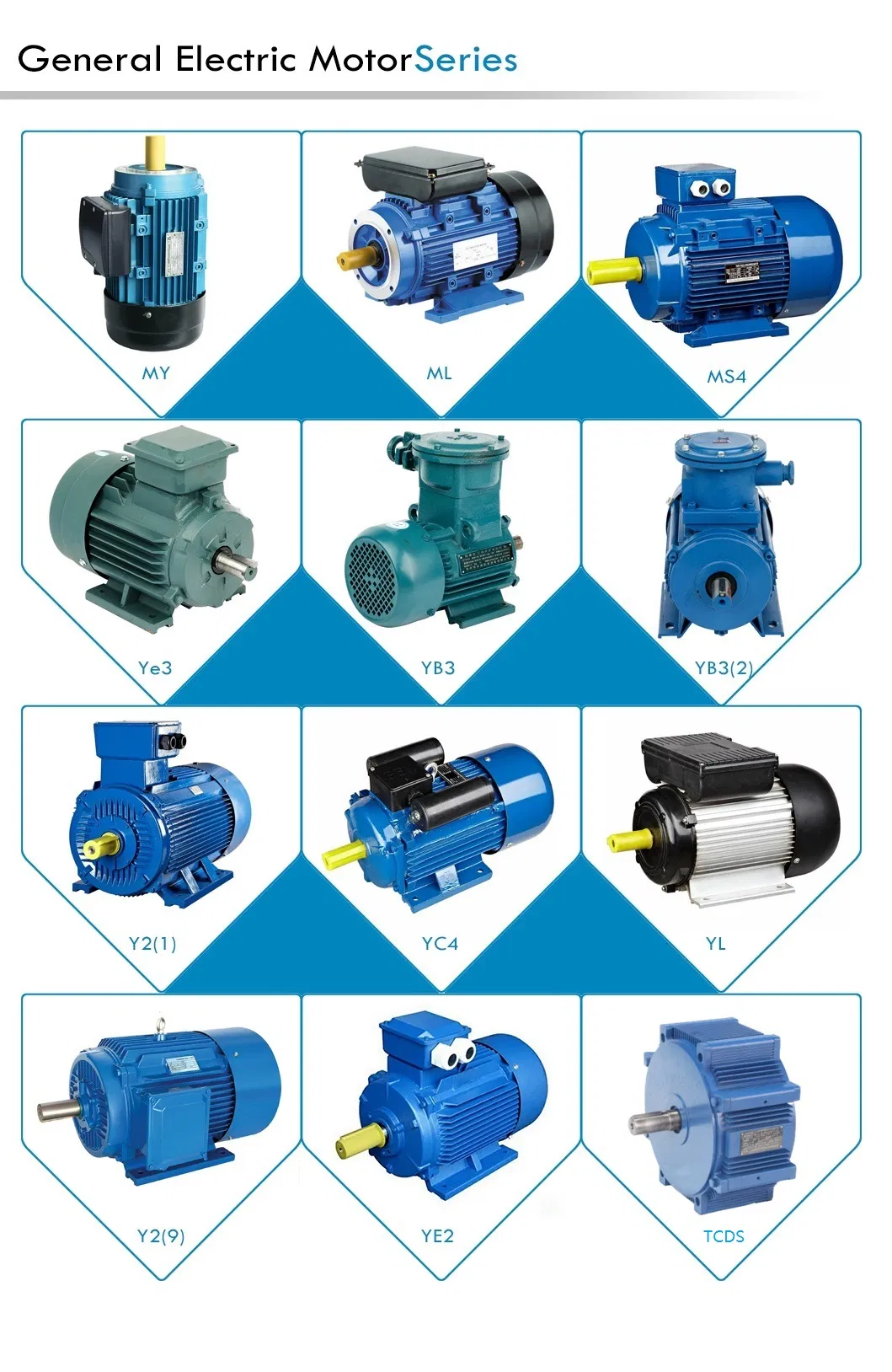

4.Related Products
5.TAIHCNENG MOTOR FACTORY AND WORKSHOP

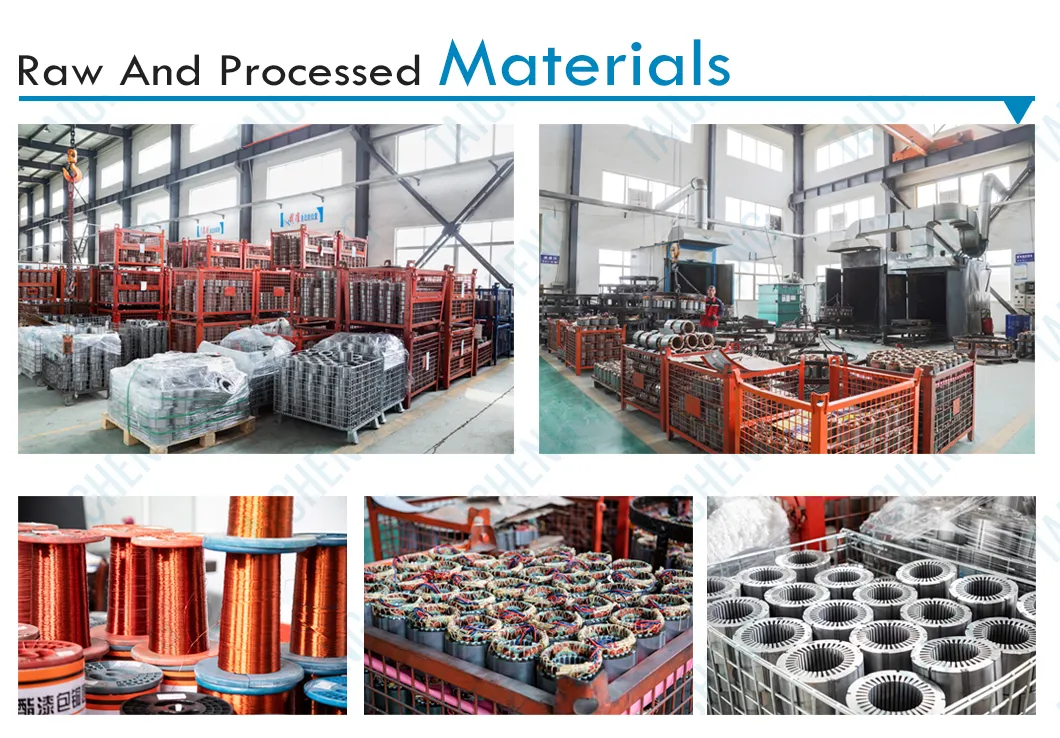

6.HIGH-QUALITY MATERIALS

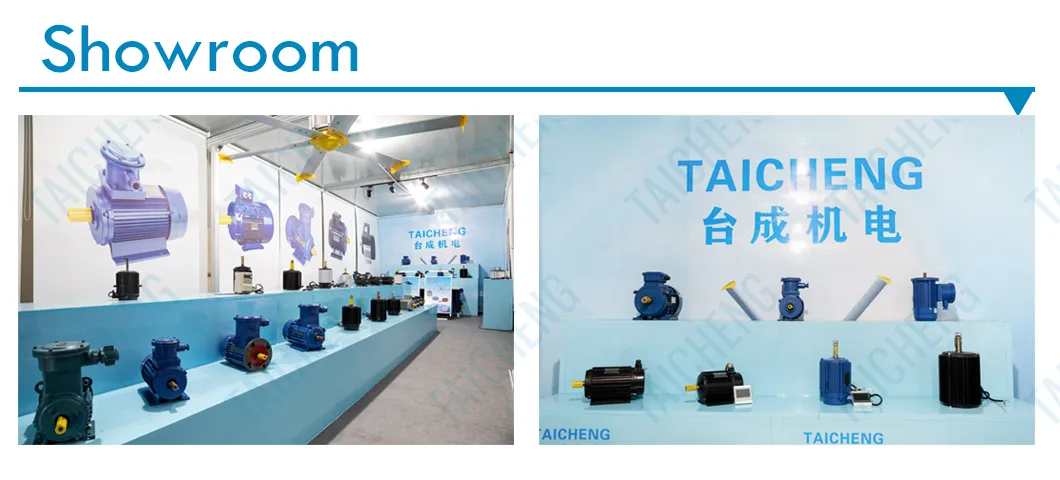

7.SHOWROOM

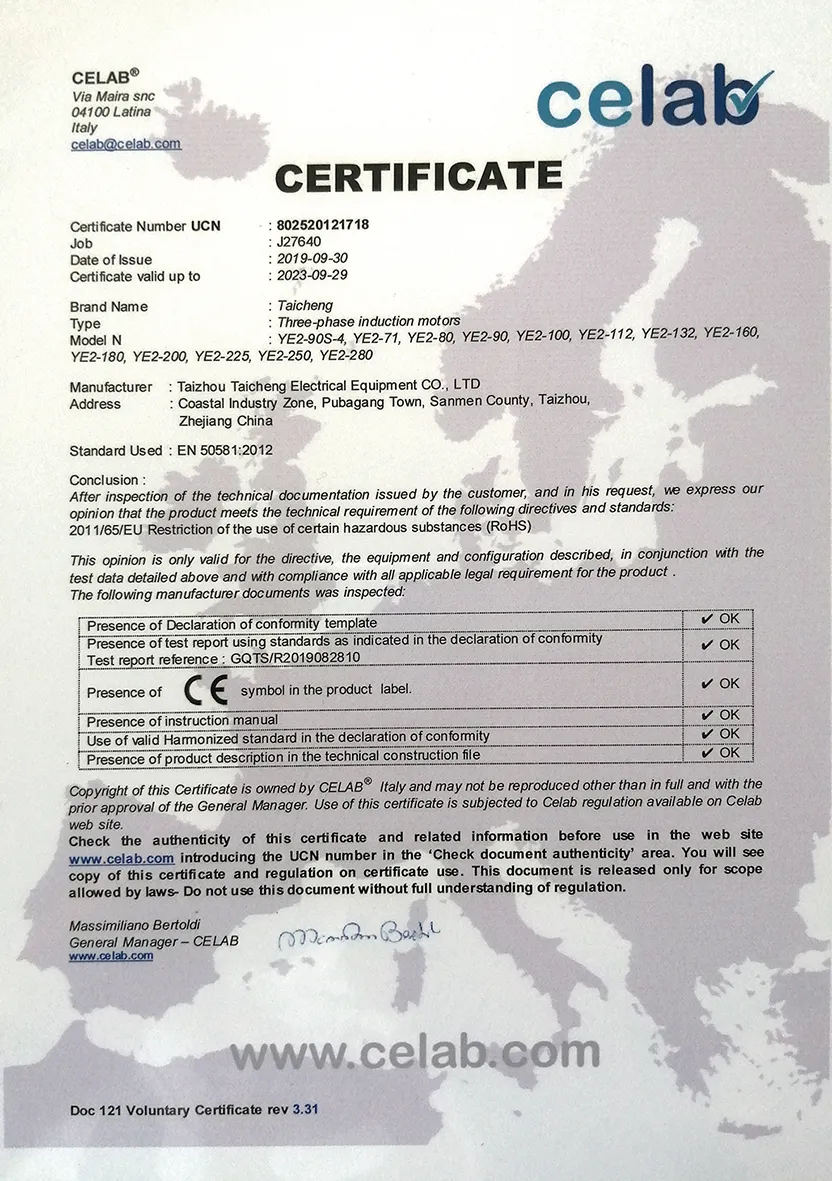

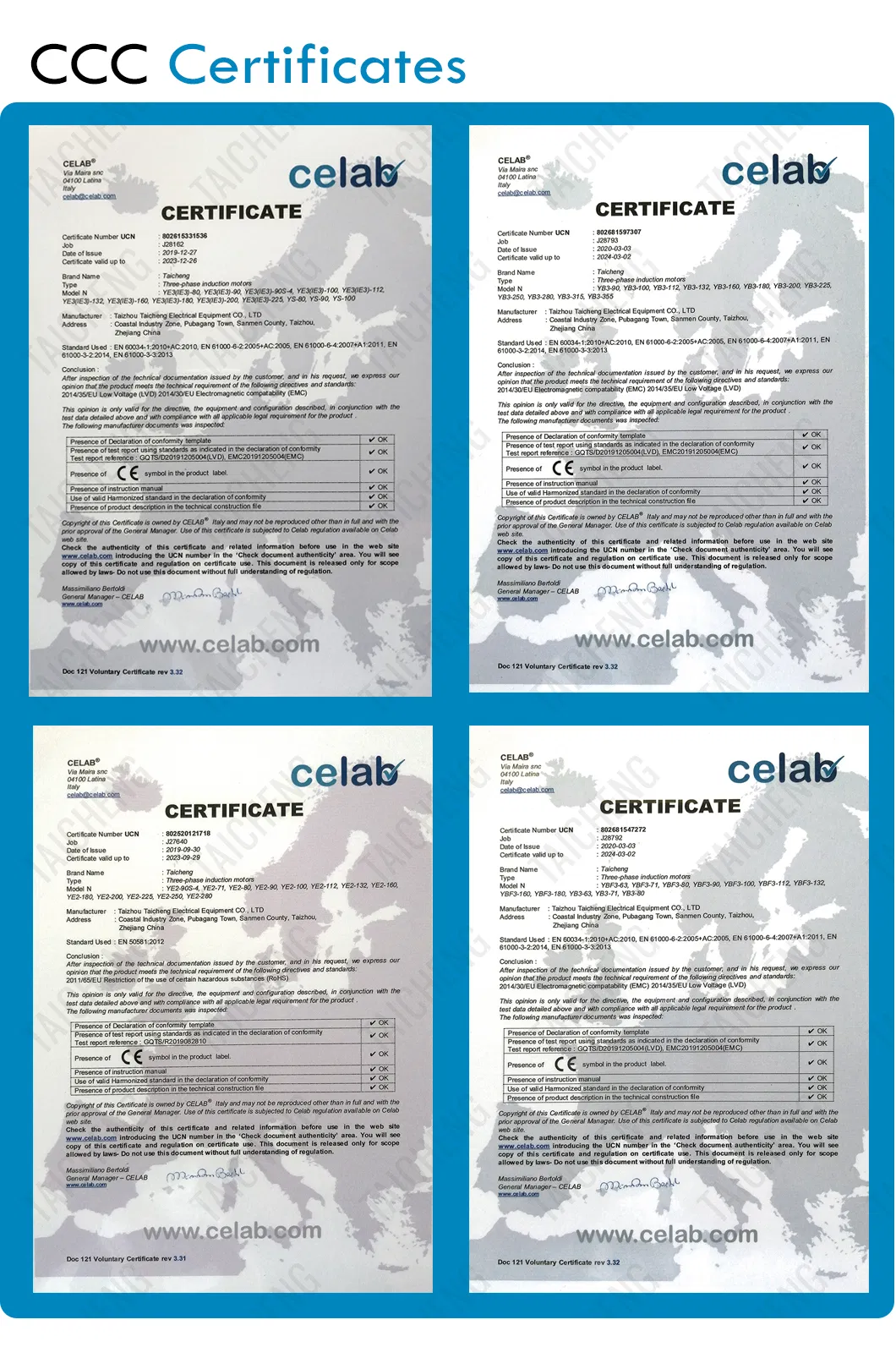

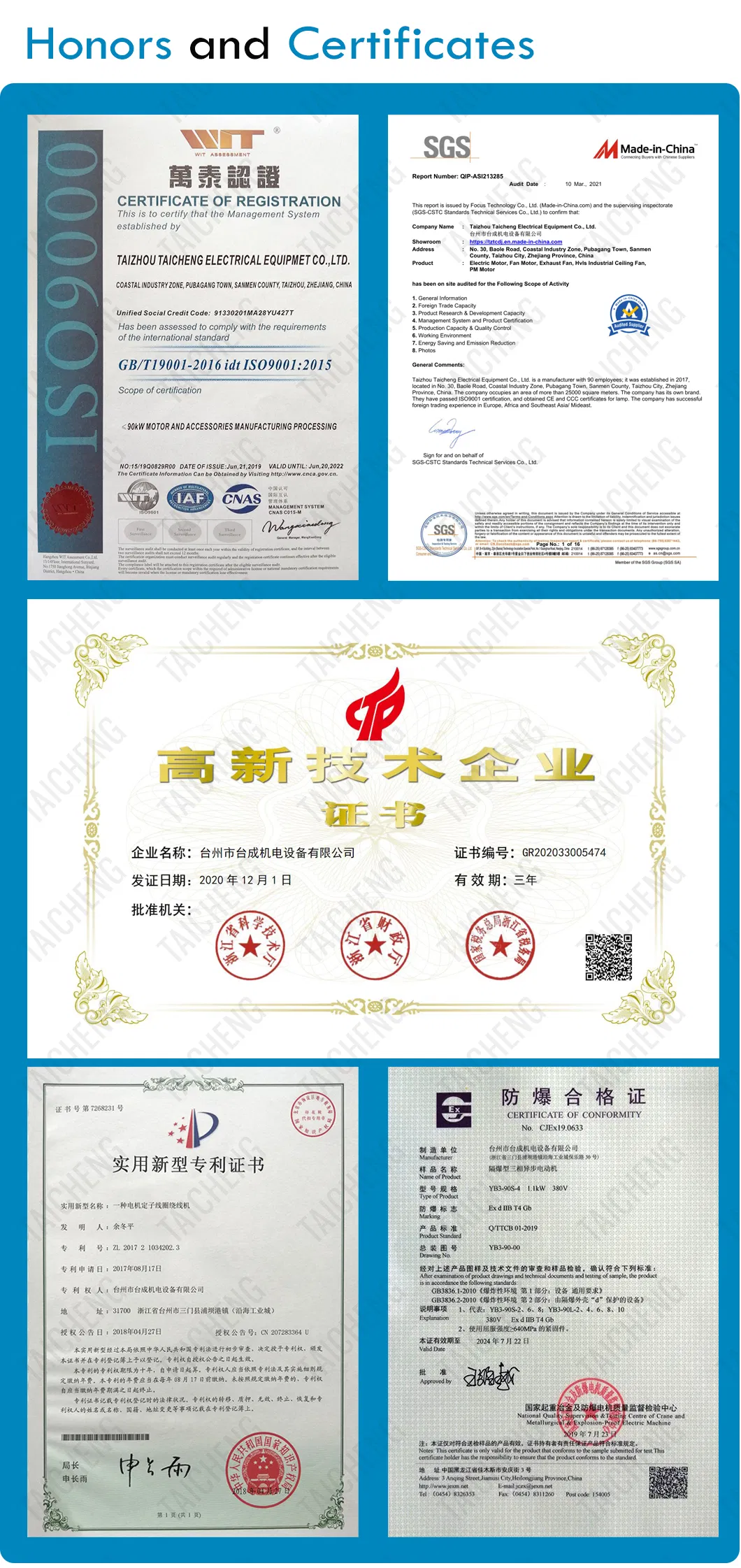

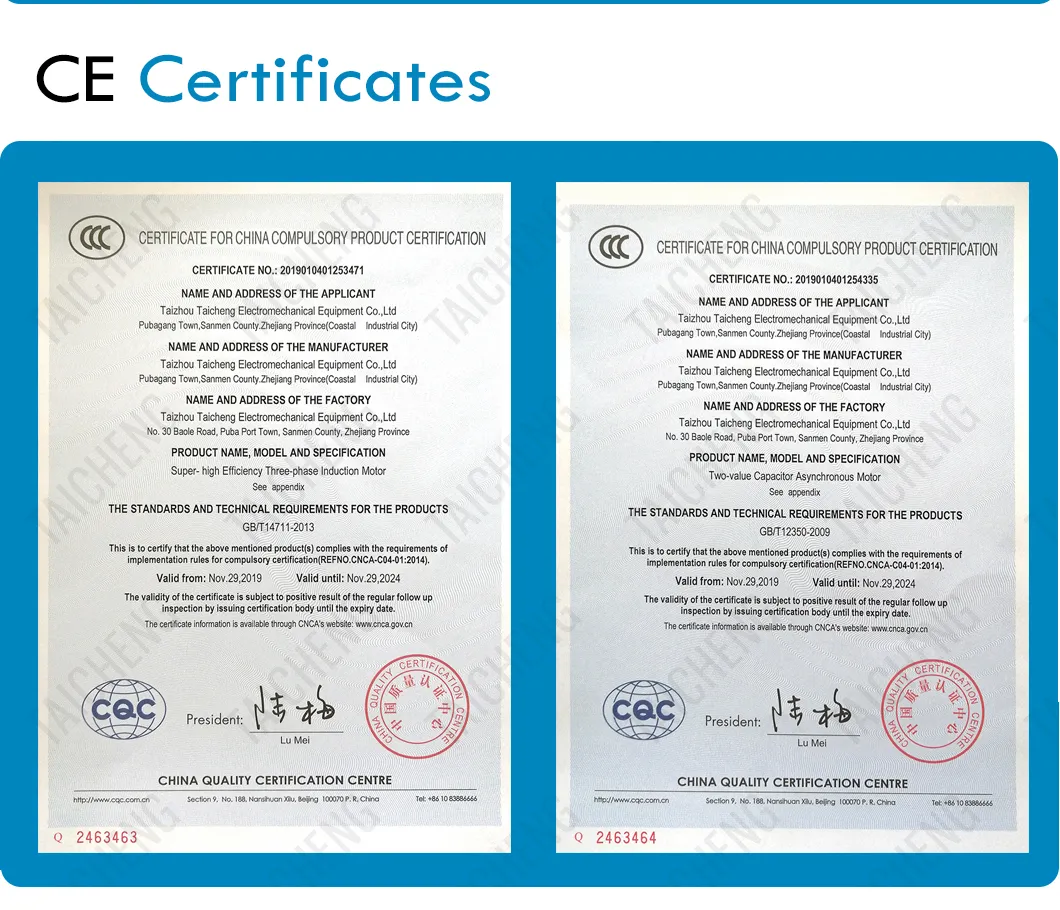

8.HONORS& CERTIFICATES
YC Motors are of IP44 totally enclosed fan-cooling type.Under reted voltage and 50Hz,the starting torque is three times more than the rated torque and 60Hz is more than 2.75 times.Motors for 4 HP and over are of capacitor start and run type.They all have the advantage of high starting torque,smooth running,low temperature rise,low noise and greater overload performance.
1.Product Introduction
YC90S-2 (0.75KW) CCC CE Capacitor-Start Single-Phase Induction Electric Motor 220V 2/4 Poles Aluminium Housing for Pump Centrifugal Machines are of IP44 totally enclosed fan-cooling type.Under reted voltage and 50Hz,the starting torque is three times more than the rated torque and 60Hz is more than 2.75 times.Motors for 4 HP and over are of capacitor start and run type.They all have the advantage of high starting torque,smooth running,low temperature rise,low noise and greater overload performance.
The YC Single-phase Electric Motor are of IP44 totally enclosed fan-cooling type.Under reted voltage and 50Hz,the starting torque is three times more than the rated torque and 60Hz is more than 2.75 times.Motors for 4 HP and over are of capacitor start and run type.They all have the advantage of high starting torque,smooth running,low temperature rise,low noise and greater overload performance.
2.Products Parameter
| Type | Out put | Voltage (V) | Current (A) | Freq. (Hz) | Power factor | Eff(%) | Speed (r/min) | Tstart/Tn | Ist/In | Tmax/Tn | |
| kW | HP | ||||||||||
| YC80A2 | 0.37 | 0.5 | 220 | 3.3 | 50 | 0.74 | 66 | 2840 | 3.0 | 6.5 | 1.8 |
| YC80B-2 | 0.55 | 0.75 | 220 | 4.7 | 50 | 0.74 | 67 | 2850 | 3.0 | 6.5 | 1.8 |
| YC80C-2 | 0.75 | 1 | 220 | 6.1 | 50 | 0.75 | 68 | 2850 | 2.8 | 7 | 1.8 |
| YC90S-2 | 1.1 | 1.5 | 220 | 10.5 | 50 | 0.8 | 70 | 2880 | 2.8 | 7 | 1.8 |
| YC90L-2 | 1.5 | 2 | 220 | 12.4 | 50 | 0.82 | 73 | 2900 | 2.8 | 7 | 1.8 |
| YC100L-2 | 2.2 | 3 | 220 | 18.8 | 50 | 0.82 | 74 | 2900 | 2.6 | 7 | 1.8 |
| YC112M1-2 | 3 | 4 | 220 | 21.4 | 50 | 0.84 | 76 | 2900 | 2.2 | 7 | 1.8 |
| YC112M2-2 | 3.7 | 5 | 220 | 24.8 | 50 | 0.86 | 79 | 2900 | 2.2 | 7 | 1.8 |
| YC802-4 | 0.37 | 0.5 | 220 | 4.1 | 50 | 0.64 | 56 | 1420 | 3.0 | 6 | 1.8 |
| YC80C-4 | 0.55 | 0.75 | 220 | 5.6 | 50 | 0.65 | 60 | 1430 | 3.0 | 6 | 1.8 |
| YC90S-4 | 0.75 | 1 | 220 | 8.3 | 50 | 0.72 | 63 | 1440 | 2.8 | 6.5 | 1.8 |
| YC90L-4 | 1.1 | 1.5 | 220 | 11.2 | 50 | 0.72 | 67 | 1450 | 2.8 | 6.5 | 1.8 |
| YC100L-4 | 1.5 | 2 | 220 | 12.5 | 50 | 0.73 | 72 | 1460 | 2.8 | 6.5 | 1.8 |
| YC112M-4 | 2.2 | 3 | 220 | 18.3 | 50 | 0.74 | 73 | 1470 | 2.6 | 6.5 | 1.8 |
| YC132SA-4 | 3 | 4 | 220 | 19 | 50 | 0.8 | 76 | 1460 | 2.2 | 6.5 | 1.8 |
| YC132SB-4 | 3.7 | 5 | 220 | 22 | 50 | 0.82 | 79 | 1460 | 2.2 | 6.5 | 1.8 |
| YC132M1-4 | 5.5 | 7.5 | 220 | 32.5 | 50 | 0.95 | 81 | 1460 | 2.0 | 6.5 | 1.8 |
| YC132M2-4 | 7.5 | 10 | 220 | 40 | 50 | 0.95 | 83 | 1460 | 2.0 | 6.5 | 1.8 |
3.Product Application
YC90S-2 (0.75KW) CCC CE Capacitor-Start Single-Phase Induction Electric Motor 220V 2/4 Poles Aluminium Housing for Pump Centrifugal Machines are suitable for small size machine tools and water pumps, especially for family workshops where only single-phase power supply is available
4.Related Products

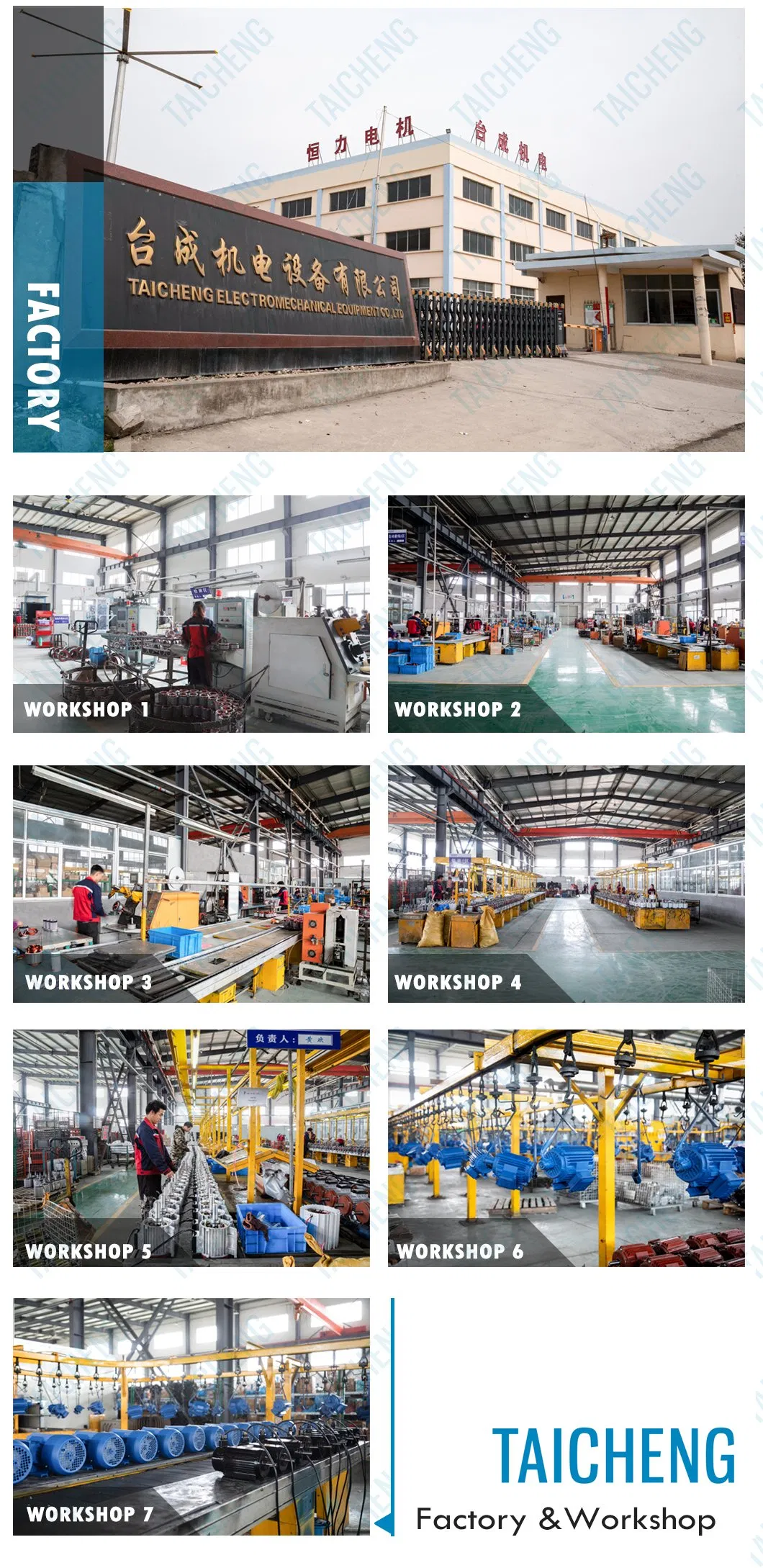

5.TAIHCNENG MOTOR FACTORY AND WORKSHOP
6.HIGH-QUALITY MATERIALS
7.SHOWROOM

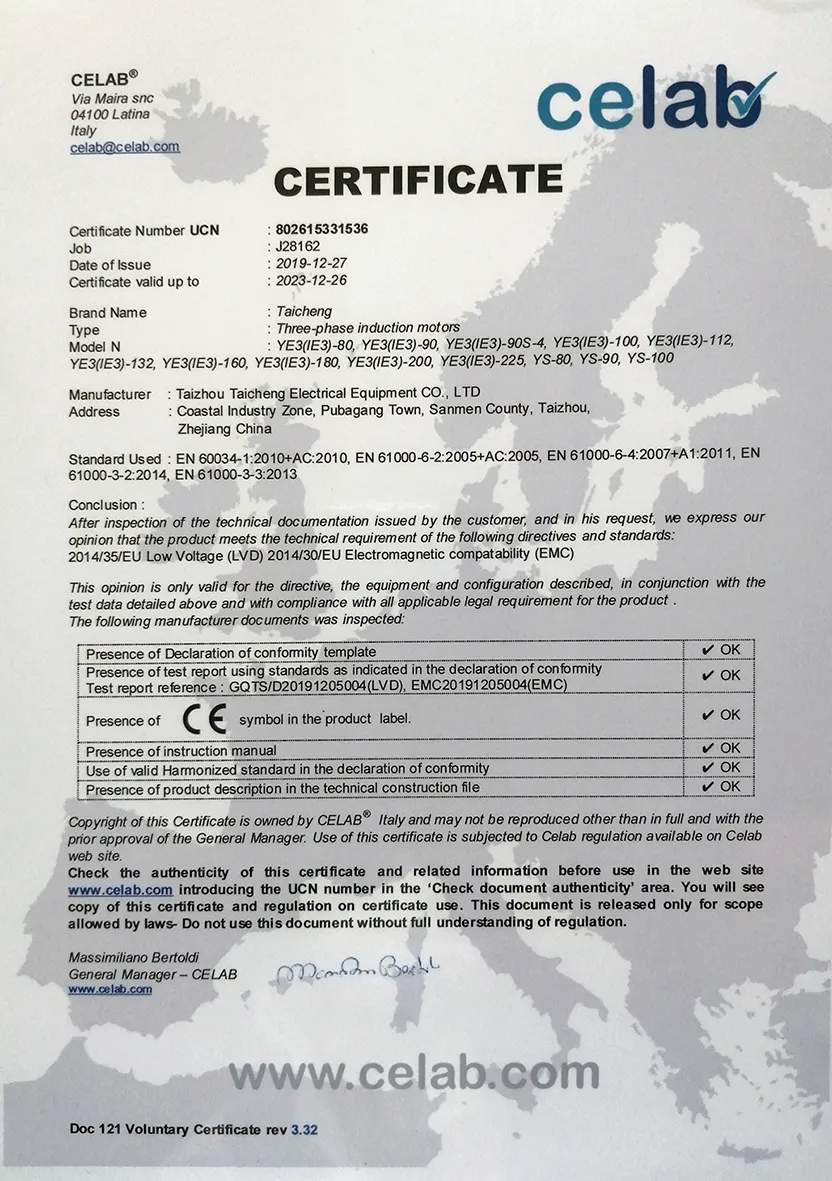

8.HONORS& CERTIFICATESRelated Category
