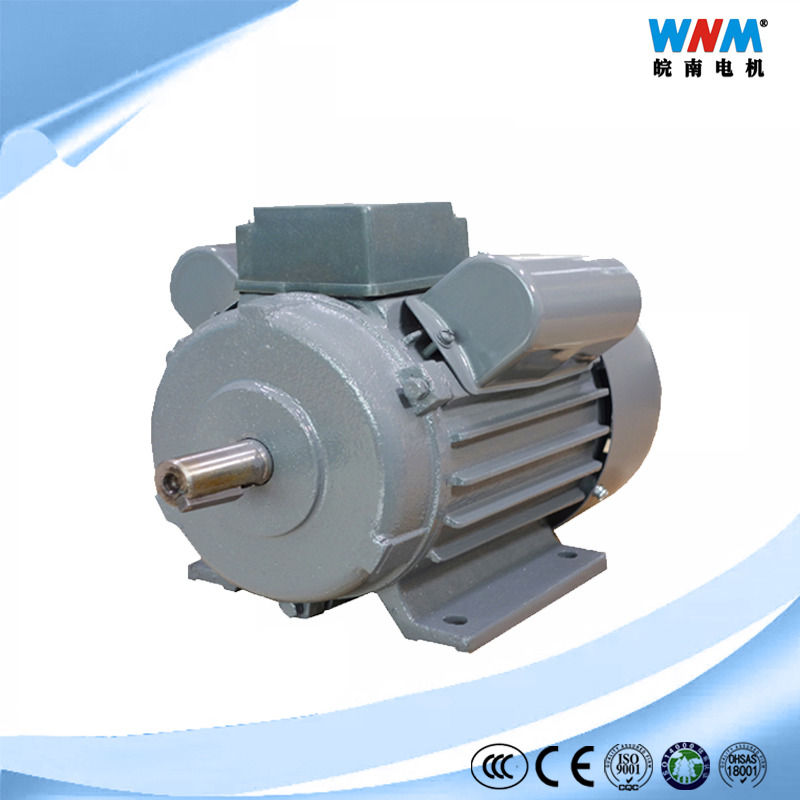

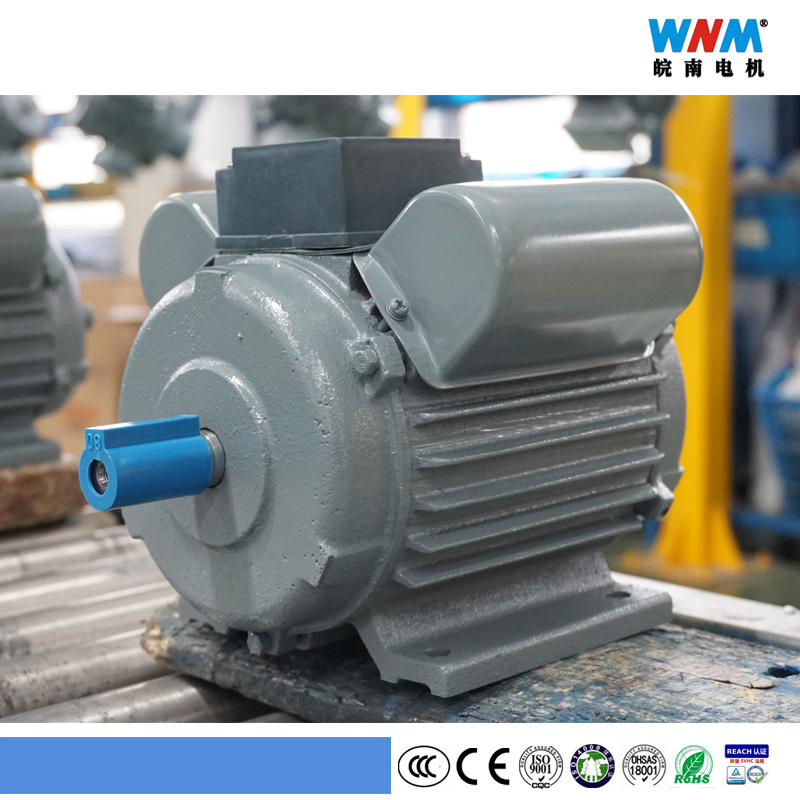

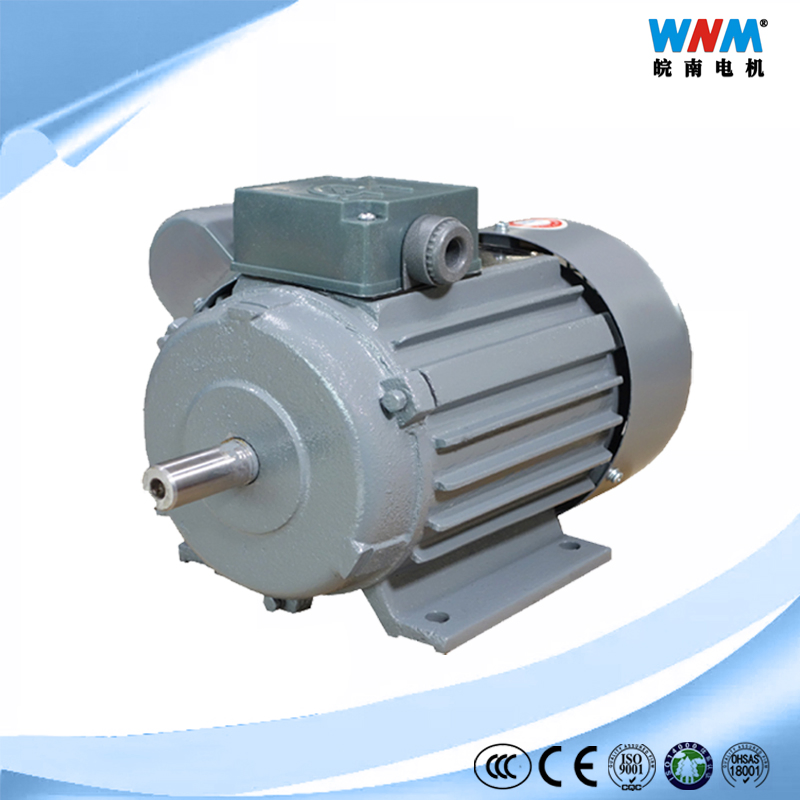

Yc S1 B Insulation Frame 71~132mm 0.12~3.7kw Electric Motor Capacitor Start 110/220/240V 50/60Hz for Compressor Refrigerator Apparatus Machine Yc71 1-2 0.18kw
YC S1 B Insulation Frame 71~132mm 0.12~3.7kw Electric Motor Capacitor Start 110/220/240V 50/60hz for compressor refrigerator apparatus machine---------------------------------------------------------------------------------------------ApplicationsCompressors, refrigerator, remedy apparatus and machi......
Send Inquiry
Product Description

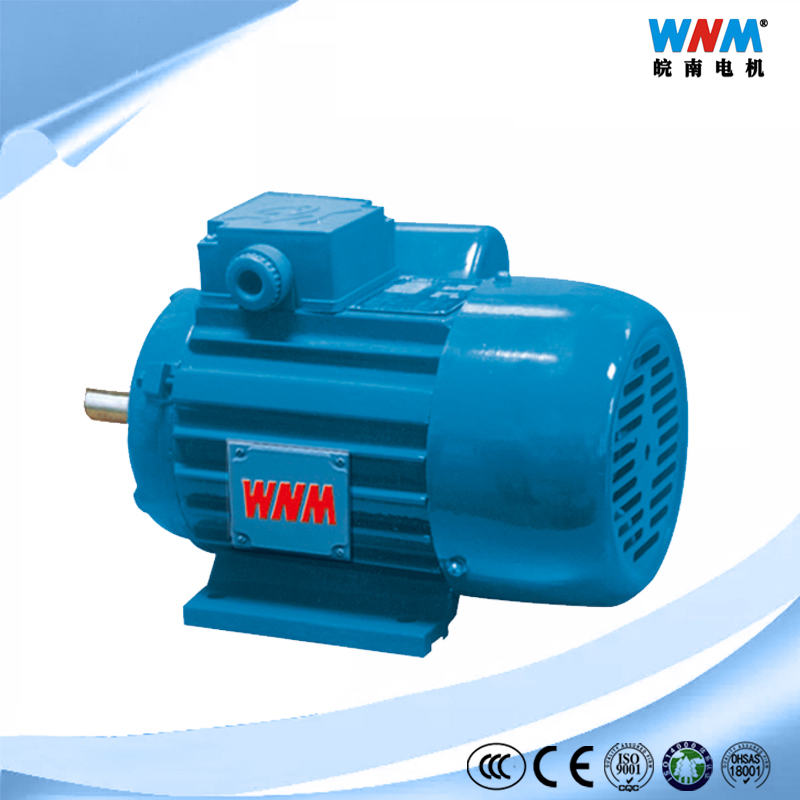

YC S1 B Insulation Frame 71~132mm 0.12~3.7kw Electric Motor Capacitor Start 110/220/240V 50/60hz for compressor refrigerator apparatus machine
---------------------------------------------------------------------------------------------
Applications---------------------------------------------------------------------------------------------
Compressors, refrigerator, remedy apparatus and machine tools, etc.
Features: High starting torque, low energy consumption. Cast iron or cast aluminum frames. The basic type is rated at 220V/50Hz. It also can be customized with 110V/220V, 110V, 240V, and 60Hz
General Description
- Frame sizes: 71 to 132
- Rated output: 0.12 to 3.7kW
- Voltage: 220V,110V/220V, 110V, 240V
- Frequency: 50Hz or 60Hz
- Duty cycle: S1
- Insulation class: B / F
- Number of poles: 2,4,6
Mounting
| Frame | IMB3 | IMB14 IMB34 | IMB5 IMB35 | IMB3 | ||||||||||||||||||||||||
| A | A/2 | B | C | D | E | F | G | H | K | M | N | P | R | S | T | M | N | P | R | S | T | AB | AC | AD | AE | HD | L | |
| YC71 | 112 | 56 | 90 | 45 | 14 | 30 | 5 | 11 | 71 | 7 | 85 | 70 | 105 | 0 | M6 | 2.5 | 130 | 110 | 160 | 0 | 10 | 3.5 | 136 | 140 | 109 | 95 | 180 | 250 |
| YC80 | 125 | 62.5 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 100 | 80 | 120 | 0 | M6 | 3.0 | 165 | 130 | 200 | 0 | 12 | 3.5 | 160 | 165 | 108 | 110 | 188 | 290 |
| YC90S | 140 | 70 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 140 | 0 | M8 | 3.0 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 180 | 120 | 120 | 210 | 315 |
| YC90L | 140 | 70 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 140 | 0 | M8 | 3.0 | 165 | 130 | 200 | 0 | 12 | 3.5 | 180 | 180 | 120 | 120 | 210 | 330 |
| YC100L | 160 | 80 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | - | - | - | - | - | - | 215 | 180 | 250 | 0 | 15 | 4 | 205 | 200 | 180 | 130 | 260 | 430 |
| YC112M | 190 | 95 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | - | - | - | - | - | - | 215 | 180 | 250 | 0 | 15 | 4 | 245 | 250 | 190 | 140 | 300 | 455 |
| YC132S | 216 | 108 | 140 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | - | - | - | - | - | - | 265 | 230 | 300 | 0 | 15 | 4 | 280 | 290 | 210 | 155 | 350 | 525 |
| YC132M | 216 | 108 | 178 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | - | - | - | - | - | - | 265 | 230 | 300 | 0 | 15 | 4 | 280 | 290 | 210 | 155 | 350 | 565 |
| YC711JS | 112 | 56 | 90 | 45 | 16 | 40 | 5 | 13 | 71 | 7 | 85 | 70 | 105 | 0 | M6 | 3.5 | 130 | 110 | 160 | 0 | 10 | 3.5 | 139 | 142 | 109 | 100 | 180 | 265 |
| YC713J | 112 | 56 | 90 | 45 | 16 | 40 | 5 | 13 | 71 | 7 | 85 | 70 | 105 | 0 | M6 | 3.5 | 130 | 110 | 160 | 0 | 10 | 3.5 | 139 | 142 | 109 | 100 | 180 | 281 |

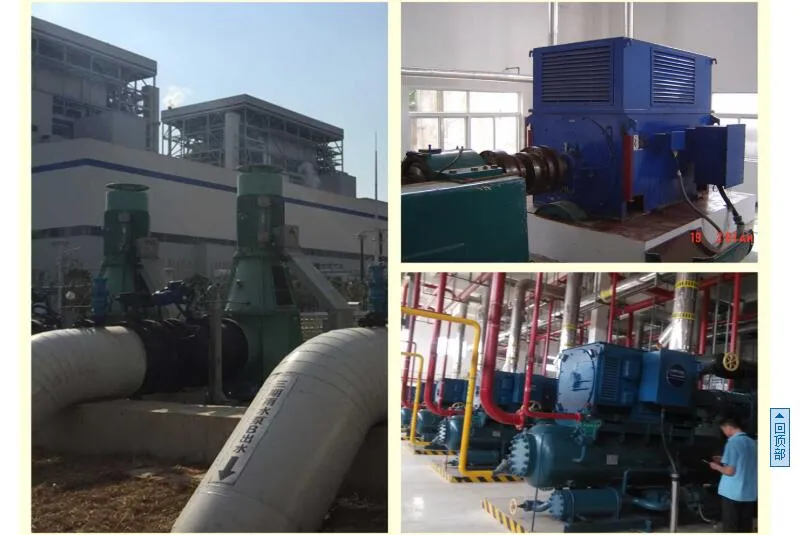

Site

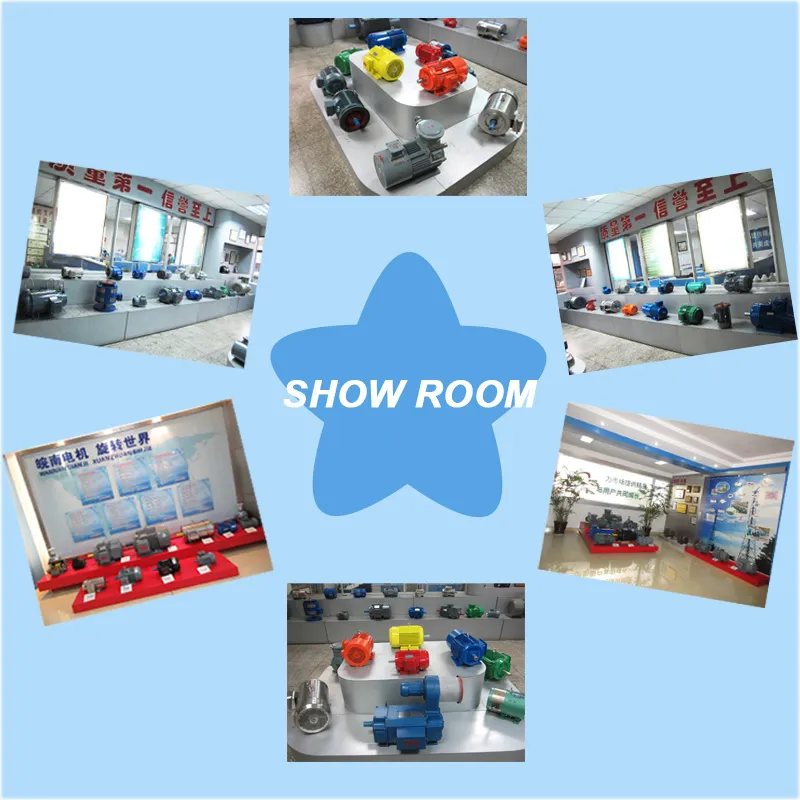

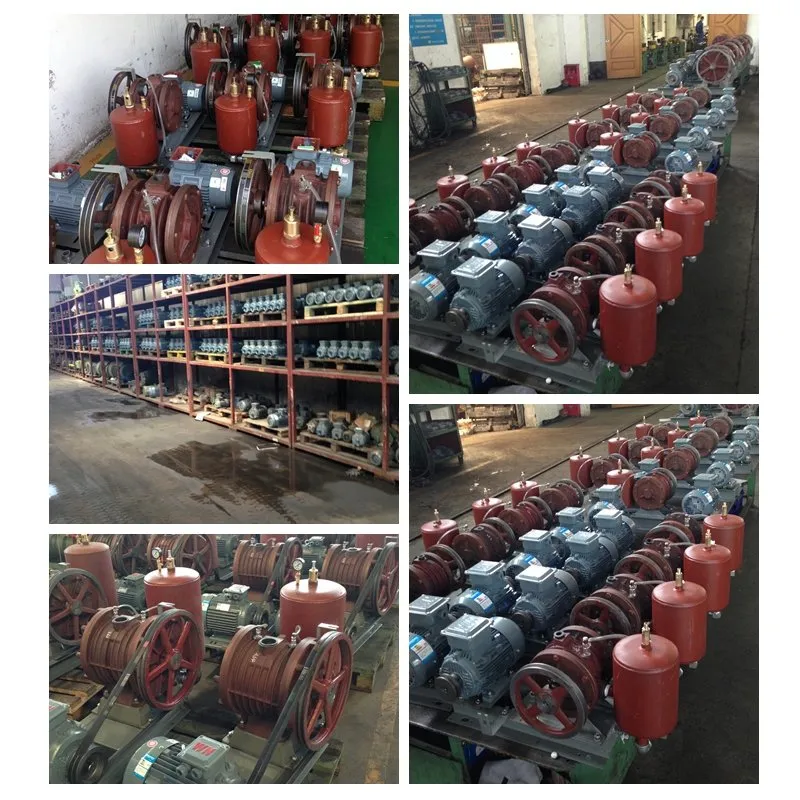

Show Room
Certificates
Premium Service
Quality Control

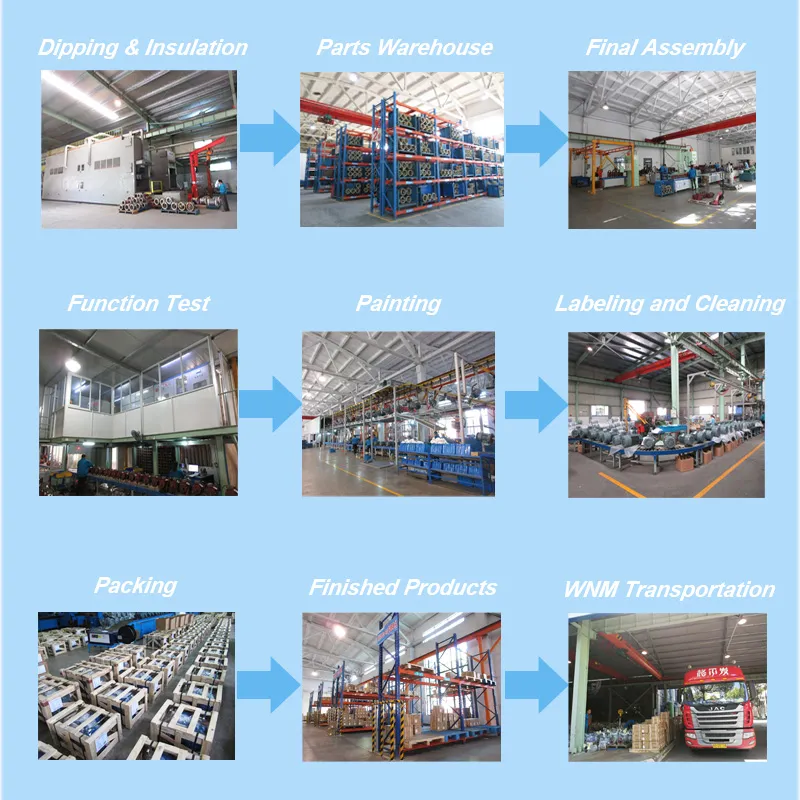

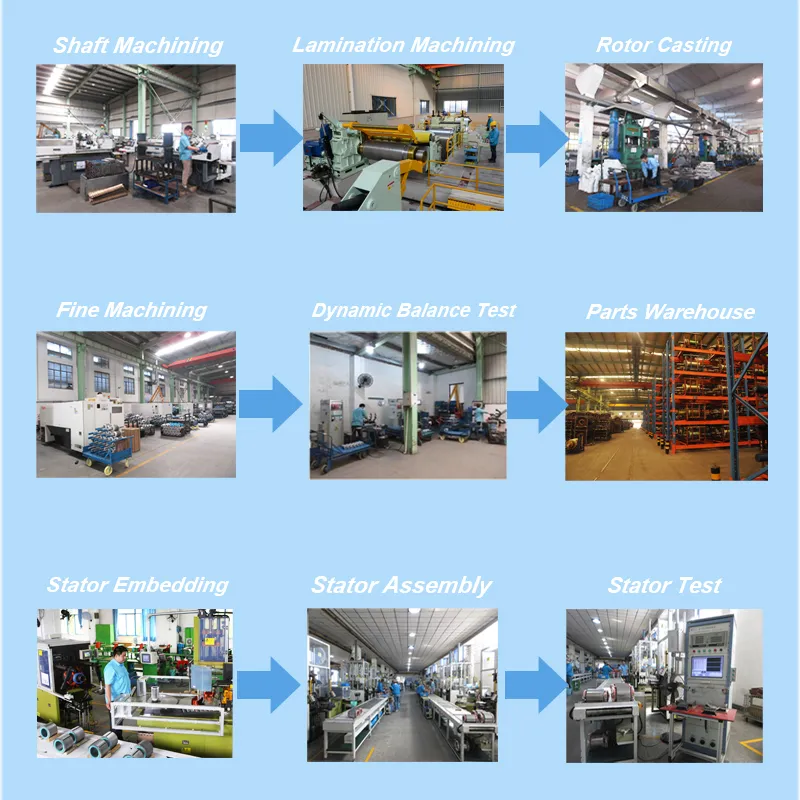

Wannan Motor Production Workshop and Flow Charts
