Y2- 160L -2 11kw/15HP 2 Pole Three Phase AC Electric Full Power Electric Motor
CE approved Y2 Series 3 Phase Ac Electrical MotorY2 series motor is the improvement products from Y series motor. Its performance have reach to international IEC standards.It has novel structure,beautitul modeling fang,small vibration and low noise feature. Rated Parameters:Base Center Height:63-315......
Send Inquiry
Product Description

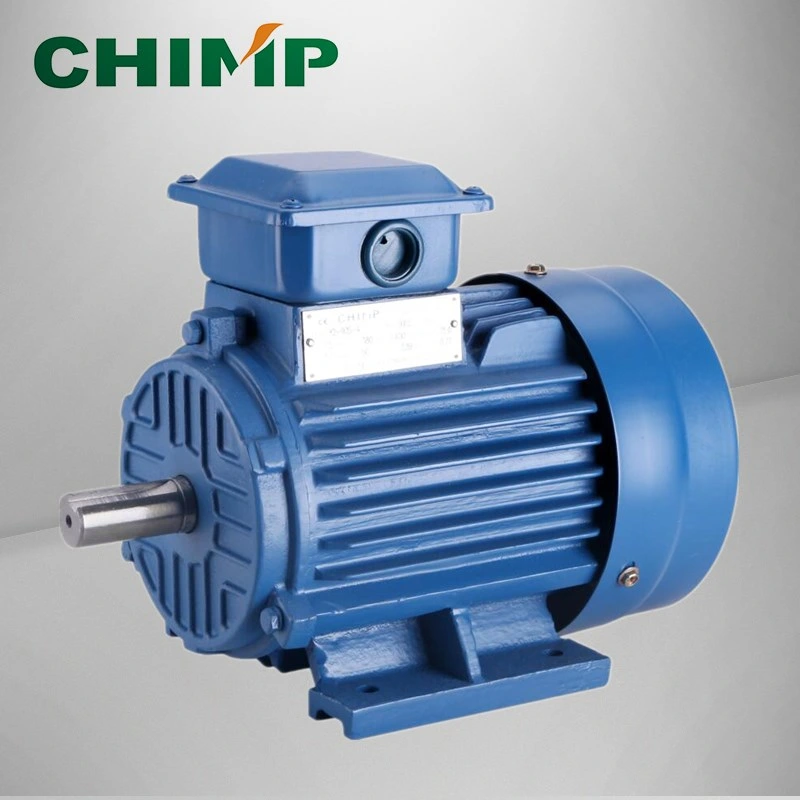

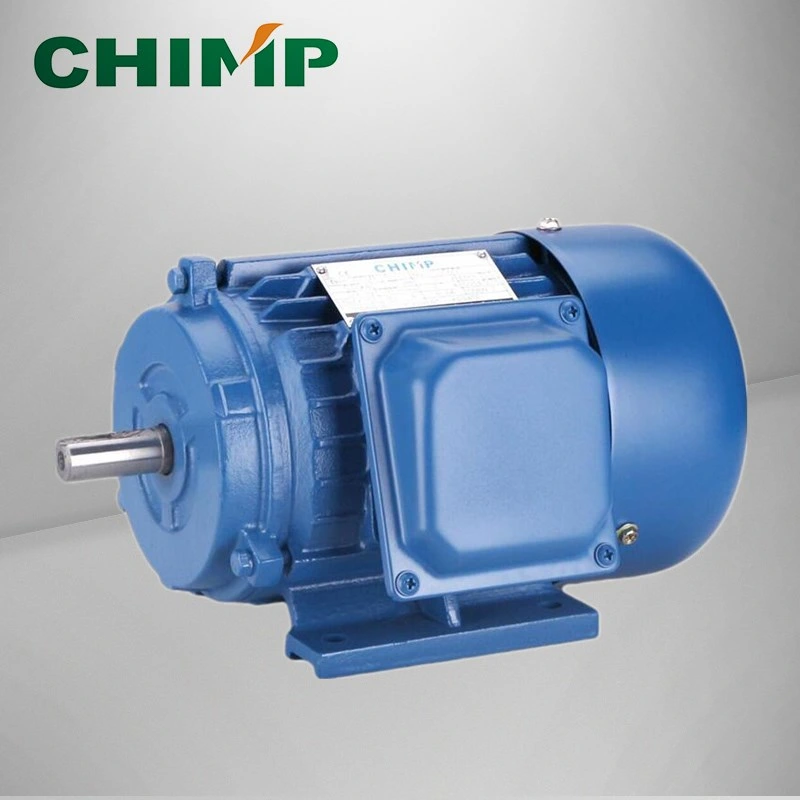

CE approved Y2 Series 3 Phase Ac Electrical Motor
Y2 series motor is the improvement products from Y series motor. Its performance have reach to international IEC standards.It has novel structure,beautitul modeling fang,small vibration and low noise feature.
Rated Parameters:
Base Center Height:63-315mm Power Range: 0.12-110 kW
Nsulation Class: B or F Protection Class: IP54 (or IP55)
Work System: S1
Mounting Structure:
B3 Frame without foot cover end flange
B35 Frame with foot cover end flange
B5 Frame with foot cover end flange
| Model | Rated Power | Full Load | locked-rotor current Rated Current Ist/Tn | locked-rotor Torque Rated Torque Tst/Tn | Maximum Torque Rated Torque Tst/Tn | |||
| Speed r/min | Current A | Performance % | Efficiency Factor COSΦ | |||||
| Synchronous Speed 1500 r/min (4 Poles) | ||||||||
| Y2-712-4 | 0.37 | 1330 | 1.12 | 67 | 0.75 | 5.2 | 2.4 | 2.2 |
| Y2-801-4 | 0.55 | 1390 | 1.57 | 71 | 0.75 | 5.2 | 2.3 | 2.3 |
| Y2-802-4 | 0.75 | 1390 | 2.03 | 73 | 0.76 | 6.0 | 2.4 | 2.3 |
| Y2-90S-4 | 1.1 | 1400 | 2.89 | 75 | 0.77 | 6.0 | 2.3 | 2.3 |
| Y2-90L-4 | 1.5 | 1400 | 3.70 | 78 | 0.79 | 6.0 | 2.3 | 2.3 |
| Y2-100L1-4 | 2.2 | 1430 | 5.16 | 80 | 0.81 | 7.0 | 2.3 | 2.3 |
| Y2-100L2-4 | 3.0 | 1430 | 6.78 | 82 | 0.82 | 7.0 | 2.3 | 2.3 |
| Y2-112M-4 | 4.0 | 1440 | 8.80 | 84 | 0.82 | 7.0 | 2.3 | 2.3 |
| Y2-132S-4 | 5.5 | 1440 | 11.7 | 85 | 0.83 | 7.0 | 2.3 | 2.3 |
| Y2-132M-4 | 7.5 | 1440 | 15.6 | 87 | 0.84 | 7.0 | 2.3 | 2.3 |
| Y2-160M-4 | 11 | 1460 | 22.3 | 88 | 0.84 | 7.0 | 2.2 | 2.3 |
| Y2-160L-4 | 15 | 1460 | 30.1 | 89 | 0.85 | 7.5 | 2.2 | 2.3 |
| Y2-180M-4 | 18.5 | 1470 | 36.5 | 90.5 | 0.86 | 7.5 | 2.2 | 2.3 |
| Y2-180L-4 | 22 | 1470 | 43.2 | 91 | 0.86 | 7.5 | 2.0 | 2.3 |
| Y2-200L-4 | 30 | 1470 | 57.6 | 92 | 0.86 | 7.2 | 2.0 | 2.3 |
| Y2-225S-4 | 37 | 1480 | 69.9 | 92.5 | 0.87 | 7.2 | 2.0 | 2.3 |
| Y2-225M-4 | 45 | 1480 | 84.7 | 92.8 | 0.87 | 7.2 | 2.0 | 2.3 |
| Y2-250M-4 | 55 | 1480 | 103 | 93 | 0.87 | 7.2 | 2.0 | 2.3 |
| Y2-280S-4 | 75 | 1480 | 140 | 93.8 | 0.87 | 7.2 | 2.0 | 2.3 |
| Y2-280M-4 | 90 | 1490 | 167 | 94.2 | 0.87 | 7.2 | 2.0 | 2.3 |
| Y2-315S-4 | 110 | 1490 | 201 | 94.5 | 0.88 | 6.9 | 2.1 | 2.2 |
FAQ
Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container. However, we accept the small qty for trial order to check quality.
Q: Is it acceptable to make customers' own brand?
A: Yes, sure. OEM is also our service scope.
Q: What are your payment terms?
A: 30% T/T as deposit, 70% against documents, or L/C at sight.
Q: How long is your warranty?
A: One year!
Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
