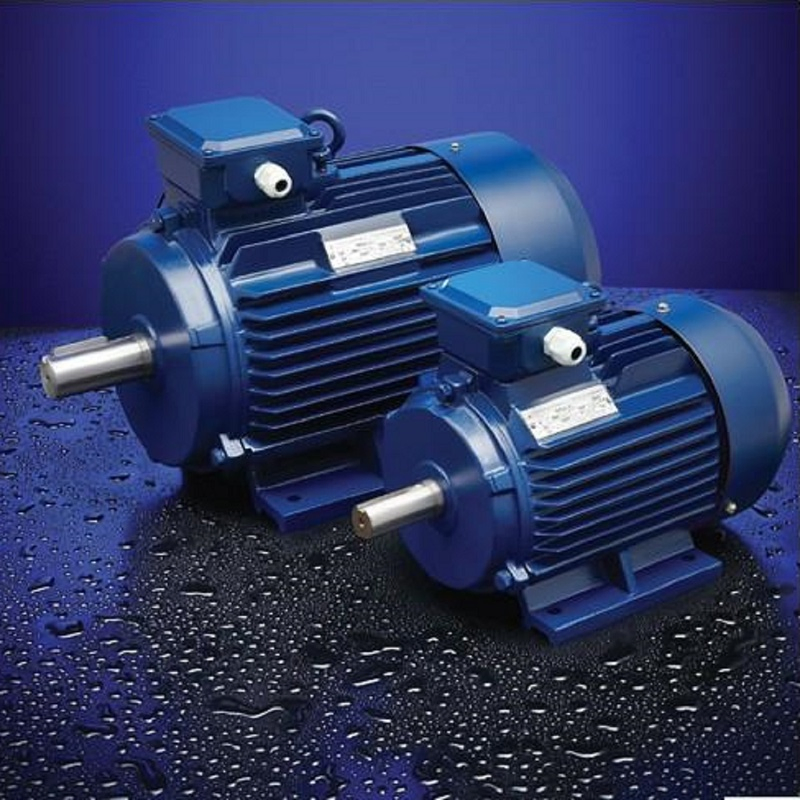

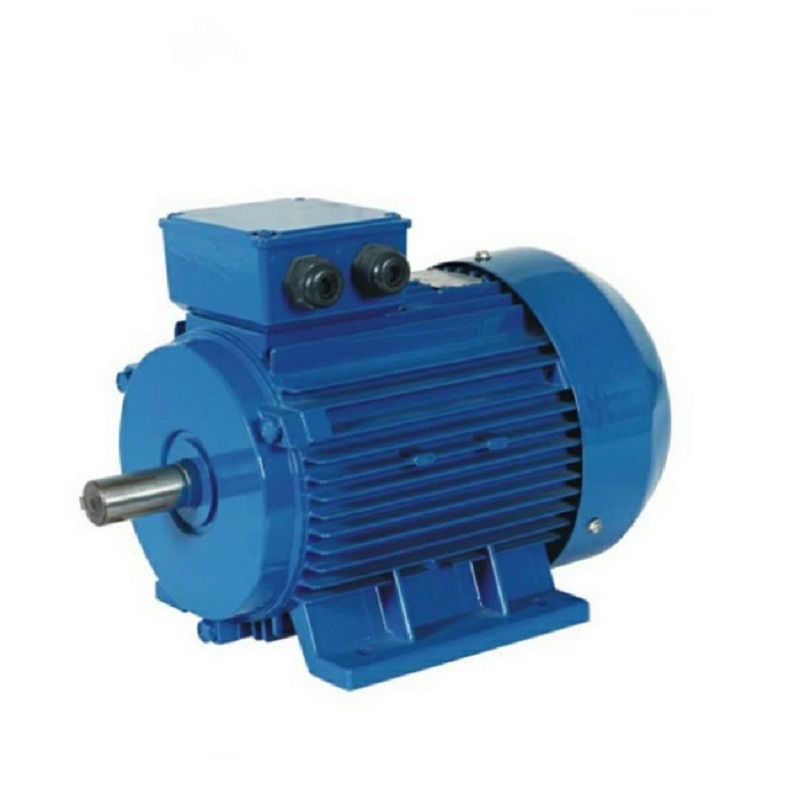

Ultra-High Efficient Ye2-160m2-2 (15KW/20HP) OEM ODM Obm 220V-760V 2 /4/6 /8/ 10p 3 Phase AC Induction Electric Motor for Pump Fans Centrifugal Machines
Ultra-high Efficcient Ye2-160M2-2 (15KW/20HP) OEM ODM OBM 220V-760V 2 /4/6 /8/10P 3 phase AC Induction Electric Motor for Pump Fans Centrifugal Machines have higher efficiency than Y series three-phase motor, Y2 series equipped with high starting torque and protection grade(IP54),the insulation cla......
Send Inquiry
Product Description
Ultra-high Efficcient Ye2-160M2-2 (15KW/20HP) OEM ODM OBM 220V-760V 2 /4/6 /8/10P 3 phase AC Induction Electric Motor for Pump Fans Centrifugal Machines have higher efficiency than Y series three-phase motor, Y2 series equipped with high starting torque and protection grade(IP54),the insulation class (class F) and B level assessment .
1.Product Introduction
Ultra-high Efficcient Ye2-160M2-2 (15KW/20HP) OEM ODM OBM 220V-760V 2 /4/6 /8/10P 3 phase AC Induction Electric Motor for Pump Fans Centrifugal Machines for general purpose motor, suitable for no special requirements of various mechanical equipment.The rated voltages is 380V, rated frequency for frequency 50Hz, below is Y 3Kw pick method, 4 Kw above for "△"connect method. Environmental temperature does not exceed 40 ºC, elevation not more than 1,000 meter, working way continuous (SI).
2.Products Parameter
3.Product Application
Ultra-high Efficcient Ye2-160M2-2 (15KW/20HP) OEM ODM OBM 220V-760V 2 /4/6 /8/10P 3 phase AC Induction Electric Motor for Pump Fans Centrifugal Machines can be used in various fields such as machine tools, water pumps, blowers and compressors as well as transportation, mixture, printing, agricultural machines and food processors where there are no inflammable, explosive or corrosive gases.
The mounting dimension and the power degree of Y2 series motor conform to IEC standard. The protection degree of the frame is of IP54 or IP55 and the cooling method is of IC411 with continuous duty(S1). F-class insulation is used and the temperature rising is checked against B-class.
The operating place of the motor is not more than 1,000 meters above the sea level. The ambient temperature varies with seasons but not more than 40ºC. The lowest ambient temperature is -15ºC. The highest monthly average relevant humidity is 90% in the most moist month; and at the same time, the lowest monthly average temperature of this month is not more than 25ºC
4.Related Products
5.TAIHCNENG MOTOR FACTORY AND WORKSHOP
6.HIGH-QUALITY MATERIALS
7.SHOWROOM
8.HONORS& CERTIFICATES
1.Product Introduction
Ultra-high Efficcient Ye2-160M2-2 (15KW/20HP) OEM ODM OBM 220V-760V 2 /4/6 /8/10P 3 phase AC Induction Electric Motor for Pump Fans Centrifugal Machines for general purpose motor, suitable for no special requirements of various mechanical equipment.The rated voltages is 380V, rated frequency for frequency 50Hz, below is Y 3Kw pick method, 4 Kw above for "△"connect method. Environmental temperature does not exceed 40 ºC, elevation not more than 1,000 meter, working way continuous (SI).
2.Products Parameter
| Type | Rated Power | Rated Current(A) | Rated Speed(r/min) | Efficiency(%) | Power Factor(CosΦ) | |||
| KW | HP | 380V | 400V | 415V | ||||
| Synchronous Speed 3000r/min(2Poles) | ||||||||
| YE2-80M1-2 | 0.75 | 1 | 1.8 | 1.7 | 1.68 | 2840 | 77.4 | 0.83 |
| YE2-80M2-2 | 1.1 | 1.5 | 2.6 | 2.5 | 2.4 | 2840 | 79.6 | 0.84 |
| YE2-90S2-2 | 1.5 | 2 | 3.46 | 3.3 | 3.16 | 2840 | 81.3 | 0.84 |
| YE2-90L-2 | 2.2 | 3 | 4.85 | 4.61 | 4.45 | 2840 | 83.2 | 0.85 |
| YE2-100L-2 | 3 | 4 | 6.34 | 6.1 | 5.81 | 2860 | 84.6 | 0.87 |
| YE2-112M-2 | 4 | 5.5 | 8.2 | 7.8 | 7.51 | 2880 | 85.8 | 0.88 |
| YE2-132S1-2 | 5.5 | 7.5 | 11.1 | 10.5 | 10.15 | 2910 | 87 | 0.88 |
| YE2-132S2-2 | 7.5 | 10 | 14.9 | 14.1 | 13.6 | 2910 | 88.1 | 0.88 |
| YE2-160M1-2 | 11 | 15 | 21.2 | 20.2 | 19.5 | 2920 | 89.4 | 0.89 |
| YE2-160M2-2 | 15 | 20 | 28.6 | 27.2 | 26.2 | 2920 | 90.3 | 0.89 |
| YE2-160L-2 | 18.5 | 25 | 34.7 | 33.0 | 31.8 | 2920 | 90.9 | 0.90 |
| YE2-180M-2 | 22 | 30 | 41 | 39.0 | 37.6 | 2930 | 91.3 | 0.90 |
| Synchronous Speed 1500r/min(4Poles) | ||||||||
| YE2-80M1-4 | 0.55 | 0.75 | 1.57 | 1.49 | 1.44 | 1390 | 75.2 | 0.75 |
| YE2-80M2-4 | 0.75 | 1 | 2.05 | 1.59 | 1.88 | 1390 | 79.6 | 0.76 |
| YE2-90S-4 | 1.1 | 1.5 | 2.85 | 2.71 | 2.61 | 1390 | 81.4 | 0.77 |
| YE2-90L-4 | 1.5 | 2 | 3.72 | 3.54 | 3.41 | 1390 | 82.8 | 0.79 |
| YE2-100L1-4 | 2.2 | 3 | 5.09 | 4.9 | 4.72 | 1410 | 84.3 | 0.81 |
| YE2-100L2-4 | 3.0 | 4 | 6.78 | 6.39 | 6.61 | 1410 | 85.5 | 0.82 |
| YE2-112M-4 | 4.0 | 5.5 | 8.8 | 8.36 | 8.06 | 1435 | 86.6 | 0.82 |
| YE2-132S-4 | 5.5 | 7.5 | 11.7 | 11.2 | 10.8 | 1440 | 87.7 | 0.83 |
| YE2-132M-4 | 7.5 | 10 | 15.6 | 14.8 | 14.3 | 1440 | 88.7 | 0.84 |
| YE2-160M-4 | 11 | 15 | 22.5 | 21.4 | 20.6 | 1460 | 89.8 | 0.84 |
| YE2-160L-4 | 15 | 20 | 30 | 28.5 | 27.5 | 1460 | 90.6 | 0.85 |
| YE2-180M-4 | 18.5 | 25 | 36.3 | 34.5 | 33.3 | 1470 | 91.2 | 0.86 |
| YE2-180L-4 | 22 | 30 | 43.2 | 40.8 | 39.3 | 1470 | 91.6 | 0.86 |
| Synchronous Speed 1000r/min (6Poles) | ||||||||
| YE2-80M1-6 | 0.37 | 0.55 | 1.3 | 1.23 | 1.19 | 885 | 62 | 0.7 |
| YE2-80M2-6 | 0.55 | 0.75 | 1.8 | 1.7 | 1.64 | 885 | 73.5 | 0.72 |
| YE2-90S-6 | 0.75 | 1 | 2.29 | 2.18 | 2.1 | 910 | 75.9 | 0.72 |
| YE2-90L-6 | 1.1 | 1.5 | 3.18 | 3.02 | 2.91 | 910 | 78.1 | 0.73 |
| YE2-100L-6 | 1.5 | 2 | 4 | 3.8 | 3.66 | 920 | 79.8 | 0.75 |
| YE2-112M-6 | 2.2 | 3 | 5.6 | 5.29 | 5.1 | 935 | 81.8 | 0.76 |
| YE2-132S-6 | 3 | 4 | 7.4 | 7.03 | 6.78 | 960 | 83.3 | 0.77 |
| YE2-132M1-6 | 4 | 5.5 | 9.75 | 9.26 | 8.93 | 960 | 84.6 | 0.77 |
| YE2-132M2-6 | 5.5 | 7.5 | 12.9 | 12.3 | 11.8 | 960 | 86 | 0.78 |
| YE2-160M-6 | 7.5 | 10 | 17.2 | 16.3 | 15.8 | 970 | 87.2 | 0.81 |
| YE2-160L-6 | 1.1 | 15 | 24.5 | 23.3 | 22.4 | 970 | 88.7 | 0.81 |
| YE2-180L-6 | 15 | 20 | 31.6 | 30 | 28.9 | 970 | 89.7 | 0.83 |
Ultra-high Efficcient Ye2-160M2-2 (15KW/20HP) OEM ODM OBM 220V-760V 2 /4/6 /8/10P 3 phase AC Induction Electric Motor for Pump Fans Centrifugal Machines can be used in various fields such as machine tools, water pumps, blowers and compressors as well as transportation, mixture, printing, agricultural machines and food processors where there are no inflammable, explosive or corrosive gases.
The mounting dimension and the power degree of Y2 series motor conform to IEC standard. The protection degree of the frame is of IP54 or IP55 and the cooling method is of IC411 with continuous duty(S1). F-class insulation is used and the temperature rising is checked against B-class.
The operating place of the motor is not more than 1,000 meters above the sea level. The ambient temperature varies with seasons but not more than 40ºC. The lowest ambient temperature is -15ºC. The highest monthly average relevant humidity is 90% in the most moist month; and at the same time, the lowest monthly average temperature of this month is not more than 25ºC

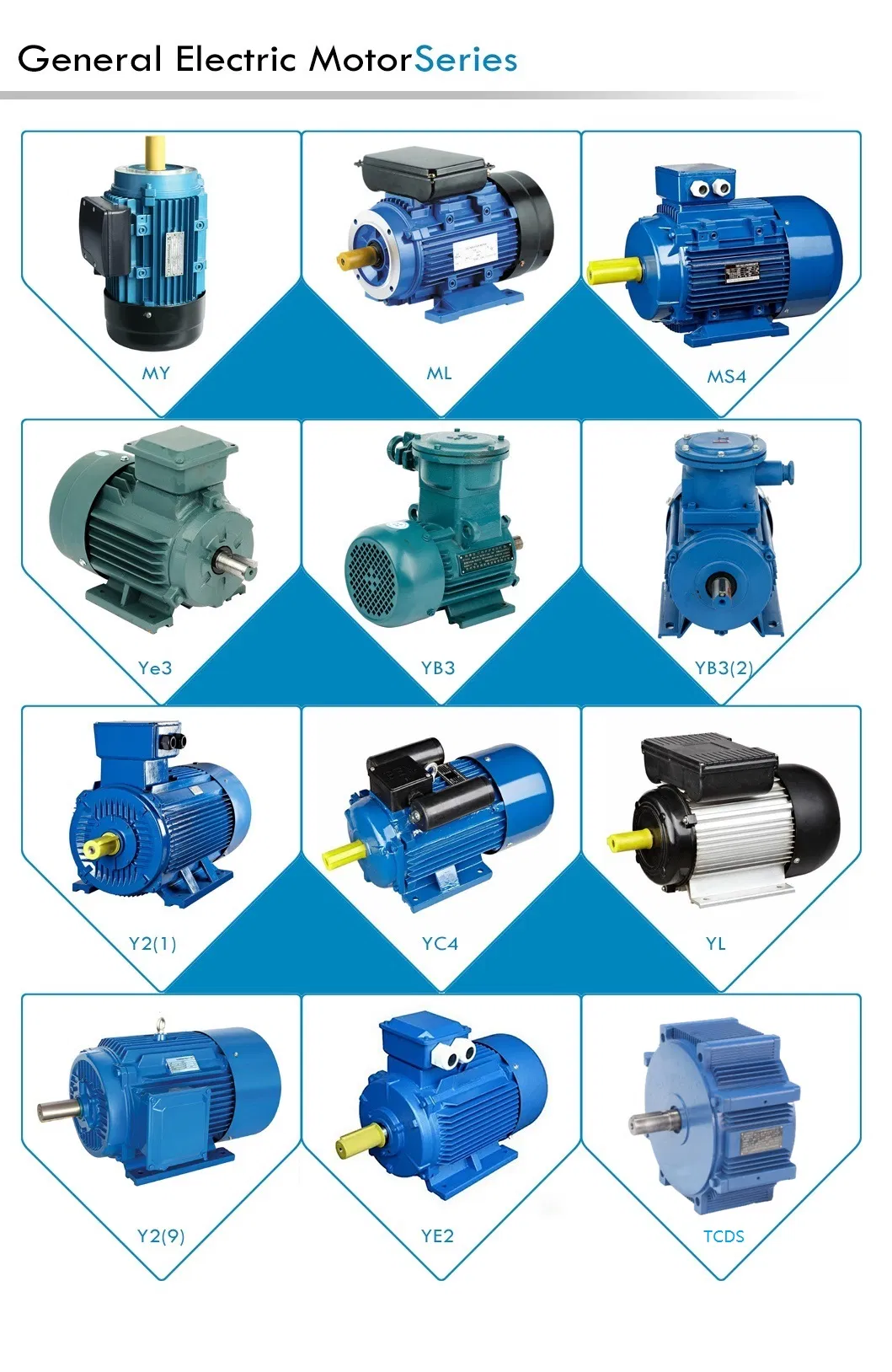

4.Related Products

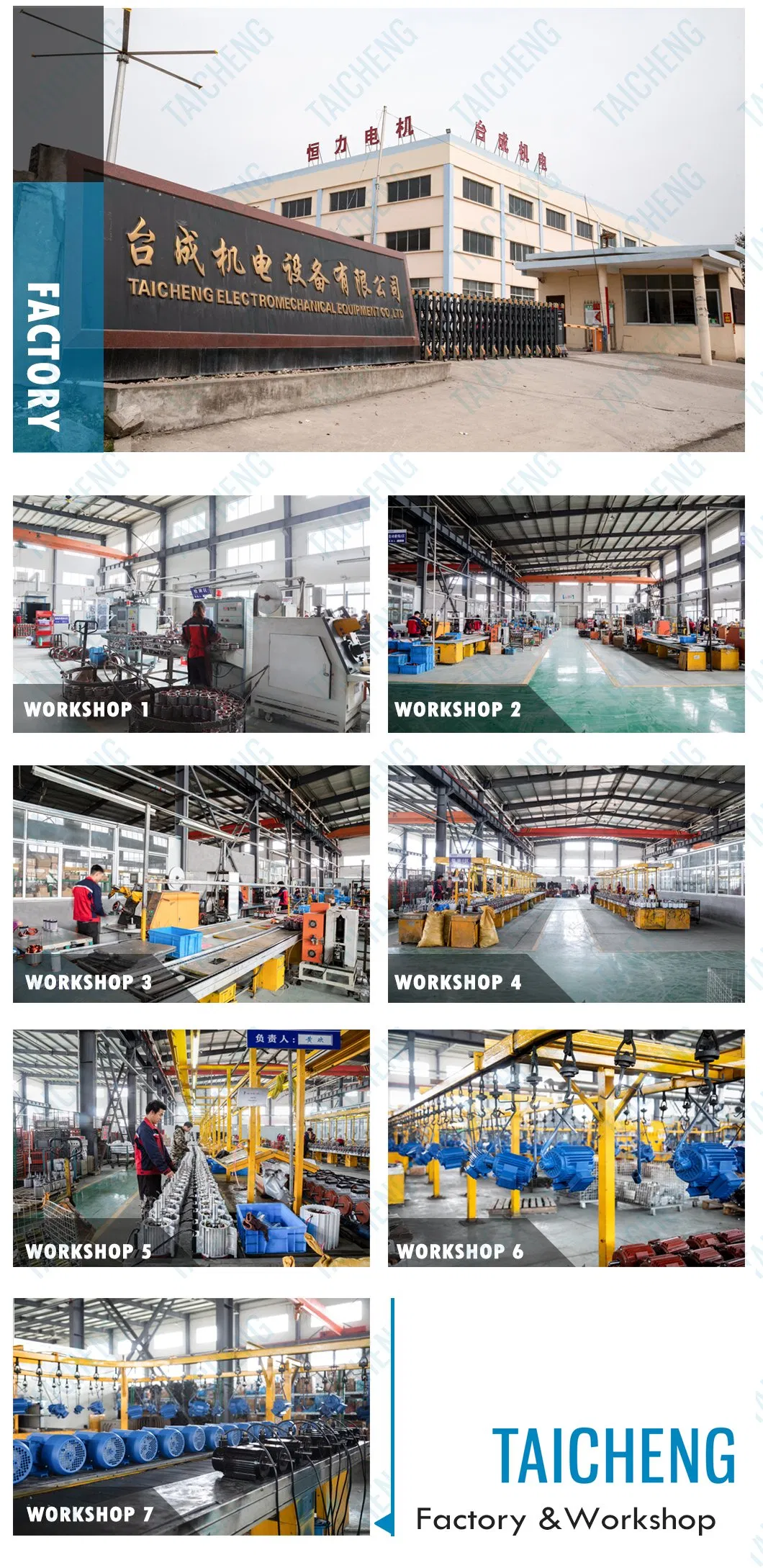

5.TAIHCNENG MOTOR FACTORY AND WORKSHOP

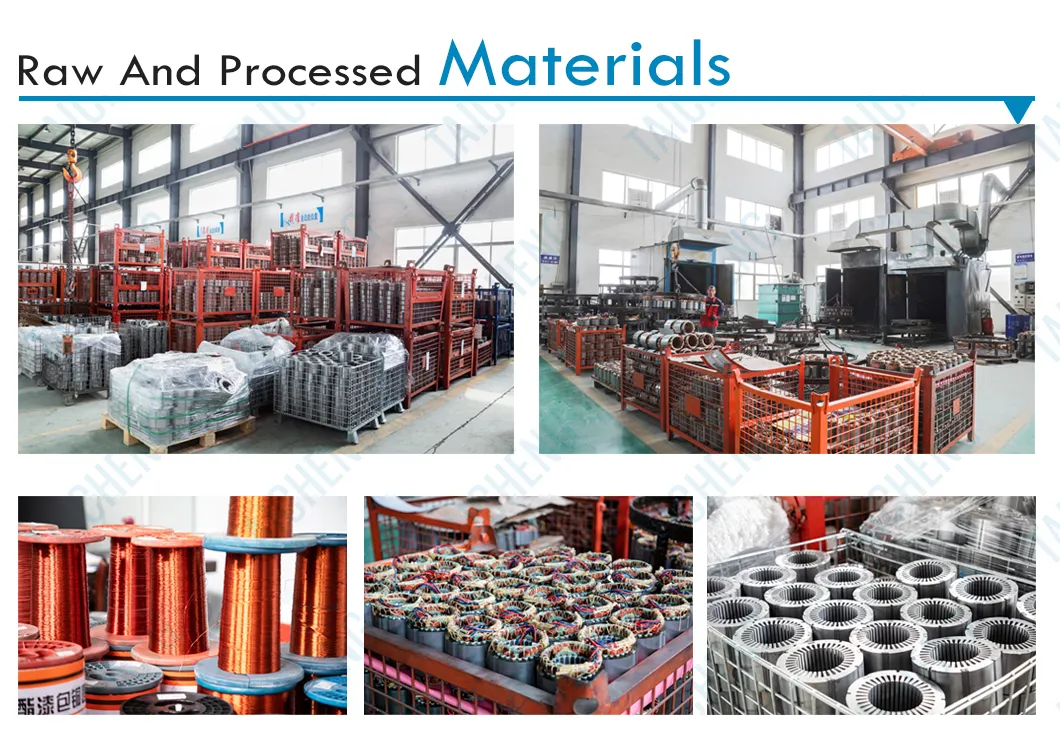

6.HIGH-QUALITY MATERIALS

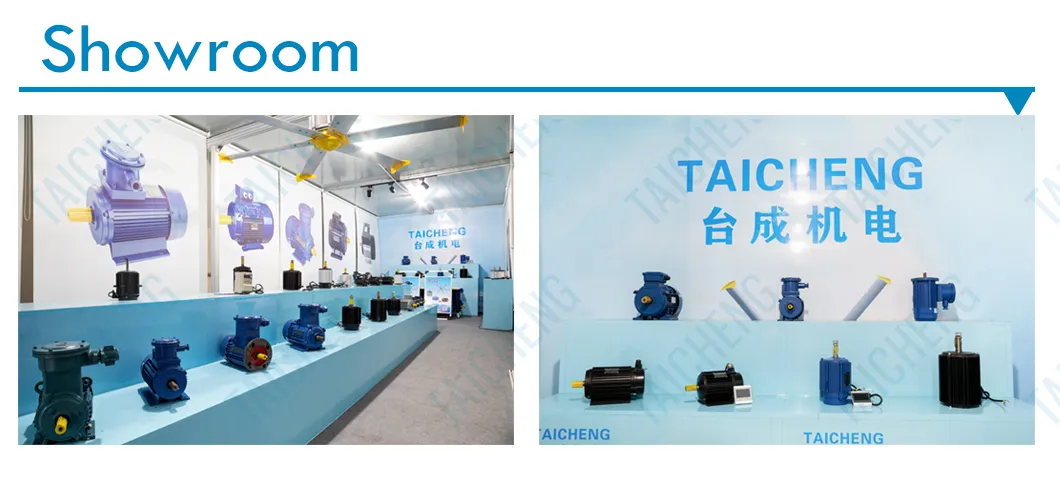

7.SHOWROOM

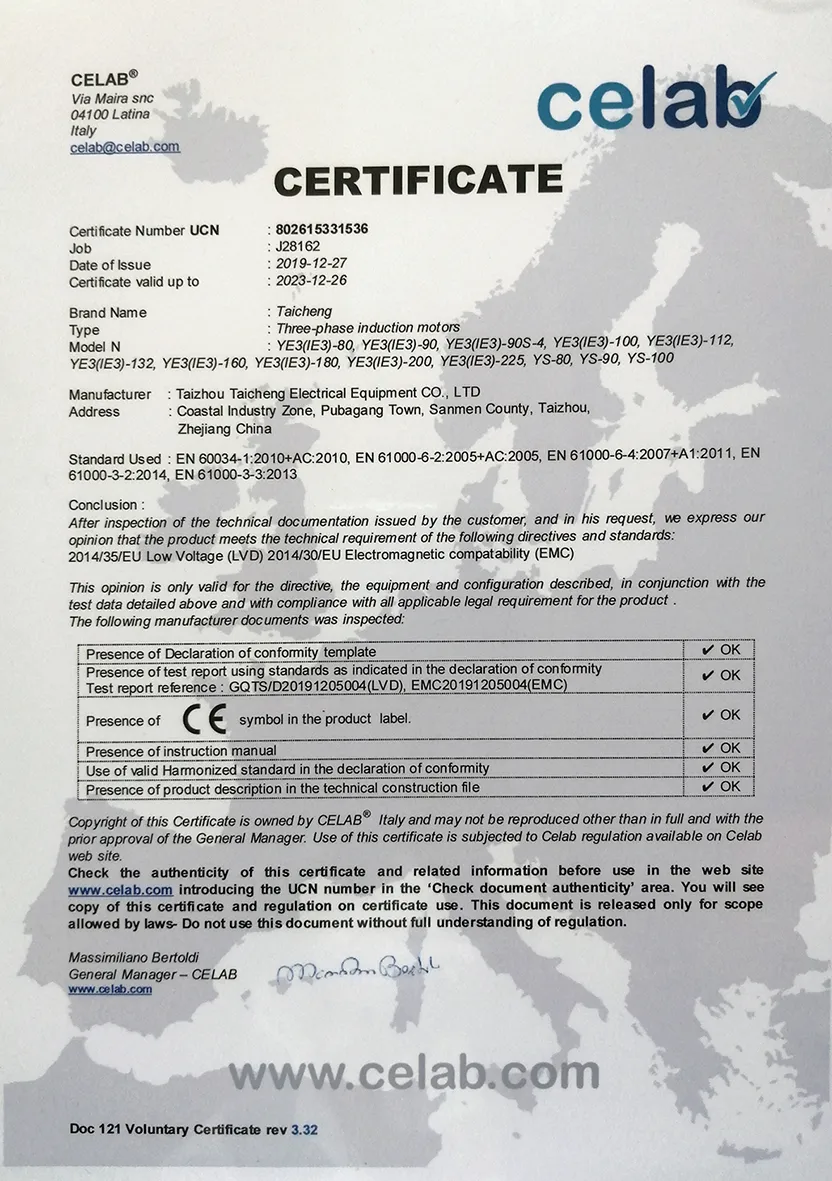

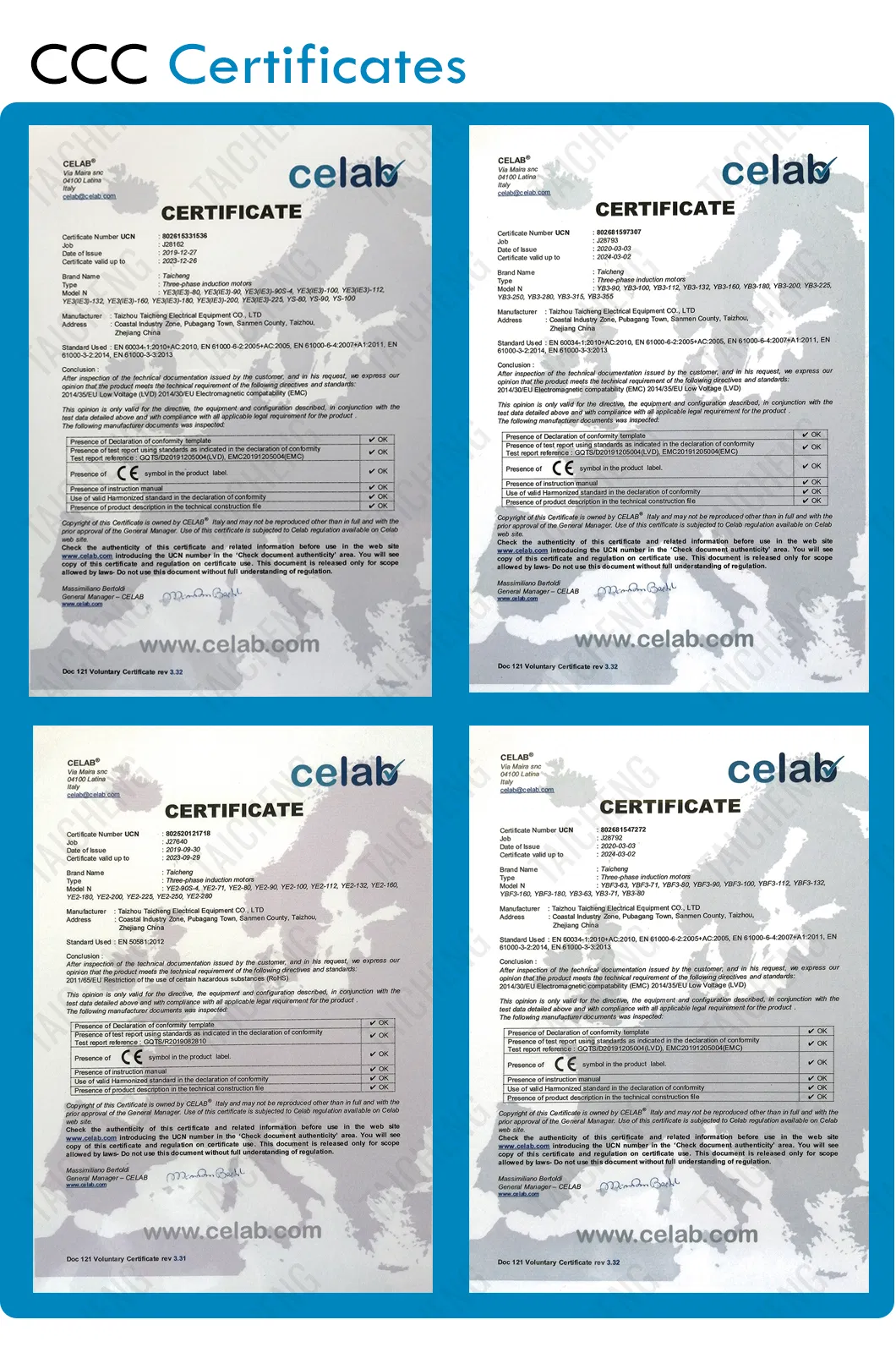

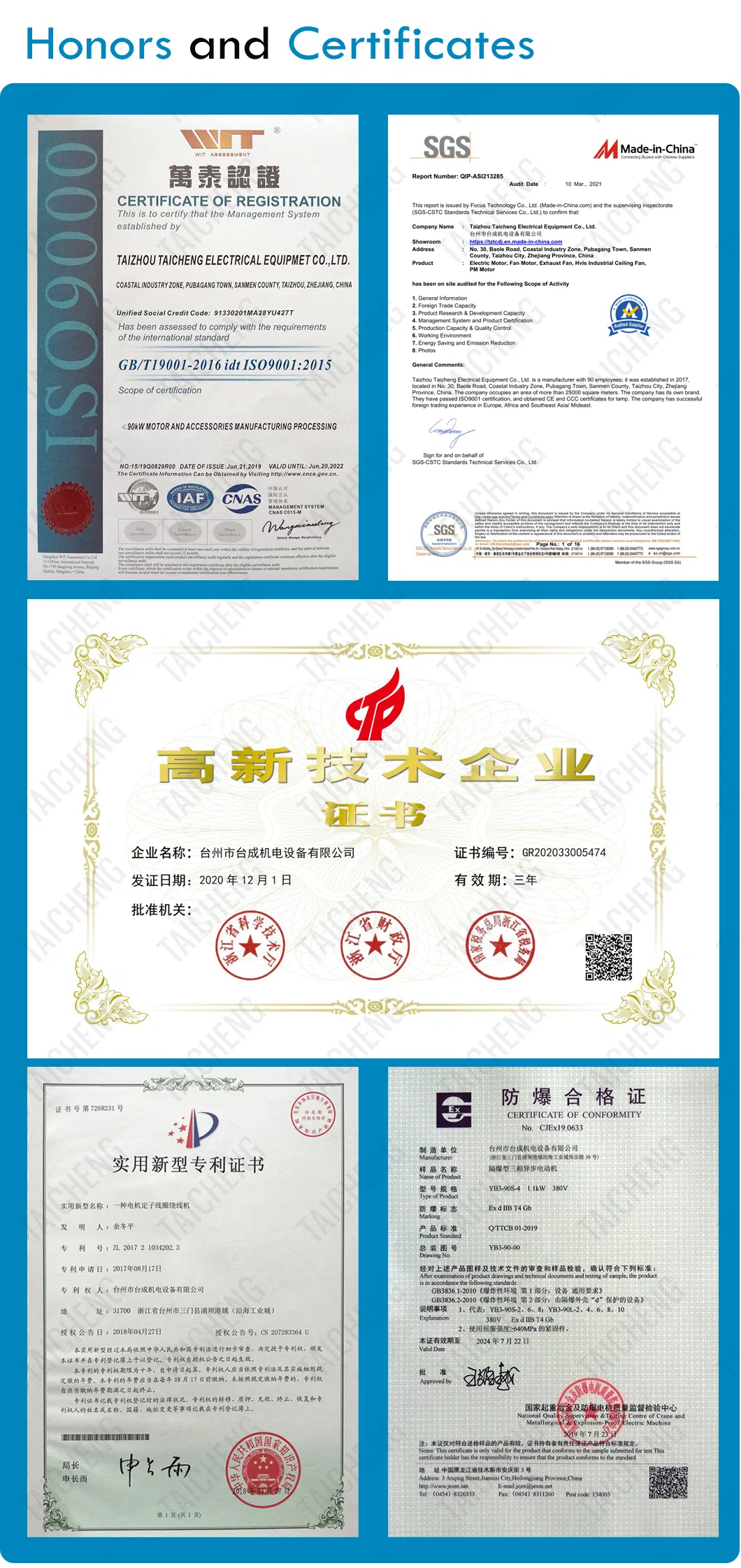

8.HONORS& CERTIFICATESRelated Category
