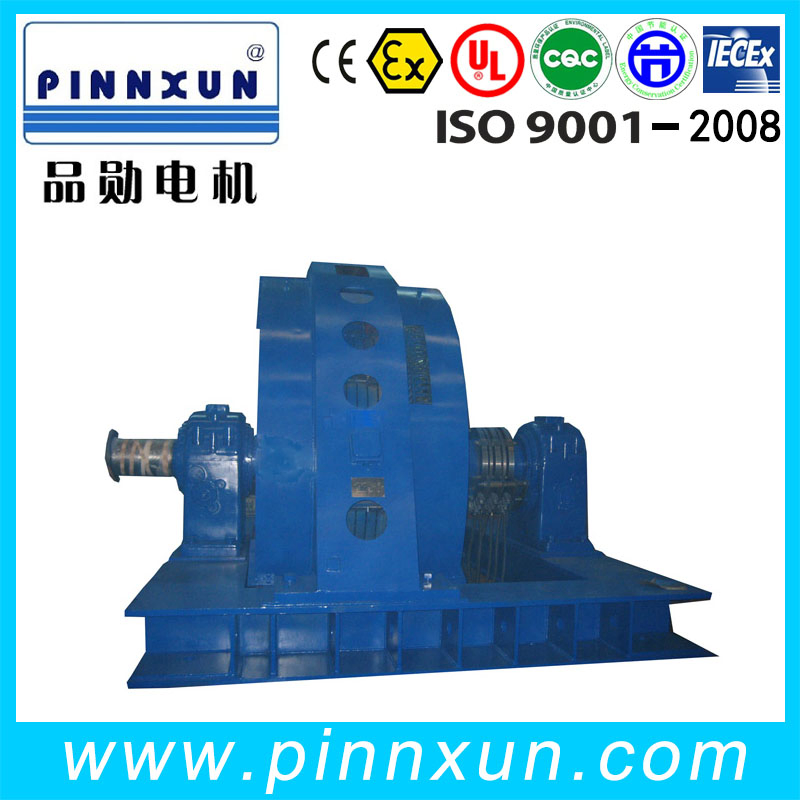

Three Phase High Voltage Slip Ring Motor 650kw
Slip ring motorYR Series (6kv 10kv)slip ring motor are of wound rotor three phase asynchronous motor (center height from 355mm to 1000mm), which complies with JB/T7594-1994 and JB/T10314.1-2002. The protection degree of the YR motor is of IP23 and cooling method is of IC01The motor has such advantag......
Send Inquiry
Product Description
Slip ring motor
YR Series (6kv 10kv)slip ring motor are of wound rotor three phase asynchronous motor (center height from 355mm to 1000mm), which complies with JB/T7594-1994 and JB/T10314.1-2002. The protection degree of the YR motor is of IP23 and cooling method is of IC01
The motor has such advantage as high efficiency, energy saving, low noise, low vibration, light weight and reliable performance. They are easy for installation and maintenance.
Specifications:
Power range: 160kw-5600kw
Frame Size: 355-1000mm
Rated Voltage: 3KV 6KV 10KV
Speed; 3000rpm 1500rpm 1000rpm 750rpm 600rpm
Protection Class: IP23
Cooling type; IC01
Ambient Temperature: -15° C~40° C
Altitude: Not exceed 1000 Meter
Rated Frequency: 50Hz/60Hz
Insulation Class: F
Temprature rise: B
Working Duty: S1(Continuous)
YR Series (6kv 10kv)slip ring motor are of wound rotor three phase asynchronous motor (center height from 355mm to 1000mm), which complies with JB/T7594-1994 and JB/T10314.1-2002. The protection degree of the YR motor is of IP23 and cooling method is of IC01
The motor has such advantage as high efficiency, energy saving, low noise, low vibration, light weight and reliable performance. They are easy for installation and maintenance.
Specifications:
Power range: 160kw-5600kw
Frame Size: 355-1000mm
Rated Voltage: 3KV 6KV 10KV
Speed; 3000rpm 1500rpm 1000rpm 750rpm 600rpm
Protection Class: IP23
Cooling type; IC01
Ambient Temperature: -15° C~40° C
Altitude: Not exceed 1000 Meter
Rated Frequency: 50Hz/60Hz
Insulation Class: F
Temprature rise: B
Working Duty: S1(Continuous)
|
Ordering Informations |
|
|
1.Please indicate the motor type,rated output,rated voltage,rated frequency,synchronous speed,Explosion proof Mark,mounting type,rotation direction(view from the shaft extension side)Use of the environment(indoor or outside)If the user havn't point out the rotation and environment,normailly we think is CW roration and used indoor. 2.when user have special requirments,For example:Dispose the stator,bearing explosion proof and bearing temperature sensors,space heater,Plateau use,specical frequency,mounting size change,special output,the user must ,order can be confirm after signing the technical agreement with engneering department . 3.The catalogue is only for reference,and there may be variations. 4.This range of motor can also be made into Variable-Frequency motors,the range of frequency of which is 0-100HZ,the output and overall dimensions should be confirm separately. |
|
