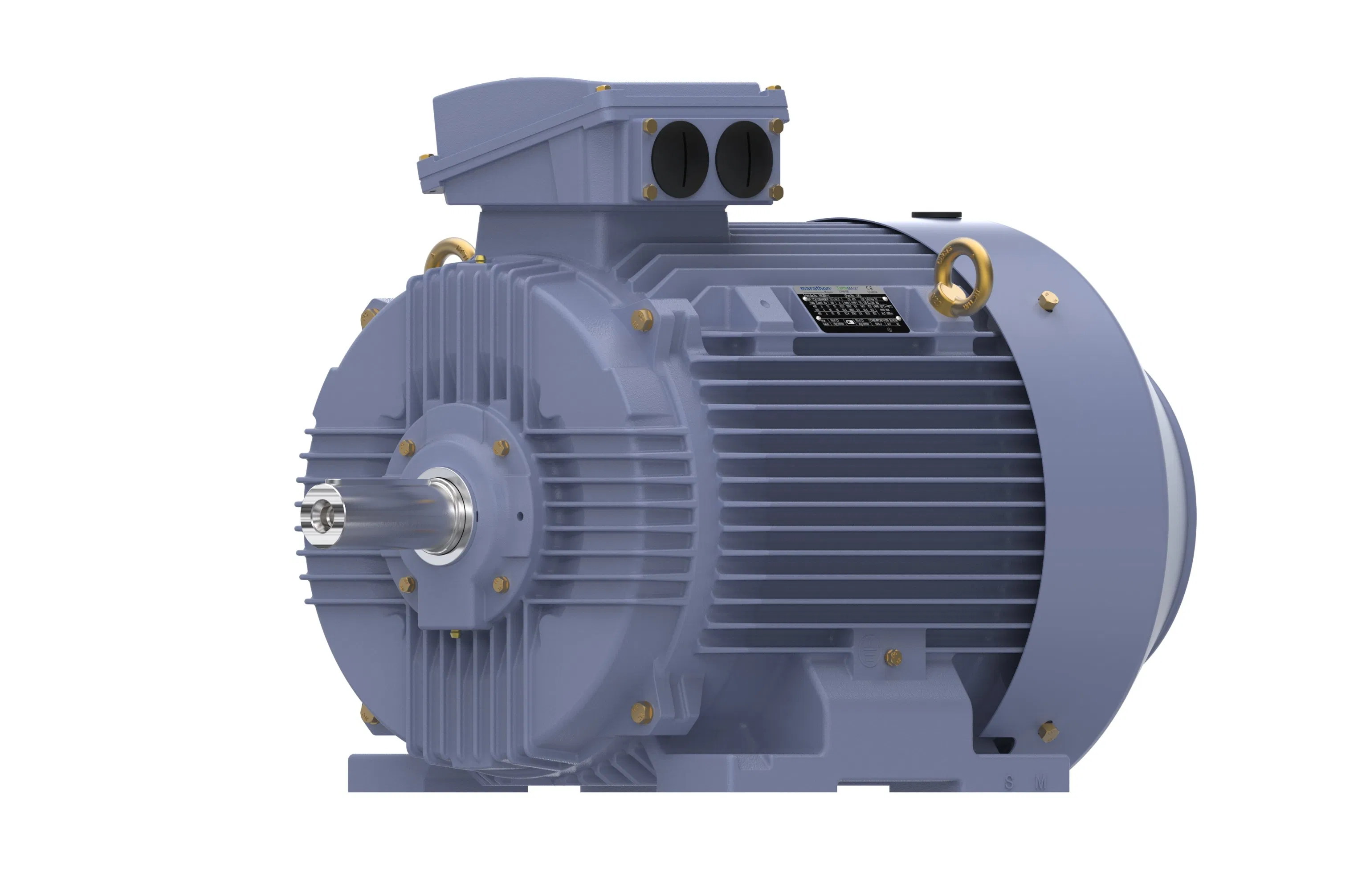

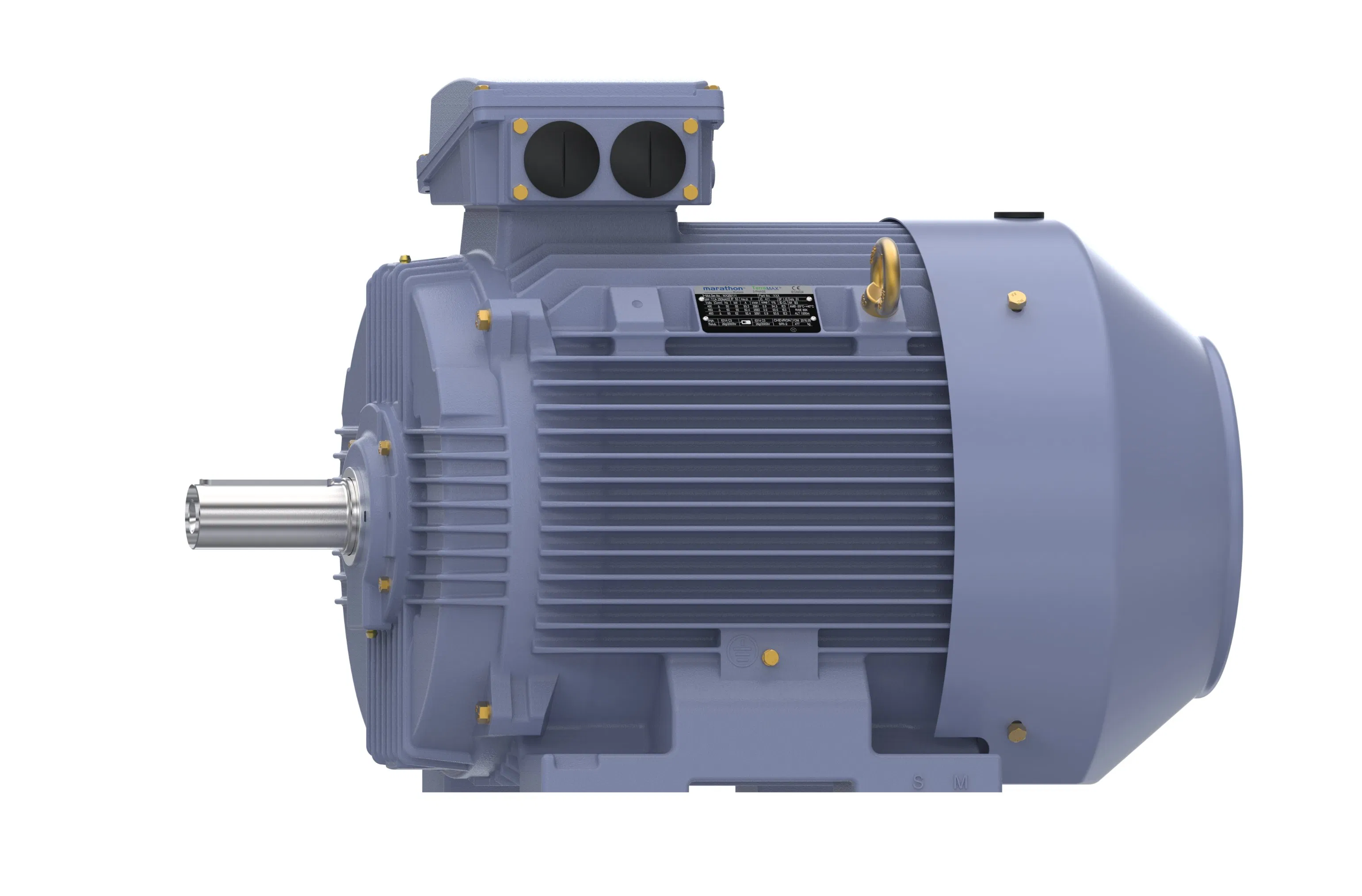

TCA Series-1.5kw/Ie3 Efficiency/Three Phase/Induction/AC/Low Voltage Motor
TCA Series Low Voltage Motor-IE3 EfficiencyELECTRICAL DESIGN Insulation Class F (temperature rise class B of 80k) Environment: altitude 1000m above sea level; ambient temperature -15°C ~ 40°C Voltage & Frequency: 200V-690V, 50HZ, 60HZ (Motors can be designed for 200V to 690V and ......
Send Inquiry
Product Description
TCA Series Low Voltage Motor-IE3 Efficiency

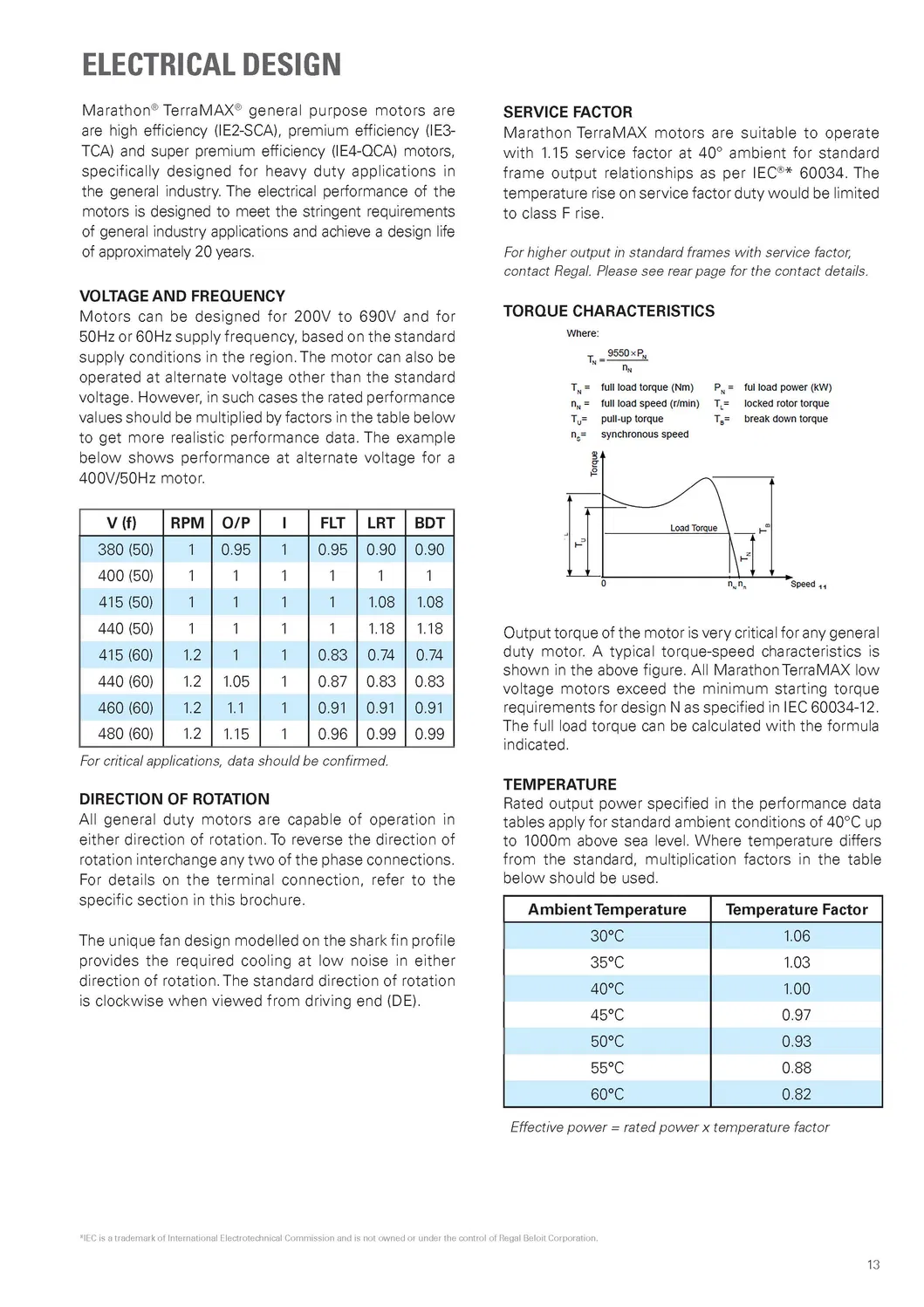

ELECTRICAL DESIGN
• Insulation Class F (temperature rise class B of 80k)
• Environment: altitude 1000m above sea level; ambient temperature -15°C ~ 40°C
• Voltage & Frequency: 200V-690V, 50HZ, 60HZ (Motors can be designed for 200V to 690V and for
50Hz or 60Hz supply frequency, based on the standard supply conditions in the region.)
• Frame sizes: H80-H355
• Power range: 0.75kW-375Kw, IE3 Efficiency
• Pole: 2, 4, 6, 8
• Service factor (SF): 1.0

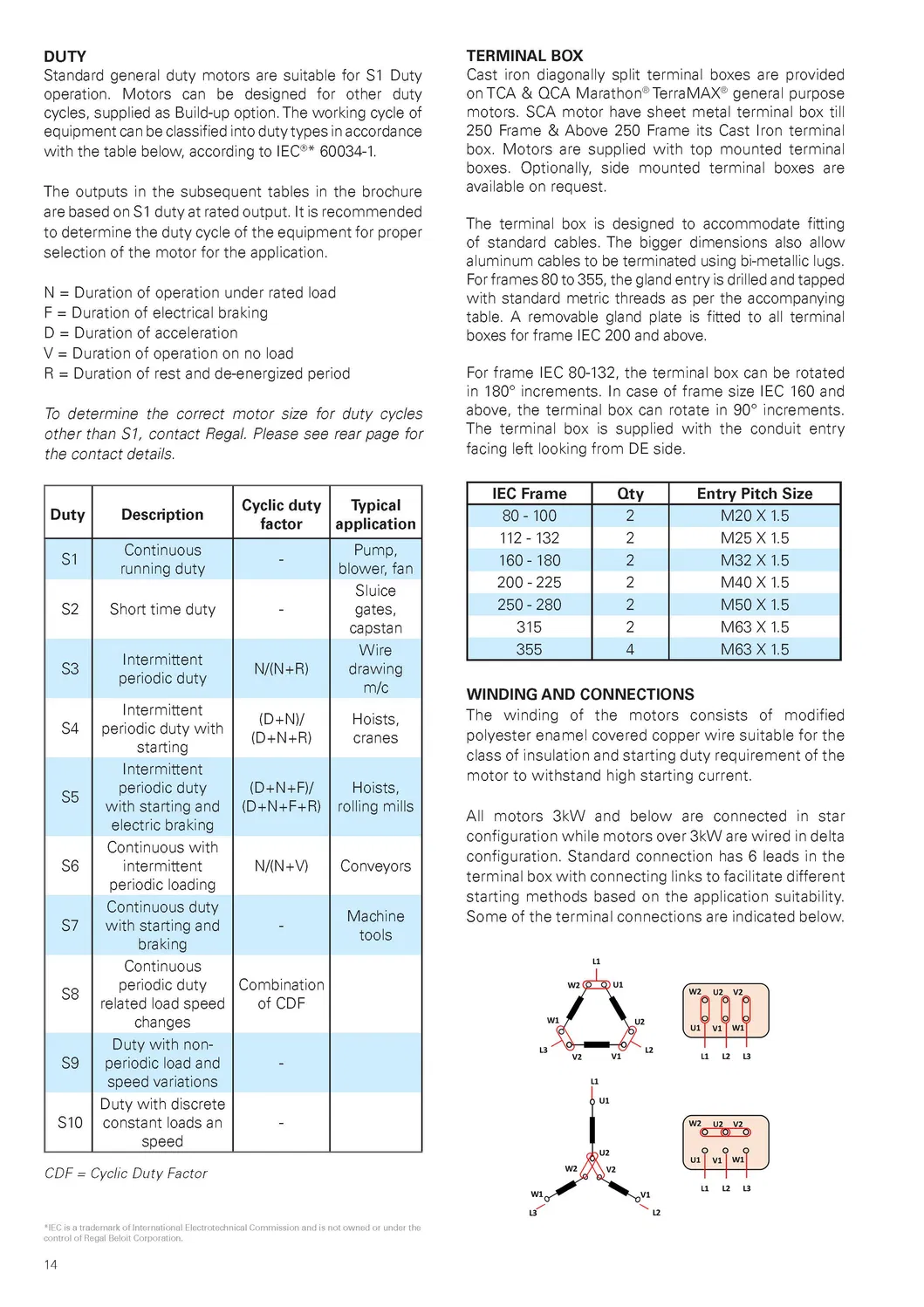

• Duty: S1
MECHANICAL DESIGN
• Cast iron frame
• Cast aluminum rotor
• Protection: IP55

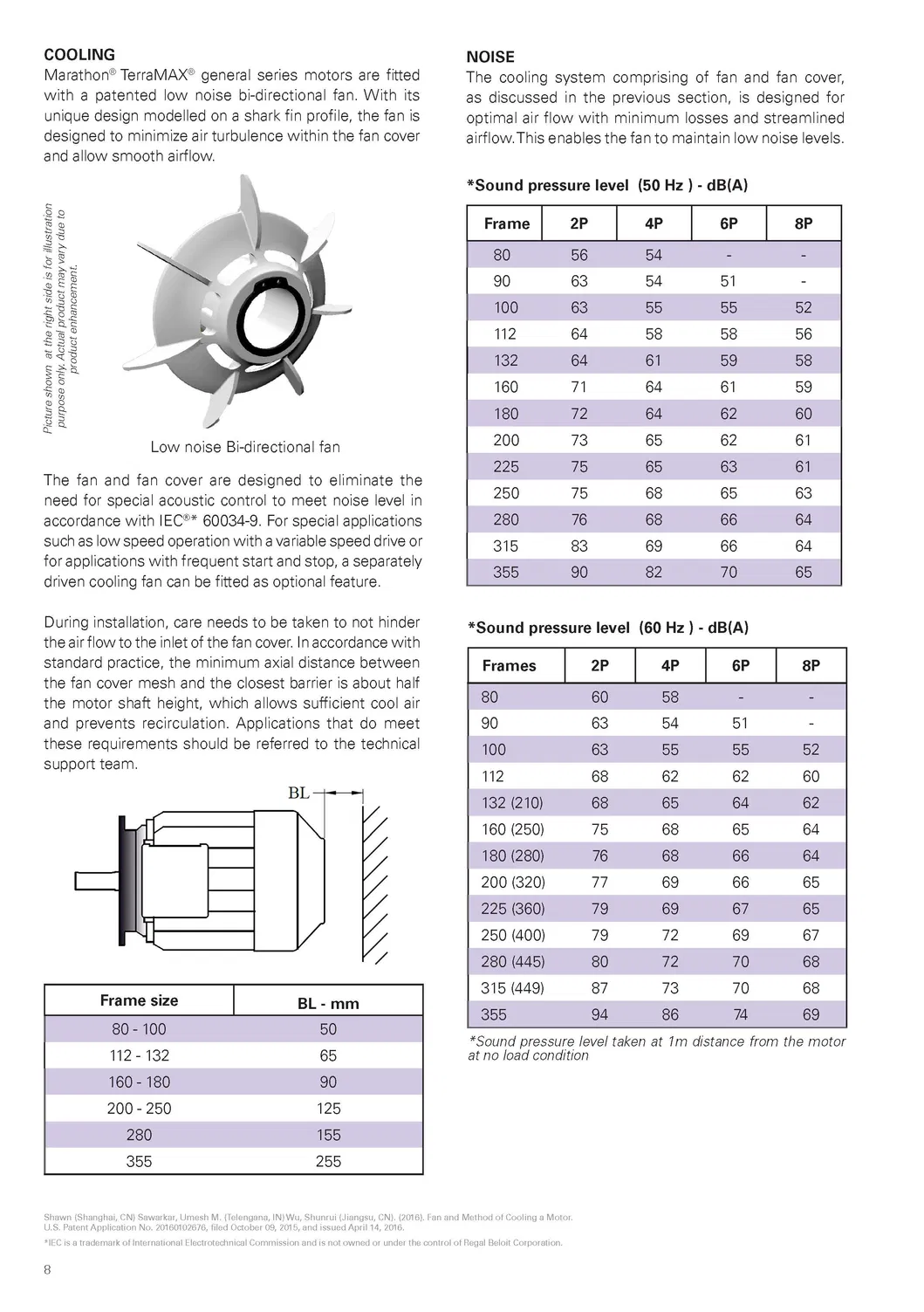

• Cooling Method: IC411

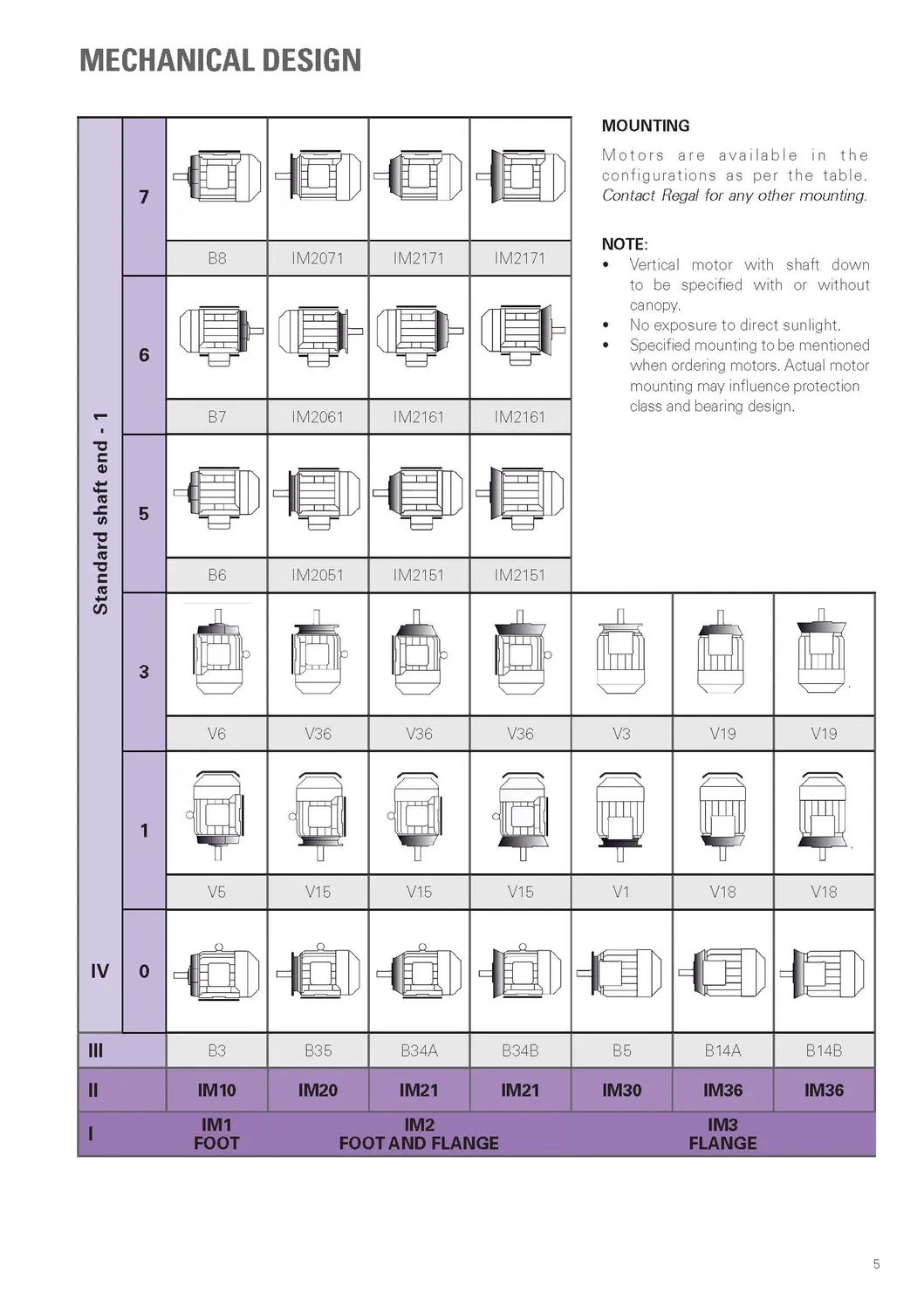

• Mounting: B3

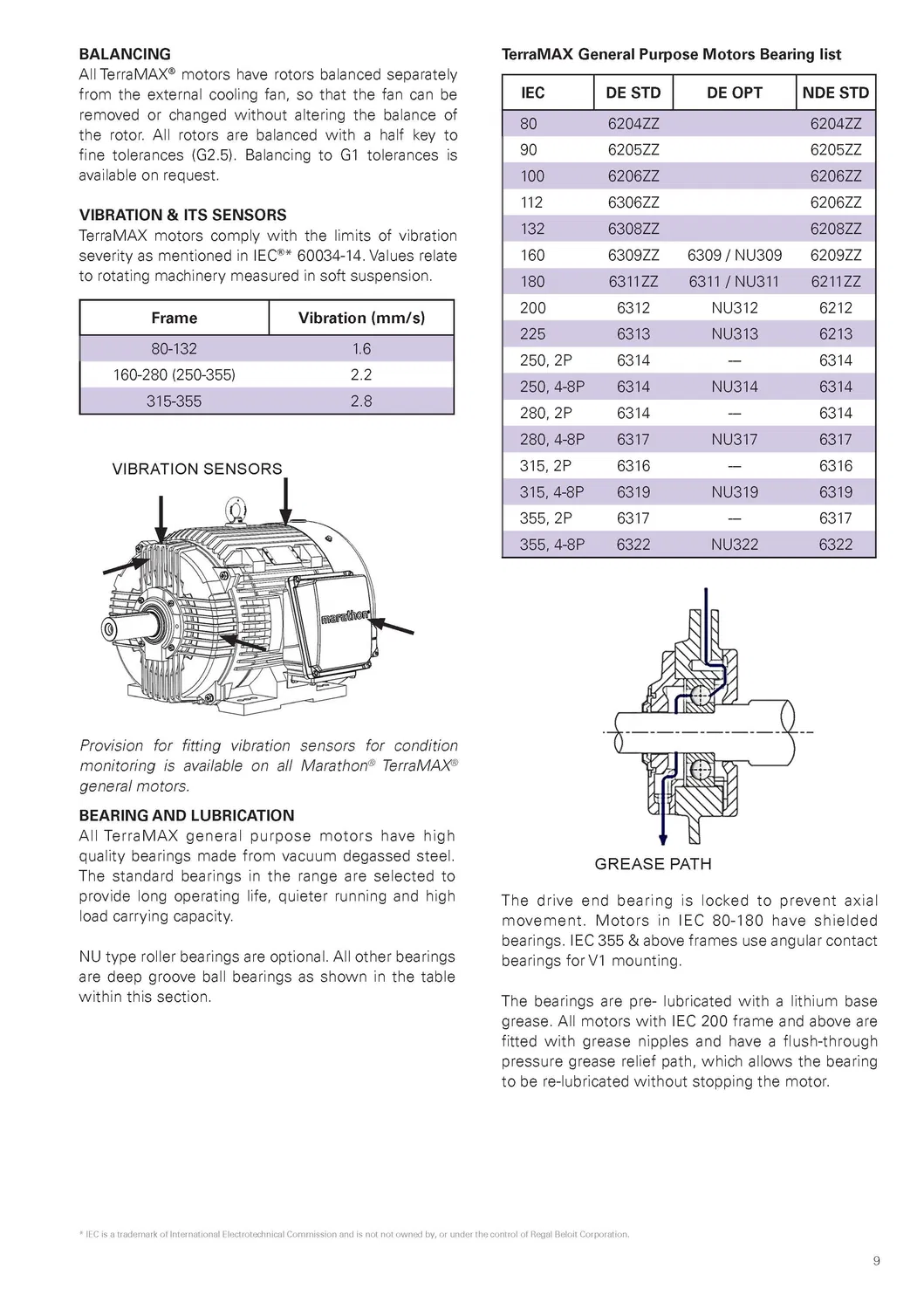

• Ball bearing
• Standard configuration: non-stop re-greasing for H200 and above
• Rotation: C.W seen from DE
• Coupling connection
• Stainless steel nameplate
• Paint color: RAL 5014
OPTIONALS
• SPM pipe, insulated bearing, cable gland size, mounting method, bearing & winding PT1000
• SF1.10 (Class F), TH-WF2
SPECIAL DESIGN
• Non-standard volts/frequency, special ambient temperature and altitude, special starting requirement
• Special shaft extension (subject to existing tooling)
NOTE:
(1) Above data are typical values and for reference only.
(2) Performance tolerance is according to IEC 60034-1.
(3) Please check with REGAL(Wuxi) when ordering 60Hz motor.
ALL DATA ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
ELECTRICAL DESIGN
• Insulation Class F (temperature rise class B of 80k)
• Environment: altitude 1000m above sea level; ambient temperature -15°C ~ 40°C
• Voltage & Frequency: 200V-690V, 50HZ, 60HZ (Motors can be designed for 200V to 690V and for
50Hz or 60Hz supply frequency, based on the standard supply conditions in the region.)
• Frame sizes: H80-H355
• Power range: 0.75kW-375Kw, IE3 Efficiency
• Pole: 2, 4, 6, 8
• Service factor (SF): 1.0
• Duty: S1
• Cast iron frame
• Cast aluminum rotor
• Protection: IP55
• Cooling Method: IC411
• Mounting: B3
• Ball bearing
• Standard configuration: non-stop re-greasing for H200 and above
• Rotation: C.W seen from DE
• Coupling connection
• Stainless steel nameplate
• Paint color: RAL 5014
OPTIONALS
• SPM pipe, insulated bearing, cable gland size, mounting method, bearing & winding PT1000
• SF1.10 (Class F), TH-WF2
SPECIAL DESIGN
• Non-standard volts/frequency, special ambient temperature and altitude, special starting requirement
• Special shaft extension (subject to existing tooling)
(1) Above data are typical values and for reference only.
(2) Performance tolerance is according to IEC 60034-1.
(3) Please check with REGAL(Wuxi) when ordering 60Hz motor.
ALL DATA ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
