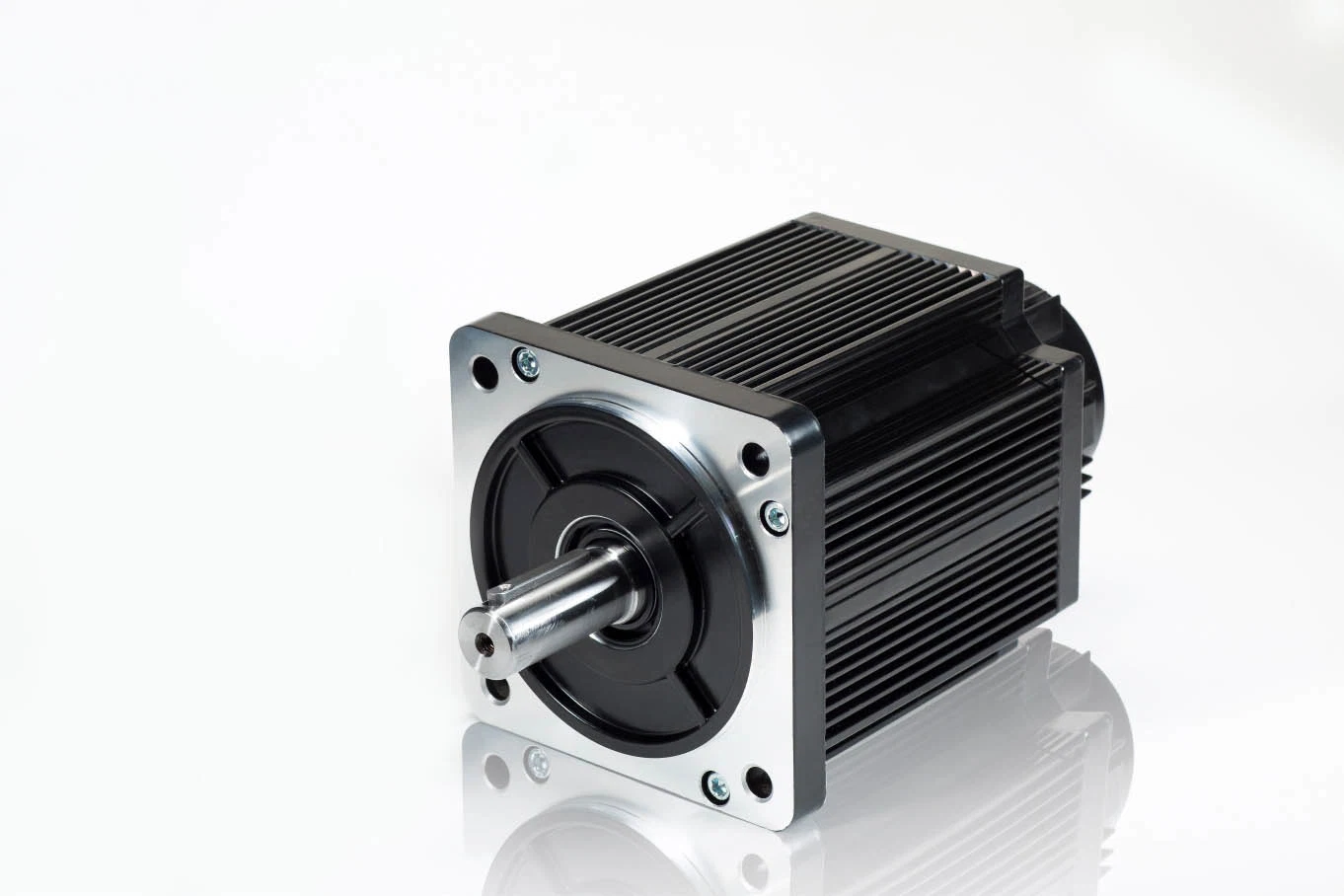

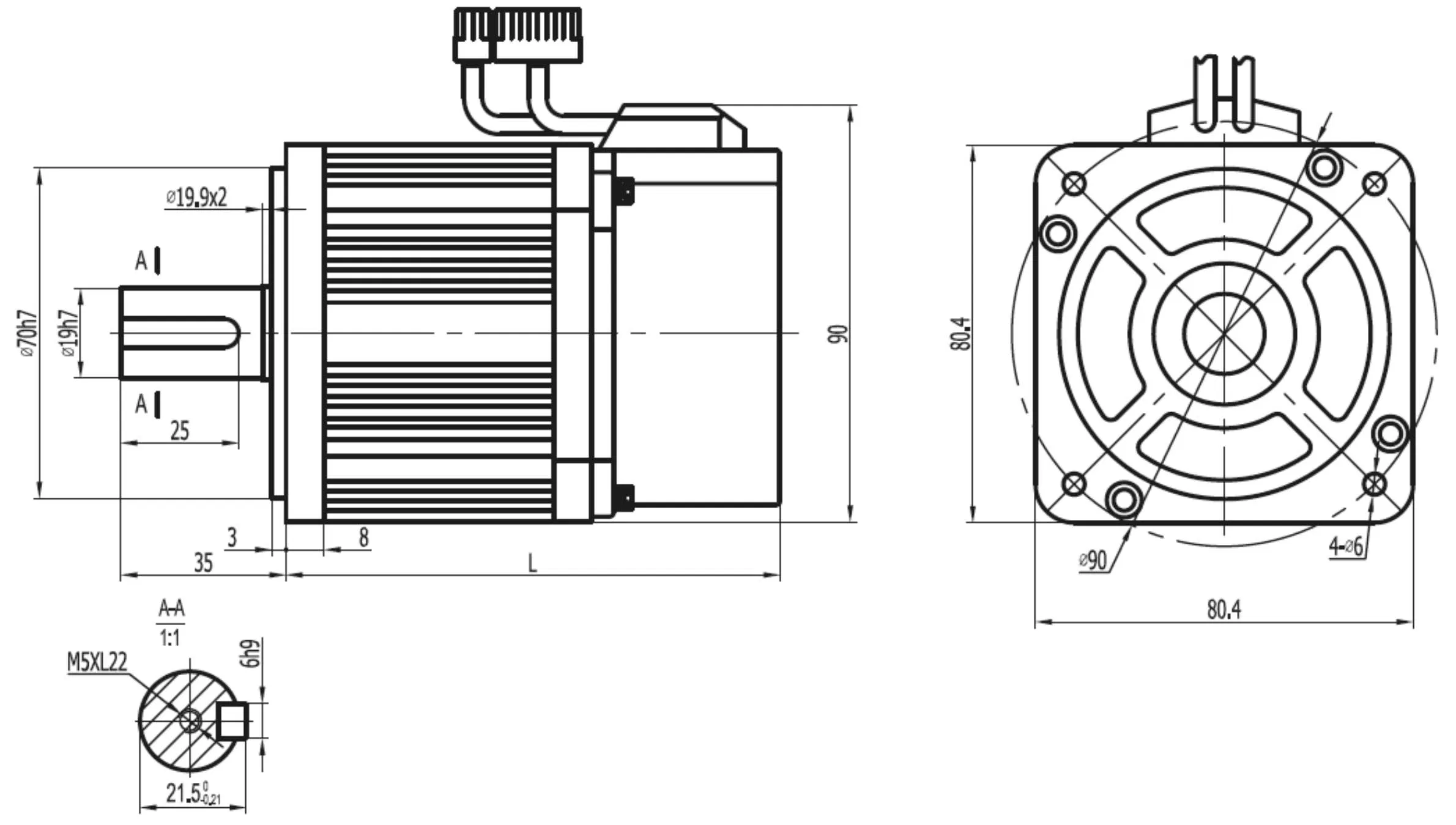

Servo Motor at AC 230V 1kw 2500rpm
Max. Output current: 13.2;Rated Line Voltage: 220V ACRated Torque: 4 N.mTop Torque: 12 N.mNet Weight: 4.1 kgConnect single-phase AC servo drive US112-00R8 (input voltage&col......
Send Inquiry
Product Description
Max. Output current: 13.2;
Rated Line Voltage: 220V AC
Rated Torque: 4 N.m
Top Torque: 12 N.m
Net Weight: 4.1 kg
Connect single-phase AC servo drive US112-00R8 (input voltage: 170~253VAC, 50/60Hz)
The environment characteristic is suitable within -20 to 40 degree celsius and lower to 90% humidity.
UniMAT US100 Series Servo System Standard Configuration Chart
US200 Series Servo Motor Specification
Rated Line Voltage: 220V AC
Rated Torque: 4 N.m
Top Torque: 12 N.m
Net Weight: 4.1 kg
Connect single-phase AC servo drive US112-00R8 (input voltage: 170~253VAC, 50/60Hz)
The environment characteristic is suitable within -20 to 40 degree celsius and lower to 90% humidity.
UniMAT US100 Series Servo System Standard Configuration Chart
Serial Number | Power Range | Servo Driver Model No. | Servo Motor Model No. | Motor Cable Model No. | Encoder Cable Model No. |
| 1 | 200W | US112-00R8 | UM060-00R20-30BA | USCM03-05C | USCE03C (Soft Cable) |
2 | 400W | UM060-00R40-30BA | |||
| 3 | 750W | UM080-00R80-30BA | |||
| 4 | 1kW | UM080-01R00-25BA | |||
| USCM03-10A | USCE03A (Soft Cable) | ||||
5 | 2.0kW | US132-02R0 | UM130-02R00-25DA |
US200 Series Servo Motor Specification
Motor Type | UM060-00R20-30BA | UM060-00 R40-30BA | UM080-00R80-30BA | UM080-01 R00-25BA | UM110-01R50-30DA | UM130-02R00-25DA | ||||||||
| Rated Power (KW) | 0.2 | 0.4 | 0.75 | 1.0 | 1.5 | 2.0 | ||||||||
| Rated Thread voltage(V) | 220 | 220 | 220 | 220 | 220 | 220 | ||||||||
| Rated Thread Current(A) | 1.2 | 2.8 | 3 | 4.4 | 6 | 7.5 | ||||||||
| Rated Speed (rpm) | 3000 | 3000 | 3000 | 2500 | 3000 | 2500 | ||||||||
| Rated torque (N.m) | 0.637 | 1.27 | 2.39 | 4.0 | 5 | 7.7 | ||||||||
| Top torque (N.m) | 1.91 | 3.9 | 7.1 | 12 | 15 | 22 | ||||||||
| Top current (A) | 9 | 13.2 | 22.5 | |||||||||||
| Back emf (V/krpm) | 30.9 | 29.6 | 48 | 56 | 62 | 68 | ||||||||
| Coefficient of torque (N.m/A) | 0.53 | 0.45 | 0.8 | 0.9 | 0.83 | 1.06 | ||||||||
| Rotor inertial (Kg.m2) | 0.175×10-4 | 0.29×10-4 | 1.82×10-4 | 2.97×10-4 | 0.63×10-3 | 1.53×10-3 | ||||||||
| Winding resistance (Ω) | 6.18 | 2.35 | 2.88 | 1.83 | 1.03 | 1.01 | ||||||||
| Winding inductance (mH) | 29.3 | 14.5 | 6.4 | 4.72 | 3.43 | 2.94 | ||||||||
| Electrical time constant (ms) | 4.74 | 6.17 | 2.22 | 2.58 | 3.33 | 3.8 | ||||||||
| Weight (Kg) | 1.16 | 1.6 | 2.9 | 4.1 | 6.8 | 10 | ||||||||
| Encoder thread (PPR) | 2500 | |||||||||||||
| Degree of motor Insulation | Class F | |||||||||||||
| Protection degree | IP65 | |||||||||||||
| Environment | Temperature:-20ºC~40ºC,Humidity<90%(Non condensing) | |||||||||||||
| Motor winding socket | Winding leads | U(red) | V(yellow) | W(blue) | PE(yellow green/black) | |||||||||
| Socket No. | 1 | 2 | 3 | 4 | ||||||||||
| Encoder Socket | Signal leads | VCC | GND | A | /A | B | /B | Z | /Z | PE | ||||
| Socket No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | |||||
