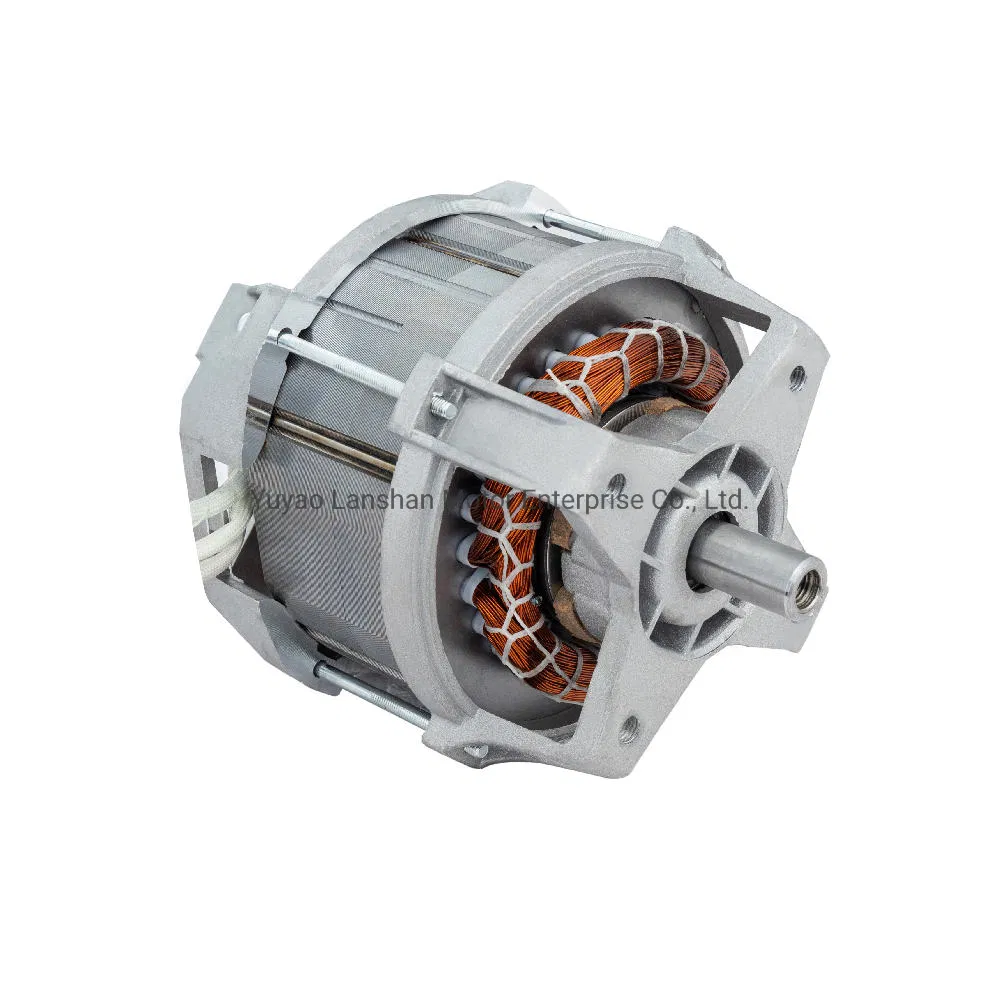

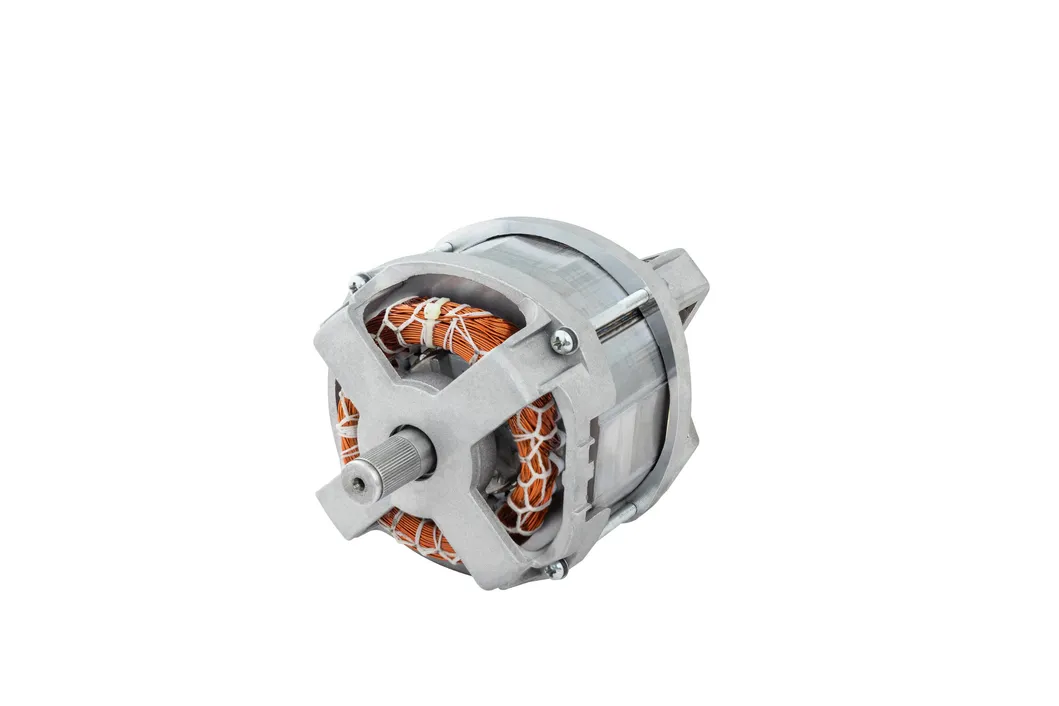

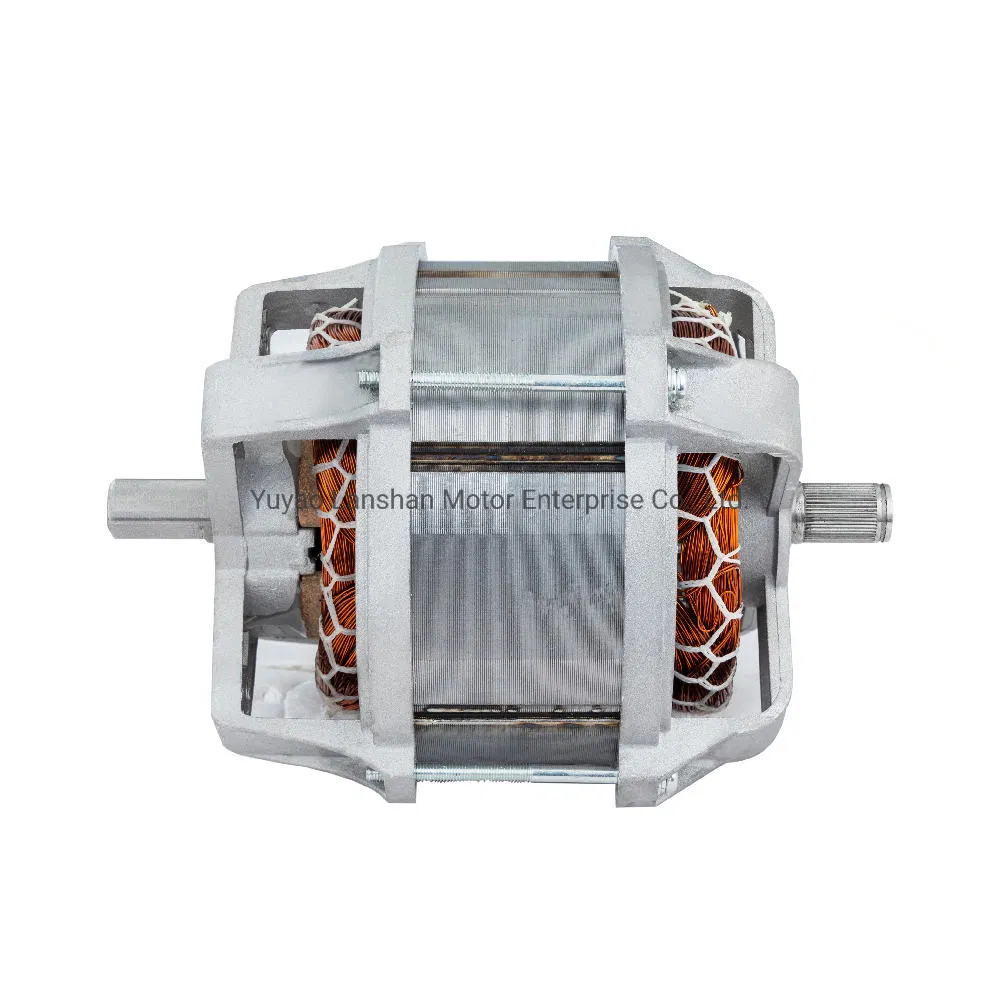

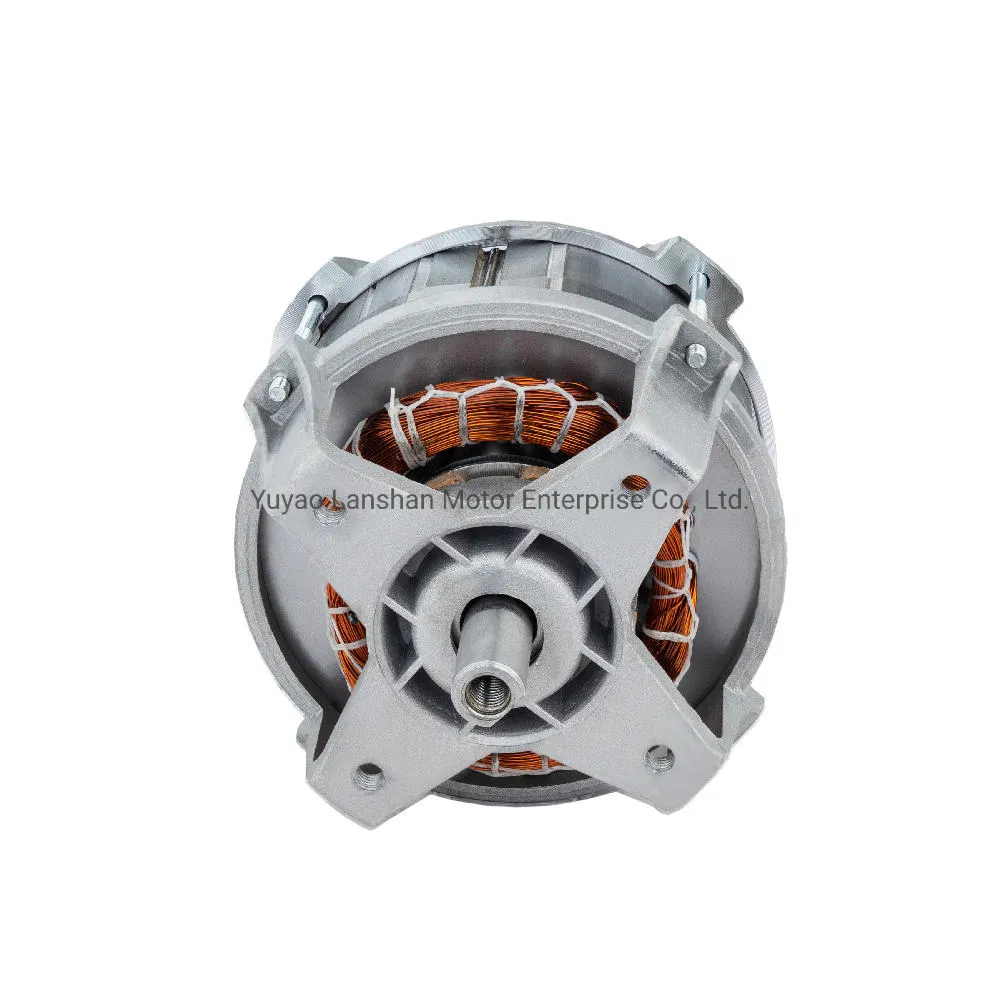

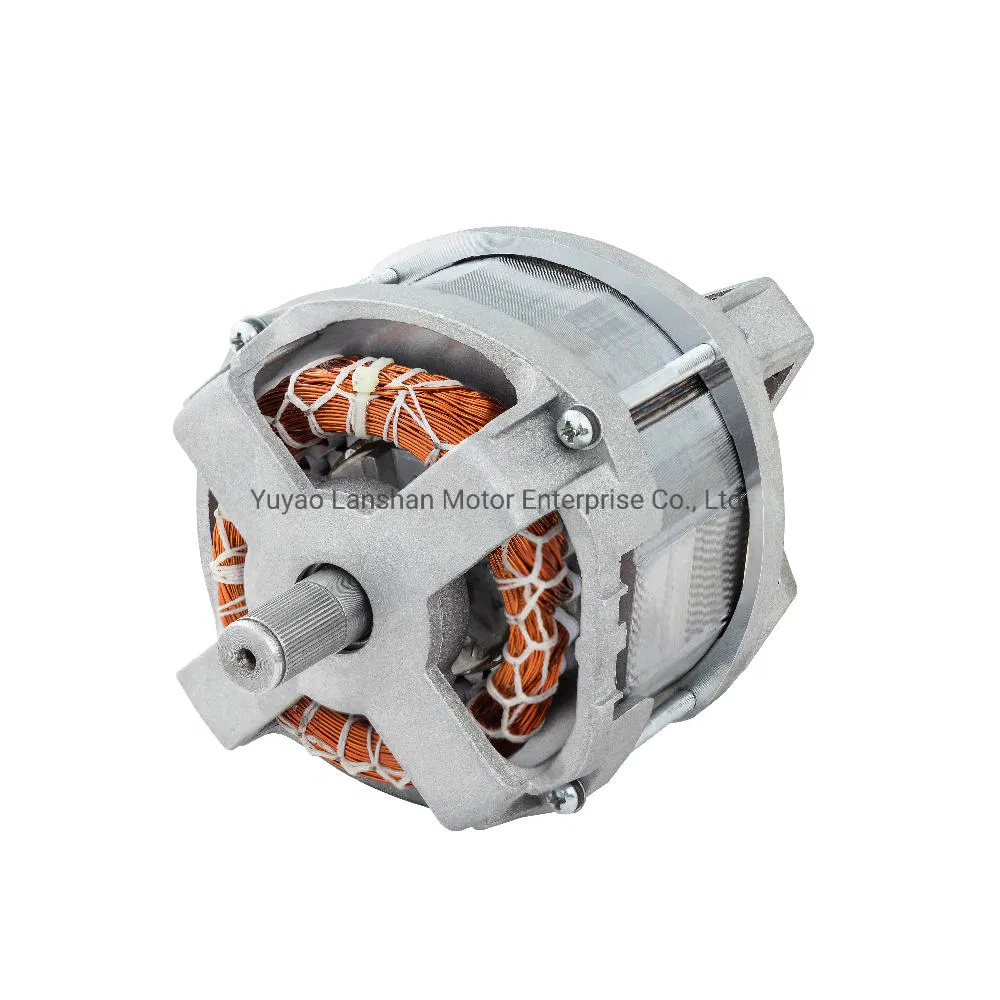

Lanshan 132 Series Outer Dia 132mm 1800W 2700rpm 4.5nm Outer Door Power Equipment AC Asynchronous Induction Motor
Detailed PhotosProduct Name:Lanshan Induction MotorModel No.132seriesBrand:LANSHANApplication:for lawn mower,Silent wood chipper shredderMotor stack high65mmRated Voltage:230VRated Power:1800WDiameter:φ132mmRated Torque:4.5N.mRated Current:8ARated Speed:2700rpmCustomized:yesPositive Inversio......
Send Inquiry
Product Description
Product Name: | Lanshan Induction Motor |
Model No. | 132series |
Brand: | LANSHAN |
Application: | for lawn mower,Silent wood chipper shredder |

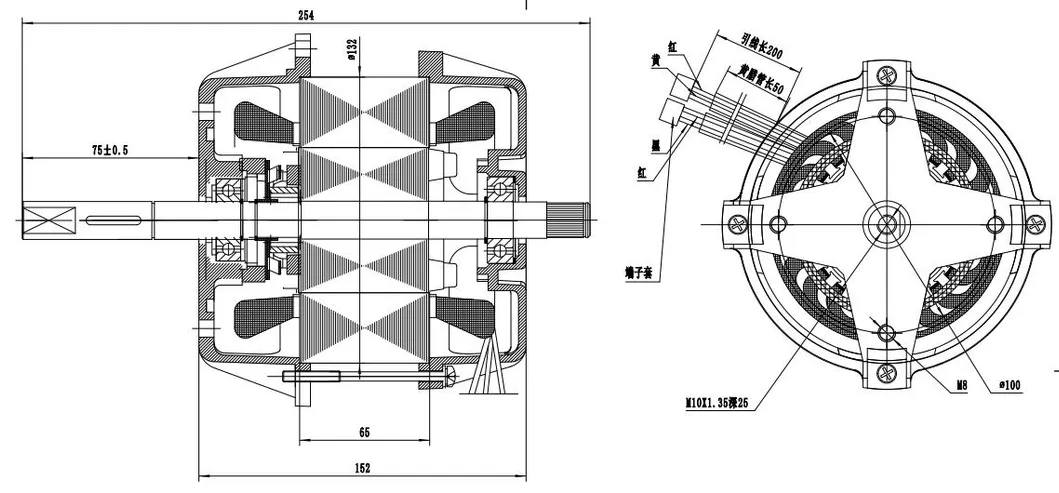

Motor stack high | 65mm |
Rated Voltage: | 230V |
Rated Power: | 1800W |
Diameter: | φ132mm |
Rated Torque: | 4.5N.m |
Rated Current: | 8A |
Rated Speed: | 2700rpm |
Customized: | yes |
Positive Inversion: | yes |
Packing: | foam&carton,or accroding to customers' specific requirements |
MOQ: | 2000 pcs |
Delivery Time: | Depends on quantity from 2 weeks to 4 weeks. |
Payment Term: | T/T, L/C, D/P |
FAQ
1.What're your main products ?
We currently produce Brushed Dc Motors, Brushed Dc Gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors, Ac Motors and High Precision Planetary Gear Box etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
2. How to select a suitable motor?
If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
3.Do you have a customized service for your standard motors?
Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
4. Do you have an individual design service for motors?
Yes, we would like to design motors individually for our customers, but it may need some mold developing cost and design charge.
5. Can I have samples for testing first?
Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.
6.How do you make sure motor quality?
We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
7.What's your lead time?
Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
Weclome contact with us if have any questions about this motor or other products!
