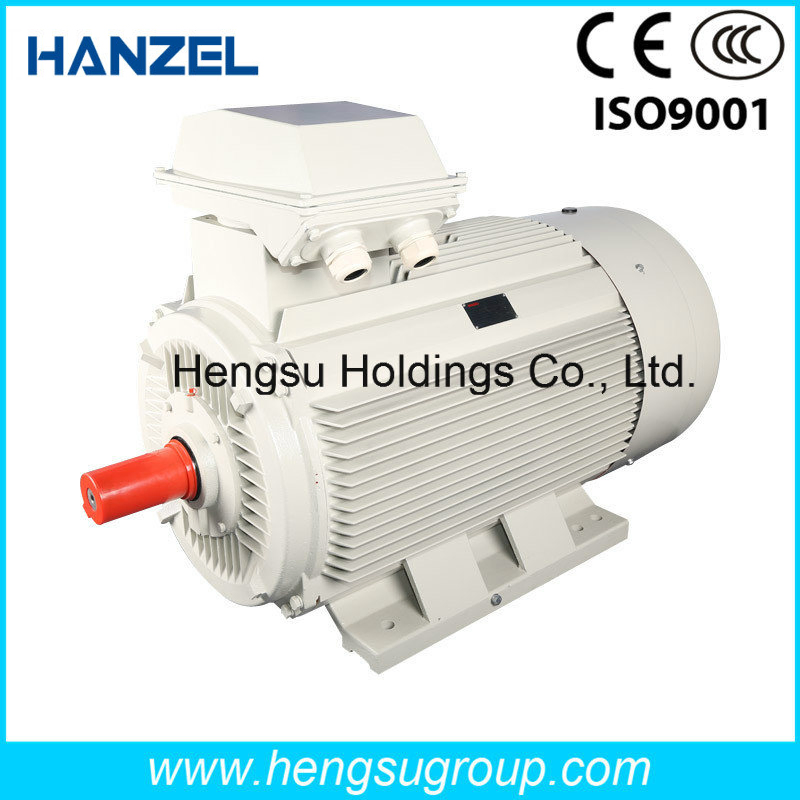

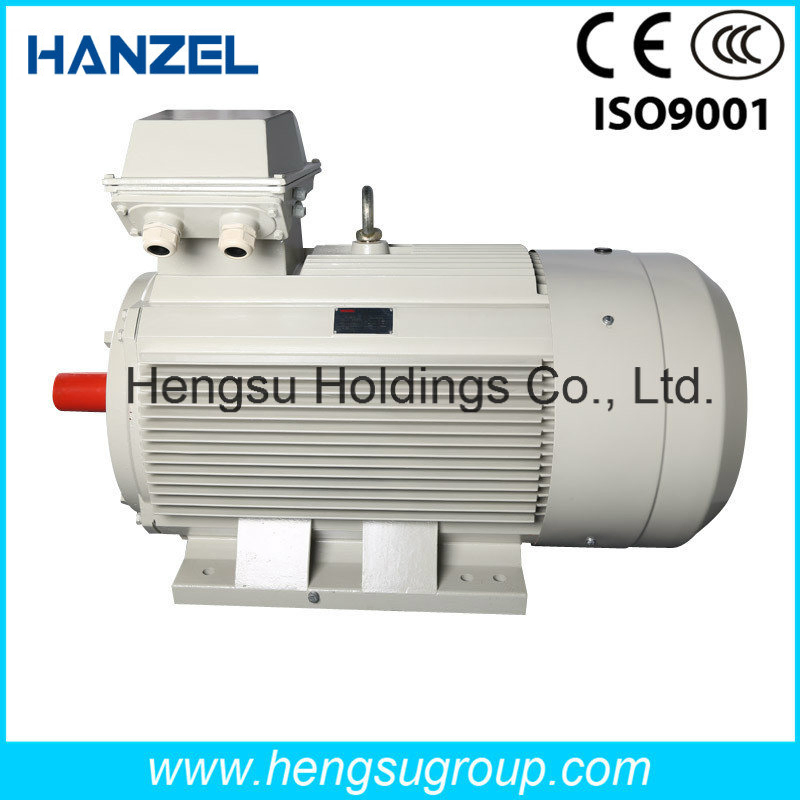

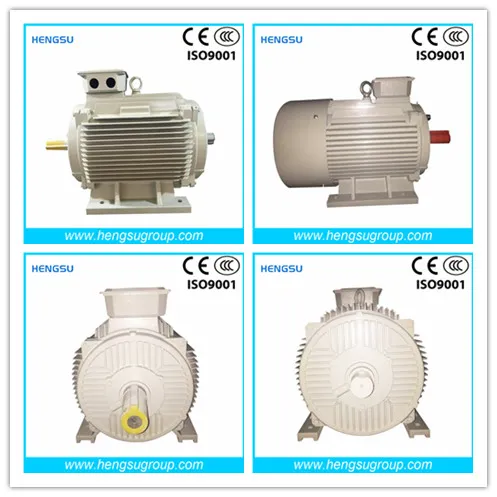

Ie3 1.5kw 960rpm Three Phase AC Asynchronous Squirrel Cage Electric Motor for Water Pump, Air Compressor

The YE3 series premium efficiency three-phase asynchronous motor is inline with IE3 efficiency standard in the provisions of IEC60034-30-2008.And the improvement of the efficiency in its design is in line with the state's requirements on the energy saving and consumption reducing of the manufacturing sector.
  YE3 series premium efficiency three-phase asynchronous motor with the mounting dimension in accordance with standard IEC60034,it has good features like optimum structure, attractive appearance, low noise, high efficiency, high protection class as well as high insulation class.YE3 series premium efficiency three-phase asynchronous motor can be widely used in various kinds of general use machineries like fans, pumps, machine tools, compressors, transportation and so on, and can also be used in the hazardous areas with oil and chemical, steel plants, mining industry.

Detail:
Operating conditions
Ambient temperature: -20senti degree≤ 0≤ 40senti degree
Altitude:lower than 1000 meters above sea level

Temperature and Insulation class
Motors are based on F (155ºC) ,B (80K),
to keep motor life and reliability

Cooling and Ventilation
Fully enclosed self fan cooling(TEFC).
Motor is fixed with auxiliary flow type
Plastic fan which is complying with
the provisions of 60034-6 IEC Ic411

Insulation class
Motor protection class is Ip55 which
can be used for dust or humidity
environment, and we can provide
a higher level of protection of motor

Motor protection
AS need, motor can be installed of PTC,
Pt100 and other winding resistance and
Bearing temperature measurement and
Protection device.

Voltage and frequency
The standard voltage is 380V/50Hz.
which can be designed among
200-600V,in the case of deviation
5%, the motor still can work good.

Vibration
Vibration speed of Ye3 series motor
in the no-load is in line with class A,
special requirement, we can provide
class B.

Terminals block box location
The terminal block box is on the
top or one the right side as the standard
Ye2 series motor.

Quality assurance

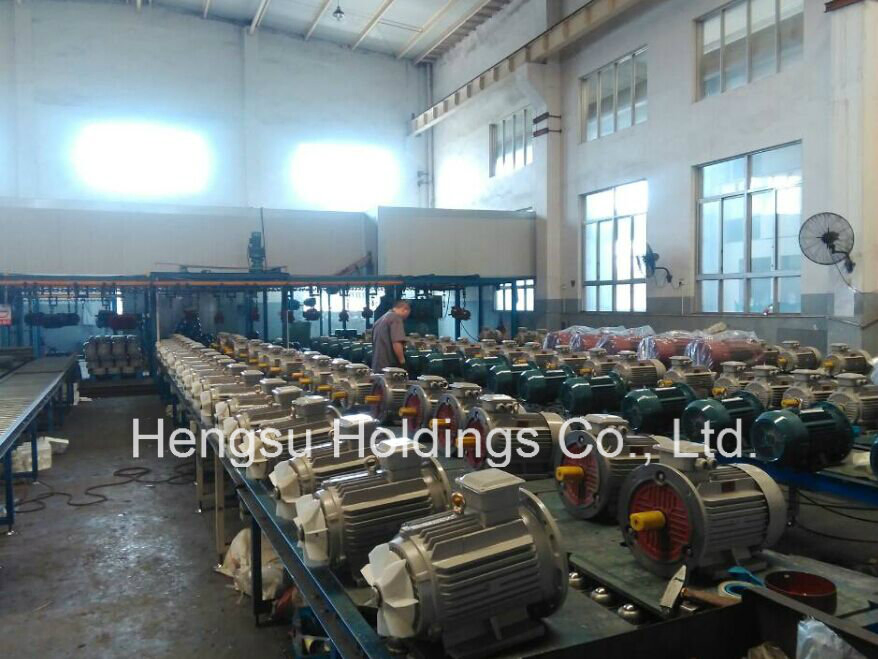

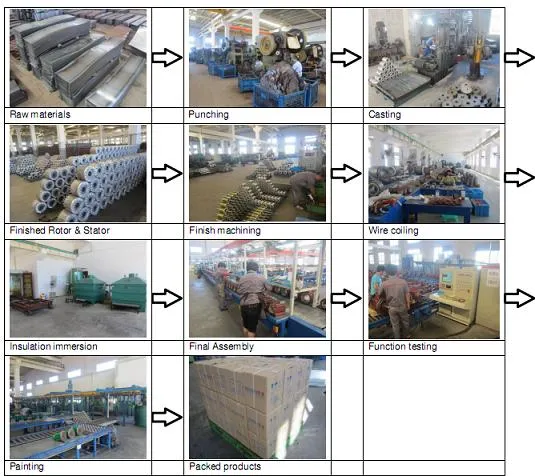

From design to produce factory,
we strictly follow the ISO9001 quality
certification system and procedures.
