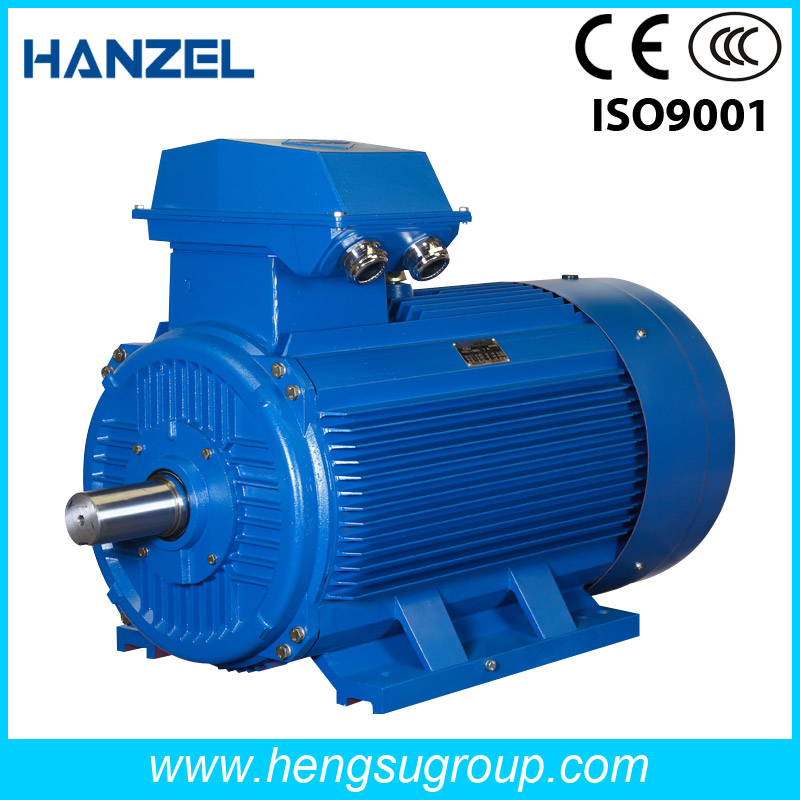

Ie2 55kw 960rpm 3 Phase AC Squirrel Cage Induction Electric Motor for Water Pump, Air Compressor
Detail:Operating conditionsAmbient temperature: -20senti degree≤ 0≤ 40senti degreeAltitude:lower than 1000 meters above sea level Temperature and Insulation classMotors are based on F (155ºC) ,B (80K),to keep motor life and reliability Cooling and VentilationFully enclosed sel......
Send Inquiry
Product Description
Detail:
Operating conditions
Ambient temperature: -20senti degree≤ 0≤ 40senti degree
Altitude:lower than 1000 meters above sea level
Temperature and Insulation class
Motors are based on F (155ºC) ,B (80K),
to keep motor life and reliability
Cooling and Ventilation
Fully enclosed self fan cooling(TEFC).
Motor is fixed with auxiliary flow type
Plastic fan which is complying with
the provisions of 60034-6 IEC Ic411
Insulation class
Motor protection class is Ip55 which
can be used for dust or humidity
environment, and we can provide
a higher level of protection of motor
Motor protection
AS need, motor can be installed of PTC,
Pt100 and other winding resistance and
Bearing temperature measurement and
Protection device.
Voltage and frequency
The standard voltage is 380V/50Hz.
which can be designed among
200-600V,in the case of deviation
5%, the motor still can work good.
Vibration
Vibration speed of Ye3 series motor
in the no-load is in line with class A,
special requirement, we can provide
class B.
Terminals block box location
The terminal block box is on the
top or one the right side as the standard
Ye2 series motor.
Quality assurance

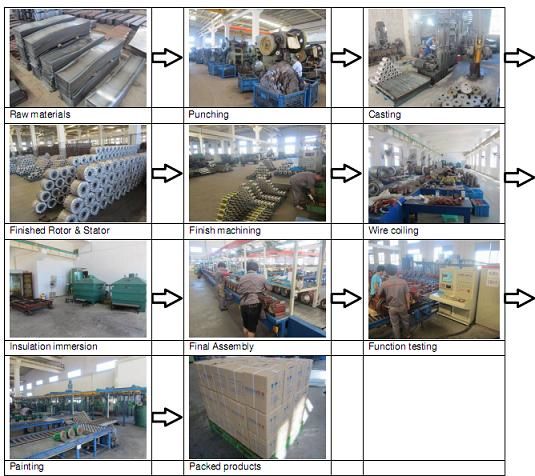

From design to produce factory,
we strictly follow the ISO9001 quality
certification system and procedures.
