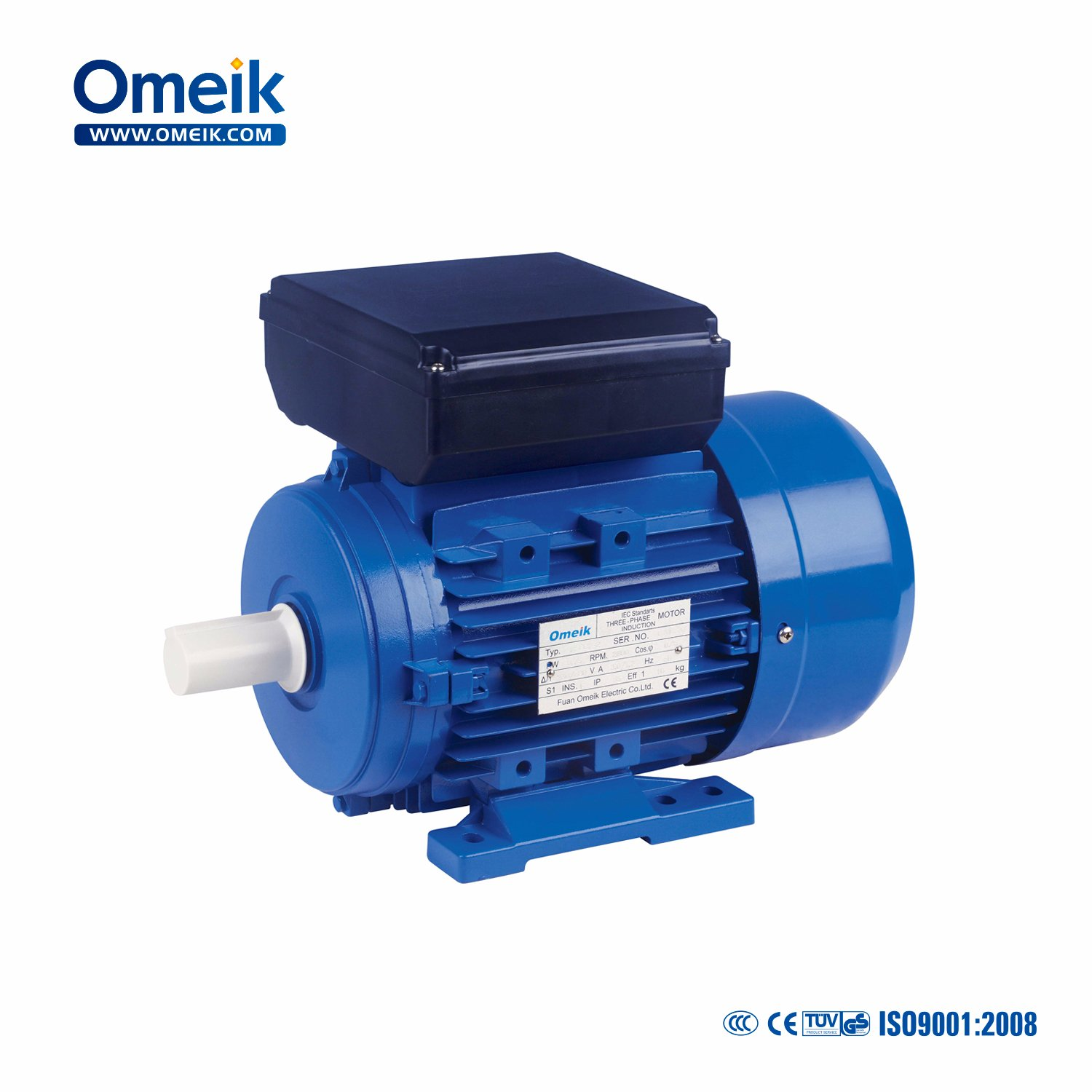

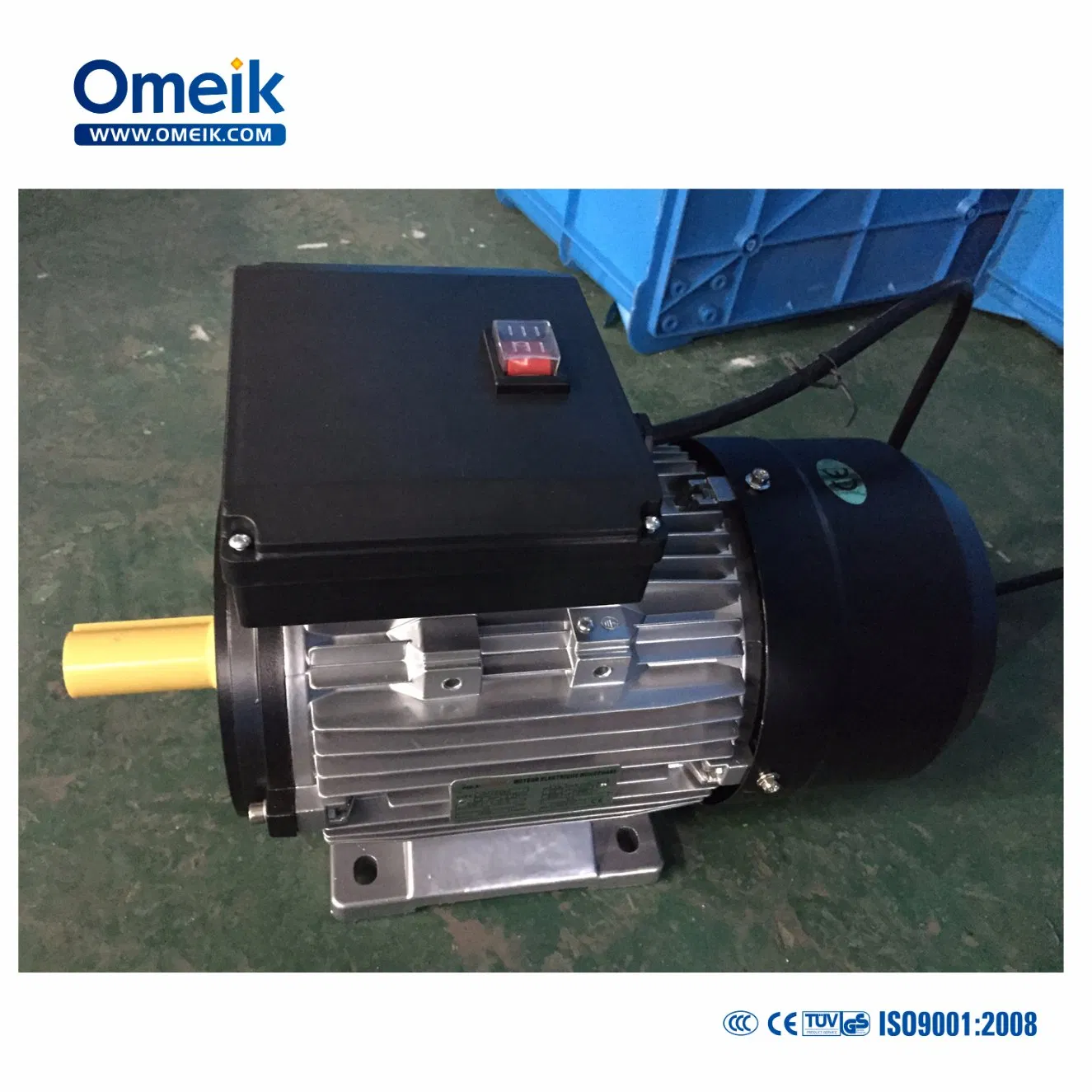

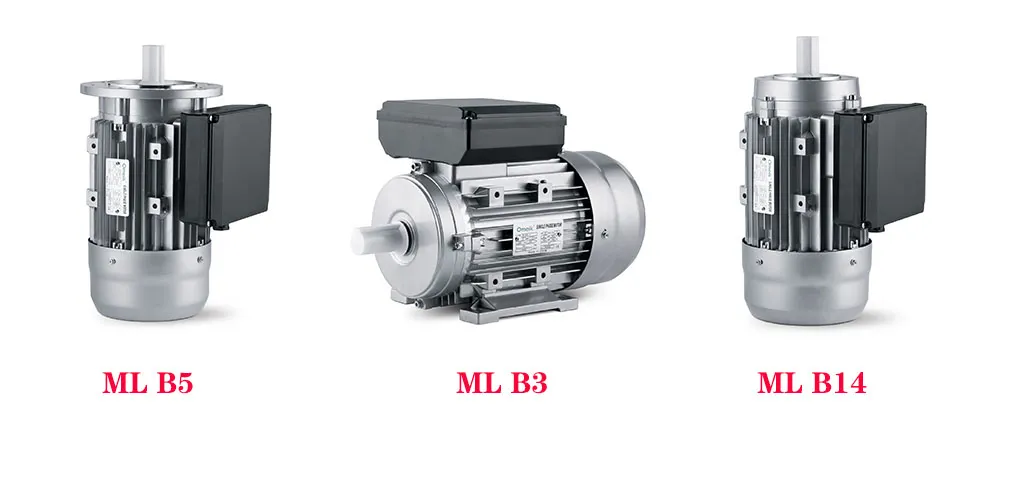

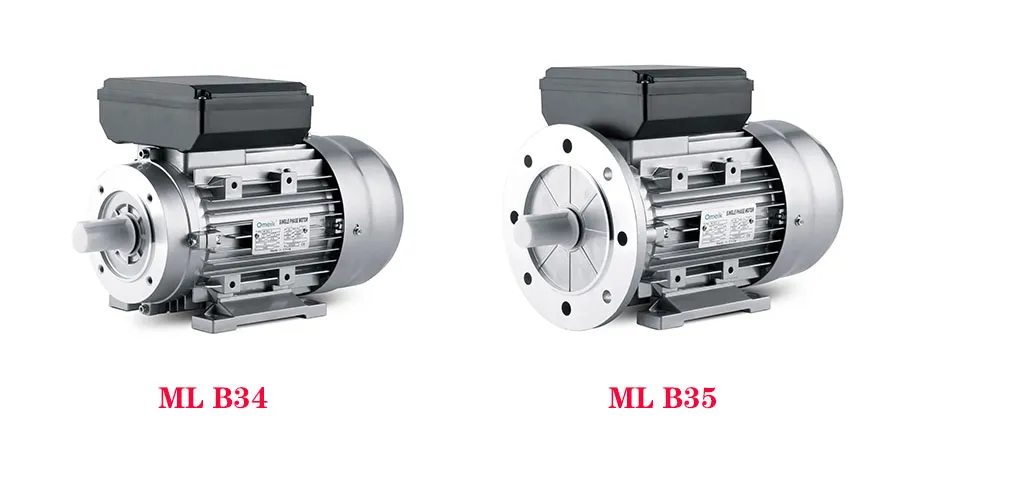

Hot Sale B3 B14 B5 B34 B35 Ml Single-Phase Asynchronous Motor 1.5HP
Advantage1. Good performance2. Safety & reliable operation3. Nice appearance4. Easy maintainance5. Low noises6. Little vibration7. Light weight & simple construction.Application:ML series small electric motors are suitable for the occasion where the requirements of big starting torque and hi......
Send Inquiry
Product Description
Advantage
1. Good performance
2. Safety & reliable operation
3. Nice appearance
4. Easy maintainance
5. Low noises
6. Little vibration
7. Light weight & simple construction.
Application:
ML series small electric motors are suitable for the occasion where the requirements of big starting torque and high over load, such as air compressors, pumps, fans, medical apparatus and instruments, and many other small machines.
Operating Conditions:
1. Ambient temperature: -15 degree Celsius≤ θ ≤ 40degree Celsius
2. Altitude: ≤ 1000m
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55
8. Cooling method: IC0141
Note: If you have any special requirements, please contact us.
| Model | Output | Current | Power | Eff | Speed | Tstart/Tn | Ist/In | Tmax/Tn | |
| KW | HP | (A) | Factor | (%) | (r/min) | ||||
| ML711-2 | 0.37 | 0.5 | 2.6 | 0.95 | 68 | 2760 | 2.2 | 6.5 | 1.7 |
| ML712-2 | 0.55 | 0.75 | 3.71 | 0.95 | 71 | 2760 | 2.2 | 6.5 | 1.7 |
| ML801-2 | 0.75 | 1 | 4.92 | 0.95 | 73 | 2780 | 2.2 | 6.5 | 1.7 |
| ML802-2 | 1.1 | 1.5 | 7.02 | 0.95 | 75 | 2780 | 2.2 | 6.5 | 1.7 |
| ML90S-2 | 1.5 | 2 | 9.32 | 0.95 | 77 | 2800 | 2.2 | 6.5 | 1.7 |
| ML90L-2 | 2.2 | 3 | 13 | 0.95 | 78 | 2800 | 2.2 | 6.5 | 1.7 |
| ML100L-2 | 3 | 4 | 18.2 | 0.95 | 79 | 2820 | 2 | 7 | 1.7 |
| ML112M-2 | 3.7 | 5 | 22.1 | 0.95 | 80 | 2820 | 2 | 7 | 1.7 |
| ML711-4 | 0.25 | 0.33 | 1.9 | 0.95 | 63 | 1360 | 2.2 | 6.5 | 1.7 |
| ML712-4 | 0.37 | 0.5 | 2.64 | 0.95 | 67 | 1360 | 2.2 | 6.5 | 1.7 |
| ML801-4 | 0.55 | 0.75 | 3.76 | 0.95 | 70 | 1380 | 2.2 | 6.5 | 1.7 |
| ML802-4 | 0.75 | 1 | 4.98 | 0.95 | 72 | 1380 | 2.2 | 6.5 | 1.7 |
| ML90S-4 | 1.1 | 1.5 | 7.11 | 0.95 | 74 | 1400 | 2.2 | 6.5 | 1.7 |
| ML90L-4 | 1.5 | 2 | 9.44 | 0.95 | 76 | 1400 | 2.2 | 6.5 | 1.7 |
| ML100L1-4 | 2.2 | 3 | 13.7 | 0.95 | 77 | 1410 | 2 | 7 | 1.7 |
| ML100L2-4 | 3 | 4 | 18.4 | 0.95 | 78 | 1420 | 2 | 7 | 1.7 |
| ML112M-4 | 3.7 | 5 | 22.4 | 0.95 | 79 | 1420 | 2 | 7 | 1.7 |

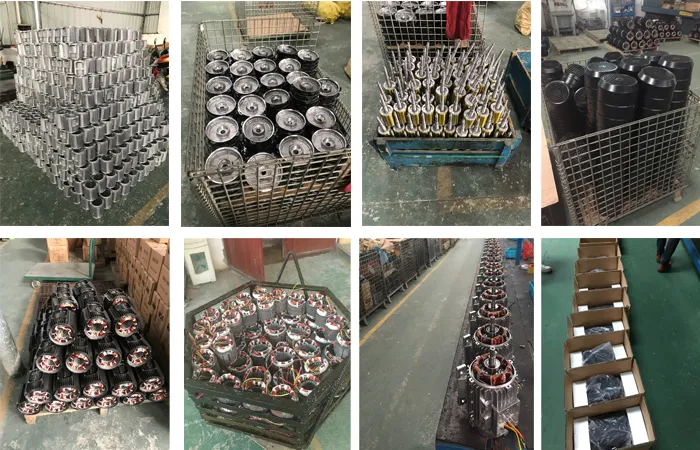

SPARE PARTS:

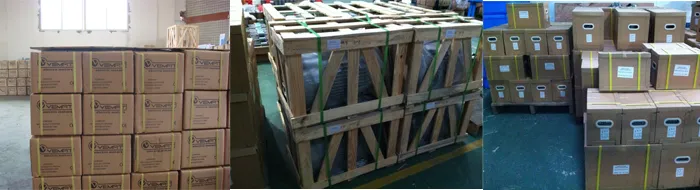

PACKING WAYS
FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
Q: What certifiicates do you have?
A: We have CE, ISO. And we can apply
