Product Description
PROFESSIONAL MANUFACTURER OF SINGLE-PHASE SERIES MOTOR /GEAR MOTOR
Power,Speed,Torque,Shaft ,Stator Lamination,Rotation And Installing Location
can be customized according to customer's requirements.
Product Description
| Product Name: | AC Single phase series motor |
| Model No. | XJ7625 |
| Brand: | XINJIA |
| Application: | for Grinder/Lawn mower/High Speed Blender/Mixer |
| Starting Mode | Direct on-line Starting |
| Rated Voltage: | 100/110/120/127/220/230/240 V |
| Rated Frequency: | 50/60 Hz |
| No-load Power: | 50-150W |
| No-load Speed: | 13000-30000rpm |
| Load Power: | 100-400W |
| Load Speed: | 8000-16000rpm |
| Rotation Direction: | CW/CCW |
| Insulation Class: | A/E/B/F |
| Protection Grade: | IP00 ~ IP68 |
| Packing: | foam&carton,or accroding to customers' specific requirements |
| MOQ: | 500 pcs |
| Delivery Time: | Depends on quantity from 2 weeks to 4 weeks. |
| Payment Term: | T/T, L/C, D/P |
Remarks:
- The performances as above are just for reference only. We can adjust our motor specifications according to customer's requirements.
- OEM & ODM are both available. Please feel free to contact us with your detailed requirements .
- If ask for quotation, please tell voltage, draft, input power, air flow at least, so we could quote fast.

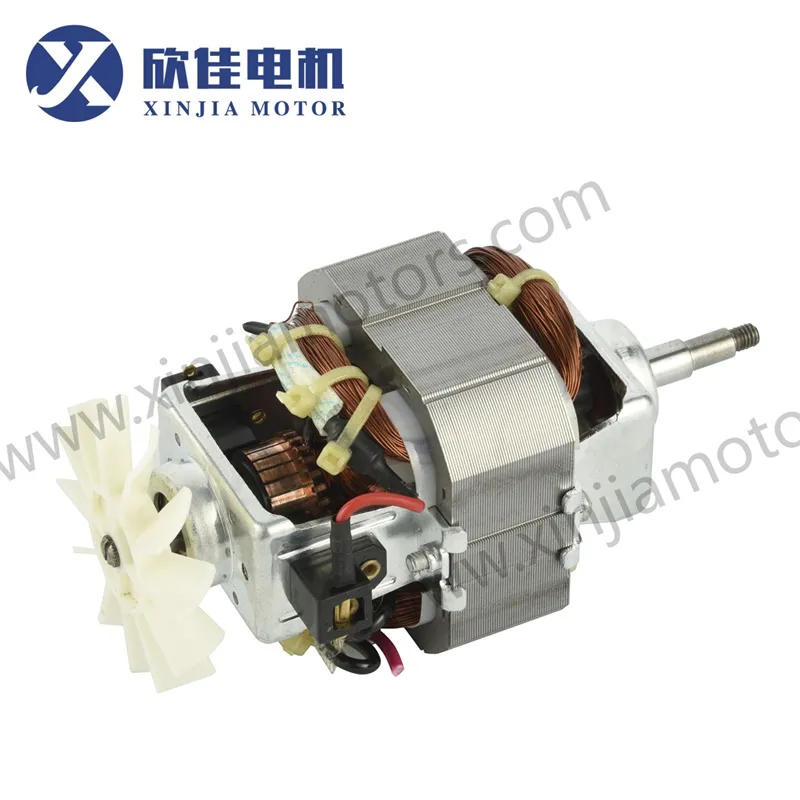

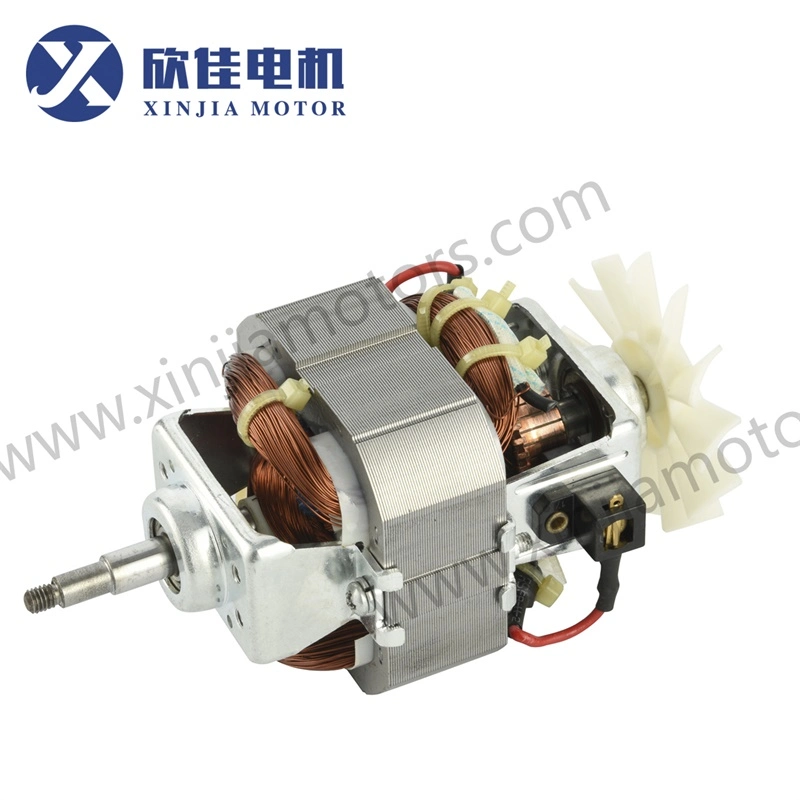

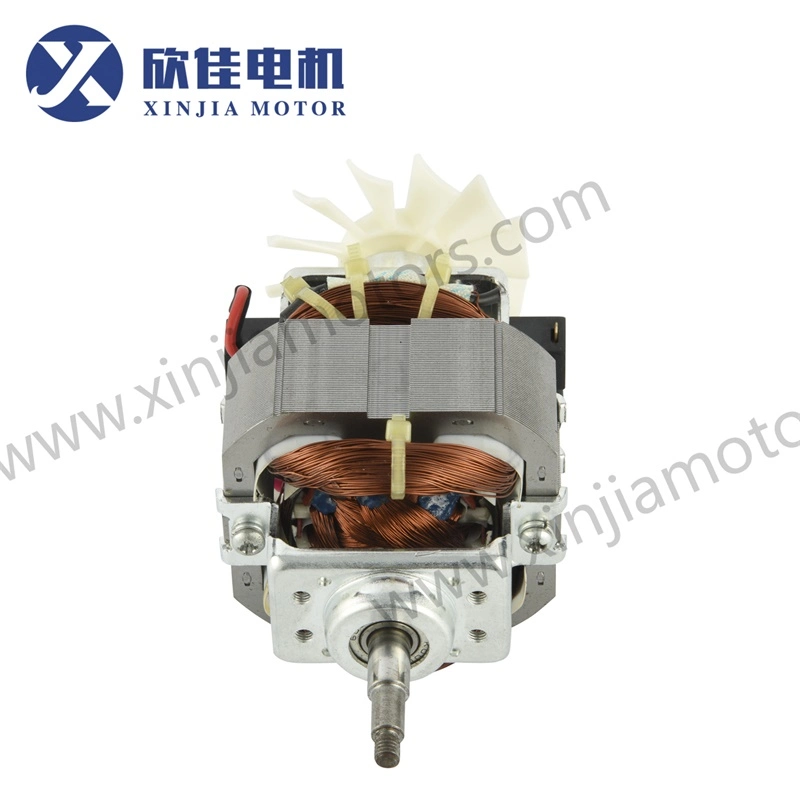

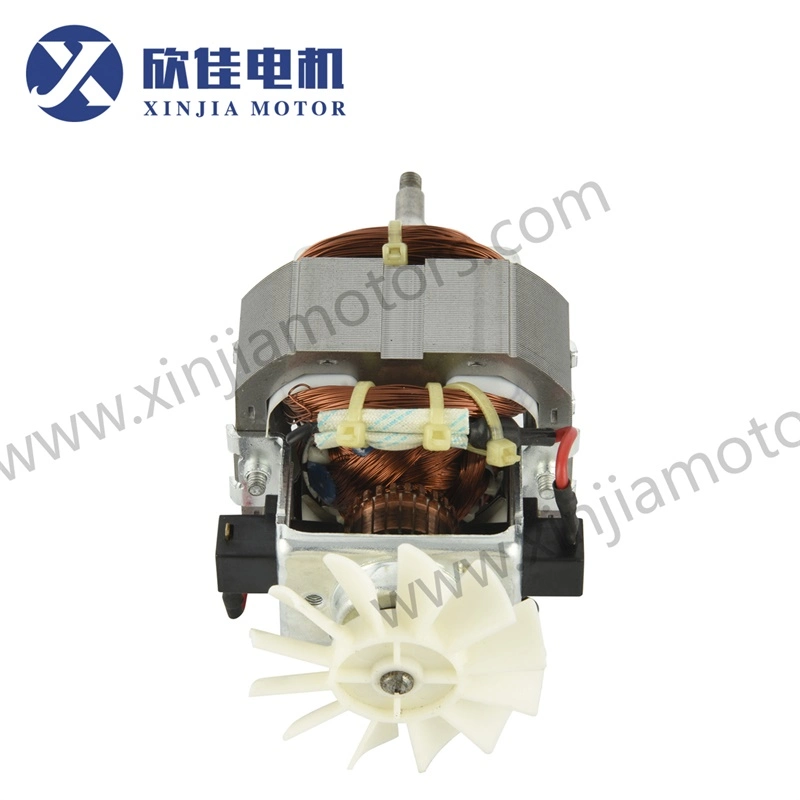

Detail View

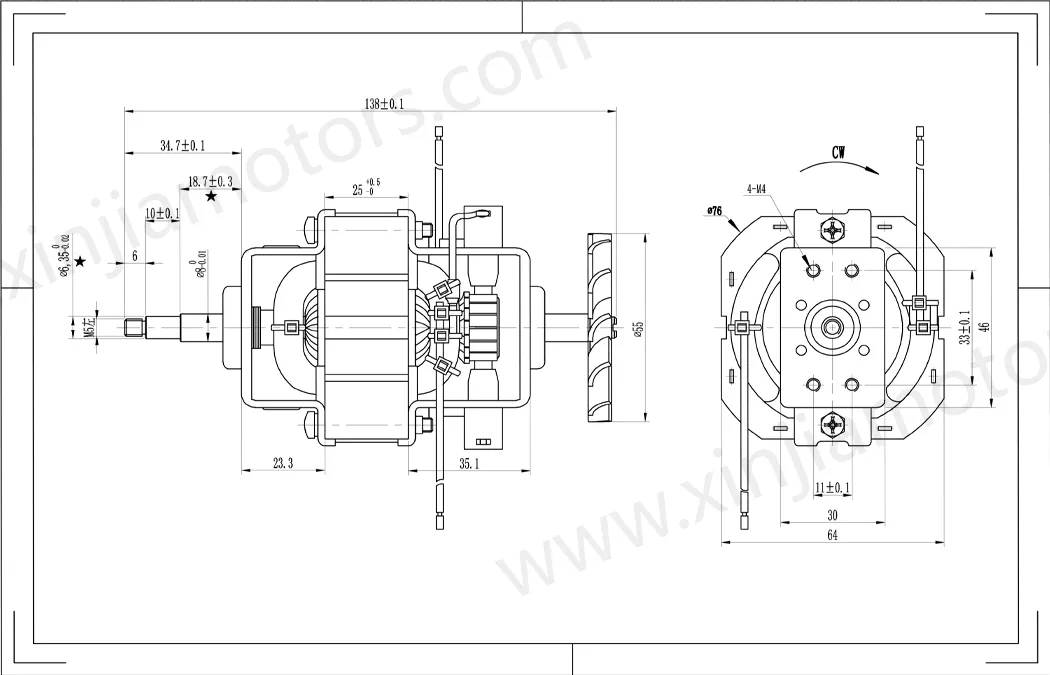

Assembly Drawning
