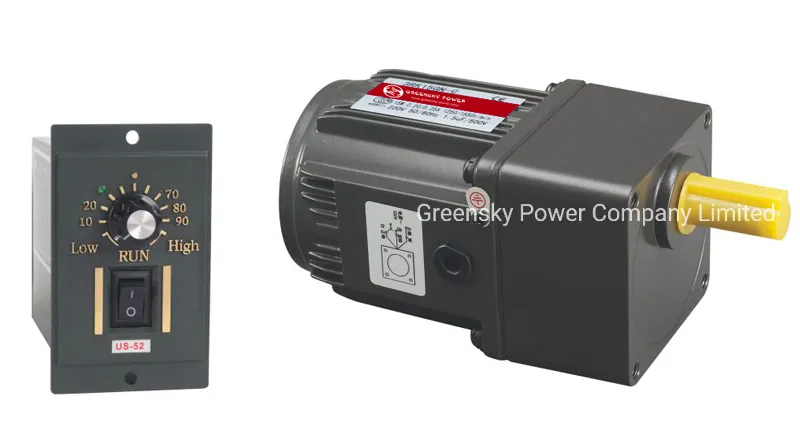

GS AC Reversible 6W 60mm Gear Motor 110V 220V Low Speed
IntroductionOur AC induction motor widely used in home appliances, like pellet stove, biomass boilers, ovens, commerical grills, rotisseries, air fresher, blender, heater, dehumidifiers, etc.1. Light weight, compact dimension ;2. Wide speed range and high torque;3. Low noise and high efficiency;4. S......
Send Inquiry
Product Description
Introduction
Our AC induction motor widely used in home appliances, like pellet stove, biomass boilers, ovens, commerical grills, rotisseries, air fresher, blender, heater, dehumidifiers, etc.
1. Light weight, compact dimension ;
2. Wide speed range and high torque;
3. Low noise and high efficiency;
4. Stable and safe,long lifetime;

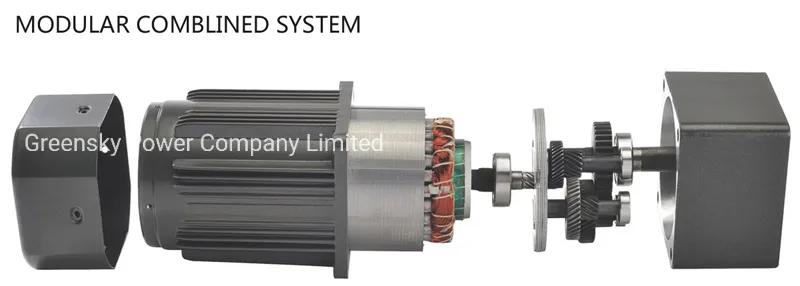

5. Multi-structure, various assembling methods;
6. One-stop solution with speed controller, driver, encoder, brake and transformor available.
Detail Images
Model | Voltage V | Rated Power W | Rated Current A | Rated Speed RPM | Rated Torque N.m | Capacitor uF |
| 2RK6GN-A | 100 | 6 | 0.265 | 1200 | 0.048 | 4.0 |
| 0.232 | 1450 | 0.040 | ||||
| 2RK6GN-E | 110 | 6 | 0.185 | 1450 | 0.040 | 2.5 |
| 120 | 0.200 | |||||
| 2RK6GN-C | 220 | 6 | 0.145 | 1200 | 0.048 | 1.0 |
| 230 | 0.150 | |||||
| 2RK6GN-H | 220 | 6 | 0.165 | 1450 | 0.040 | 1.0 |
| 230 | 0.170 |
Note:
Motor voltage, power and speed will be customized according to your request under the allowed circumstance of adoptable dimension.
FOR OTHER MODELS:
Size: 60 / 70 / 80 / 90 / 100mm
Power: 10 / 15 / 20 / 25 / 40 / 60 / 90 / 120 / 140 / 180W
Voltage: 1ph100 / 1ph110 / 1ph120 / 1ph220 / 1ph230 / 3ph220 (50/60Hz)
Gear Ratio: 3/ 3.6/ 5/ 6/ 7.5/ 9/ 12.5/ 15/ 18/ 25/ 30/ 36/ 50/ 60/ 75/ 90/ 100/ 120/ 140/ 180/ 200

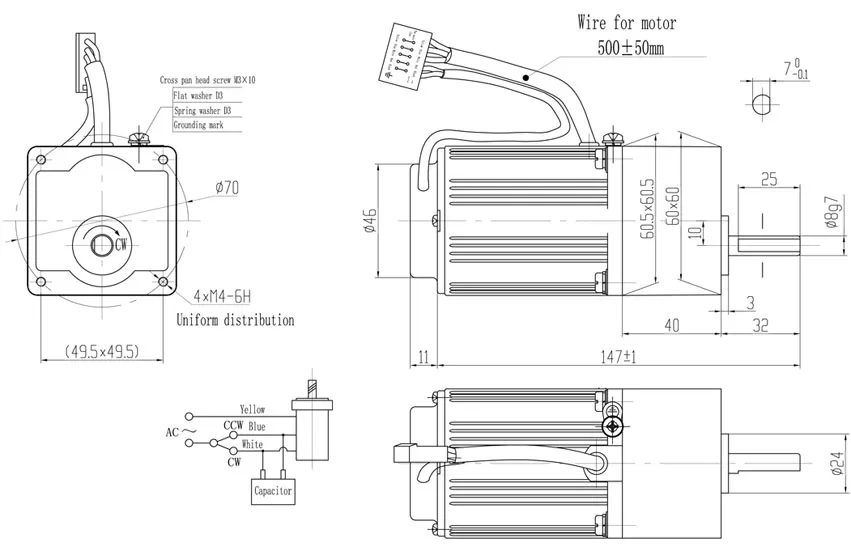

Dimensional Drawing

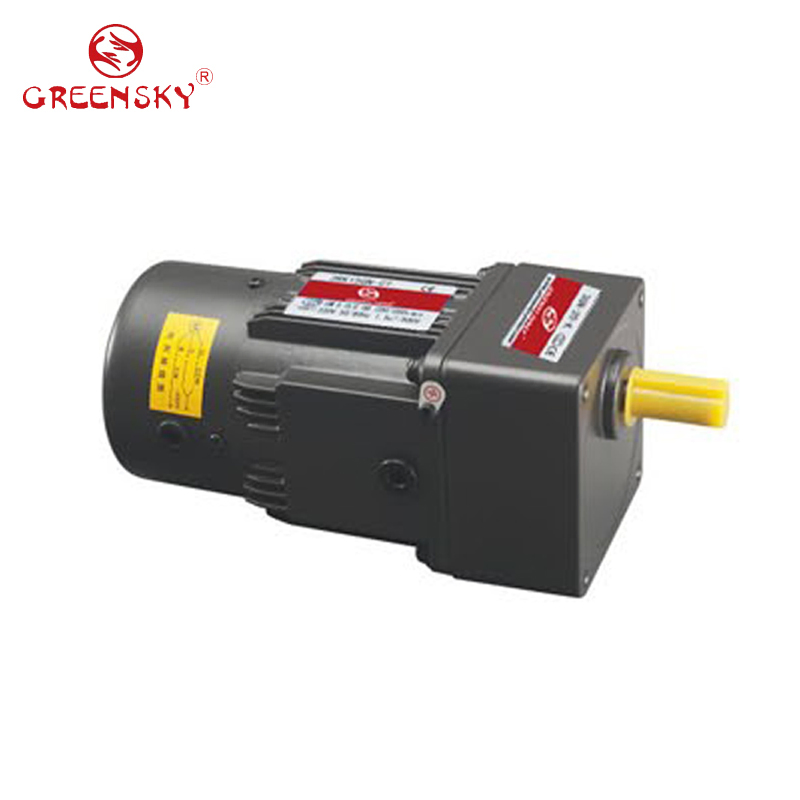

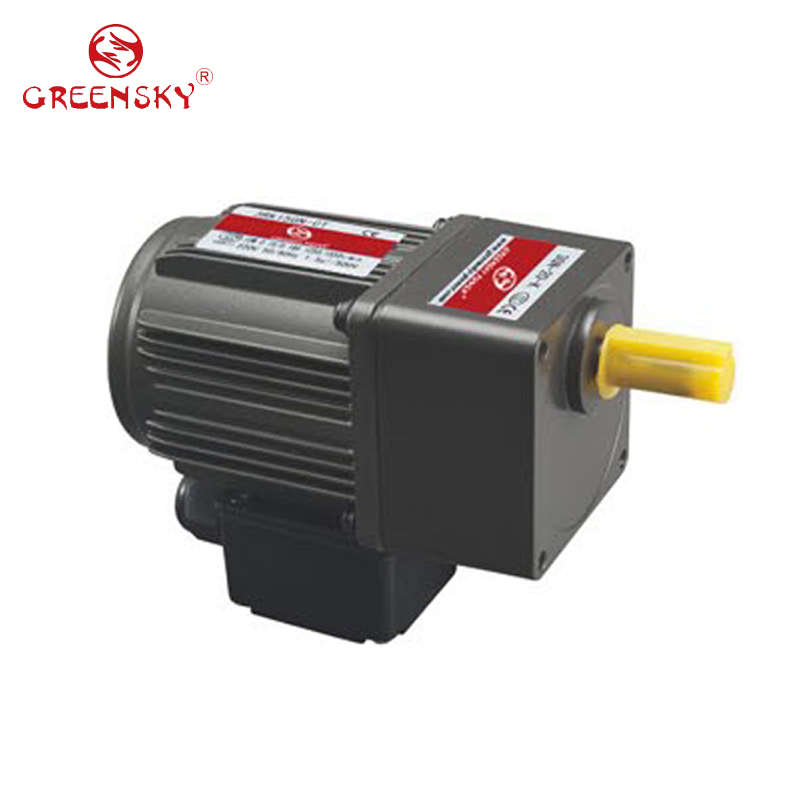

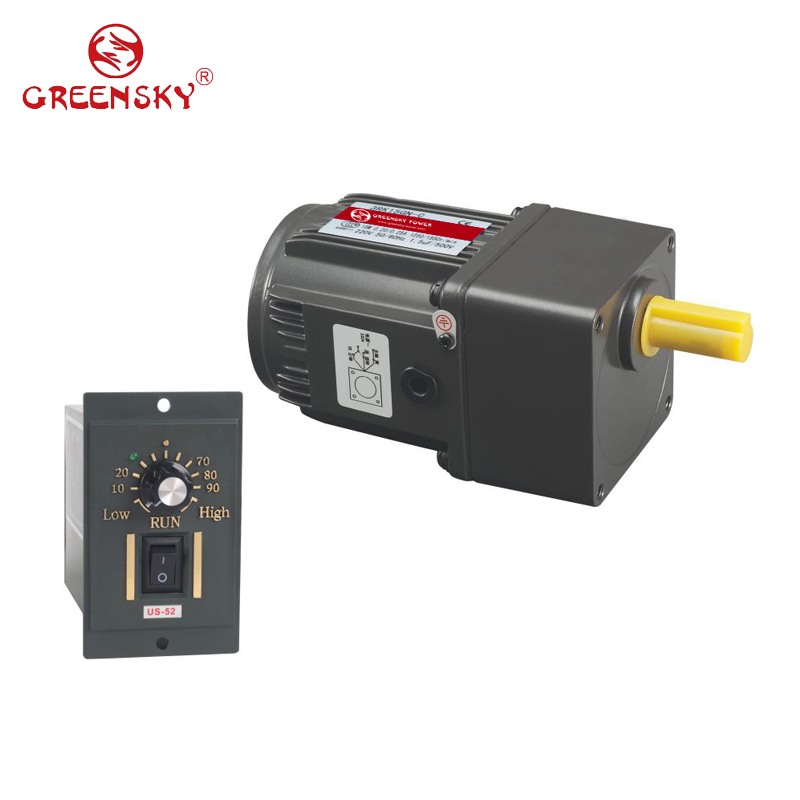

Products picture
Packing and Delivery
Exhibitions

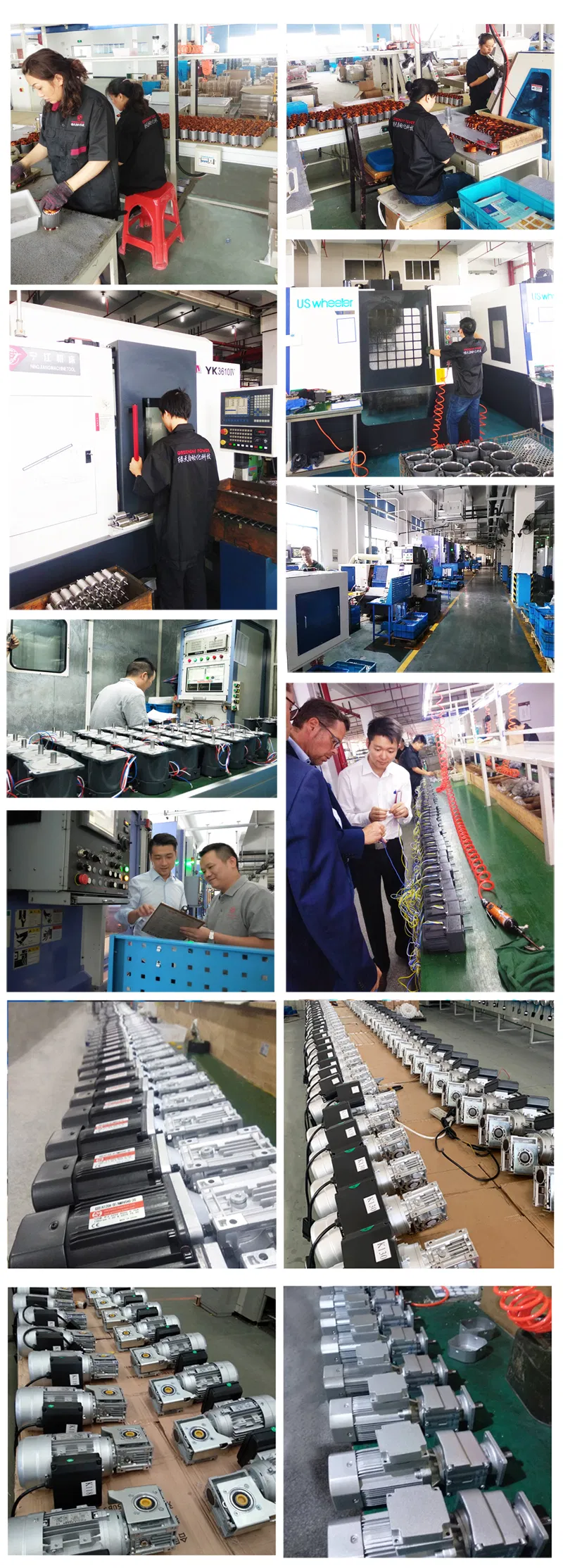

About Greensky Power
Greensky Power Company Limited is a China based international company who is specialized in electric motor, gearbox and controlling system developing, manufacturing, quality controlling and trading.
Mission:
We are dedicated to develop an international electric motor company who can deliver one-stop reliable products with customer-oriented service.
History:
Greensky was established in 2010 by York Cheng in Los Angeles, USA and moved to Hangzhou, China in 2011. In the past years, the team of Greensky continues to create the value to our esteemed customers all over the world by building up wide and reliable supply chain management system, effective quality & delivery time control system, cost efficiency manufacturing system and fast-respond professional service.
Certificates
FAQ
1 Q: What's your MOQ for the gear motor?
A: 1unit is ok for sample testing
2 Q: What about your warranty for your gear motor?
A: One year.
3 Q: Do you provide OEM service with customer-logo?
A: Yes, we could do OEM orders, but we mainly focus on our own brand.
4 Q: How about your payment terms ?
A: TT, western union and paypal. 100% payment in advanced for orders less $5,000. 30% deposit and balance before delivery for orders over $5,000.
5 Q: How about your packing ?
A: Carton, Plywood case. If you need more, we can pack all goods with pallet.
6 Q: What information should be given, if I buy gear motor from you?
A: Rated power, gearbox ratio, input speed, mounting position. More details, better!
7 Q: How do you deliver the gear motors?
A: We will compare and choose the most suitable ways of delivery by sea, air or express courier.
We hope you will enjoy cooperating with us.
