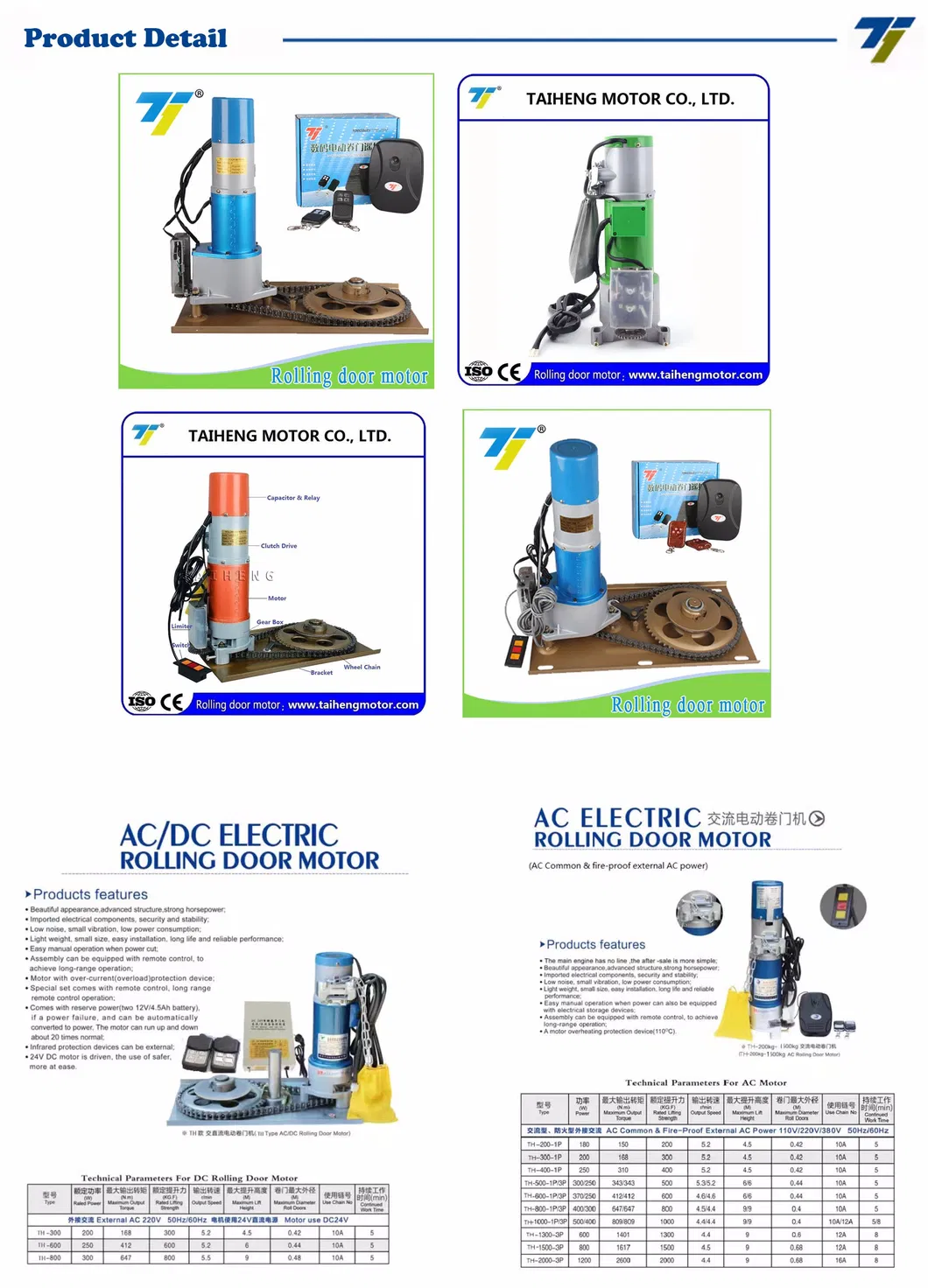

Garage Door Motor Roller Shutter Door Side Door Motor with Strong Lifting
MODEL RATED POWER(w)LIFTING POWER(kg.f)RATED LOADMAX HEIGHT(m)Rated Voltage(V)outputtorque(n/m)outputspeed(r/min)TH-300-1P2003001685.26220V TH-400-1P2504001685,.2620V TH-500-1P2505003436.26220VTH-600-1P3706004125.26220VTH-800-1P4008006473.49220VTH-1000-1P400100011026.59220VTH-800-3P300800......
Send Inquiry
Product Description
| MODEL | RATED POWER(w) | LIFTING POWER(kg.f) | RATED LOAD | MAX HEIGHT(m) | Rated Voltage(V) | |
| outputtorque(n/m) | outputspeed(r/min) | |||||
| TH-300-1P | 200 | 300 | 168 | 5.2 | 6 | 220V |
| TH-400-1P | 250 | 400 | 168 | 5,.2 | 6 | 20V |
| TH-500-1P | 250 | 500 | 343 | 6.2 | 6 | 220V |
| TH-600-1P | 370 | 600 | 412 | 5.2 | 6 | 220V |
| TH-800-1P | 400 | 800 | 647 | 3.4 | 9 | 220V |
| TH-1000-1P | 400 | 1000 | 1102 | 6.5 | 9 | 220V |
| TH-800-3P | 300 | 800 | 647 | 3.4 | 9 | 380V |
| TH-1000-3P | 400 | 1000 | 1102 | 6.5 | 9 | 380V |
| TH-1300-3P | 600 | 1300 | 1372 | 6.5 | 9 | 380V |
| TH-1500-3P | 600 | 1500 | 1610 | 5.7 | 9 | 380V |
| DC 24V | ||||||
| DC 300KG | 200 | 300 | 168 | 3.7 | 6 | 220V |
| DC 500KG | 240 | 500 | 343 | 4.6 | 6 | 220V |
| DC 600KG | 240 | 600 | 412 | 4.2 | 9 | 220V |
| DC-800KG | 380 | 800 | 647 | 3.9 | 9 | 220V |
Characteristics :
1.Compact construction,large torque,and running without noise.
2.With the national patent of Chain-break protection.
3.The motor will not burn down for the protection of thermal effect
4.Separate circuit control ensures the security

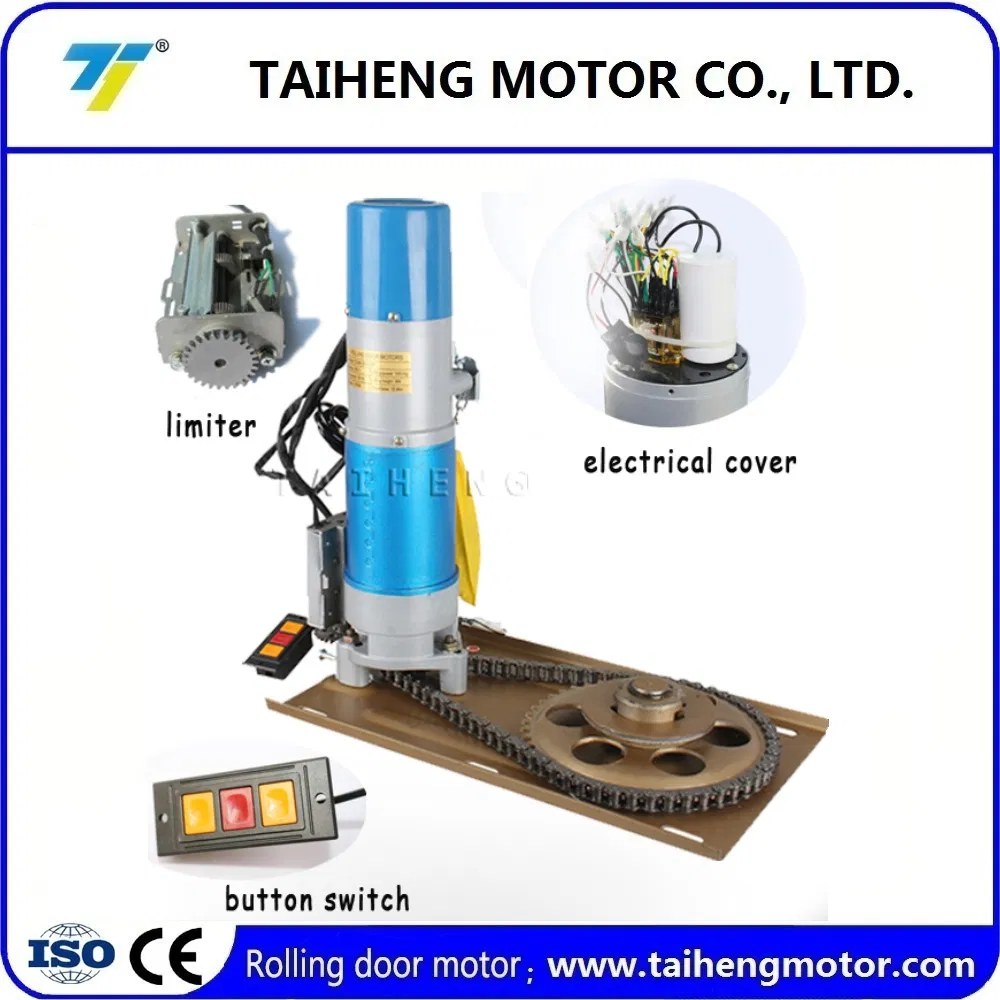

5.Safety brake,accurate limited control positioning,with double limit switch protection, prevent door over roll-up.
6.UPS automatic system is available,No bother of power failure
7.Can work with remote controller
8.Easy to install, easy to maintenance and long useful life.
1. Suitatle for all kingds of roller shutter door
2. Low noise operation
3. Reliable performance,stable and safe
4. Location accuracy less than 1.5 entimeter
5. Roller shutter door may be opened and closed by remote controller
6. According to lifting capacity, range from 300KG,600KG,800KG,1000KG,1300KG,1500KG;2000KG

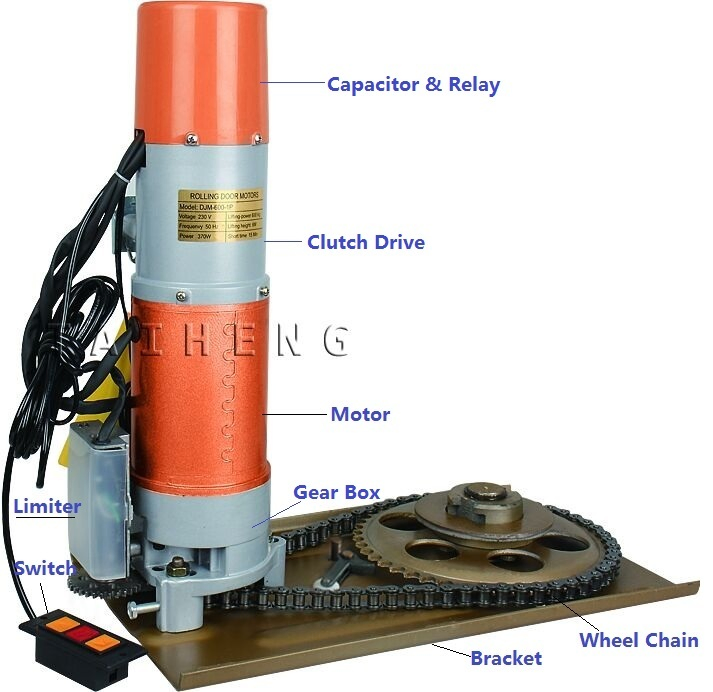

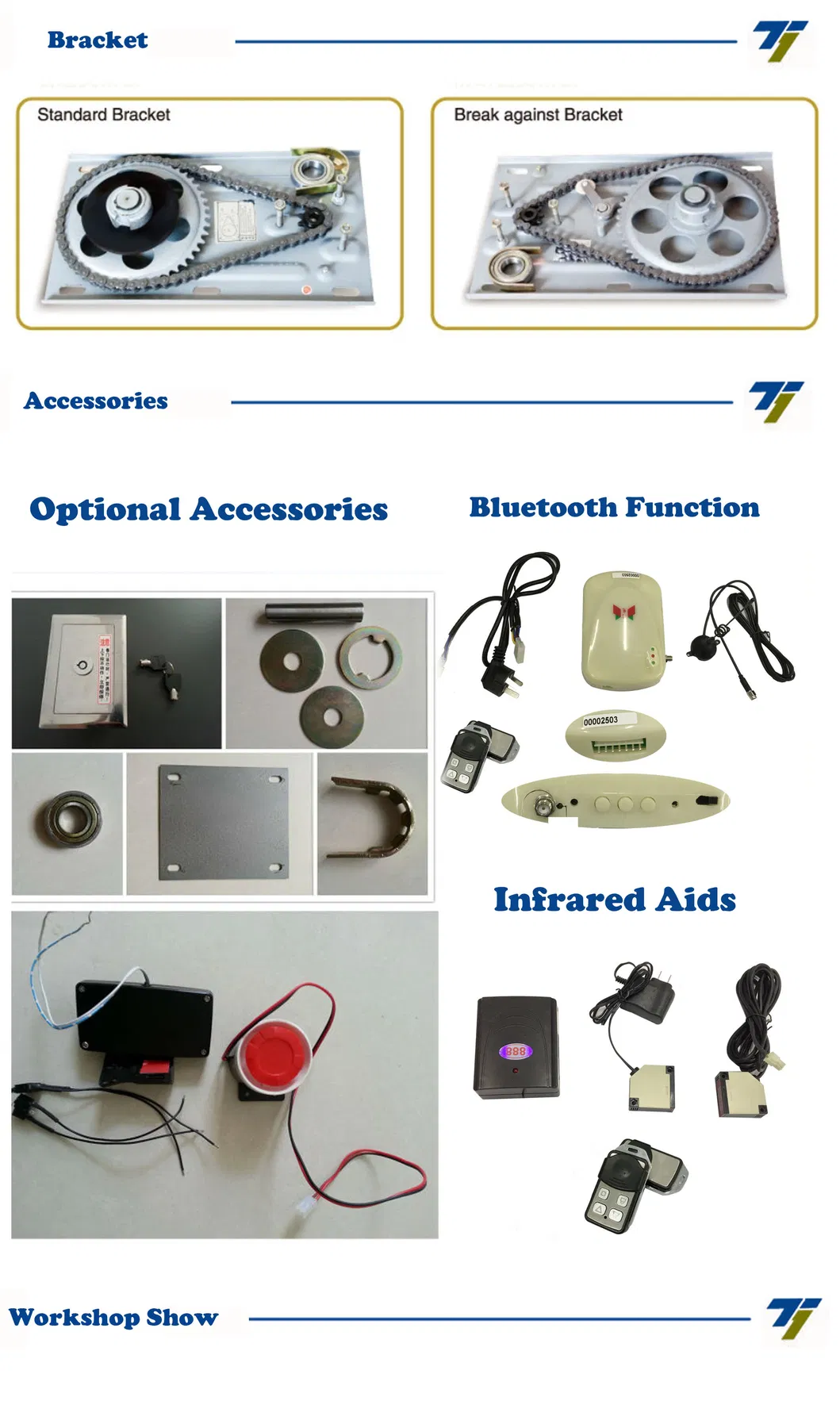

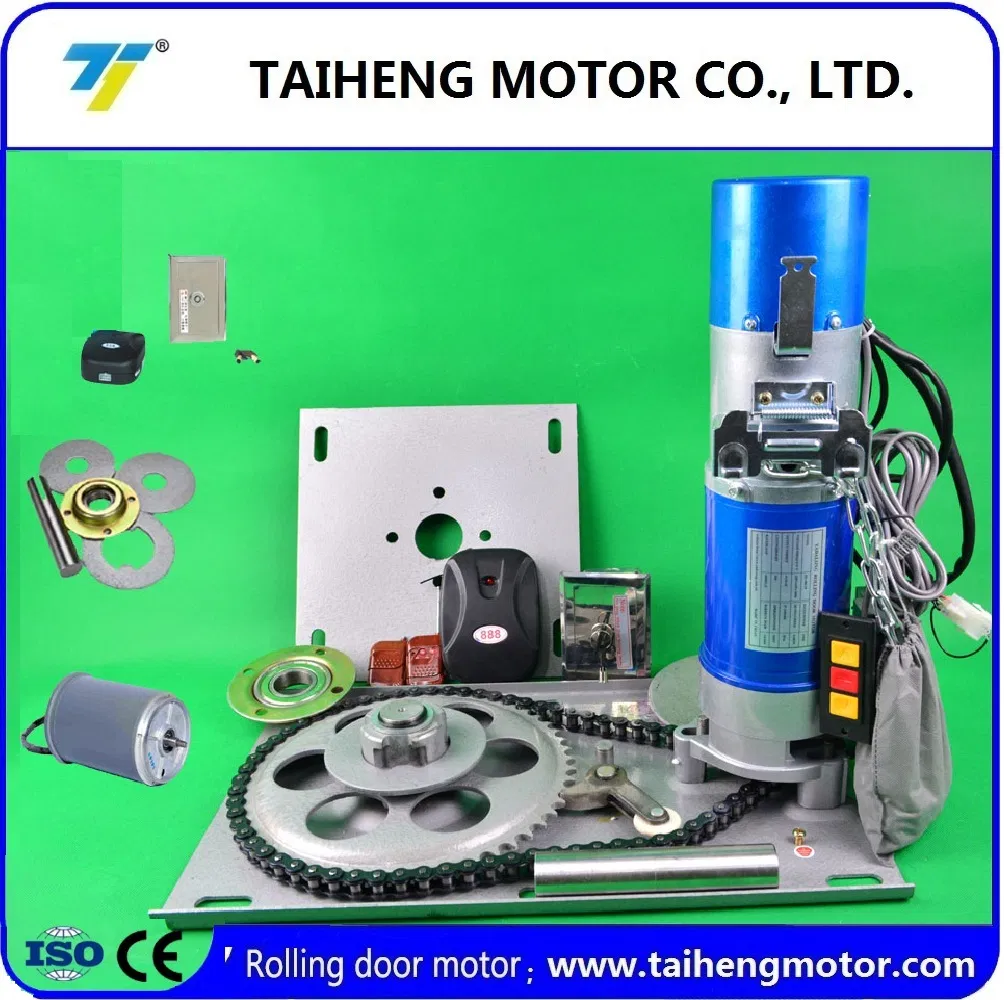

7. Accessories: Chain,Gear,Chain Plate, Driving plate, Bracket for bearing ,Shaft , End Plate, Bearing
Packaging & Delivery:
Packing Details: Two cartons per set: One for motor , one for bracket .
Delivery Details: Delivery within 20 work days after received the deposit
Our Service:
Any inquiry/question will be reply in 24 hours during working days.
Sample order is available.
OEM for customers is available.
Contact Person:
Ms.Cynthia

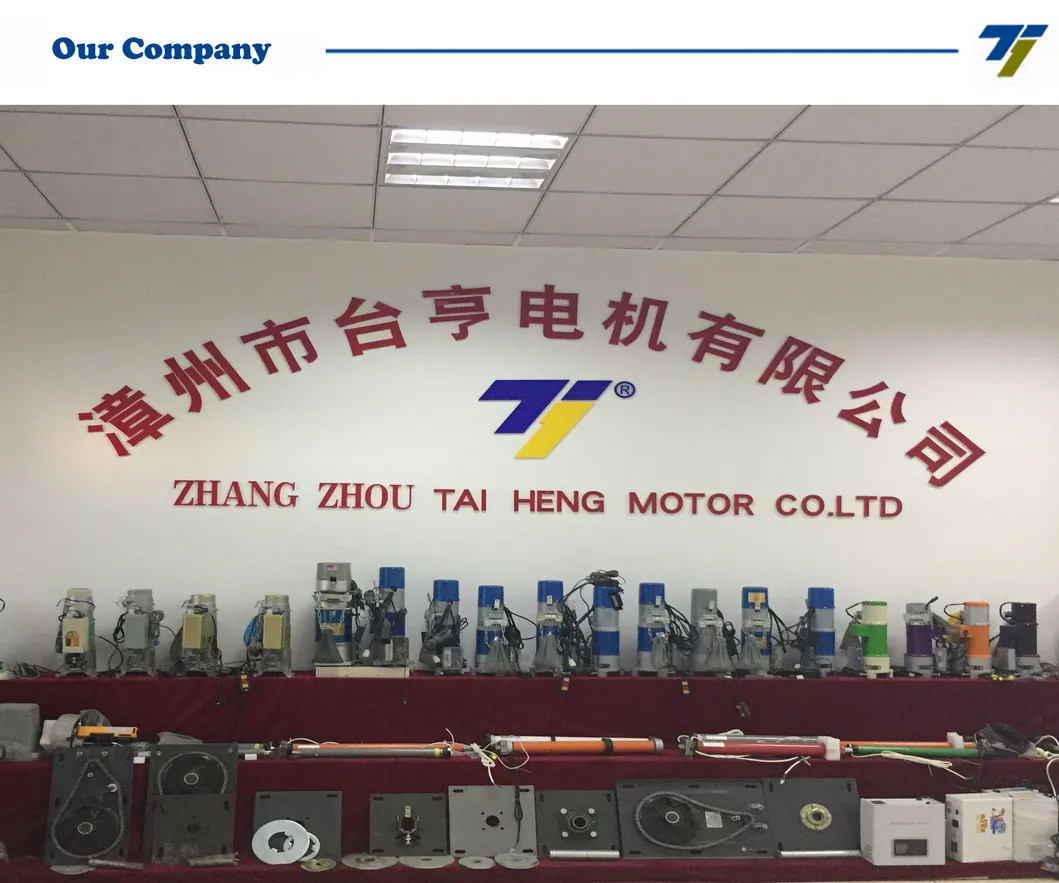

Zhangzhou Taiheng Motor Co.,Ltd
