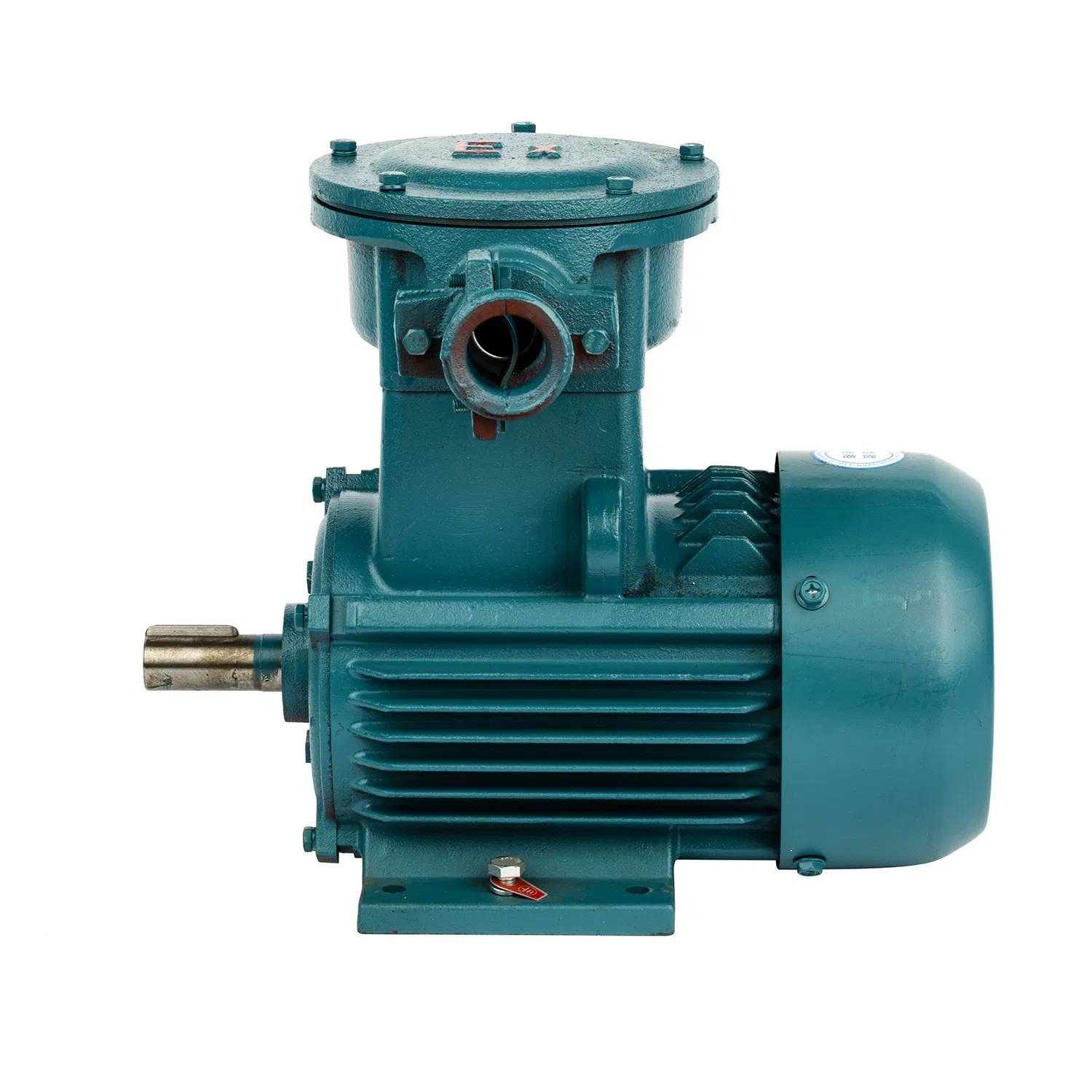

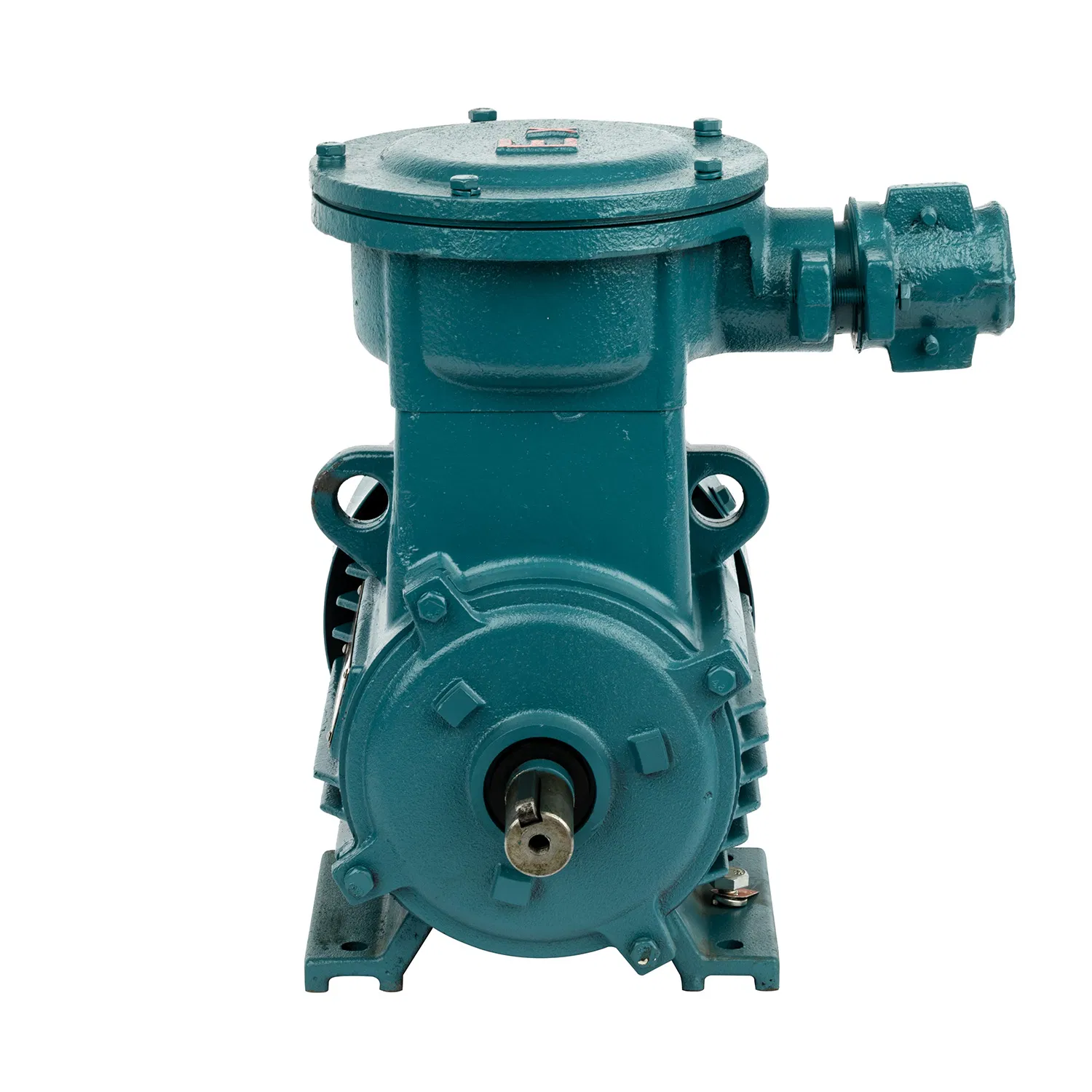

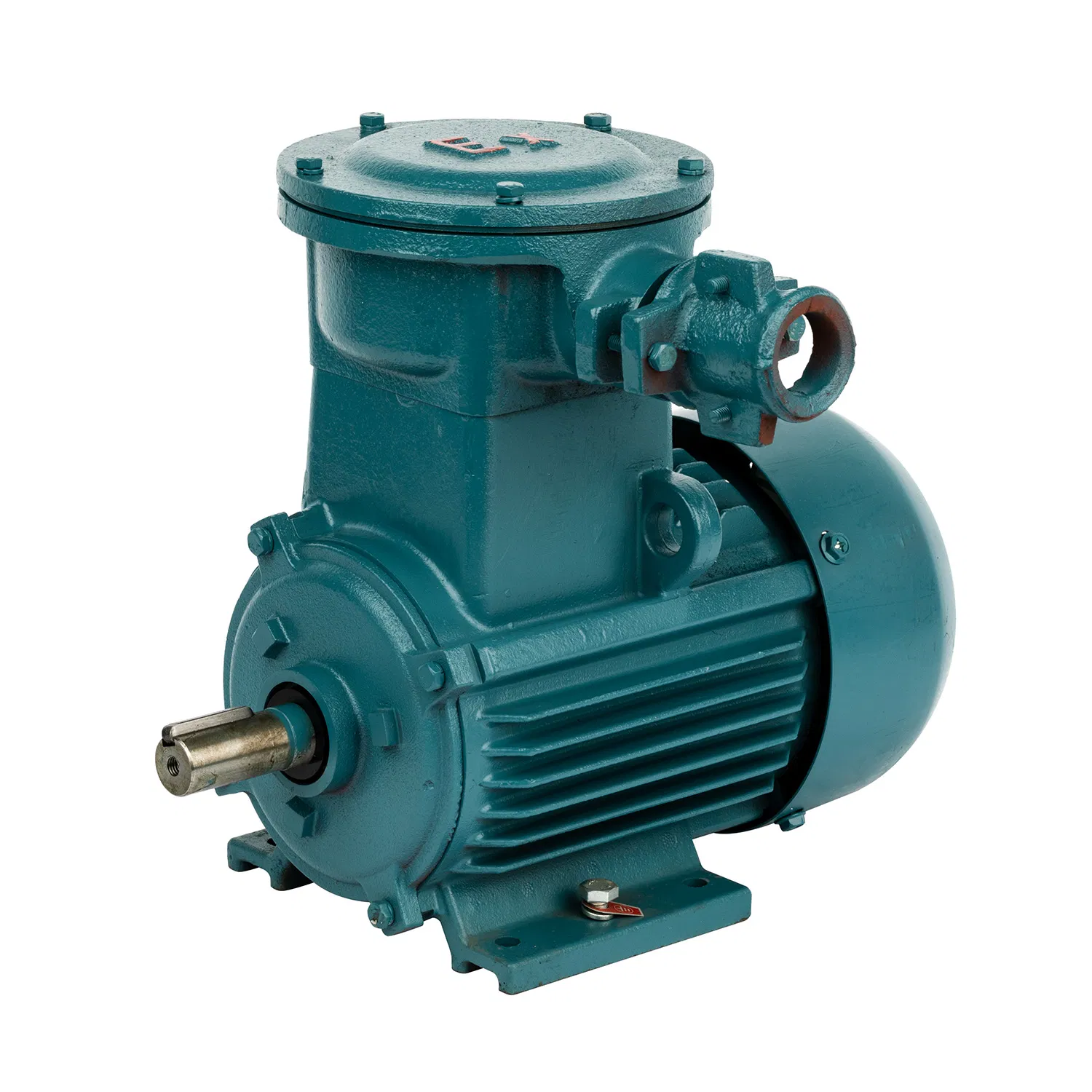

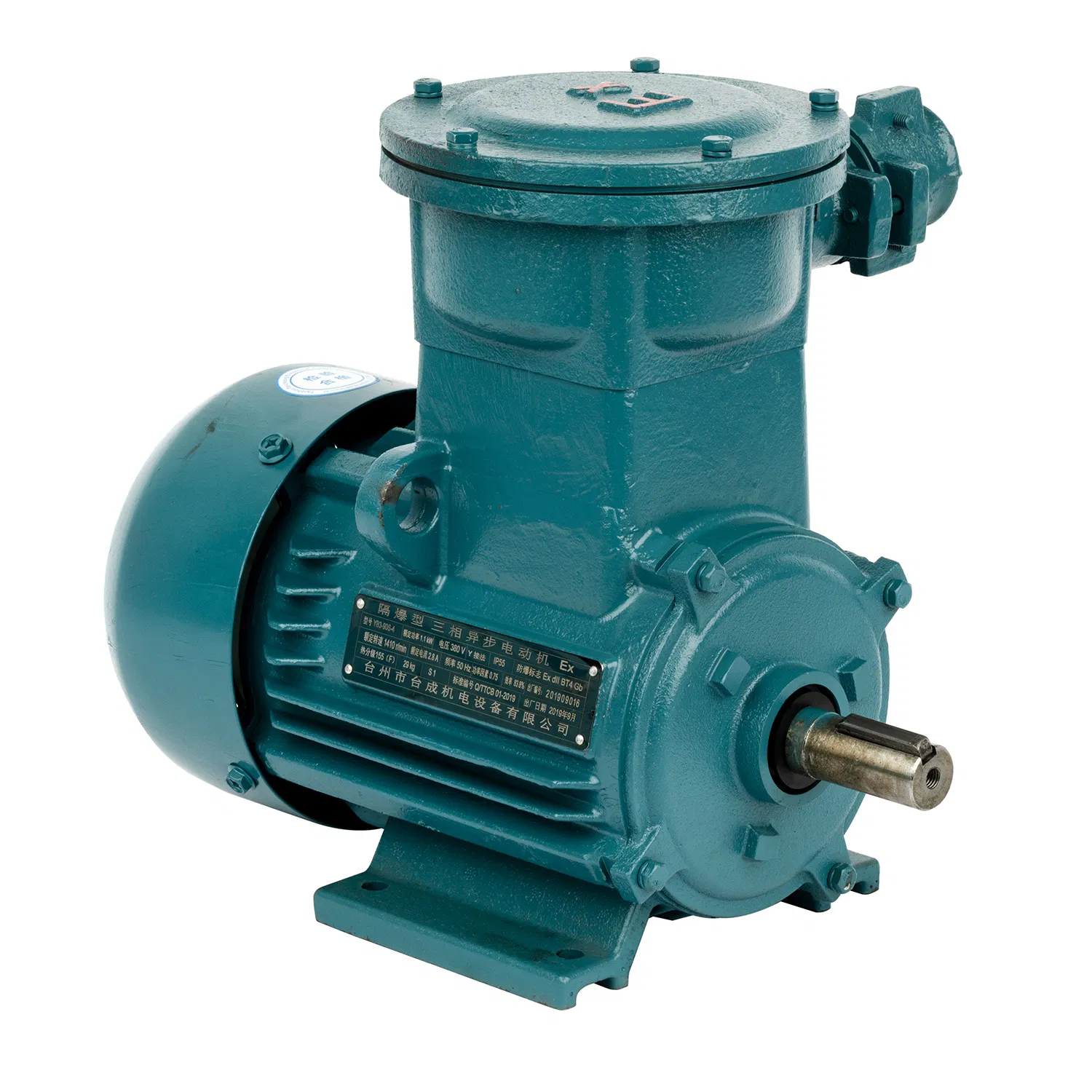

Flameproof Yb3-90L-2 (2.2KW) 380V 2/4/6/8 Poles Three Phase AC Induction Ex Motor with CE Explosion Proof Certificate for Pump and Mining Indust IP55 Exdiibt4
Flameproof YB3-90L-2 (2.2KW) 380V 2/4/6/8 Poles Three phase AC Induction Ex Motor with CE Explosion Proof Certificate for Pump and Mining Indust IP55 Exdiibt4TheYB3 motors are our company based YB, YB2 series motors on new technologies at domestic and abroad with the current electromagnetic struct......
Send Inquiry
Product Description
Flameproof YB3-90L-2 (2.2KW) 380V 2/4/6/8 Poles Three phase AC Induction Ex Motor with CE Explosion Proof Certificate for Pump and Mining Indust IP55 Exdiibt4
TheYB3 motors are our company based YB, YB2 series motors on new technologies at domestic and abroad with the current electromagnetic structures, processes, materials and other aspects of the development of successful new products, with energy-efficient , temperature margin, long life, good performance, low noise,
1. Product Introduction
Flameproof YB3-90L-2 (2.2KW) 380V 2/4/6/8 Poles Three phase AC Induction Ex Motor with CE Explosion Proof Certificate for Pump and Mining Indust IP55 Exdiibt4 The series motor efficiency indicators in line GB18613-2006 "small and medium-phase asynchronous motor energy efficiency limit value and energy efficiency rating" motor energy efficiency 2, the power rating and mounting dimensions conform to IEC standards and with the YB, YB2 series motors same.
TheYB3 motors are our company based YB, YB2 series motors on new technologies at domestic and abroad with the current electromagnetic structures, processes, materials and other aspects of the development of successful new products, with energy-efficient , temperature margin, long life, good performance, low noise,
1. Product Introduction
Flameproof YB3-90L-2 (2.2KW) 380V 2/4/6/8 Poles Three phase AC Induction Ex Motor with CE Explosion Proof Certificate for Pump and Mining Indust IP55 Exdiibt4 The series motor efficiency indicators in line GB18613-2006 "small and medium-phase asynchronous motor energy efficiency limit value and energy efficiency rating" motor energy efficiency 2, the power rating and mounting dimensions conform to IEC standards and with the YB, YB2 series motors same.
2. Products Parameter
| Type | Output KW | Volt(V) | Rated Current(A) | Rated Speed(r/min) | Efficiency(%) | Power Factor(CosΦ) |
| 380V 50HZ Synchronous Speed 3000r/min(2Poles) | ||||||
| YB3-63M1-2 | 0.18 | 380 | 0.52 | 2720 | 66 | 0.8 |
| YB3-63M2-2 | 0.25 | 380 | 0.69 | 2720 | 68 | 0.81 |
| YB3-71M1-2 | 0.37 | 380 | 0.99 | 2760 | 70 | 0.81 |
| YB3-71M2-2 | 0.55 | 380 | 1.38 | 2760 | 73 | 0.82 |
| YB3-80M1-2 | 0.75 | 660 | 1.02 | 2840 | 77.5 | 0.83 |
| YB3-80M2-2 | 1.1 | 660 | 1.4 | 2840 | 82.8 | 0.83 |
| YB3-90S-2 | 1.5 | 660 | 1.86 | 2850 | 84.1 | 0.84 |
| YB3-90L-2 | 2.2 | 660 | 2.64 | 2850 | 85.6 | 0.85 |
| YB3-100L-2 | 3 | 660 | 3.48 | 2870 | 86.7 | 0.87 |
| YB3-112M-2 | 4 | 380/660 | 7.9/4.6 | 2890 | 87.6 | 0.88 |
| YB3-132S1-2 | 5.5 | 380/660 | 10.7/6.2 | 2900 | 88.6 | 0.88 |
| YB3-132S2-2 | 7.5 | 380/660 | 14.3/8.3 | 2900 | 89.5 | 0.89 |
| YB3-160M1-2 | 11 | 380/660 | 20.7/12 | 2940 | 90.5 | 0.89 |
| YB3-160M2-2 | 15 | 380/660 | 28/16.2 | 2940 | 91.3 | 0.89 |
| YB3-160L-2 | 18.5 | 380/660 | 34.3/19.8 | 2940 | 91.8 | 0.89 |
| 380V 50HZ Synchronous Speed 1500r/min(4Poles) | ||||||
| YB3-63M1-4 | 0.12 | 380 | 0.44 | 1340 | 58 | 0.72 |
| YB3-63M2-4 | 0.18 | 380 | 0.59 | 1340 | 63 | 0.73 |
| YB3-71M1-4 | 0.25 | 380 | 0.78 | 1350 | 66 | 0.74 |
| YB3-71M2-4 | 0.37 | 380 | 1.08 | 1350 | 69 | 0.75 |
| YB3-80M1-4 | 0.55 | 660 | 0.8 | 1390 | 80.7 | 0.75 |
| YB3-80M2-4 | 0.75 | 660 | 1.06 | 1390 | 82.3 | 0.75 |
| YB3-90S-4 | 1.1 | 660 | 1.53 | 1390 | 83.8 | 0.75 |
| YB3-90L-4 | 1.5 | 660 | 2.06 | 1390 | 85 | 0.75 |
| YB3-100L1-4 | 2.2 | 660 | 2.75 | 1420 | 86.4 | 0.81 |
| YB3-100L2-4 | 3 | 660 | 3.66 | 1420 | 87.4 | 0.82 |
| YB3-112M-4 | 4 | 380/660 | 8.4/4.9 | 1440 | 88.3 | 0.82 |
| YB3-132S-4 | 5.5 | 380/660 | 11.2/6.5 | 1450 | 89.2 | 0.82 |
| YB3-132M-4 | 7.5 | 380/660 | 15.1/8.7 | 1450 | 90.1 | 0.83 |
| YB3-160M-4 | 11 | 380/660 | 21.6/12.5 | 1460 | 91 | 0.85 |
| YB3-160L-4 | 15 | 380/660 | 28.8/16.7 | 1460 | 91.8 | 0.86 |
| YB3-180M-4 | 18.5 | 380/660 | 35.4/20.5 | 1470 | 92.2 | 0.86 |
| 380V 50HZ Synchronous Speed 1000r/min(6Poles) | ||||||
| YB3-71M1-6 | 0.18 | 380 | 0.67 | 880 | 60 | 0.66 |
| YB3-71M2-6 | 0.25 | 380 | 0.88 | 880 | 63 | 0.68 |
| YB3-80M1-6 | 0.37 | 660 | 0.73 | 890 | 63.3 | 0.7 |
| YB3-80M2-6 | 0.55 | 660 | 0.89 | 890 | 75.4 | 0.72 |
| YB3-90S-6 | 0.75 | 660 | 1.17 | 910 | 77.7 | 0.72 |
| YB3-90L-6 | 1.1 | 660 | 1.65 | 910 | 79.7 | 0.73 |
| YB3-100L-6 | 1.5 | 660 | 2.18 | 930 | 81.5 | 0.74 |
| YB3-112M-6 | 2.2 | 380/660 | 5.4/3.2 | 940 | 83.4 | 0.74 |
| YB3-132S-6 | 3 | 380/660 | 7.3/4.2 | 970 | 84.9 | 0.74 |
| YB3-132M1-6 | 4 | 380/660 | 9.5/5.5 | 970 | 86.1 | 0.74 |
| YB3-132M2-6 | 5.5 | 380/660 | 12.7/7.4 | 970 | 87.4 | 0.75 |
| YB3-160M-6 | 7.5 | 380/660 | 16.4/9.5 | 970 | 89 | 0.78 |
| YB3-160L-6 | 11 | 380/660 | 23.5/13.6 | 970 | 90 | 0.79 |
| 380V 50HZ Synchronous Speed 1000r/min(6Poles) | ||||||
| YB3-80M1-8 | 0.18 | 660 | 0.5 | 650 | 52 | 0.61 |
| YB3-80M2-8 | 0.25 | 660 | 0.65 | 650 | 55 | 0.61 |
| YB3-90S-8 | 0.37 | 660 | 0.83 | 670 | 63 | 0.62 |
| YB3-90L-8 | 0.55 | 660 | 1.19 | 670 | 64 | 0.63 |
| YB3-100L1-8 | 0.75 | 660 | 1.36 | 690 | 71 | 0.68 |
| YB3-100L2-8 | 1.1 | 660 | 1.91 | 690 | 73 | 0.69 |
| YB3-112M-8 | 1.5 | 380/660 | 4.4/2.5 | 690 | 75 | 0.69 |
| YB3-132S-8 | 2.2 | 380/660 | 5.78/3.34 | 710 | 79 | 0.73 |
| YB3-132M-8 | 3 | 380/660 | 7.69/4.44 | 710 | 81 | 0.73 |
| YB3-160M1-8 | 4 | 380/660 | 9.7/5.6 | 720 | 85.5 | 0.73 |
| YB3-160M2-8 | 5.5 | 380/660 | 13/7.5 | 720 | 85.5 | 0.75 |
| YB3-160L-8 | 7.5 | 380/660 | 16.9/9.8 | 720 | 88.5 | 0.76 |
3. Product Application
Flameproof YB3-90L-2 (2.2KW) 380V 2/4/6/8 Poles Three phase AC Induction Ex Motor with CE Explosion Proof Certificate for Pump and Mining Indust IP55 Exdiibt4 can be used in the place where exists explosive gas mixture, such as coal industry, petroleum industry, chemical industry, smelting industry, natural gas industry, grain and oil processing industry, paper industry, pharmaceutical industry and so on.4. Related Products

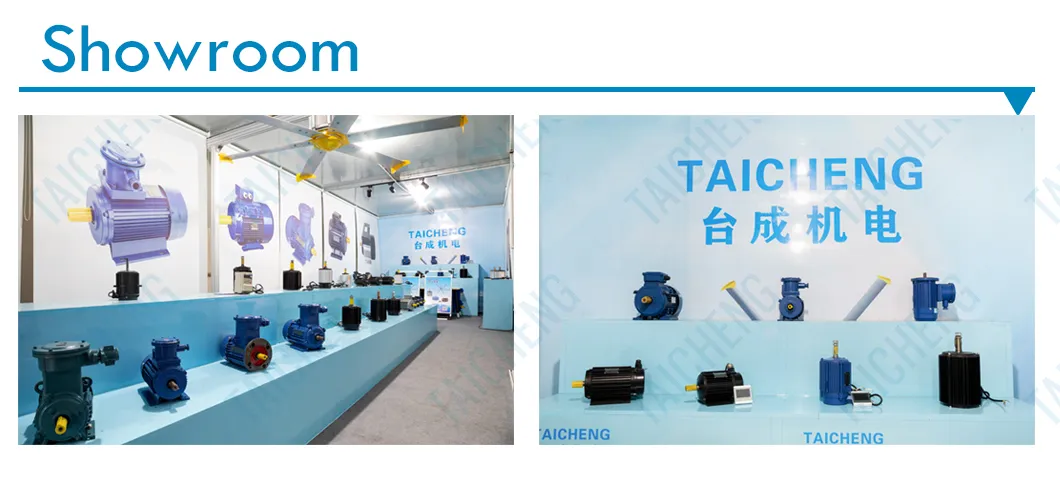

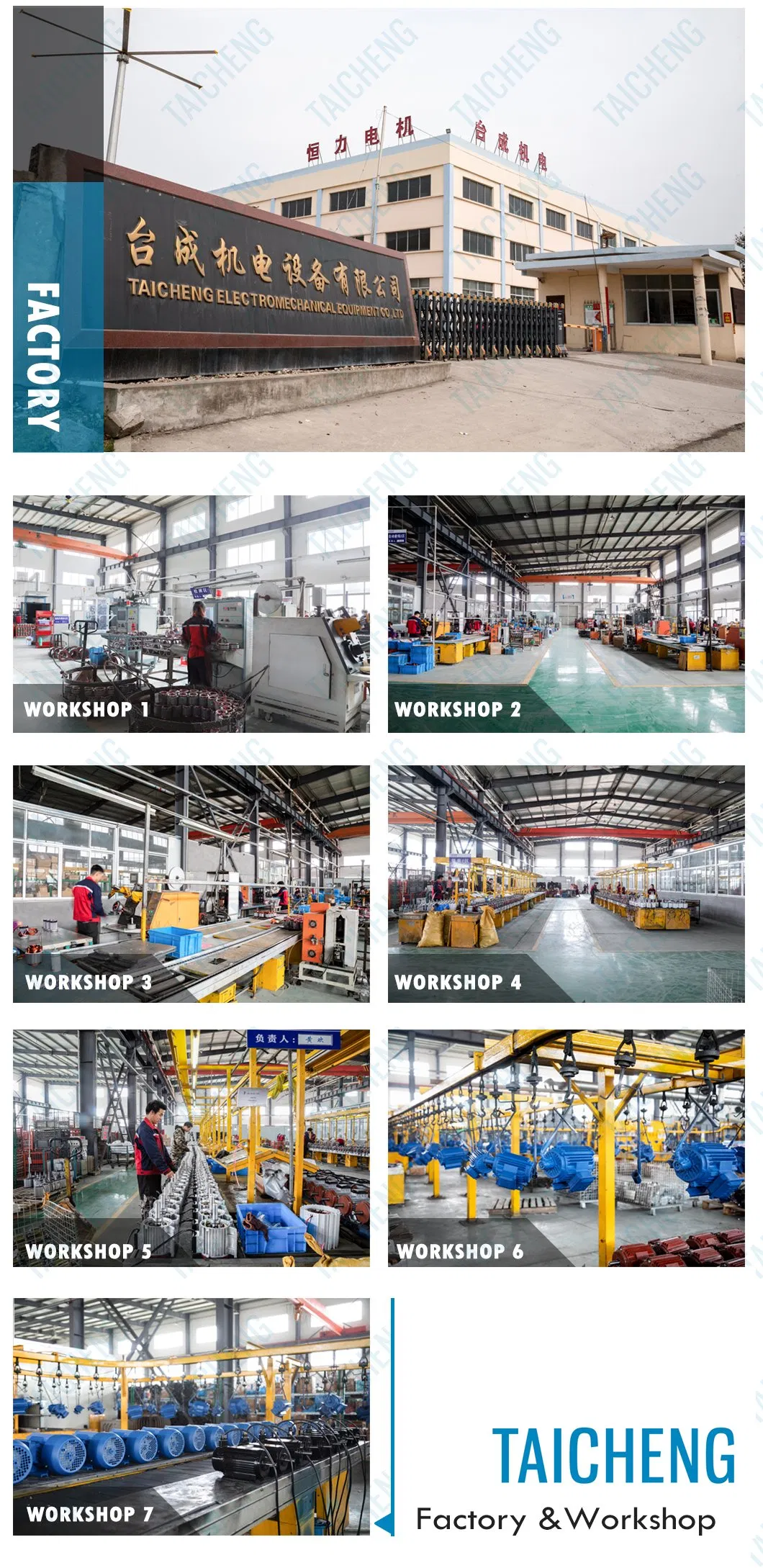

5. Taicheng Factory &Workshop

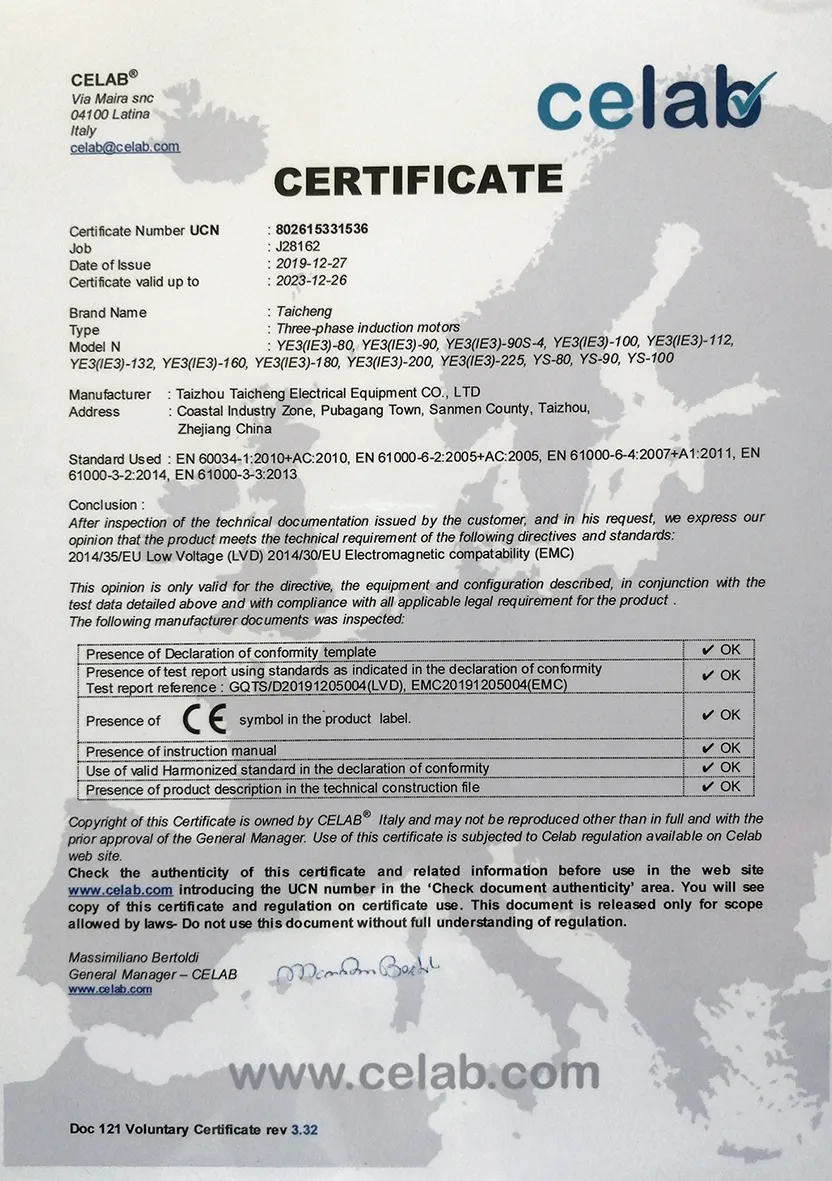

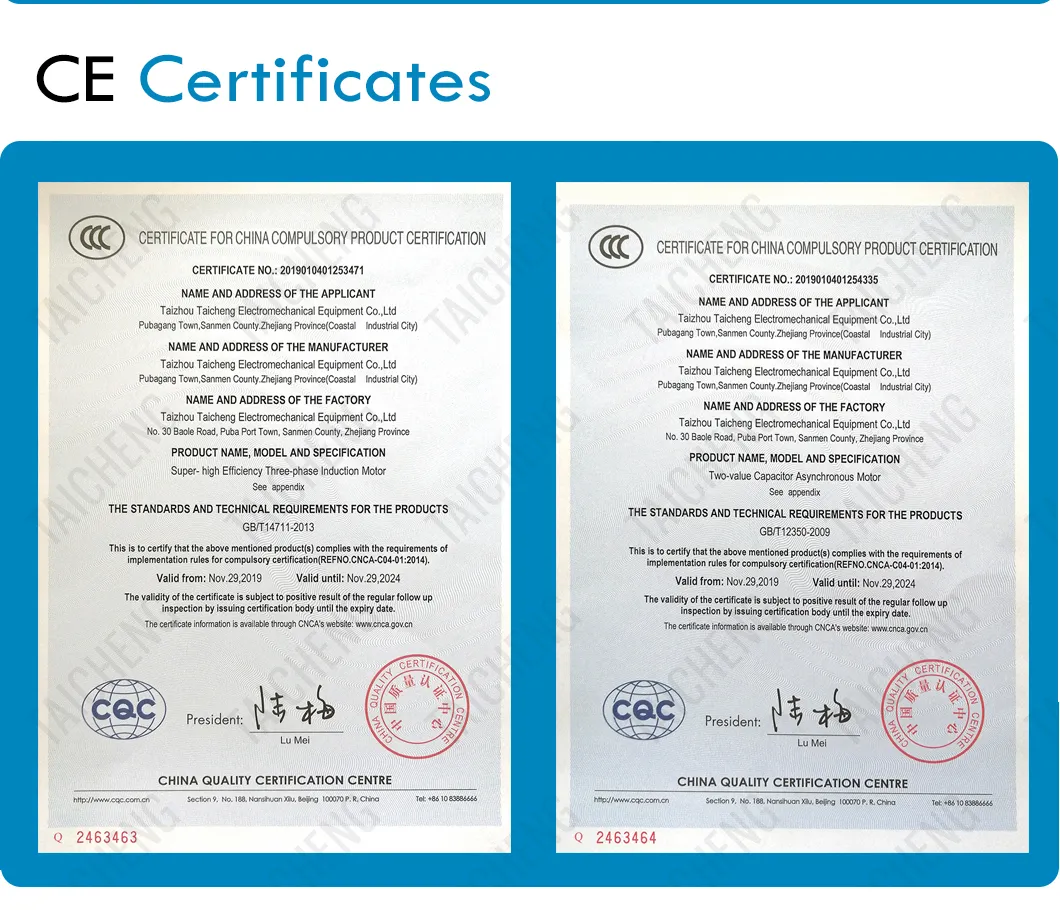

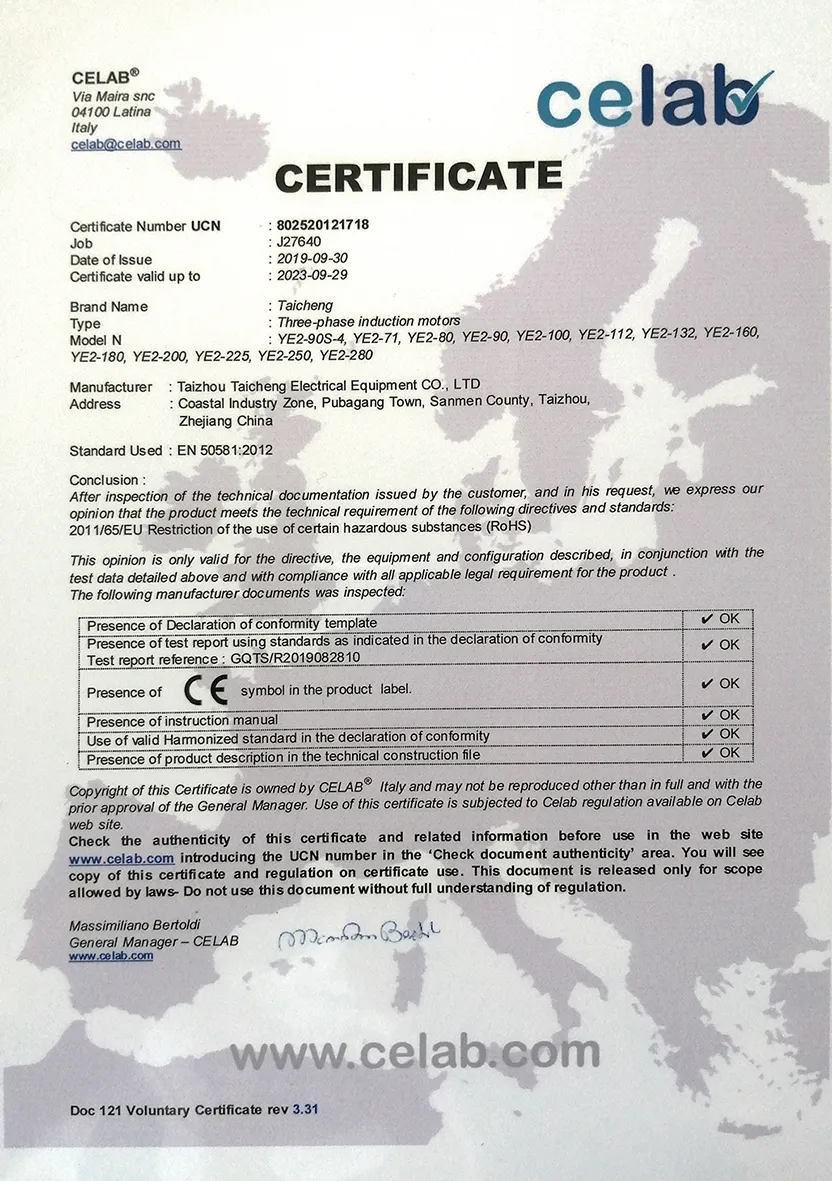

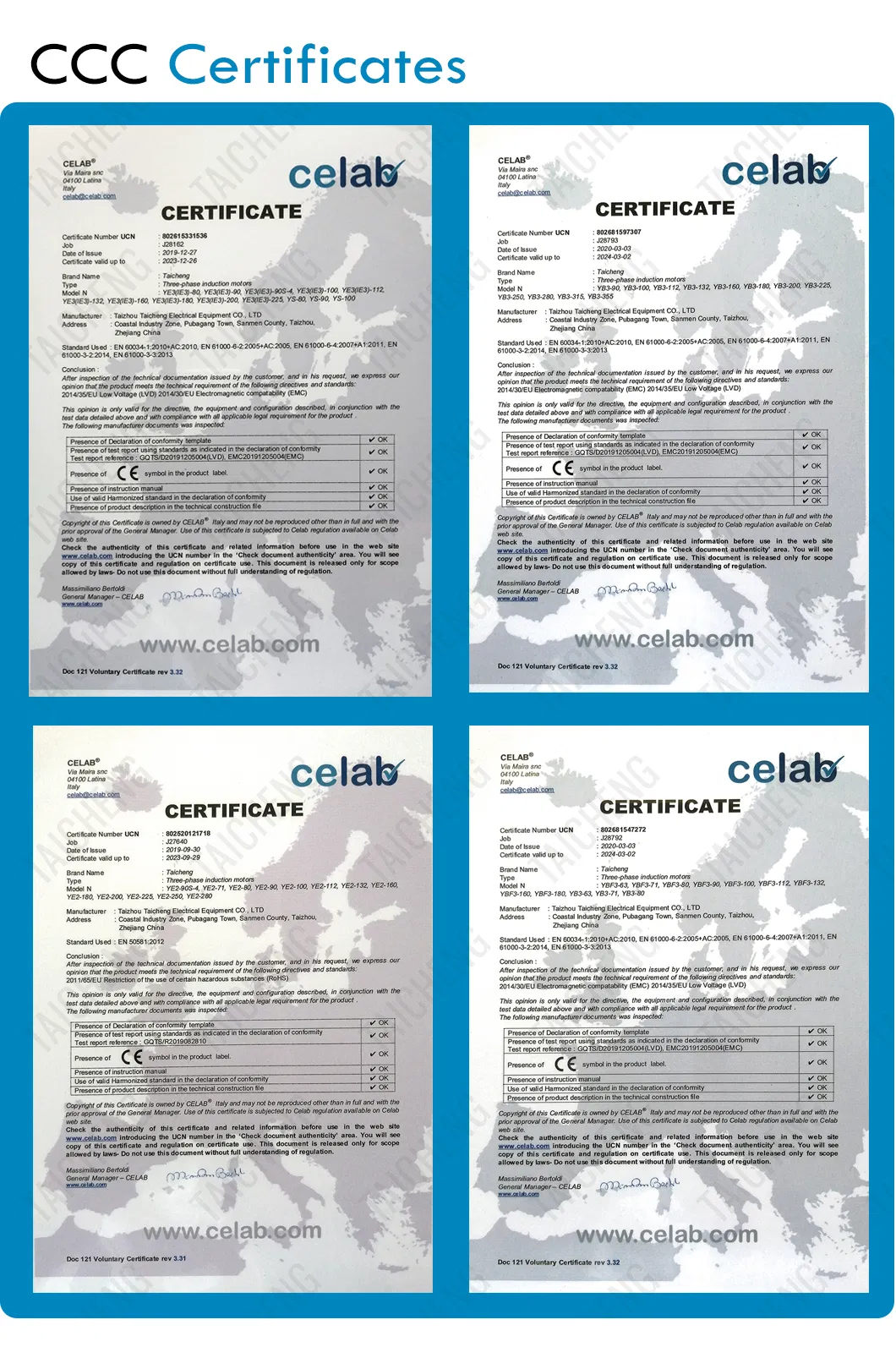

6. Certificate
