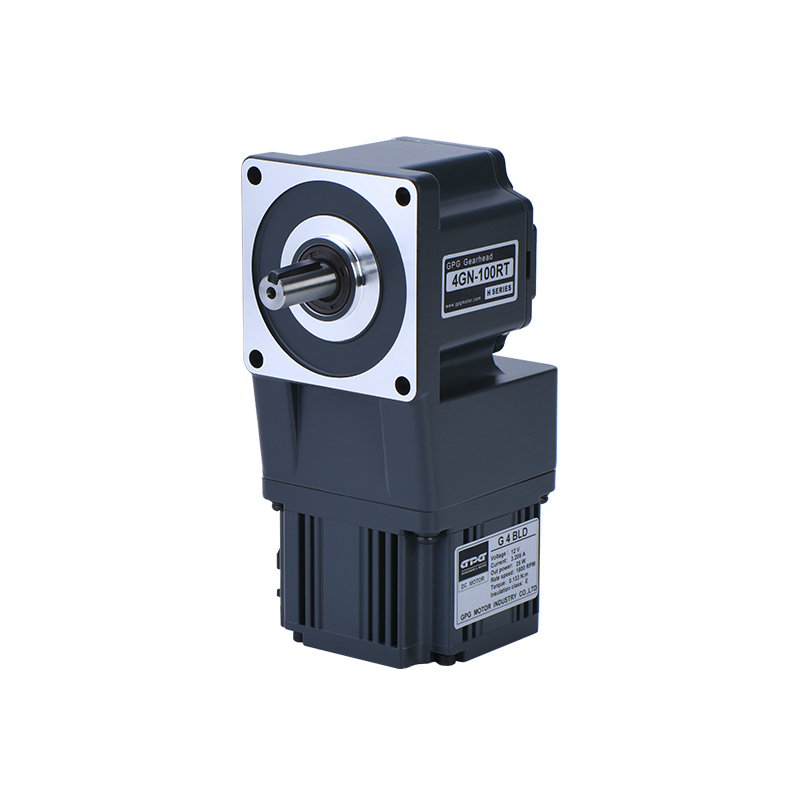

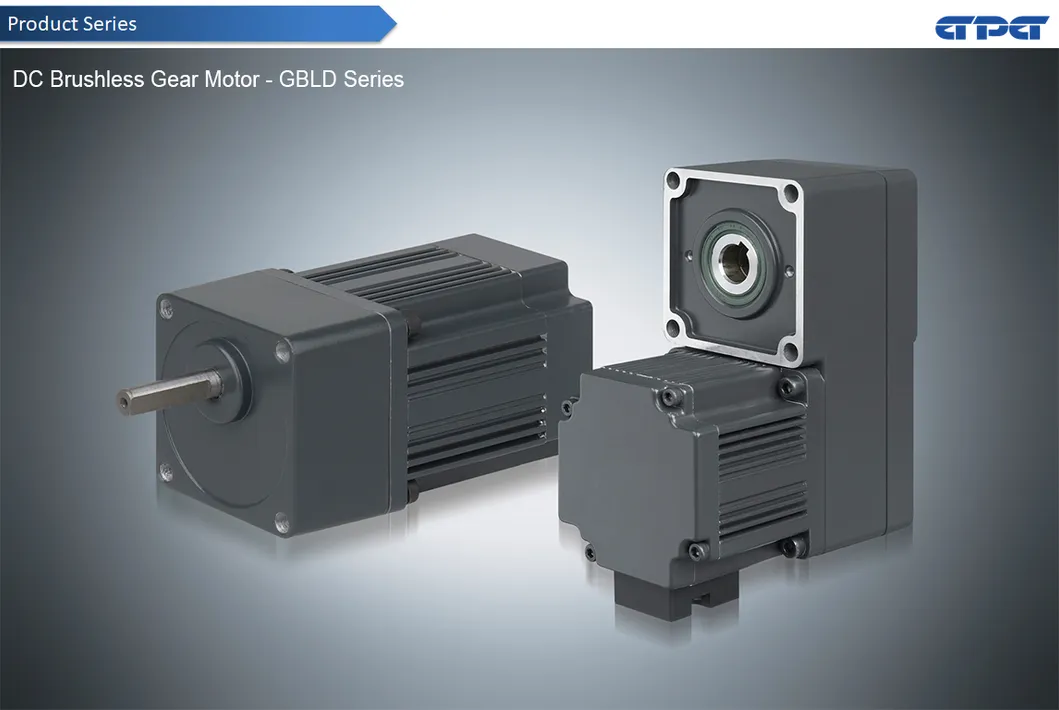

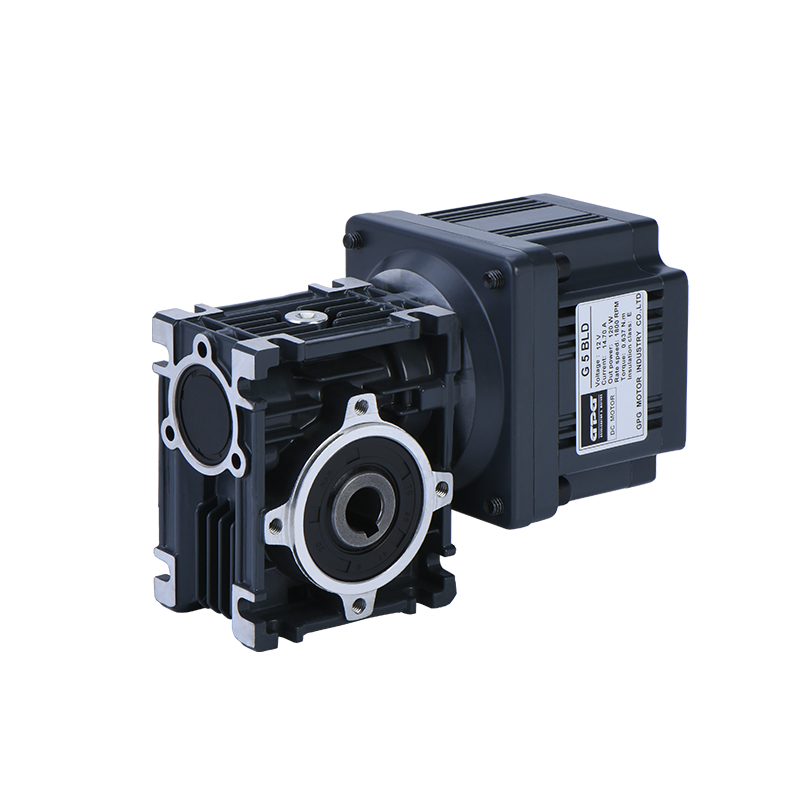

DC Brushless Gear Motor 60mm 25W 24V Ratio 100
DC Blushless Gear MotorG2BLD(P)25220GN30SEnterprise CodeMounting FlangeMotor TypeOutput PowerVoltageShape of Motor ShaftMotor SpeedG - GPG2-60mm3-70mm4-80mm5-90mm6-100mmBLD - Brushless motor with square gearboxBLDP - Brushless motor with planetary gearbox 10 - 10W15 - 15W25 -......
Send Inquiry
Product Description
| DC Blushless Gear Motor | ||||||
| G | 2 | BLD(P) | 25 | 220 | GN | 30S |
| Enterprise Code | Mounting Flange | Motor Type | Output Power | Voltage | Shape of Motor Shaft | Motor Speed |
| G - GPG | 2-60mm 3-70mm 4-80mm 5-90mm 6-100mm | BLD - Brushless motor with square gearbox BLDP - Brushless motor with planetary gearbox | 10 - 10W 15 - 15W 25 - 25W 40 - 40W 60 - 60W 90 - 90W 200 - 200W 400 - 400W | 24 - DC24V 36 - DC36V 48 - DC48V 110 - DC110V 220 - DC220V | GN - General Helical Gear GU - Reinforced Helical Gear A1 - Milling Keyway A - Flat type | 15S - 1500RPM 18S - 1800RPM 25S - 2500RPM 30S - 3000RPM |
| DC Blushless Gearbox | ||||||
| 2 | GN | 100 | K | |||
| Model & Dimension | Gear Type | Reduction Ratio | Bearing Type | |||
| 2: 60mm 4: 80mm 5: 90mm 6: 104mm | GN: General Helical Gear GU: Reinforced Helical Gear | 100: Reduction Ratio 1:100 10X Denotes The Mid-gearbox Ration 1:10 | K: Ball Bearing (Mark KB for Type GU Square Case) | |||
| Motor Performance Parameters | |||||||||||||||||||||
| Model | Voltage | No-load Current | No-load Speed | Rated Power | Rated Current | Rated Speed | Rated Torque | Grade Protection | |||||||||||||
| V | A | RPM | W | A | RPM | N.m | IP | ||||||||||||||
| G2BLD200-24GN-30S | 24 | MAX 0.4 | 3200 | 25 | 1.3 | 3000 | 0.08 | 44 | |||||||||||||
| G2BLD200-36GN-30S | 36 | MAX 0.3 | 0.9 | ||||||||||||||||||
| G2BLD200-48GN-30S | 48 | MAX 0.2 | 0.7 | ||||||||||||||||||
| Motor Model | |||||||||||||||||||||
| Type | Pinion Shaft | Round Shaft | |||||||||||||||||||
| Lead Wire | G2BLD200-24GN-30S | G2BLD200-24A1-30S | |||||||||||||||||||
| G2BLD200-36GN-30S | G2BLD200-36A1-30S | ||||||||||||||||||||
| G2BLD200-48GN-30S | G2BLD200-48A1-30S | ||||||||||||||||||||
| Parallel Shaft Gearhead (Sold Separately) | |||||||||||||||||||||
| Gearhead Type | Gearhead Model | Gear Ratio | |||||||||||||||||||
| Long Life, Low Noise | 2GN _ K | 3, 3.6, 5, 6, 7.5, 9, 12.5, 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 120, 150, 180, 200 | |||||||||||||||||||
| 2GN10XK ( Decimal Gearhead ) | |||||||||||||||||||||
| Allowance Torque Unit: Upside (N-m) / Belowside (kgf.cm) | |||||||||||||||||||||
| Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 |
| r/min Output Shaft Speed | 1000 | 830 | 600 | 500 | 400 | 330 | 240 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 40 | 33 | 30 | 25 | 20 | 16 | 15 |
| GU Allowance Torque N·m | 0.19 | 0.23 | 0.32 | 0.38 | 0.48 | 0.58 | 0.81 | 0.87 | 1.16 | 1.44 | 1.73 | 2.07 | 2.52 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Taibang Motor Industrial Group Co., Ltd. is a professional manufacturer which combined with series gear transmission products of design, manufacture, and sale promotion. • occupied more than 30,000 square meters, had more than 1000 workers, and more than 200 sets of advanced equipment,
• operated strictly according to ISO9000 Quality management system.
• provide you with more than just high-performance products, more industry users tailored package of application solutions,
• based on corporate issues, to provide users with the most suitable products, the most suitable solution.
• Lead customer innovation through the products and service, help the customer realize the maximum benefit.
• 1995: Taibang Company and the Ministry of Aerospace, Peking University,
and scientific research experts jointly established a micro-micro motor manufacturing company
• 2000: Taibang established a branch in Yueqing, Zhejiang
• 2005: Zhejiang Taibang Motor Industry Co., Ltd. established Dongguan Taiwan State-owned Industrial Co., Ltd.
• 2012: Established Shanghai Taibang Automobile Co., Ltd.
• 2014: Approved the new factory site of the second phase of the Yueqing National Economic Park in Zhejiang Province,
which is expected to be completed and put into operation in 2018
• 2018: A new 120,000 square meters automated production base
FAQ
Q: How about your company?
A: We are a gear motor factory established in 1995 and located in Wenzhou city of china.
We have more than 1200 workers. Our main product is AC micro gear motor 6W to 250W,
AC small gear motor 100W to 3700W, brush DC motor 10W to 400W, brushless motor10W to 750W,
drum motor 60W to 3700W, planetary gearbox,and worm gearbox,etc.
Q: How about your quality control?
A: From raw material to finished products, we have strict and complete IPQC.
And the advanced test-ing machine can assure of qualified products delivered.
Q: How to choose a suitable motor?
A: If you have gear motor pictures or drawings to show us,
or you tell us detailed specs like volt-age, speed, torque, motor size, the working model of the motor, needed lifetime and noise level, etc.
please do not hesitate to let us know, then we can suggest a suitable motor per your request.
Q: Can you make the gear motor with customizing specifications?
A: Yes, we can customize per your request for the voltage, speed, torque, and shaft size and shape.
if you need additional wires or cables soldered on the terminal or need to add connectors, or capacitors, or EMC we can make it too.
Q: What's your lead time?
A: Usually our regular standard product will need 10-15days, a bit longer for customized products.
But we are very flexible on the lead time, it will depend on the specific orders.
Q: What is your MOQ?
A: If delivered by sea, the minimum order is 100 pieces, if deliver by express, there is no limit.
Q: Do you have the item in stock?
A: l am sorry we do not have the item in stock, All products are made with orders.
Q: How to contact us?
A: You can send us an inquiry.
