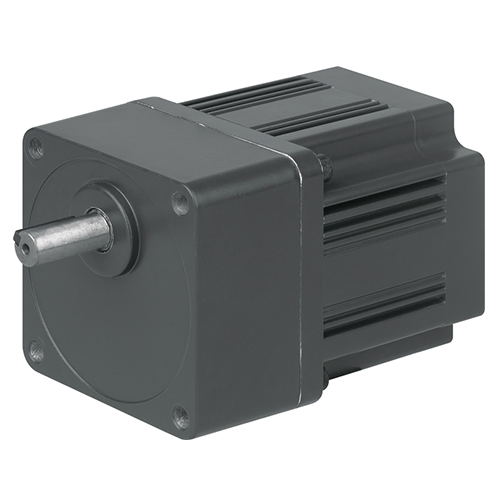

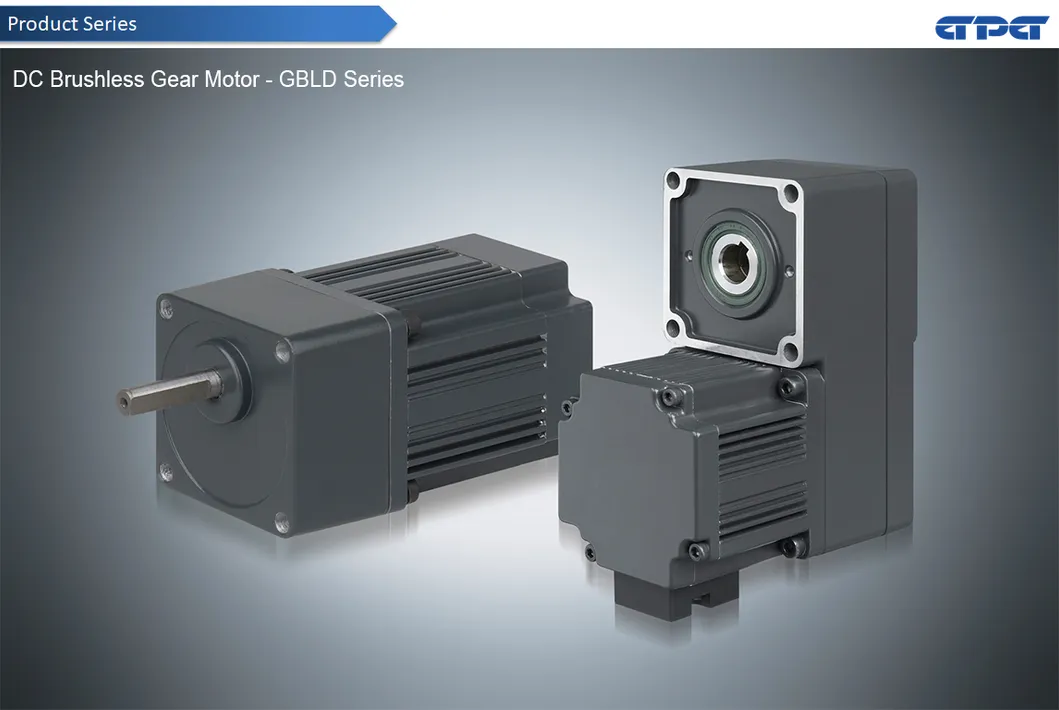

China DC Brushless Gear Motor 60mm 15W 220V Ratio 1: 120

Product Description

DC Blushless Gear Motor
G	2	BLD(P)	15	220	GN	30S
Enterprise Code	Mounting Flange	Motor Type	Output Power	Voltage	Shape of Motor Shaft	Motor Speed
G - GPG	2-60mm 3-70mm 4-80mm 5-90mm 6-100mm	BLD - Brushless motor with square gearbox BLDP - Brushless motor with planetary gearbox	10 - 10W 15 - 15W 25 - 25W 40 - 40W 60 - 60W 90 - 90W 200 - 200W 400 - 400W	24 - DC24V 36 - DC36V 48 - DC48V 110 - DC110V 220 - DC220V	GN - General Helical Gear GU - Reinforced Helical Gear A1 - Milling Keyway A - Flat type	15S - 1500RPM 18S - 1800RPM 25S - 2500RPM 30S - 3000RPM
DC Blushless Gearbox
2	GN	120		K
Model & Dimension	Gear Type	Reduction Ratio		Bearing Type
2: 60mm 4: 80mm 5: 90mm 6: 104mm	GN: General Helical Gear GU: Reinforced Helical Gear	120: Reduction Ratio 1:120 10X Denotes The Mid-gearbox Ration 1:10		K: Ball Bearing (Mark KB for Type GU Square Case)

Motor Performance Parameters
Model	Voltage			Frequency			Rated Power			Rated Current			Rated Speed			Rated Torque			Grade Protection
	V			Hz			W			A			RPM			N.m			IP
G2BLD10-220GN-30S	220~230			50/60			10			0.2			3000			0.03			44
	110~220									0.45
G2BLD15-220GN-30S	220~230						15			0.35						0.047
	110~220									0.65
G2BLD25-220GN-30S	220~230						25			0.45						0.08
	110~220									0.75
Motor Model
Type	Pinion Shaft										Round Shaft
Lead Wire	G2BLD10-220GN-30S										G2BLD10-220A1-30S
	G2BLD15-220GN-30S										G2BLD15-220A1-30S
	G2BLD25-220GN-30S										G2BLD25- 220A1-30S
Parallel Shaft Gearhead (Sold Separately)
Gearhead Type	Gearhead Model										Gear Ratio
Long Life, Low Noise	2GN_K										3, 3.6, 5, 6, 7.5, 9, 12.5, 15, 18, 25, 30, 36, 50, 60, 75, 90, 100, 120, 150, 180, 200
	2GN10XK ( Decimal Gearhead )
Allowance Torque Unit: Upside (N-m) / Belowside (kgf.cm)
Gear Ratio	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
r/min Output Shaft Speed	1000	830	600	500	400	330	240	200	166	120	100	83	60	50	40	33	30	25	20	16	15
GU Allowance Torque N·m	0.23	0.28	0.39	0.47	0.58	0.7	0.97	1.16	1.4	1.73	2.07	2.48	3	3	3	3	3	3	3	3	3

Taibang Motor Industrial Group Co., Ltd. is a professional manufacturer which combined with series gear transmission products of design, manufacture, and sale promotion.
• occupied more than 30,000 square meters, had more than 1000 workers, and more than 200 sets of advanced equipment,

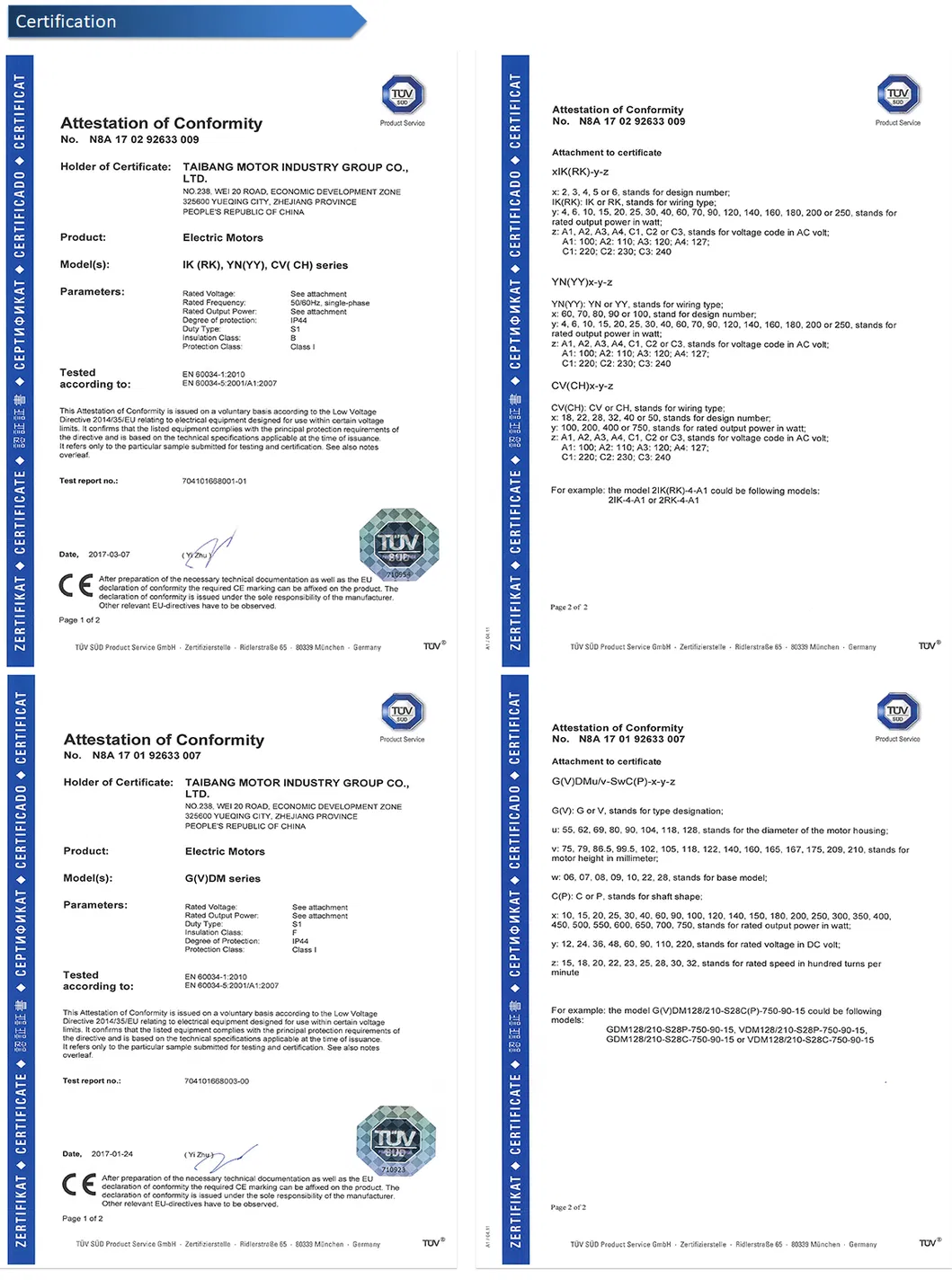

• operated strictly according to ISO9000 Quality management system.
• provide you with more than just high-performance products, more industry users tailored package of application solutions,
• based on corporate issues, to provide users with the most suitable products, the most suitable solution.
• Lead customer innovation through the products and service, help the customer realize the maximum benefit.
• 1995: Taibang Company and the Ministry of Aerospace, Peking University,
and scientific research experts jointly established a micro-micro motor manufacturing company
• 2000: Taibang established a branch in Yueqing, Zhejiang
• 2005: Zhejiang Taibang Motor Industry Co., Ltd. established Dongguan Taiwan State-owned Industrial Co., Ltd.
• 2012: Established Shanghai Taibang Automobile Co., Ltd.
• 2014: Approved the new factory site of the second phase of the Yueqing National Economic Park in Zhejiang Province,
which is expected to be completed and put into operation in 2018
• 2018: A new 120,000 square meters automated production base DC Brushless Gear Motor 60mm 15W 220V Ratio 1: 120
