China Famous Brand Oulu 6.7kw Servo Motor 1500 Rpm Servo Motor
China Famous Brand OULU 6.7kw Servo Motor 1500 rpm Servo MotorFeature DescriptionSuper Stability motor selects high performance and high magnetic energy of rare-earth permanent magnet material, and has high temperature resistance, to ensure the stability of the operation of the motorHigh Precision u......
Send Inquiry
Product Description

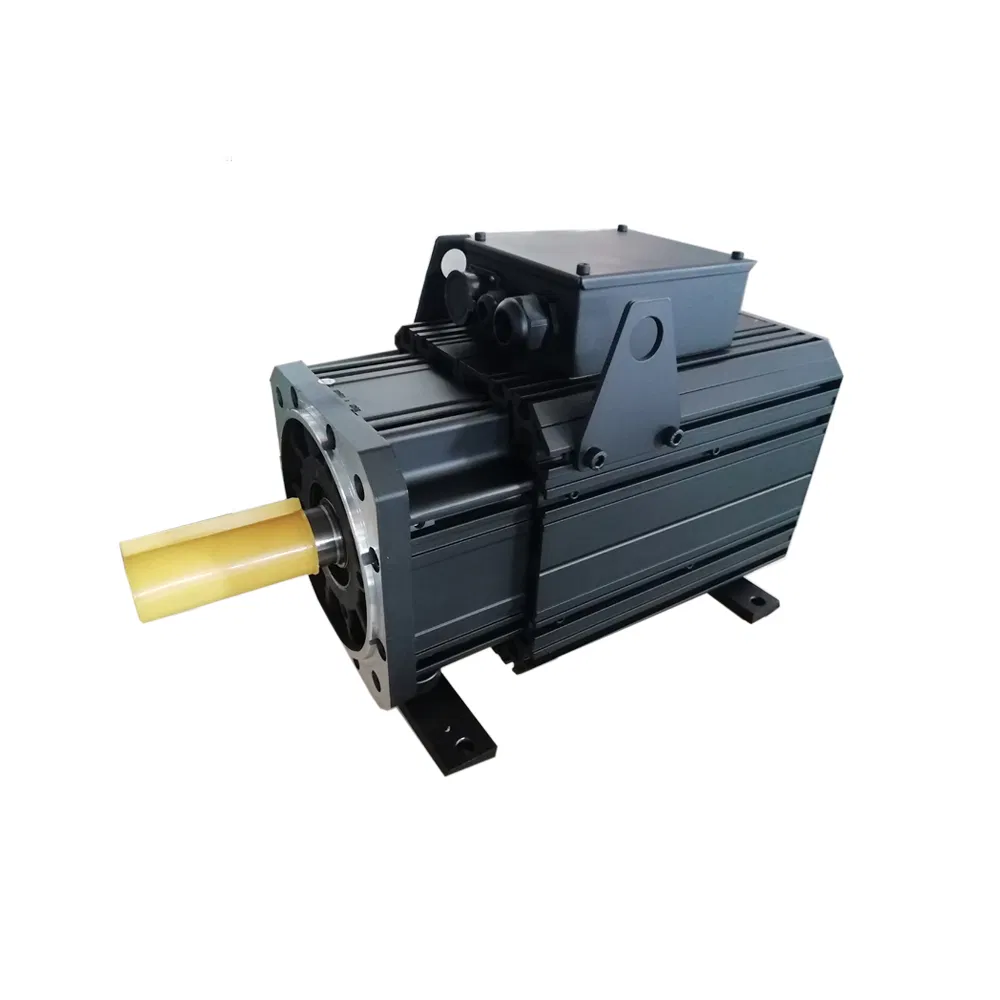

China Famous Brand OULU 6.7kw Servo Motor 1500 rpm Servo Motor
Product Specifications
Production & Package
About OULU
Oulu Electric Corp.,Ltd (Stock number 871415) was established in 1996 with 35000 m^2 manufacturing plant in nanjing, China. For more than 25 years we have been committed to the research&develop, manufacture and sales of new energy and industrial automation.
Our products series includes wind turbine generators, solar power system, controller, inverter, frequency changer, servo motor and servo drives with high quality.
FAQ
1. Are you factory?
Yes, we are facotry, and we produce AC motor/driver, Servo motor/driver and planetary reducer for more then 13 years in China.
2. How to select models?
Before purchasing, please contact us to confirm model No. and specifications to avoid any misunderstanding.
3. How do you ship the goods?
We normally ship goods by sea ,by express(DHL/UPS/FEDEX/EMS), and by air, also accept customer appointed.
4. Can I test sample?
Yes, sample charged can be offered for testing.
5. Can we be agent or distributor?
Yes, welcome and we will support you.
6. Can you do OEM or ODM service?
Yes, we have R&D department and accept OEM and ODM service.
7. How about warranty?
18 MONTH warranty, technical support available, we always try our best to help customers to solve problems
Feature Description
Super Stability motor selects high performance and high magnetic energy of rare-earth permanent magnet material, and has high temperature resistance, to ensure the stability of the operation of the motor
High Precision using double close-loop flow and pressure control, motor of speed and torque can be adjusted quickly, thus realizing the pump pressure and flow rate of the output precision control, greatly improve the repeatable precision of die-casting machine
High Efficiency can use the instantaneous overload capacity of motor and oil pump, and fast response characteristics, significantly add the system of dynamic response performance, thereby compressing the empty cycle time and energy storage time, pressure rises rapidly.
Energy Saving according to the requirements of production process to provide hydraulic power, energy saving effect is obvious, can achieve 40%-70% power saving rate
Super Stability motor selects high performance and high magnetic energy of rare-earth permanent magnet material, and has high temperature resistance, to ensure the stability of the operation of the motor
High Precision using double close-loop flow and pressure control, motor of speed and torque can be adjusted quickly, thus realizing the pump pressure and flow rate of the output precision control, greatly improve the repeatable precision of die-casting machine
High Efficiency can use the instantaneous overload capacity of motor and oil pump, and fast response characteristics, significantly add the system of dynamic response performance, thereby compressing the empty cycle time and energy storage time, pressure rises rapidly.
Energy Saving according to the requirements of production process to provide hydraulic power, energy saving effect is obvious, can achieve 40%-70% power saving rate
Product Specifications
| ZF18 series servo motor model specification sheet | ||||||||||||||

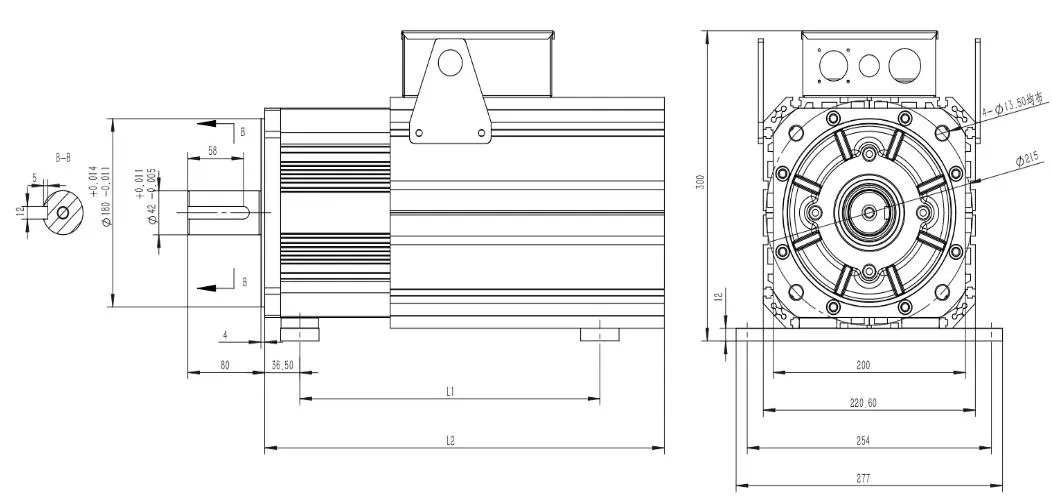

| Product series | Rated power(KW) | Rated RPM (rpm) | Rated torque(N.M) | Rated voltage(V) | Rated current(A) | Frequency(HZ) | Counter electromotive force V/**rpm | Torque constant KT(N.M/A) | Rotor inertia Kgm210-3 | Line resistance(ΩRw20ºC) | Line inductance(mH) | L1/mm | L2/mm | Notes |
| 18 | 6.7 | 1500 | 43 | 380 | 13 | 100 | 334/1500 | 3.31 | 5.8 | 1.19 | 13.2 | 312 | 344 | |
| 7.6 | 1700 | 43 | 380 | 15 | 113.3 | 310/1700 | 2.87 | 5.8 | 1.12 | 12.1 | ||||
| 9 | 2000 | 43 | 380 | 17 | 120 | 324/2000 | 2.53 | 5.8 | 0.72 | 7.6 | ||||
| 18 | 9.5 | 1500 | 62 | 380 | 19 | 100 | 315/1500 | 3.26 | 7.5 | 0.63 | 7.9 | 312 | 380 | |
| 11 | 1700 | 62 | 380 | 22 | 113.3 | 306/1700 | 2.82 | 7.5 | 0.58 | 7.9 | ||||
| 13 | 2000 | 62 | 380 | 25 | 120 | 328/2000 | 2.48 | 7.5 | 0.37 | 5.2 | ||||
| 18 | 13.5 | 1500 | 86 | 380 | 28 | 100 | 301/1500 | 3.07 | 9.8 | 0.43 | 6.5 | 312 | 416 | |
| 15.3 | 1700 | 86 | 380 | 30 | 113.3 | 307/1700 | 2.87 | 9.8 | 0.34 | 5.1 | ||||
| 18 | 2000 | 86 | 380 | 35 | 120 | 324/2000 | 2.46 | 9.8 | 0.25 | 3.8 | ||||
| 18 | 16.5 | 1500 | 105 | 380 | 34 | 100 | 297/1500 | 3.09 | 11.4 | 0.31 | 4.7 | 312 | 452 | |
| 18.7 | 1700 | 105 | 380 | 37 | 113.3 | 295/1700 | 2.84 | 11.4 | 0.31 | 4.8 | ||||
| 22 | 2000 | 105 | 380 | 45 | 120 | 297/2000 | 2.33 | 11.4 | 0.21 | 3.2 | ||||
| 18 | 20 | 1500 | 129 | 380 | 38 | 100 | 313/1500 | 3.39 | 13.1 | 0.22 | 3.9 | 312 | 488 | |
| 23 | 1700 | 129 | 380 | 45 | 113.3 | 304/1700 | 2.87 | 13.1 | 0.22 | 3.9 | ||||
| 27 | 2000 | 129 | 380 | 54 | 120 | 298/2000 | 2.39 | 13.1 | 0.15 | 2.5 | ||||
| 18 | 23.5 | 1500 | 149 | 380 | 45 | 100 | 316/1500 | 3.31 | 14.5 | 0.15 | 2.8 | 396 | 524 | |
| 26.5 | 1700 | 149 | 380 | 54 | 113.3 | 298/1700 | 2.76 | 14.5 | 0.15 | 2.8 | ||||
| 31 | 2000 | 149 | 380 | 70 | 120 | 283/2000 | 2.13 | 14.5 | 0.09 | 1.6 | ||||
| 18 | 27.5 | 1500 | 177 | 380 | 55 | 100 | 298/1500 | 3.22 | 15.9 | 0.18 | 3.5 | 396 | 560 | |
| 31.5 | 1700 | 177 | 380 | 57 | 113.3 | 330/1700 | 3.11 | 15.9 | 0.15 | 2.5 | ||||
| 37 | 2000 | 177 | 380 | 70 | 120 | 310/2000 | 2.53 | 15.9 | 0.09 | 1.9 | ||||
| 18 | 31 | 1500 | 196 | 380 | 60 | 100 | 345/1500 | 3.27 | 17.4 | 0.21 | 3.2 | 396 | 596 | |
| 35 | 1700 | 196 | 380 | 70 | 113.3 | 315/1700 | 2.80 | 17.4 | 0.27 | 2.2 | ||||
| 41 | 2000 | 196 | 380 | 92 | 120 | 278/2000 | 2.13 | 17.4 | 0.12 | 1.3 | ||||

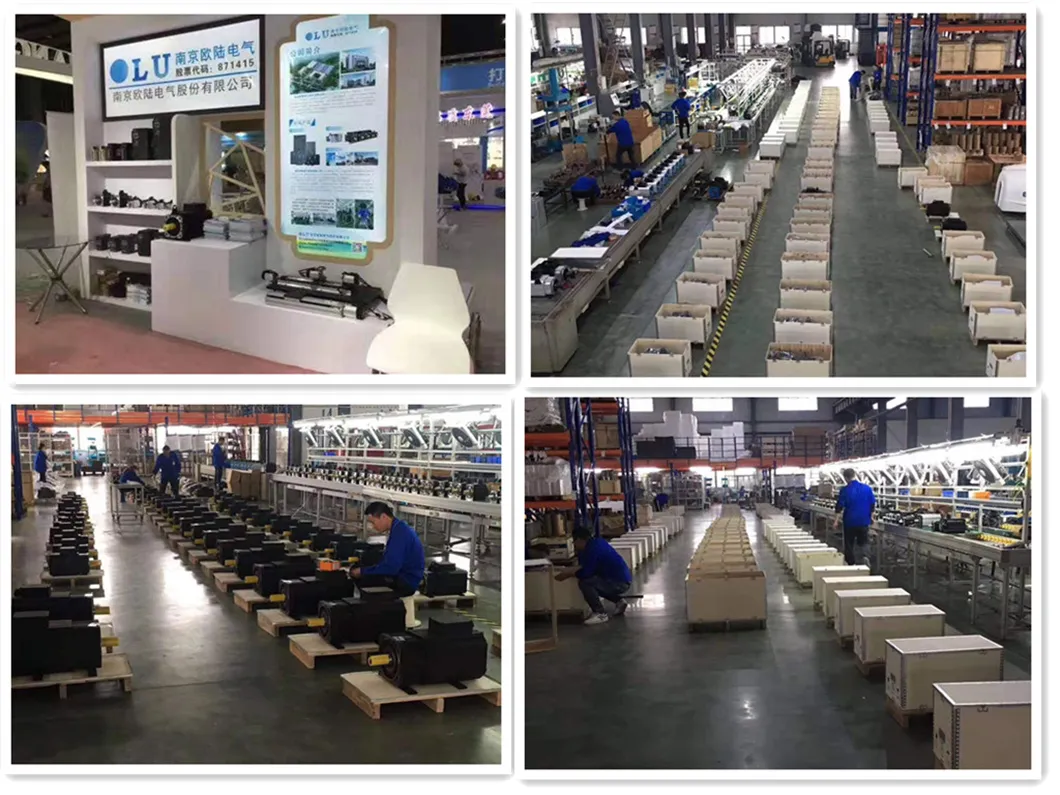

Production & Package
About OULU

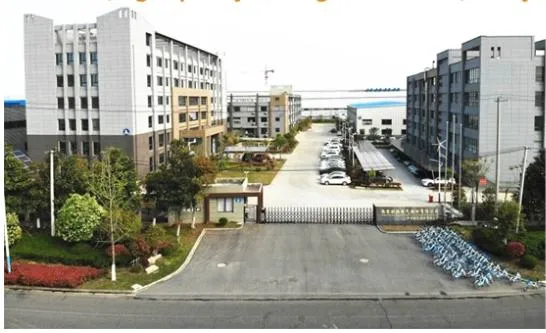

Oulu Electric Corp.,Ltd (Stock number 871415) was established in 1996 with 35000 m^2 manufacturing plant in nanjing, China. For more than 25 years we have been committed to the research&develop, manufacture and sales of new energy and industrial automation.
Our products series includes wind turbine generators, solar power system, controller, inverter, frequency changer, servo motor and servo drives with high quality.
FAQ
1. Are you factory?
Yes, we are facotry, and we produce AC motor/driver, Servo motor/driver and planetary reducer for more then 13 years in China.
2. How to select models?
Before purchasing, please contact us to confirm model No. and specifications to avoid any misunderstanding.
3. How do you ship the goods?
We normally ship goods by sea ,by express(DHL/UPS/FEDEX/EMS), and by air, also accept customer appointed.
4. Can I test sample?
Yes, sample charged can be offered for testing.
5. Can we be agent or distributor?
Yes, welcome and we will support you.
6. Can you do OEM or ODM service?
Yes, we have R&D department and accept OEM and ODM service.
7. How about warranty?
18 MONTH warranty, technical support available, we always try our best to help customers to solve problems
