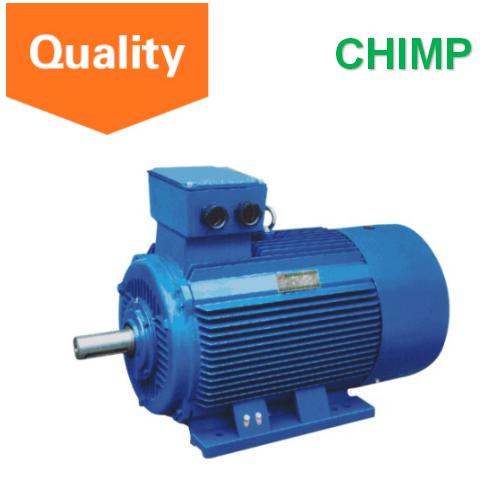

Chimp Y3 Series AC 2850rpm Electric Induction Motor ( Y3 -63M1-2)
Y3 serie motors are totally enclosed,fan cooled squirrel cage structure has novel design,beautiful appearance,compact structure,low noise,high efficiency,high torque,good start-up performance, the use of easy maintenance feature.Y3 serie motors can be widely used in machine tools,fans,pumps,reducers......
Send Inquiry
Product Description
Y3 serie motors can be widely used in machine tools,fans,pumps,reducers,compressors ,transportation,agricultural machinery,food processing and other types of mehanical transmission equipment.
Ambient air humidity:-15ºC~40ºC Elevation: less than 1000 meters
Voltage:380/400/415/440 V Frequency: 50HZ/60HZ
Continuous duty: S1 Insulation class: F
Protection class: IP55 Cooling method: IC411
| Type | Output | Rated current | Rated speed | η | Power factor | Locked-rotor current Rated current | Locked-rotor torque Rated troque | Pull-out torque Rated torque |
| KW | IN(A) | nN(rmp) | (%) | (cos Φ) | Tst/TN | Ist/TN | ||
| 380V/50Hz asynchronous Speed 3000rpm(2 poles) | ||||||||
| Y3-63M1-2 | 0.18 | 0.53 | 2720 | 65.0 | 0.80 | 2.3 | 5.5 | 2.2 |
| Y3-63M2-2 | 0.25 | 0.69 | 2720 | 68.0 | 0.81 | 2.3 | 5.5 | 2.2 |
| Y3-71M1-2 | 0.37 | 1.01 | 2755 | 69.0 | 0.81 | 2.3 | 6.1 | 2.2 |
| Y3-71M2-2 | 0.55 | 1.38 | 2790 | 74.0 | 0.82 | 2.3 | 6.1 | 2.3 |
| Y3-80M1-2 | 0.75 | 1.77 | 2845 | 75.0 | 0.83 | 2.2 | 6.1 | 2.3 |
| Y3-80M2-2 | 1.1 | 2.61 | 2835 | 76.2 | 0.84 | 2.2 | 6.9 | 2.3 |
| Y3-90S-2 | 1.5 | 3.46 | 2850 | 78.5 | 0.84 | 2.2 | 7.0 | 2.3 |
| Y3-90L-2 | 2.2 | 4.85 | 2855 | 81.0 | 0.85 | 2.2 | 7.0 | 2.3 |
| Y3-100L-2 | 3.0 | 6.34 | 2860 | 82.6 | 0.87 | 2.2 | 7.5 | 2.3 |
| Y3-112M-2 | 4.0 | 8.2 | 2880 | 84.2 | 0.88 | 2.2 | 7.5 | 2.3 |
| Y3-132S1-2 | 5.5 | 11.1 | 2900 | 85.7 | 0.88 | 2.2 | 7.5 | 2.3 |
| Y3-132S2-2 | 7.5 | 14.9 | 2900 | 87.0 | 0.88 | 2.2 | 7.5 | 2.3 |
| Y3-160M1-2 | 11 | 21.2 | 2930 | 88.4 | 0.89 | 2.2 | 7.5 | 2.3 |
| Y3-160M2-3 | 15 | 28.6 | 2930 | 89.4 | 0.89 | 2.2 | 7.5 | 2.3 |
| Y3-160L-2 | 18.5 | 34.7 | 2930 | 90.0 | 0.90 | 2.2 | 7.5 | 2.3 |
| Y3-180M-2 | 22 | 41 | 2940 | 90.5 | 0.90 | 2.0 | 7.5 | 2.3 |
| Y3-200L1-2 | 30 | 55.4 | 2950 | 91.4 | 0.90 | 2.0 | 7.5 | 2.3 |
| Y3-200L2-2 | 37 | 67.9 | 2950 | 92.0 | 0.90 | 2.0 | 7.5 | 2.3 |
| Y3-225M-2 | 45 | 82.1 | 2960 | 92.5 | 0.90 | 2.0 | 7.5 | 2.3 |
| Y3-250M-2 | 55 | 100 | 2970 | 93.0 | 0.90 | 2.0 | 7.5 | 2.3 |
| Y3-280S-2 | 75 | 135 | 2975 | 93.6 | 0.90 | 2.0 | 7.0 | 2.3 |
| Y3-280M-2 | 90 | 160 | 2975 | 93.9 | 0.91 | 2.0 | 7.1 | 2.3 |
| Y3-315S-2 | 110 | 195 | 2975 | 94.0 | 0.91 | 1.8 | 7.1 | 2.2 |
| Y3-315M-2 | 132 | 233 | 2975 | 94.5 | 0.91 | 1.8 | 7.1 | 2.2 |
| Y3-315L1-2 | 160 | 282 | 2975 | 94.6 | 0.91 | 1.8 | 7.1 | 2.2 |
| Y3-315L2-2 | 200 | 348 | 2975 | 94.8 | 0.92 | 1.6 | 7.1 | 2.2 |
| Y3-315M-2 | 250 | 433 | 2980 | 95.2 | 0.92 | 1.6 | 7.1 | 2.2 |
| Y3-315L-2 | 315 | 545 | 2980 | 95.4 | 0.92 | 1.6 | 7.1 | 2.2 |
